Toyota Lexus TX Series
2023-09 → present · chassis GYU15,TAUA1#,TAUH15 · catalogue 557410 · United States
Supported model
Data version 2024-08

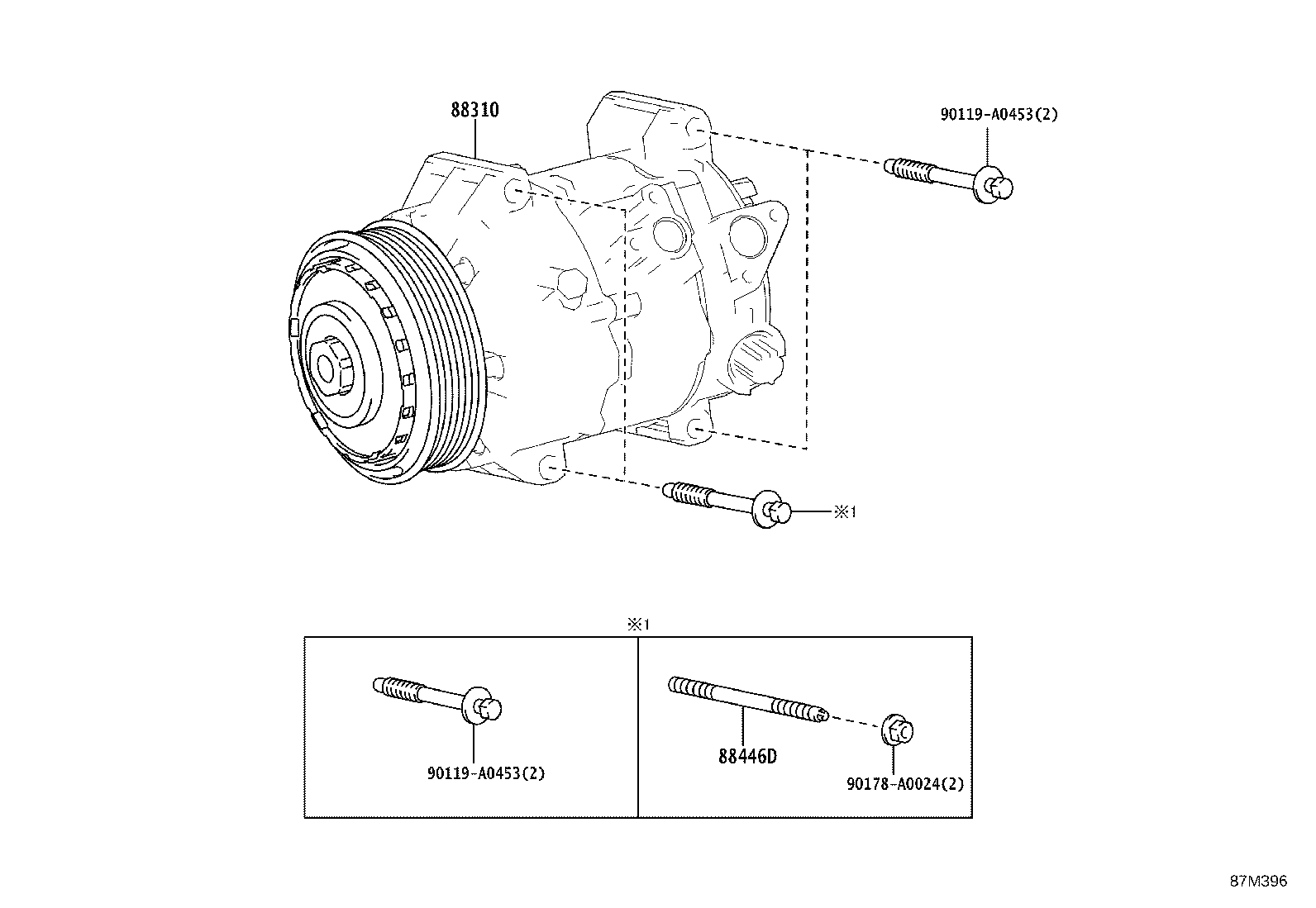

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 88310 — Compressor Assy, W/Pulley | ||||
| 88310-0E210 |
Compressor Assy, W/Pulley
2023-09 → —
|
TAUA1# G,M,N | — | |
| 88310-0E210 |
Compressor Assy, W/Pulley
2024-12 → —
|
TAUA15 S | — | |
| 88446D — Bolt, Cooler | ||||
| 88446-08070 |
Bolt, Cooler
2023-09 → —
|
TAUA1# G,M,N | — | |
| 88446-08070 |
Bolt, Cooler
2024-12 → —
|
TAUA15 S | — | |
| 88899-44010 |
Bolt, Cooler
2023-09 → —
|
GYU15,TAUH15 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
