Toyota Lexus TX Series
2023-09 → present · chassis GYU15,TAUA1#,TAUH15 · catalogue 557410 · United States
Supported model
Data version 2024-08
Cylinder Head
67 part groups · 7 illustrations
Part groups
| PNC | Description |
|---|---|

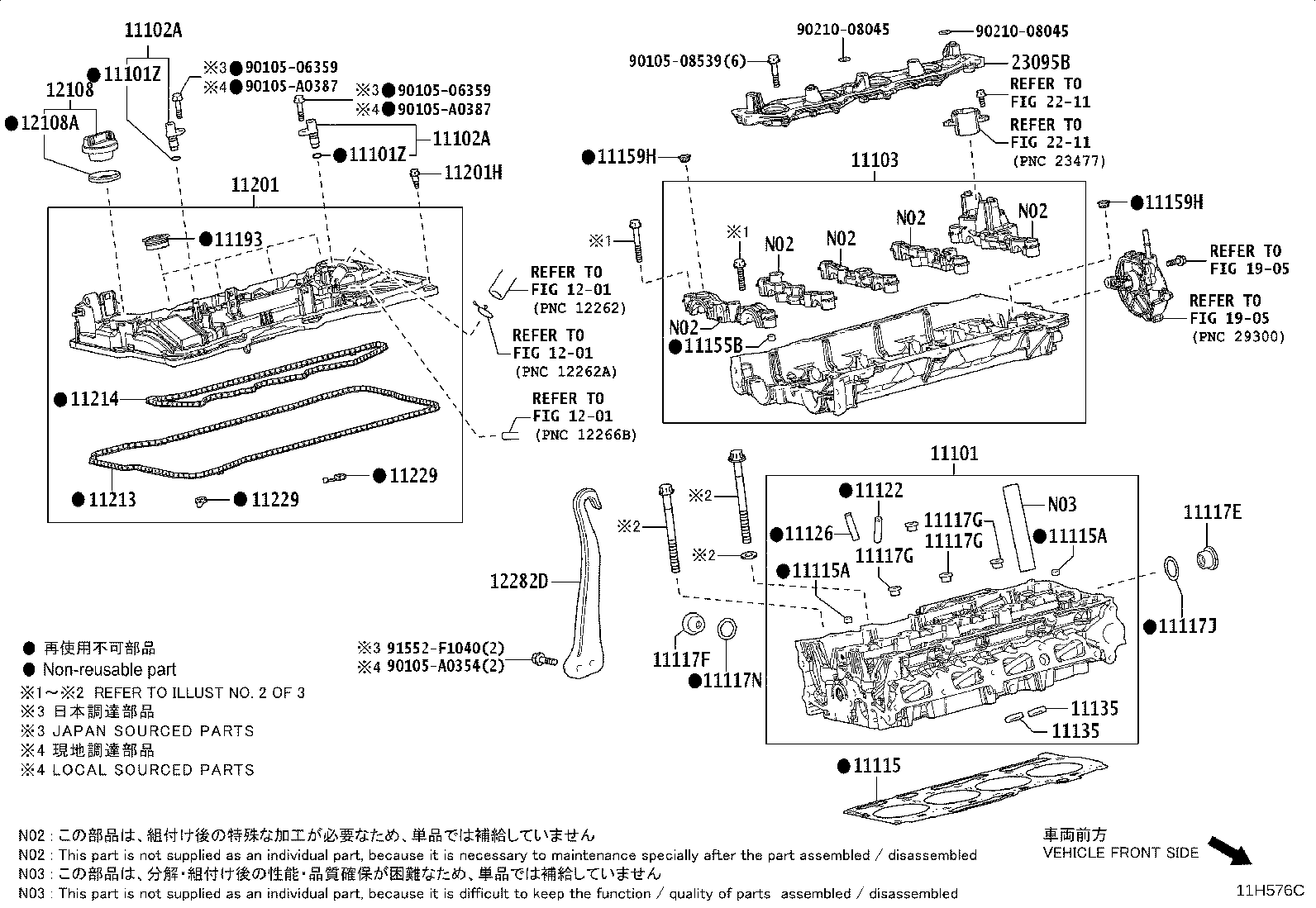

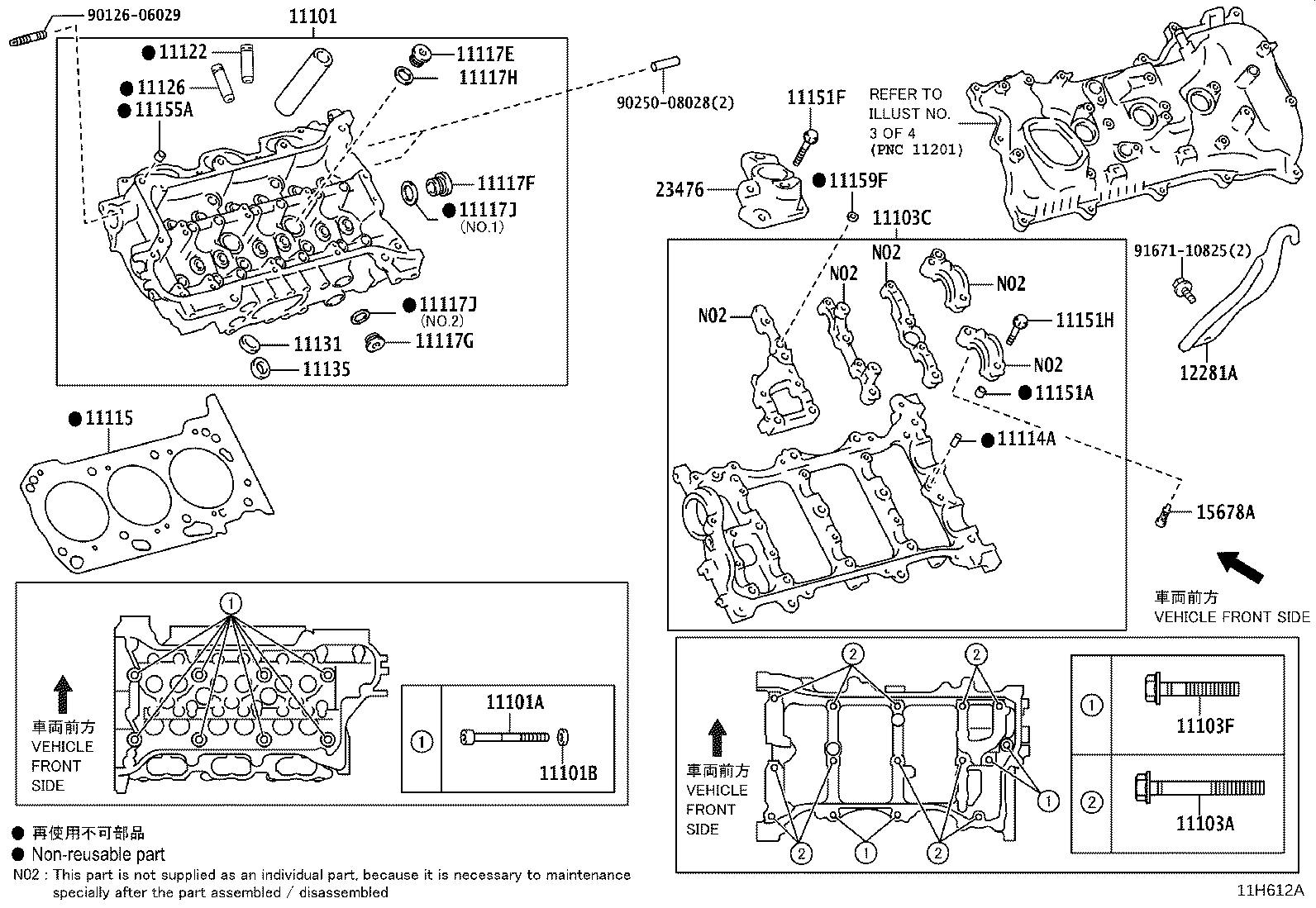

| 11101 | Head Sub-assy, Cylinder |

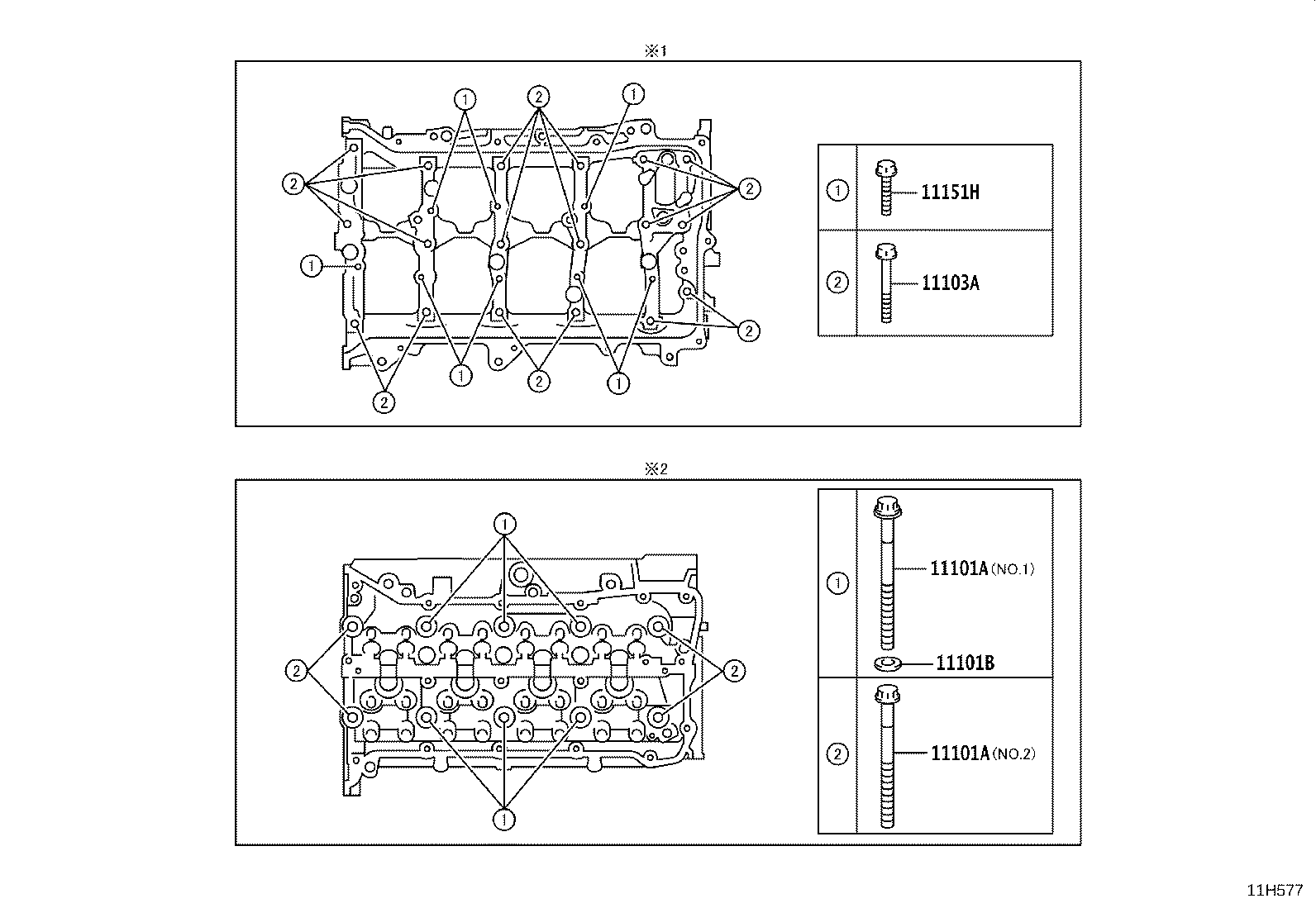

| 11101A | Bolt(FOR CYLINDER HEAD SET) |
| 11101B | Washer, Plate(FOR CYLINDER HEAD SET) |
| 11101E | Sensor, Cam Position |
| 11101Z | O Ring, Cam Position Sensor |
| 11102 | Head, Cylinder, LH |
| 11102A | Sensor, Camshaft Position |
| 11103 | Housing Sub-assy, Camshaft |
| 11103A | Bolt(FOR CAMSHAFT HOUSING SET) |
| 11103C | Housing Sub-assy, Camshaft, RH |
| 11103F | Bolt(FOR CAMSHAFT HOUSING SET) |
| 11104A | Housing Sub-assy, Camshaft, LH |
| 11114A | Pin, Straight |
| 11115 | Gasket, Cylinder Head |
| 11115A | Pin, Ring |
| 11116 | Gasket, Cylinder Head, NO.2 |
| 11117E | Plug, W/Head Straight Screw, NO.1 |
| 11117F | Plug, W/Head Straight Screw, NO.2 |
| 11117G | Plug, W/Head Straight Screw, NO.3 |
| 11117H | Gasket(FOR WATER HOLE) |
| 11117J | Gasket(FOR CYLINDER HEAD SCREW PLUG) |
| 11117N | Gasket(FOR CYLINDER HEAD SCREW PLUG NO.2) |
| 11122 | Bush, Intake Valve Guide |
| 11122B | Bush, Intake Valve Guide, NO.2 |
| 11126 | Bush, Exhaust Valve Guide |
| 11126B | Bush, Exhaust Valve Guide, NO.2 |
| 11131 | Seat, Intake Valve |
| 11131A | Seat, Intake Valve, NO.2 |
| 11135 | Seat, Exhaust Valve |
| 11135A | Seat, Exhaust Valve, NO.2 |
| 11151A | Pin, Ring(FOR CAMSHAFT BEARING CAP SETTING) |
| 11151F | Bolt(FOR CAMSHAFT BEARING CAP TO HOUSING RH, NO.2) |
| 11151H | Bolt(FOR CAMSHAFT BEARING CAP TO HOUSING) |
| 11155A | Pin, Ring W/Head |
| 11155B | Pin, Ring |
| 11159A | Bolt(FOR HEAD TO CAMSHAFT BEARING CAP) |
| 11159F | Gasket, Camshaft Bearing Cap Oil Hole, RH |
| 11159G | Gasket, Camshaft Bearing Cap Oil Hole, LH |
| 11159H | Gasket, Camshaft Bearing Cap Oil Hole |
| 11193 | Gasket, Spark Plug Tube |
| 11193A | Gasket, Spark Plug Tube, LH |

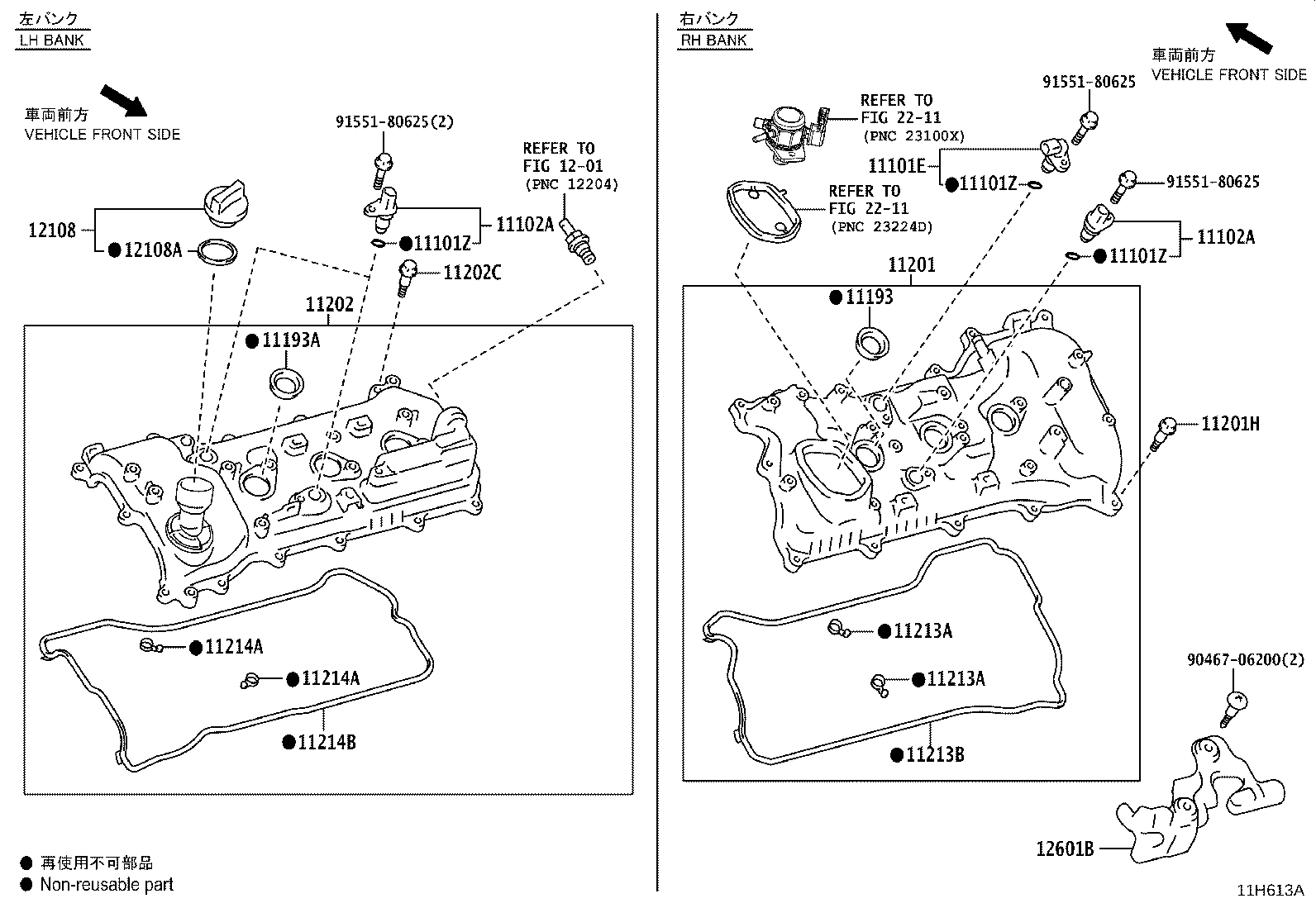

| 11201 | Cover Sub-assy, Cylinder Head |
| 11201H | Bolt(FOR CYLINDER HEAD COVER) |
| 11202 | Cover Sub-assy, Cylinder Head, LH |
| 11202C | Bolt(FOR CYLINDER HEAD COVER LH) |

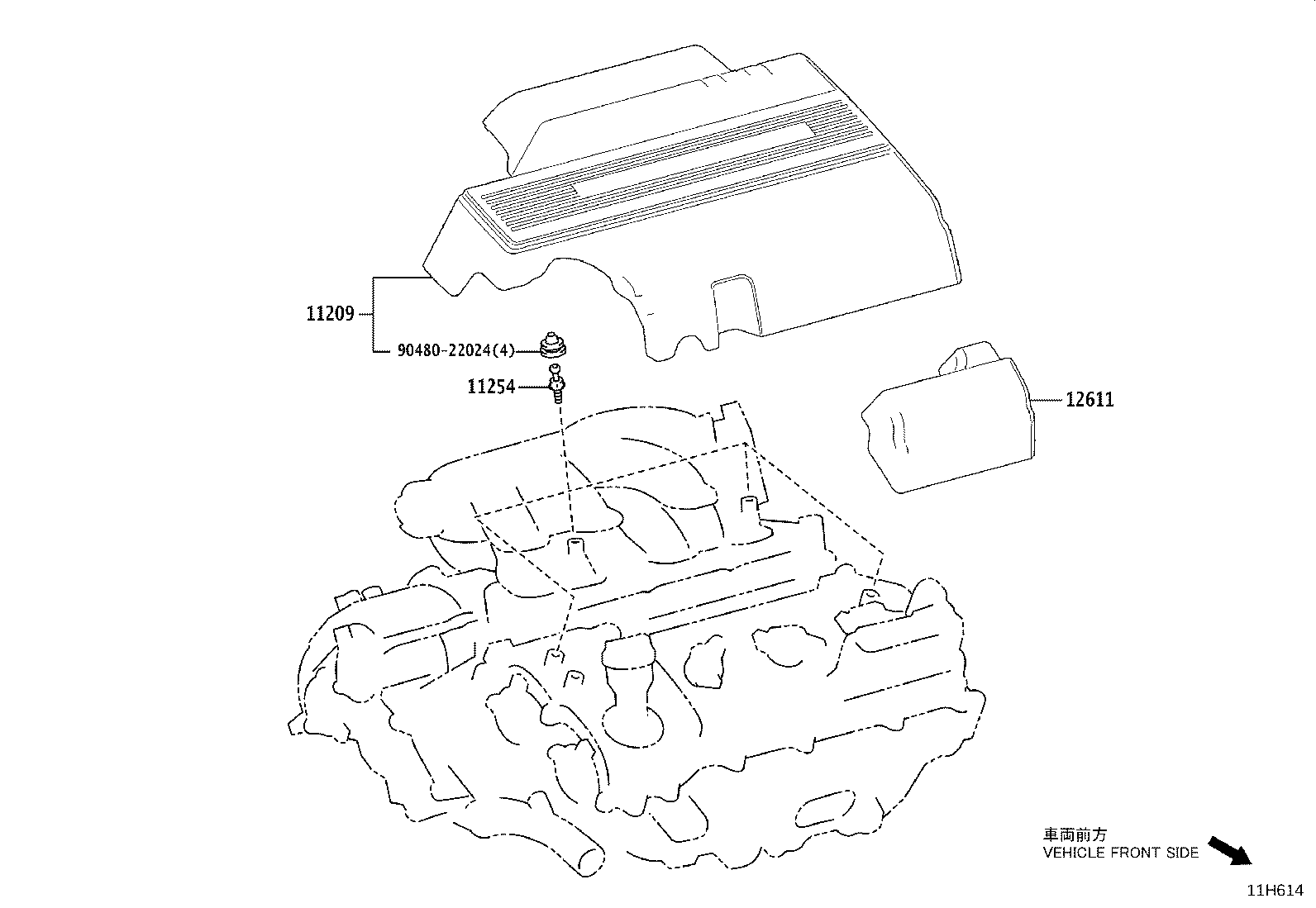

| 11209 | Cover Sub-assy, V-bank |
| 11213 | Gasket, Cylinder Head Cover |
| 11213A | Gasket, Cylinder Head Cover, RH NO.1 |
| 11213B | Gasket, Cylinder Head Cover, RH NO.2 |
| 11214 | Gasket, Cylinder Head Cover, NO.2 |
| 11214A | Gasket, Cylinder Head Cover, LH NO.1 |
| 11214B | Gasket, Cylinder Head Cover, LH NO.2 |
| 11229 | Gasket, Cylinder Head Cover, NO.3 |
| 11249 | Grommet, Cylinder Head Cover |
| 11254 | Bracket, V-bank Cover, NO.1 |
| 12108 | Cap Sub-assy, Oil Filler |
| 12108A | Gasket(FOR OIL FILLER CAP) |
| 12281A | Hanger, Engine, NO.1 |
| 12282D | Hanger, Engine, NO.2 |

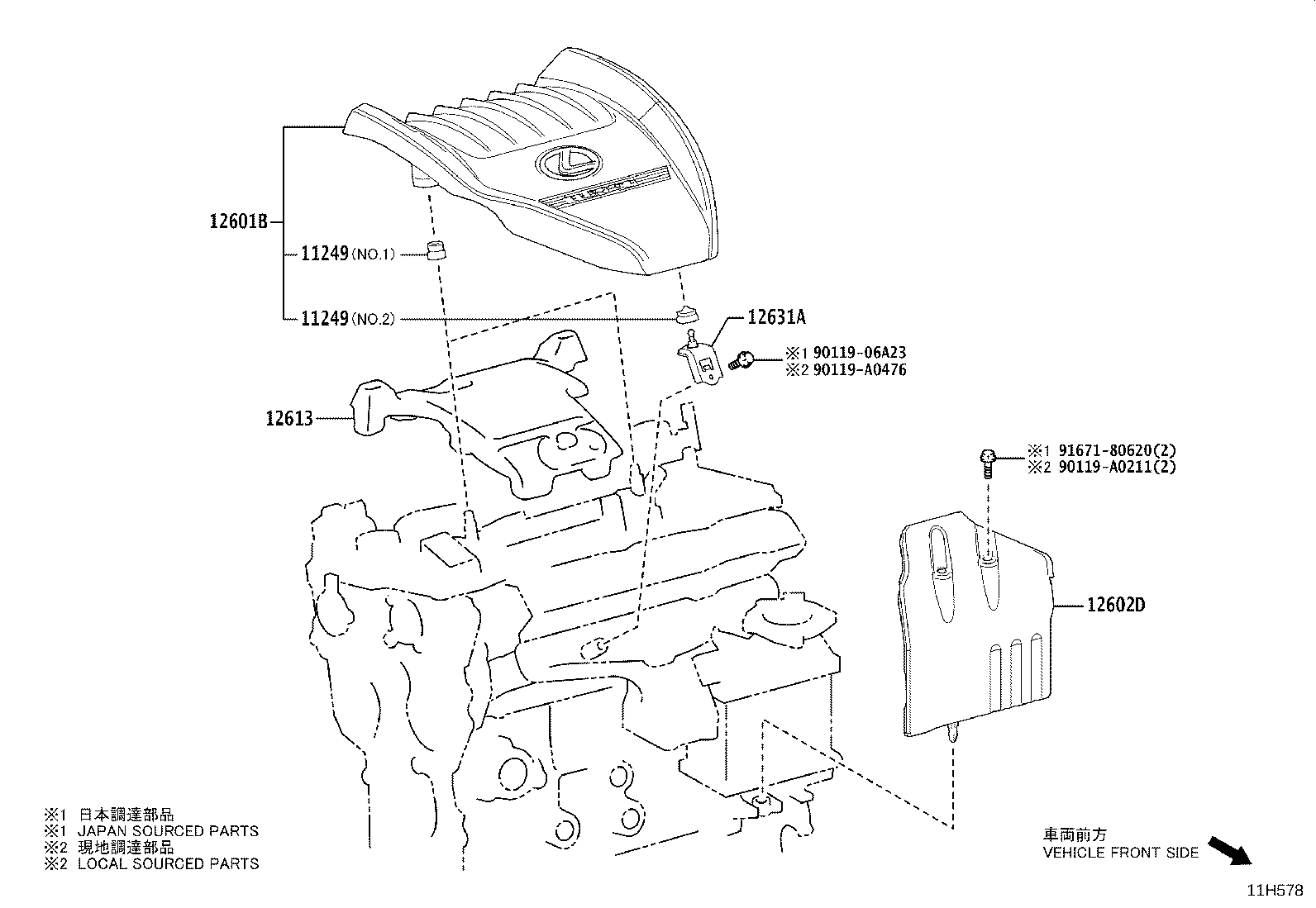

| 12601B | Cover Sub-assy, Engine, NO.1 |
| 12602D | Cover Sub-assy, Engine, NO.2 |
| 12611 | Cover, Engine, NO.1 |
| 12613 | Cover, Engine, NO.3 |
| 12631A | Bracket, Engine Cover |
| 15678A | Filter, Oil Control Valve |
| 23095B | Holder Sub-assy, Injector |
| 23476 | Housing, Fuel Pump Lifter |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
