Toyota Lexus TX Series
2023-09 → present · chassis GYU15,TAUA1#,TAUH15 · catalogue 557410 · United States
Supported model
Data version 2024-08

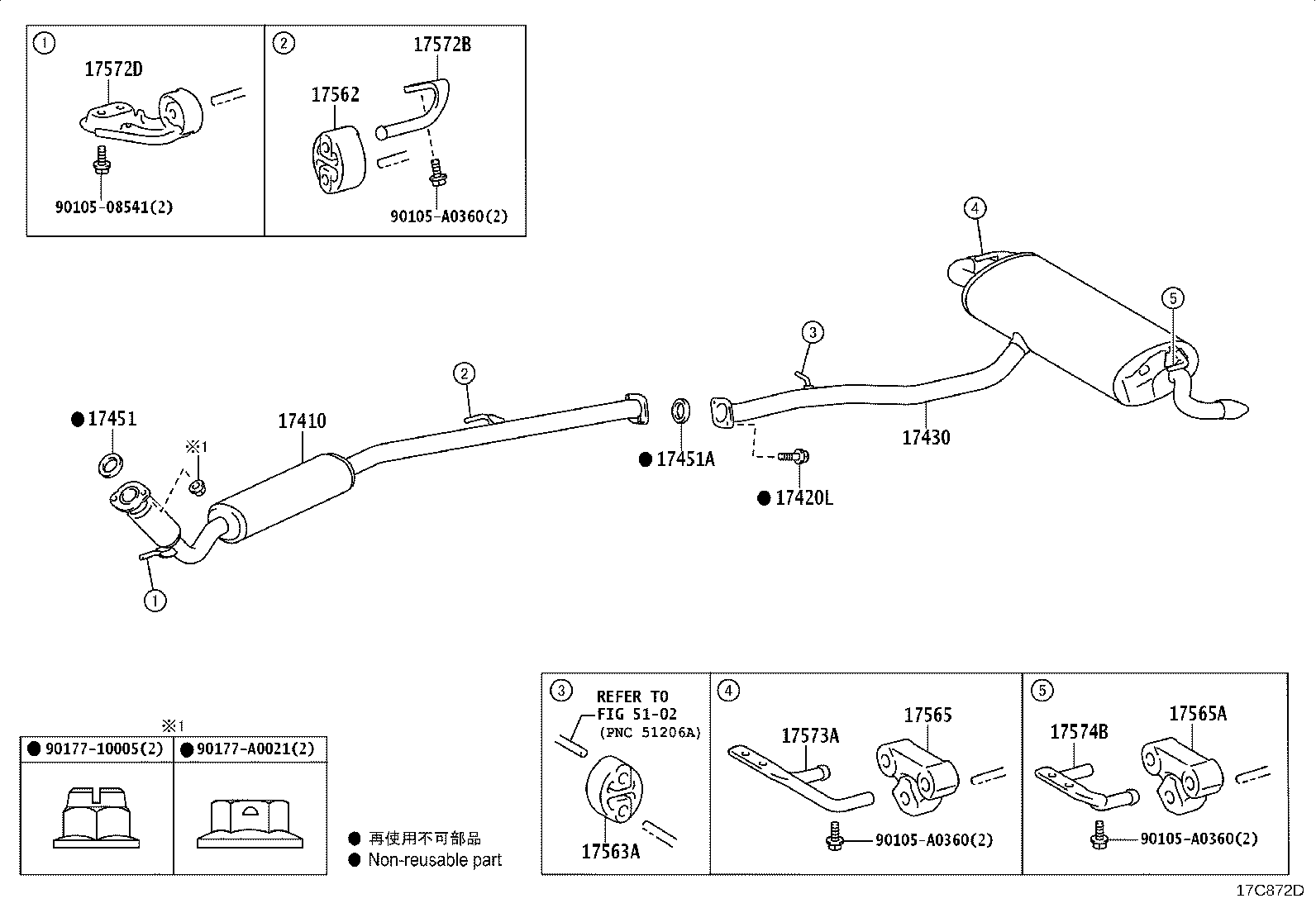

Exhaust Pipe
21 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 17401 | Pipe Sub-assy, Exhaust, Front |
| 17402 | Pipe Sub-assy, Exhaust, Front NO.2 |
| 17410 | Pipe Assy, Exhaust, Front |
| 17420L | Bolt, Flange(FOR EXHAUST PIPE) |
| 17430 | Pipe Assy, Exhaust, Tail |
| 17451 | Gasket, Exhaust Pipe |
| 17451A | Gasket, Exhaust Pipe, NO.2 |
| 17451C | Gasket, Exhaust Pipe, NO.3 |
| 17451D | Gasket, Exhaust Pipe, NO.4 |
| 17561C | Support, Exhaust Pipe, NO.1 |
| 17562 | Support, Exhaust Pipe, NO.2 |
| 17563A | Support, Exhaust Pipe, NO.3 |
| 17564 | Support,Exhaust Pipe, NO.4 |
| 17565 | Support, Exhaust Pipe, NO.5 |
| 17565A | Support, Exhaust Pipe, NO.4 |
| 17572B | Bracket, Exhaust Pipe Support, NO.2 |
| 17572D | Bracket, Exhaust Pipe Support, NO.1 |
| 17573A | Bracket, Exhaust Pipe Support, NO.3 |
| 17574B | Bracket, Exhaust Pipe Support, NO.4 |
| 17576A | Bracket, Exhaust Pipe Support, NO.6 |
| 17577 | Bracket, Exhaust Pipe Support, NO.7 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
