Toyota Lexus TX Series
2023-09 → present · chassis GYU15,TAUA1#,TAUH15 · catalogue 557410 · United States
Supported model
Data version 2024-08

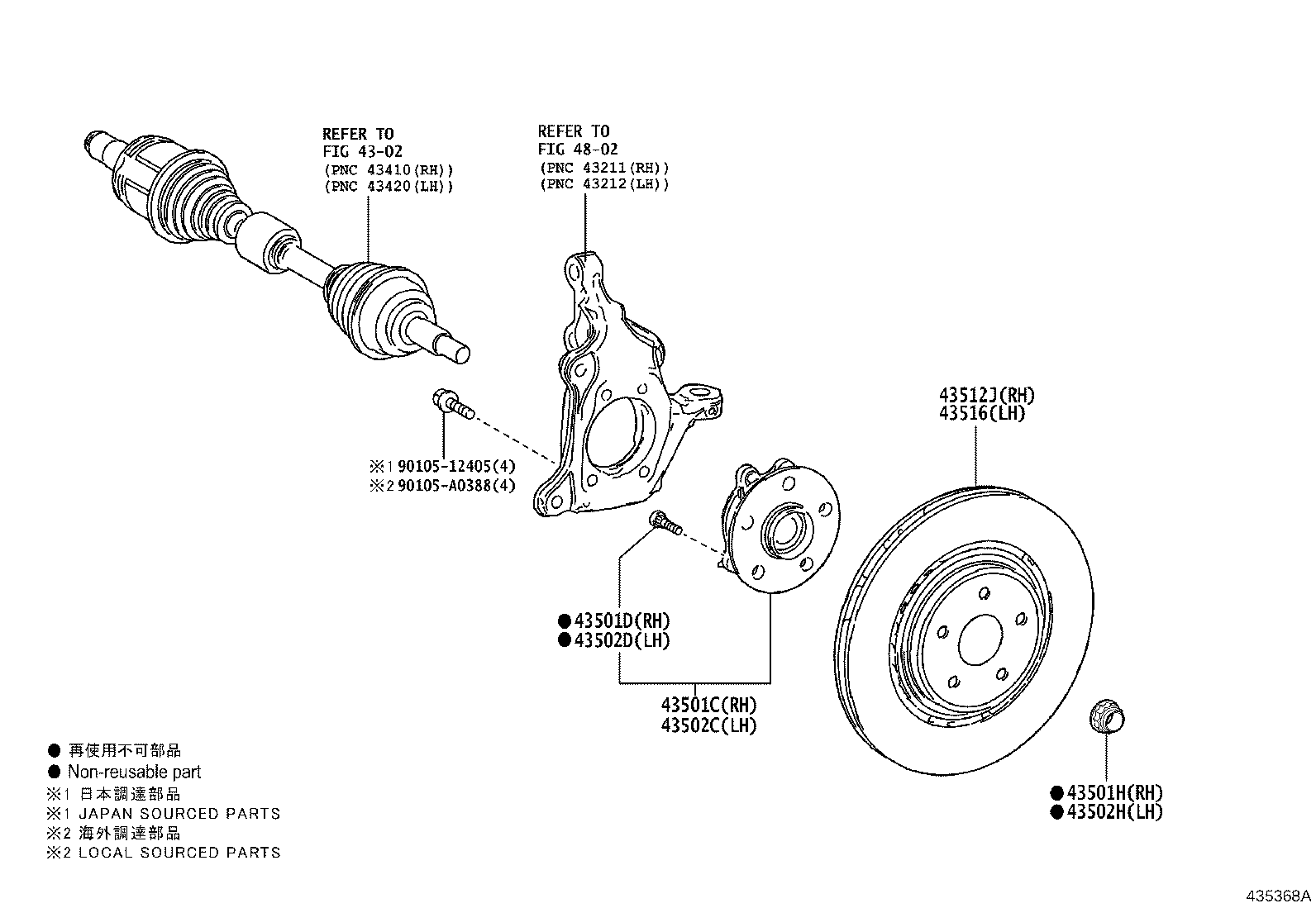

Front Axle Hub
8 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 43501C | Hub Sub-assy, Front Axle, RH |
| 43501D | Bolt, Hub (FOR FRONT AXLE RH) |
| 43501H | Nut (FOR FRONT AXLE SHAFT RH) |
| 43502C | Hub Sub-assy, Front Axle, LH |
| 43502D | Bolt, Hub (FOR FRONT AXLE LH) |
| 43502H | Nut (FOR FRONT AXLE SHAFT LH) |
| 43512J | Disc, Front RH |
| 43516 | Disc, Front LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
