Toyota Lexus TX Series

2023-09 → present · chassis GYU15,TAUA1#,TAUH15 · catalogue 557410 · United States

Supported model Data version 2024-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Wheel

7 part groups · 2 illustrations

Illustrations

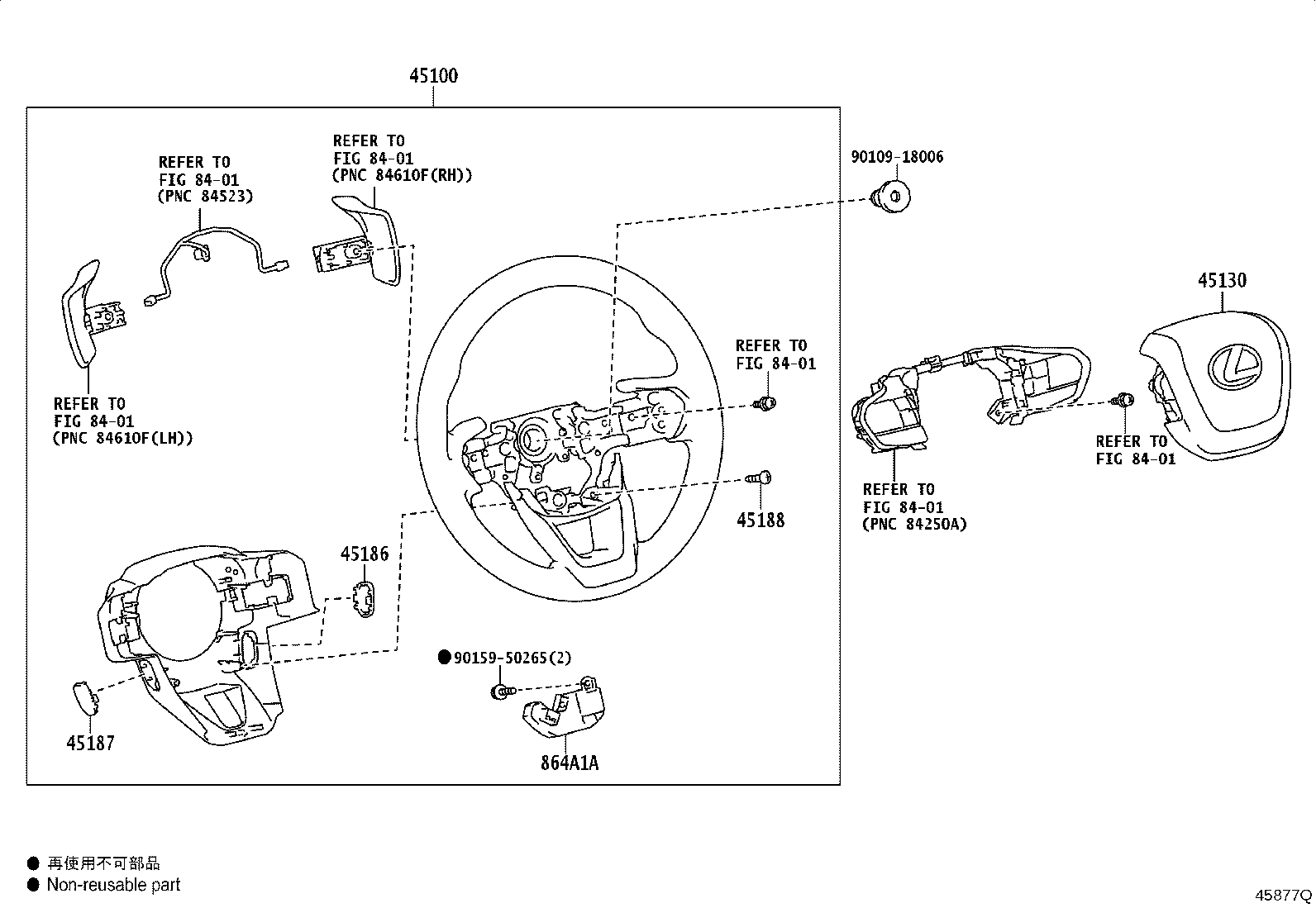

Figure 458690B 458690B 2023-09 → — Figure 45877Q 45877Q 2023-12 → —

Part groups

PNCDescription
45100 Wheel Assy, Steering
45130 Button Assy, Horn
45184 Cover, Steering Wheel Boss, Lower
45186 Cover, Steering Wheel, Lower NO.2
45187 Cover, Steering Wheel, Lower NO.3
45188 Screw, Steering Wheel Pad Attaching
864A1A Computer, Multiplex Network Steering
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
