Toyota Lexus TX Series
2023-09 → present · chassis GYU15,TAUA1#,TAUH15 · catalogue 557410 · United States
Supported model
Data version 2024-08

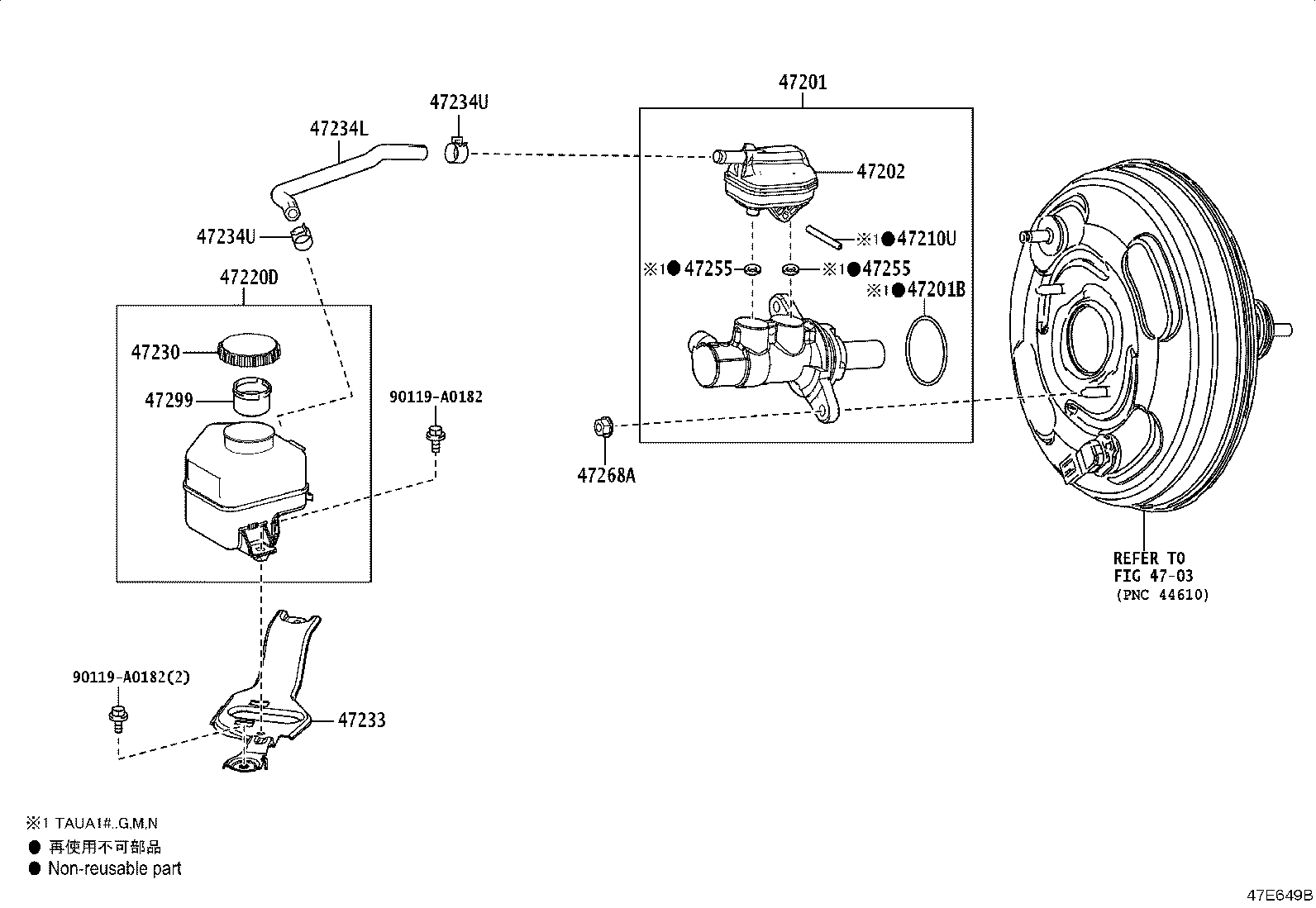

Brake Master Cylinder
15 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 47201 | Cylinder Sub-assy, Brake Master |
| 47201B | Ring, O(FOR BRAKE MASTER CYLINDER) |
| 47202 | Reservoir Sub-assy, Brake Master Cylinder |
| 47210L | Brake Booster Assy, W/Master Cylinder |
| 47210U | Pin, Straight(FOR BRAKE MASTER CYLINDER) |
| 47220D | Reservoir Assy, Brake Master Cylinder |
| 47230 | Cap Assy, Brake Master Cylinder Reservoir Filler |
| 47233 | Bracket, Reservoir |
| 47234L | Hose, Reservoir, NO.1 |
| 47234U | Clip(FOR RESERVOIR HOSE NO.1) |
| 47255 | Grommet, Master Cylinder Reservoir |
| 47262 | Nut, Master Cylinder Push Rod |
| 47264 | Clevis, Master Cylinder Push Rod |
| 47268A | Nut, Brake Master Cylinder |
| 47299 | Strainer, Brake Master Cylinder Reservoir |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
