Toyota Lexus TX Series
2023-09 → present · chassis GYU15,TAUA1#,TAUH15 · catalogue 557410 · United States
Supported model
Data version 2024-08

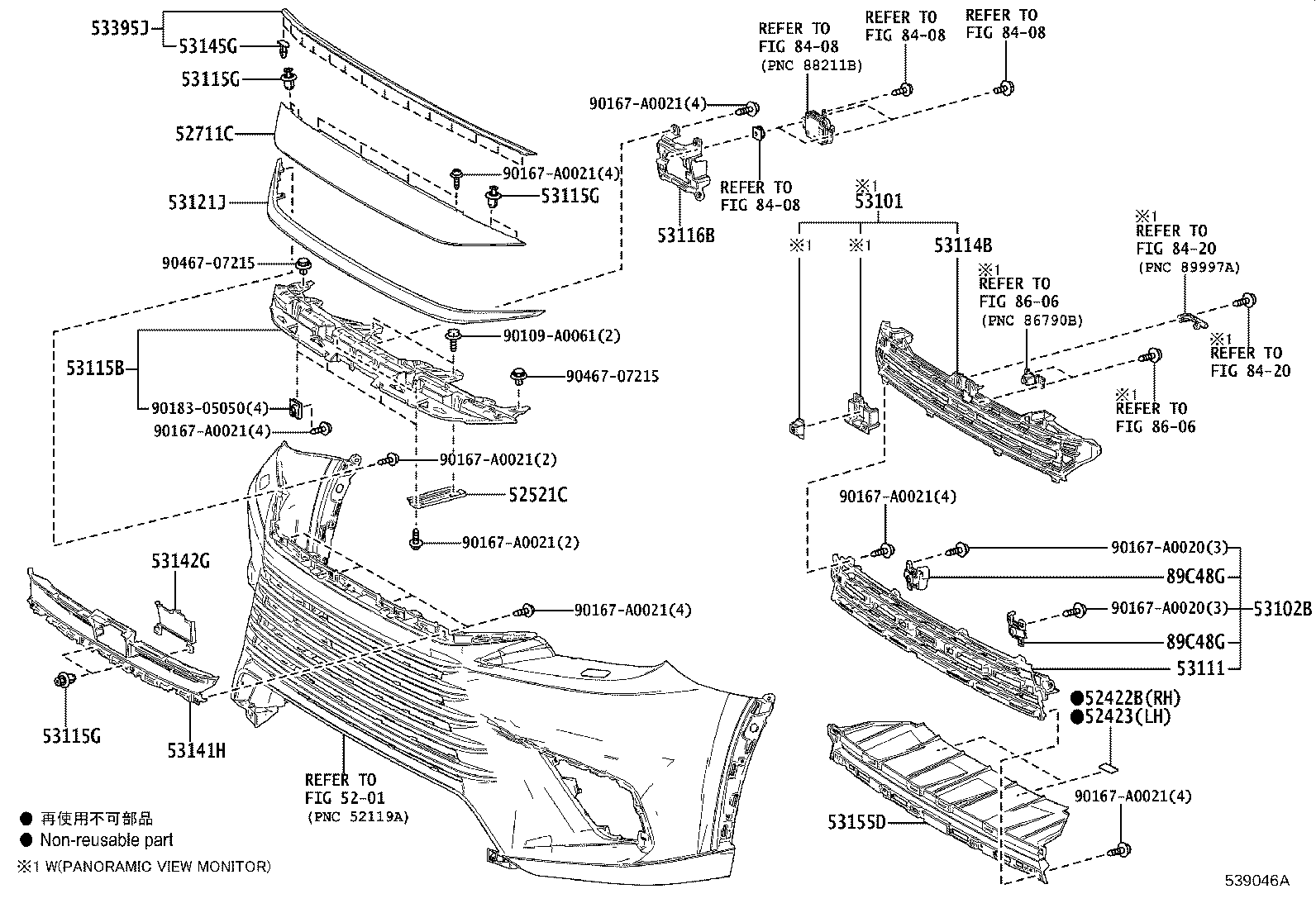

Radiator Grille
18 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 52422B | Pad, Front Bumper, RH |
| 52423 | Pad, Front Bumper, LH |
| 52521C | Retainer, Front Bumper, Upper |
| 52711C | Moulding, Front Bumper |
| 53101 | Grille Sub-assy, Radiator |
| 53102B | Grille Sub-assy, Radiator, Lower |
| 53111 | Grille, Radiator |
| 53114B | Grille, Radiator, Upper |
| 53115B | Bracket, Radiator Grille |
| 53115G | Clip, Radiator Grille Bracket |
| 53116B | Bracket, Radiator Grille, NO.2 |
| 53121J | Moulding, Radiator Grille, NO.1 |
| 53141H | Garnish, Radiator Grille |
| 53142G | Garnish, Radiator Grille, NO.2 |
| 53145G | Clip, Radiator Grille |
| 53155D | Seal, Radiator Grille, NO.1 |
| 53395J | Seal, Hood TO Front End Panel |
| 89C48G | Retainer, Ultrasonic Sensor, Front Center |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
