Toyota Lexus TX Series

2023-09 → present · chassis GYU15,TAUA1#,TAUH15 · catalogue 557410 · United States

Supported model Data version 2024-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mat & Carpet

16 part groups · 4 illustrations

Illustrations

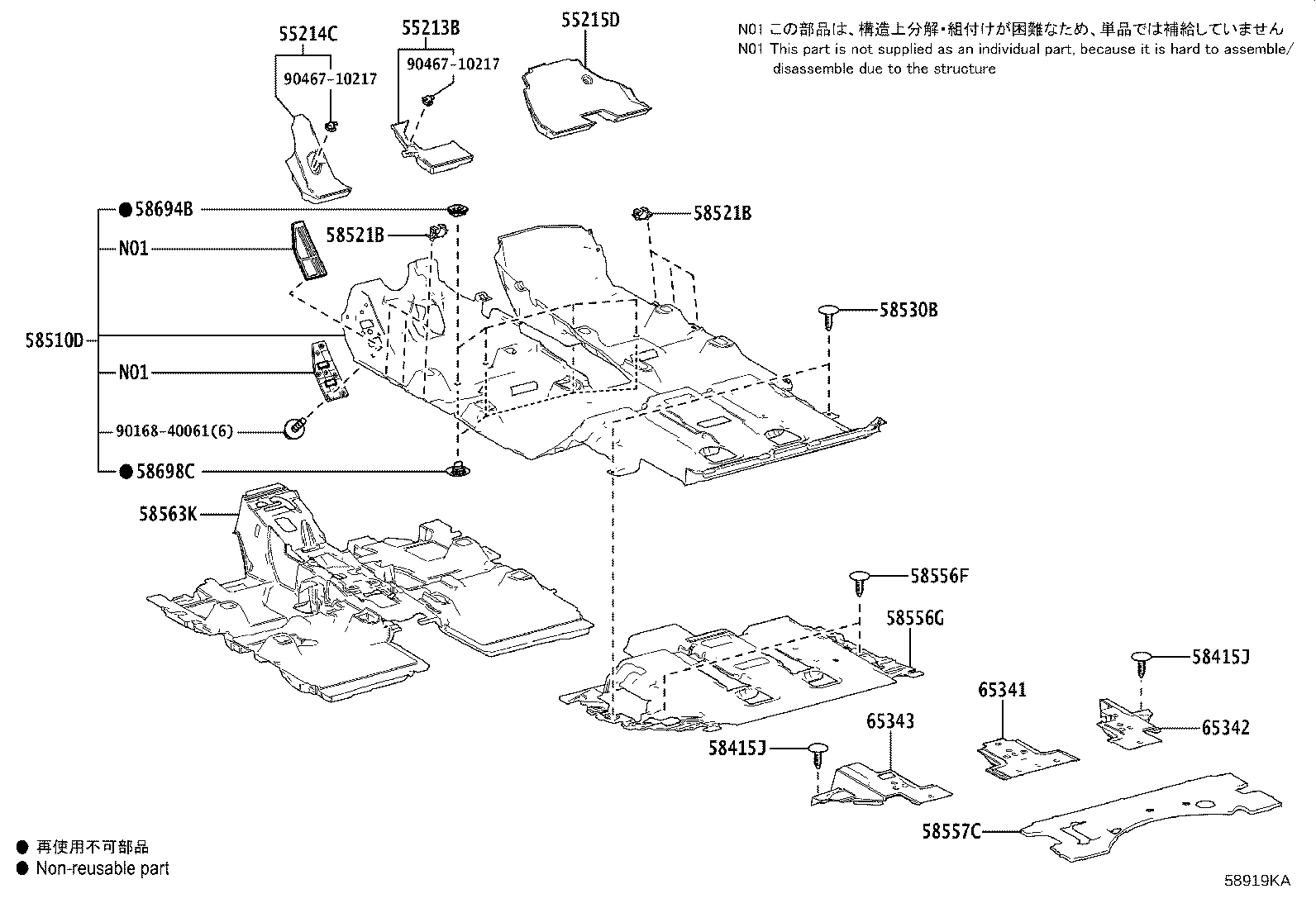

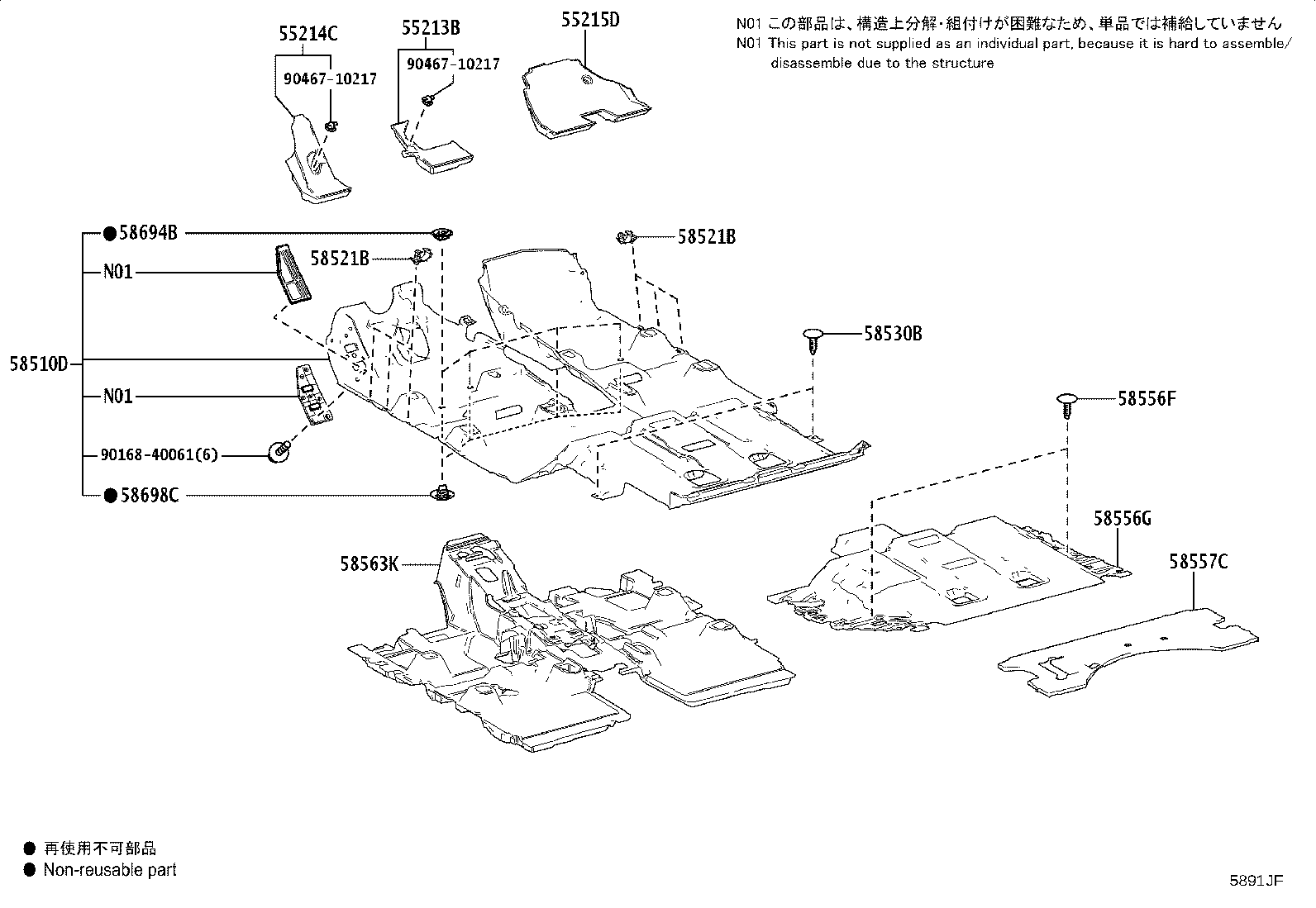

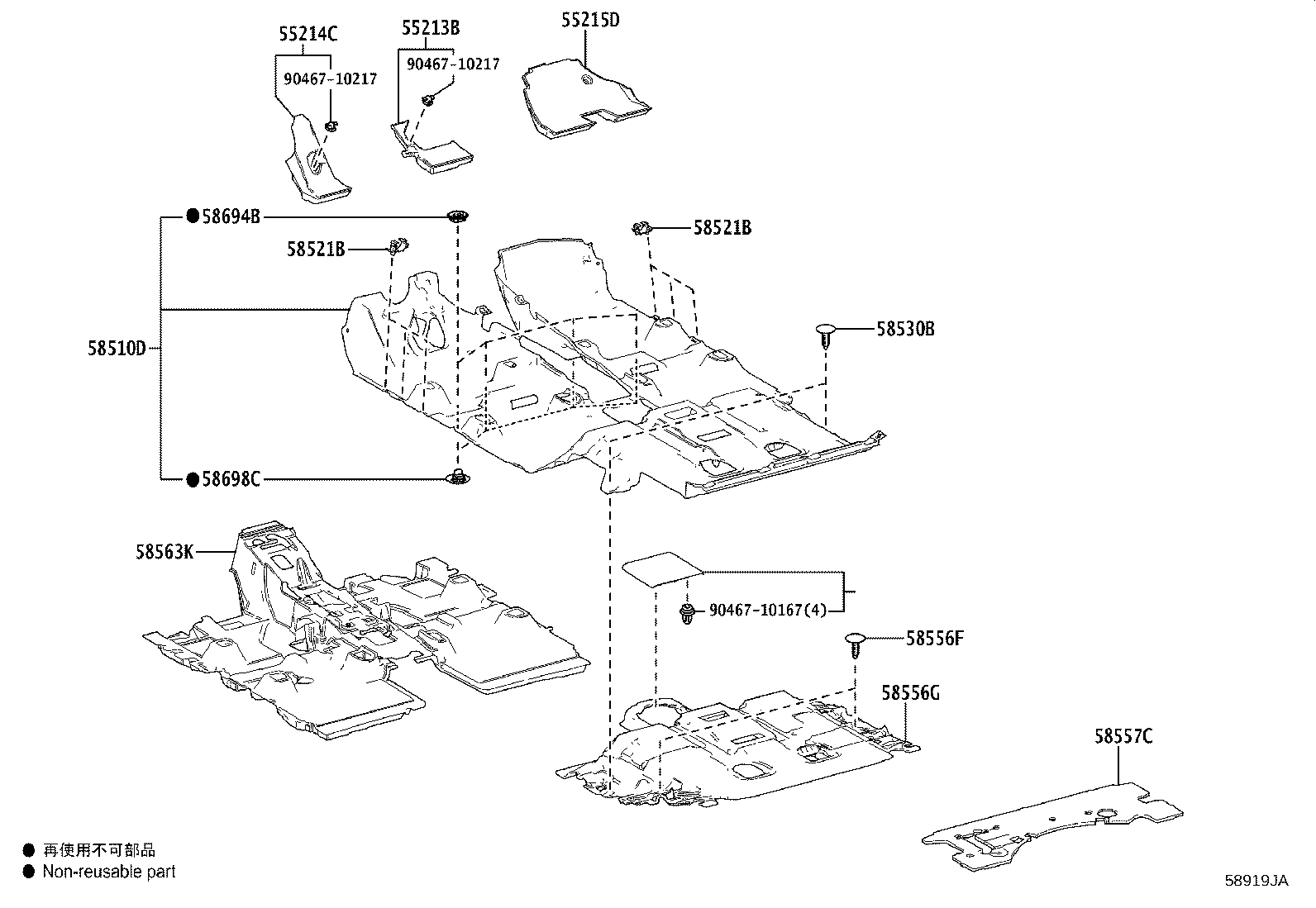

Figure 58919CA 58919CA 2023-09 → — Figure 5891JF 5891JF 2024-09 → — Figure 58919JA 58919JA 2023-09 → — Figure 58919KA 58919KA 2023-09 → —

Part groups

PNCDescription
55213B Pad, Dash Panel Insulator, NO.1
55214C Pad, Dash Panel Insulator, NO.2
55215D Pad, Dash Panel Insulator, NO.3
58415J Clip, Rear Floor Board
58510D Carpet Assy, Floor, Front
58521B Hook, Floor Carpet
58530B Clip(FOR FRONT FLOOR CARPET)
58556F Clip, Rear Floor Silencer
58556G Silencer, Rear Floor, NO.1
58557C Silencer, Rear Floor, NO.2
58563K Silencer, Front Floor
58694B Plate, Mat Set, Upper
58698C Plate, Mat Set, Lower
65341 Board, Floor, NO.1
65342 Board, Floor, NO.2
65343 Board, Floor, NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
