Toyota Lexus TX Series
2023-09 → present · chassis GYU15,TAUA1#,TAUH15 · catalogue 557410 · United States
Supported model
Data version 2024-08

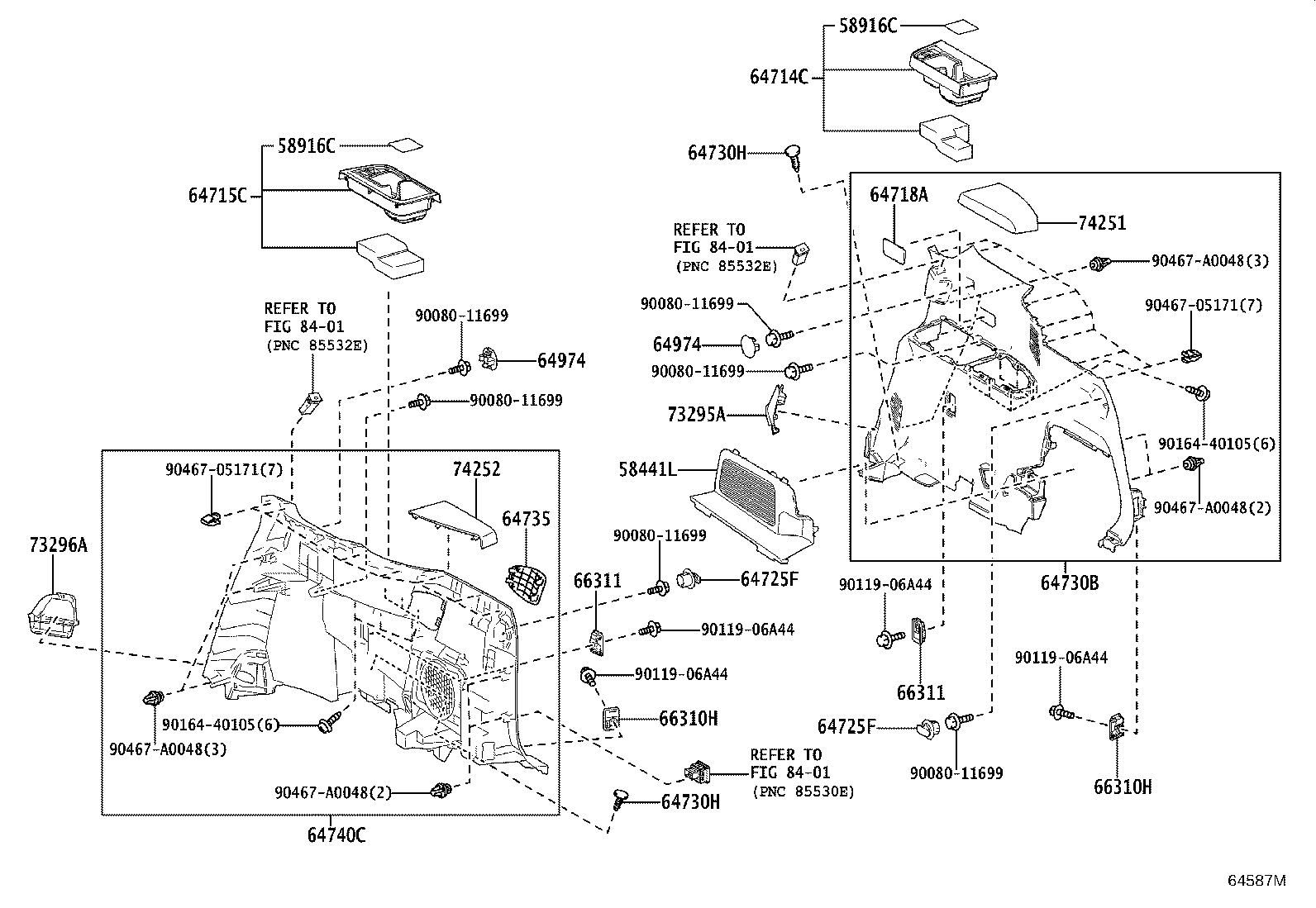

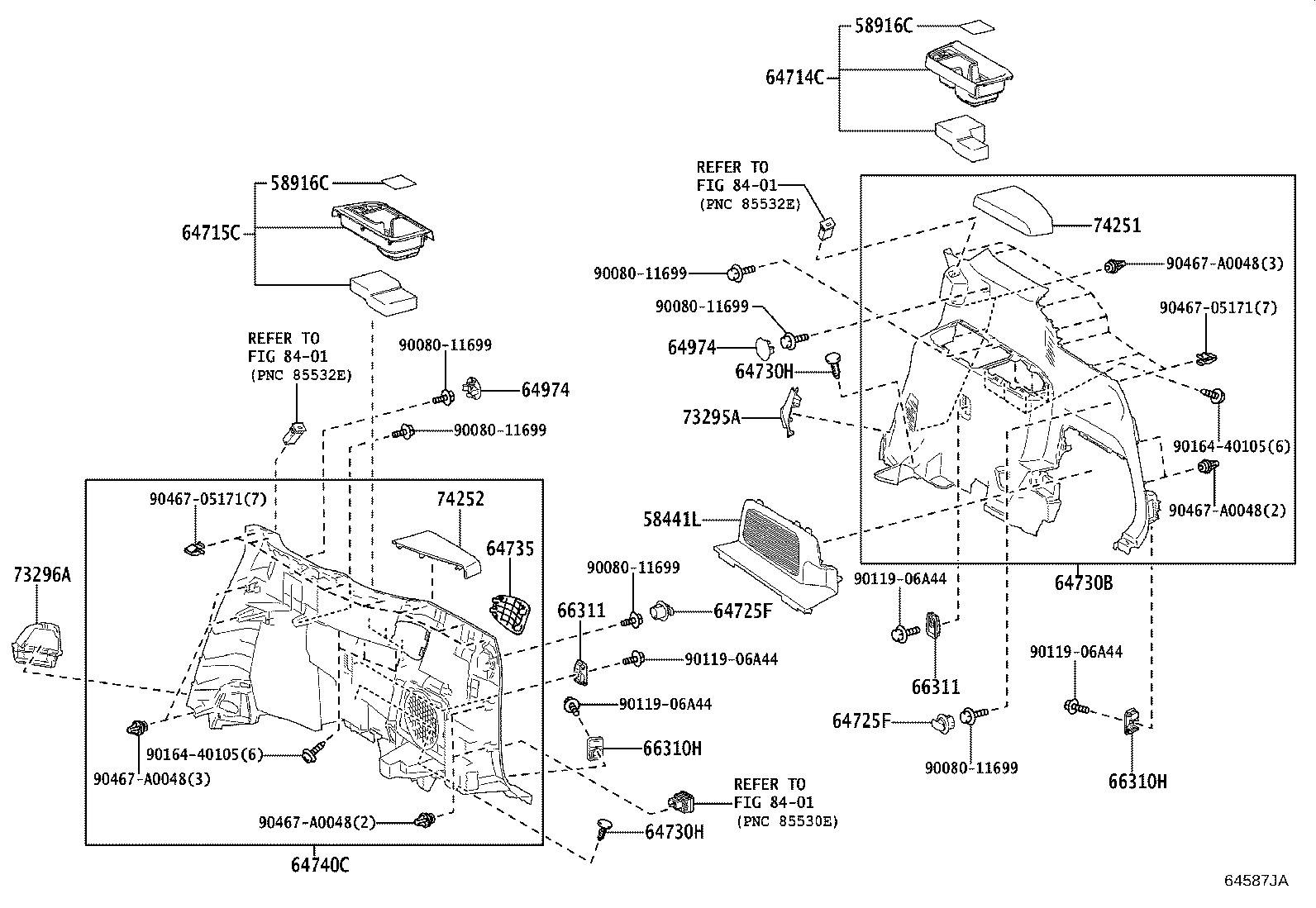

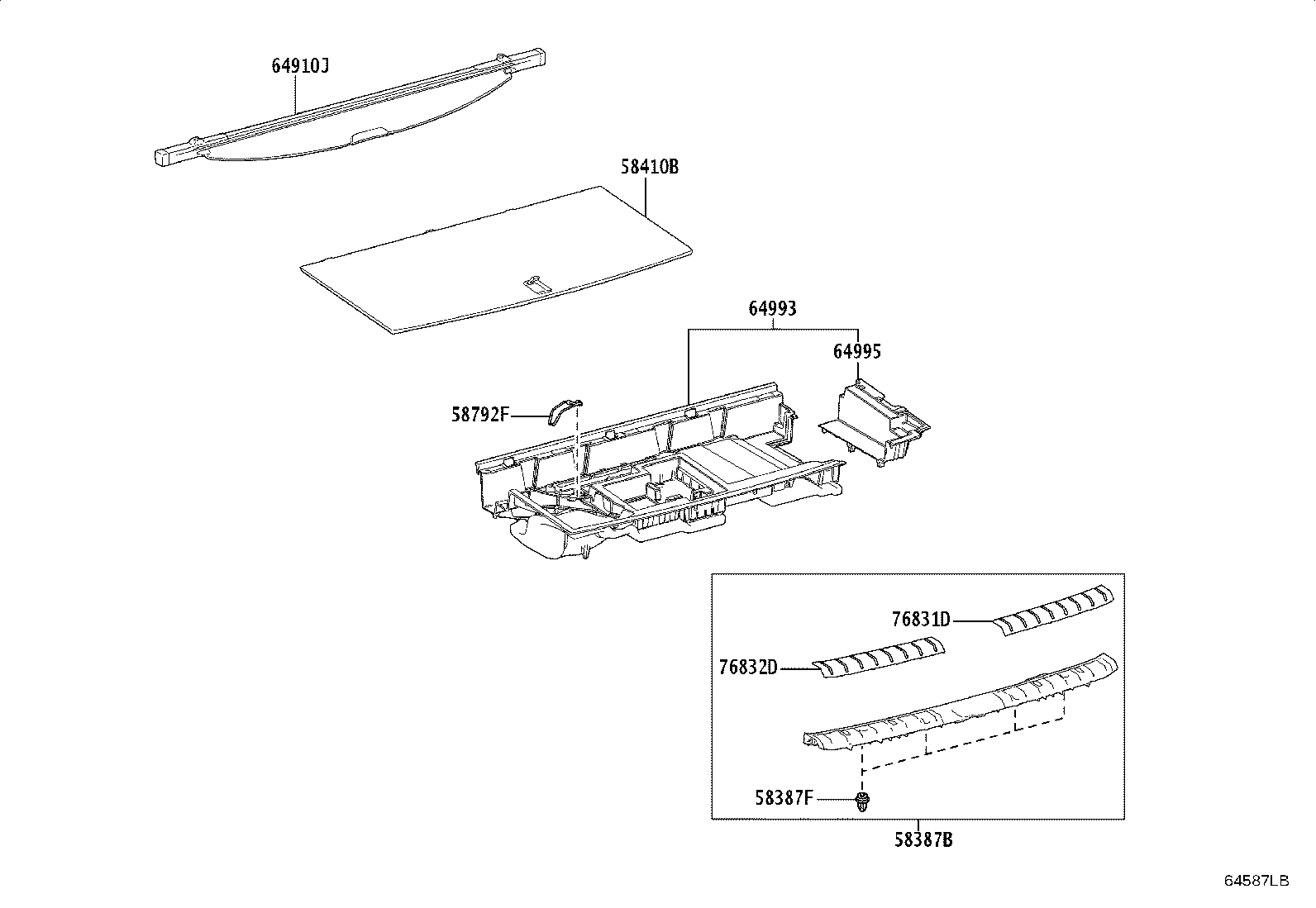

Deck Board & Deck Trim Cover
26 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 58387B | Plate, Rear Floor Finish |
| 58387F | Clip, Rear Floor Finish Plate |
| 58410B | Board Assy, Deck |
| 58441L | Cover, Battery Service Hole |
| 58792F | Support, Jack Carrier |
| 58916C | Mat, Box Bottom |
| 64714C | Cover, Deck Side Trim, RH |
| 64715C | Cover, Deck Side Trim, LH |
| 64718A | Cover, Deck Trim Service Hole |
| 64725F | Hook, Luggage Compartment Trim, NO.1 |
| 64730B | Panel Assy, Deck Trim Side, RH |
| 64730H | Clip(FOR DECK TRIM SIDE PANEL) |
| 64735 | Cover, Deck Trim Side Service Hole |
| 64740C | Panel Assy, Deck Trim Side, LH |
| 64910J | Cover Assy, Tonneau |
| 64974 | Cover, Deck Trim Pocket |
| 64993 | Box, Deck Floor, Rear |
| 64995 | Box, Deck Floor, RH |
| 66310H | Hook Assy, Rope |
| 66311 | Hook, Rope |
| 73295A | Cover, Center Pillar Garnish Belt Hole, Lower RH |
| 73296A | Cover, Center Pillar Garnish Belt Hole, Lower LH |
| 74251 | Insert, Quarter Armrest, RH |
| 74252 | Insert, Quarter Armrest, LH |
| 76831D | Cover, Back Door Finish Panel, RH |
| 76832D | Cover, Back Door Finish Panel, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
