Toyota Lexus TX Series
2023-09 → present · chassis GYU15,TAUA1#,TAUH15 · catalogue 557410 · United States
Supported model
Data version 2024-08

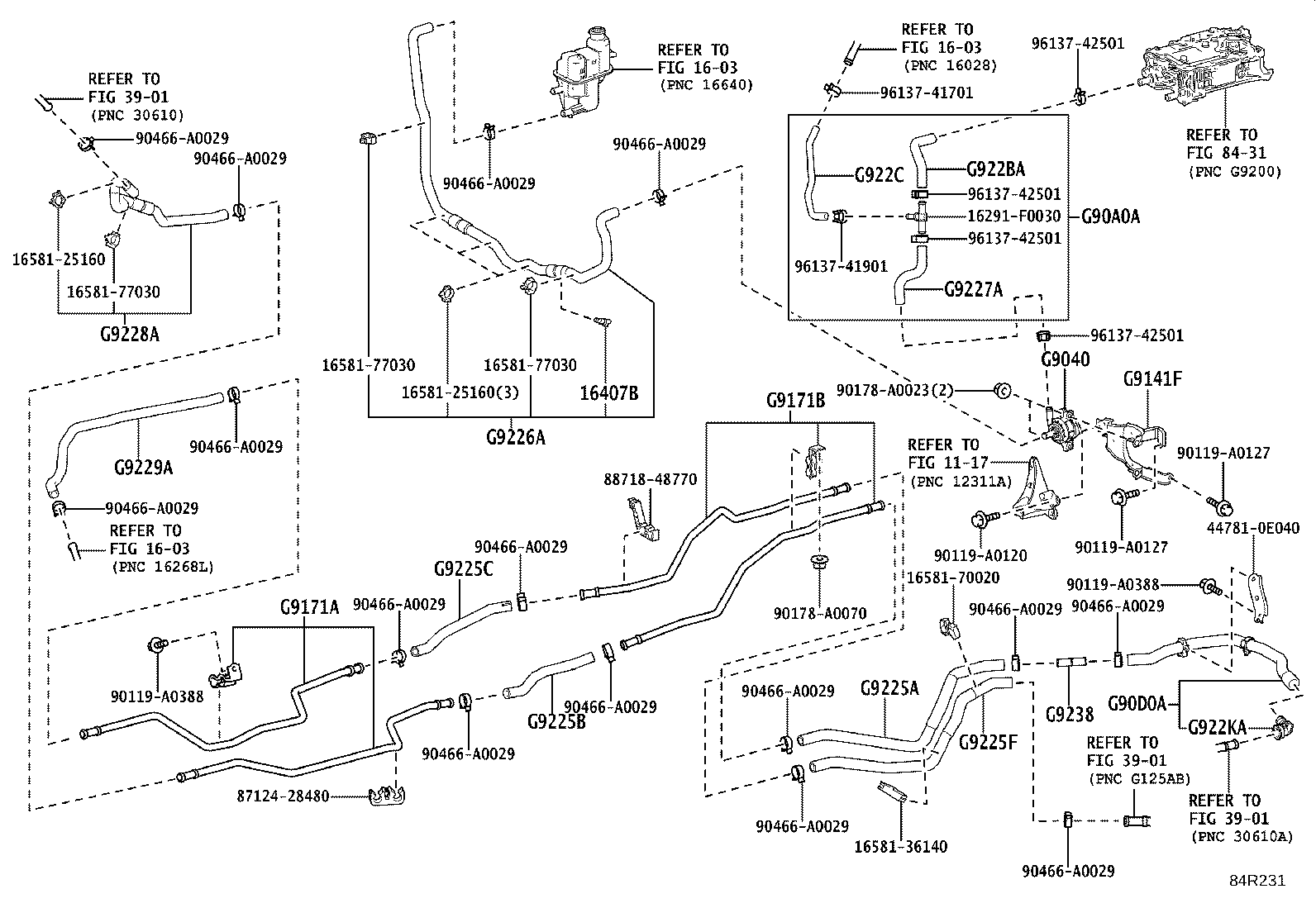

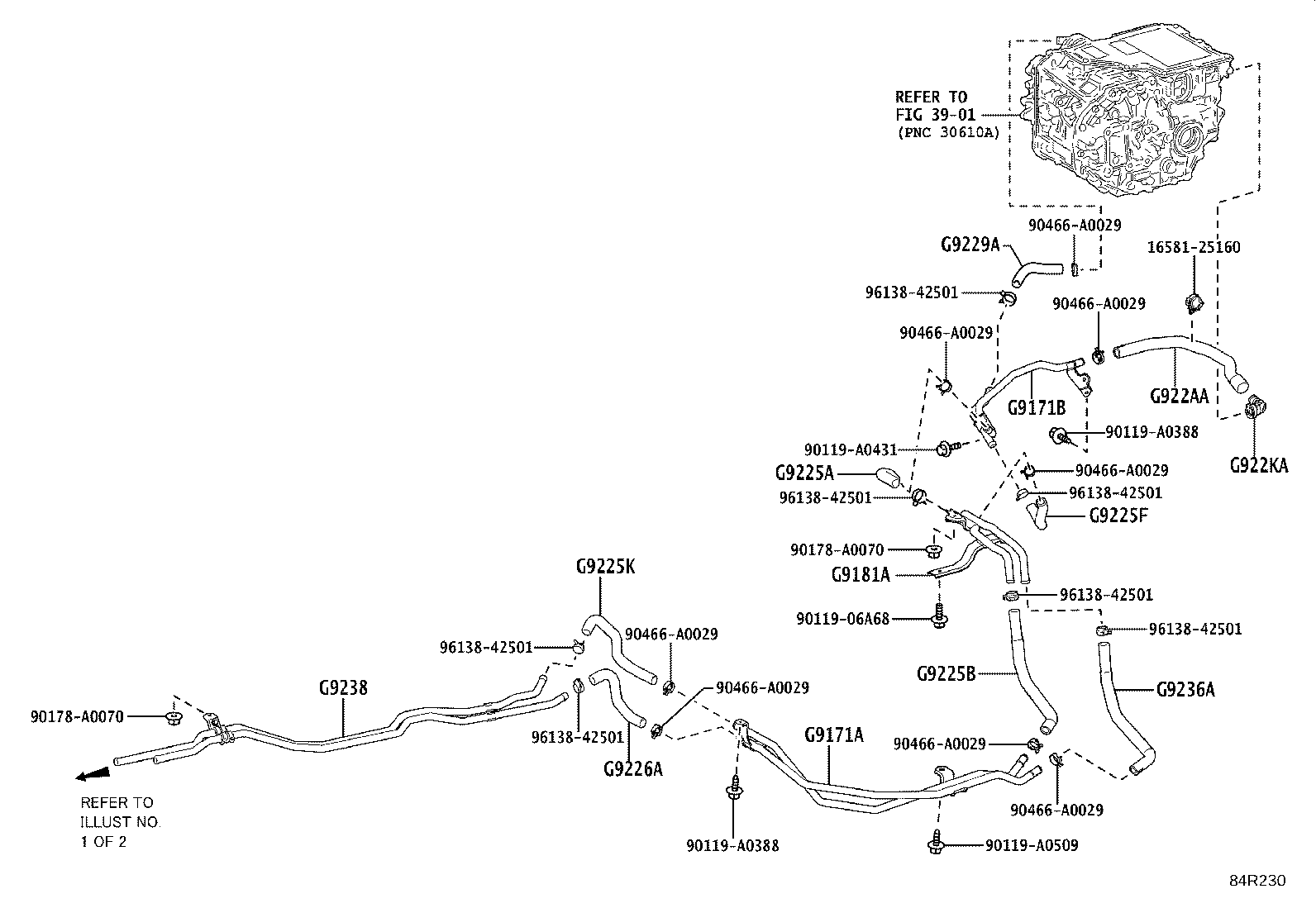

Inverter Cooling
29 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 16407B | Cock Sub-assy, Radiator Drain |
| 16475 | Cap, Reserve Tank |
| 16510F | Cock Assy, Drain |
| 16575D | Bracket, Water Hose Clamp, NO.1 |
| 16575E | Bracket, Water Hose Clamp, NO.2 |
| G9040 | Inverter Water Pump Assy(W/MOTOR) |
| G90A0A | Hose Assy, Inverter Cooling, NO.1 |
| G90D0A | Hose Assy, Inverter Cooling, NO.4 |
| G910GB | Tank Sub-assy, Inverter Reserve W/O Cap |
| G9141F | Bracket, HV Water Pump |
| G9171A | Pipe, Inverter Cooling, NO.1 |
| G9171B | Pipe, Inverter Cooling, NO.3 |
| G9181A | Pipe, Inverter Cooling, NO.2 |
| G921A | Bracket, Inverter Reserve Tank, NO.1 |
| G9225A | Hose, Inverter Cooling, NO.7 |
| G9225B | Hose, Inverter Cooling, NO.8 |
| G9225C | Hose, Inverter Cooling, NO.9 |
| G9225F | Hose, Inverter Cooling, NO.12 |
| G9225K | Hose, Inverter Cooling, NO.1 |
| G9226A | Hose, Inverter Cooling, NO.2 |
| G9227A | Hose, Inverter Cooling, NO.3 |
| G9228A | Hose, Inverter Cooling, NO.4 |
| G9229A | Hose, Inverter Cooling, NO.5 |
| G922AA | Hose, Inverter Cooling Inlet, NO.1 |
| G922BA | Hose, Inverter Cooling Inlet, NO.2 |
| G922C | Hose, Inverter Cooling Outlet, NO.1 |
| G922KA | Connector, Hybrid Water Hose, NO.1 |
| G9236A | Hose, Inverter Cooling, NO.6 |
| G9238 | Pipe, Inverter Cooling |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
