Toyota Lexus TX Series

2023-09 → present · chassis GYU15,TAUA1#,TAUH15 · catalogue 557410 · United States

Supported model Data version 2024-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Speaker

11 part groups · 3 illustrations

Illustrations

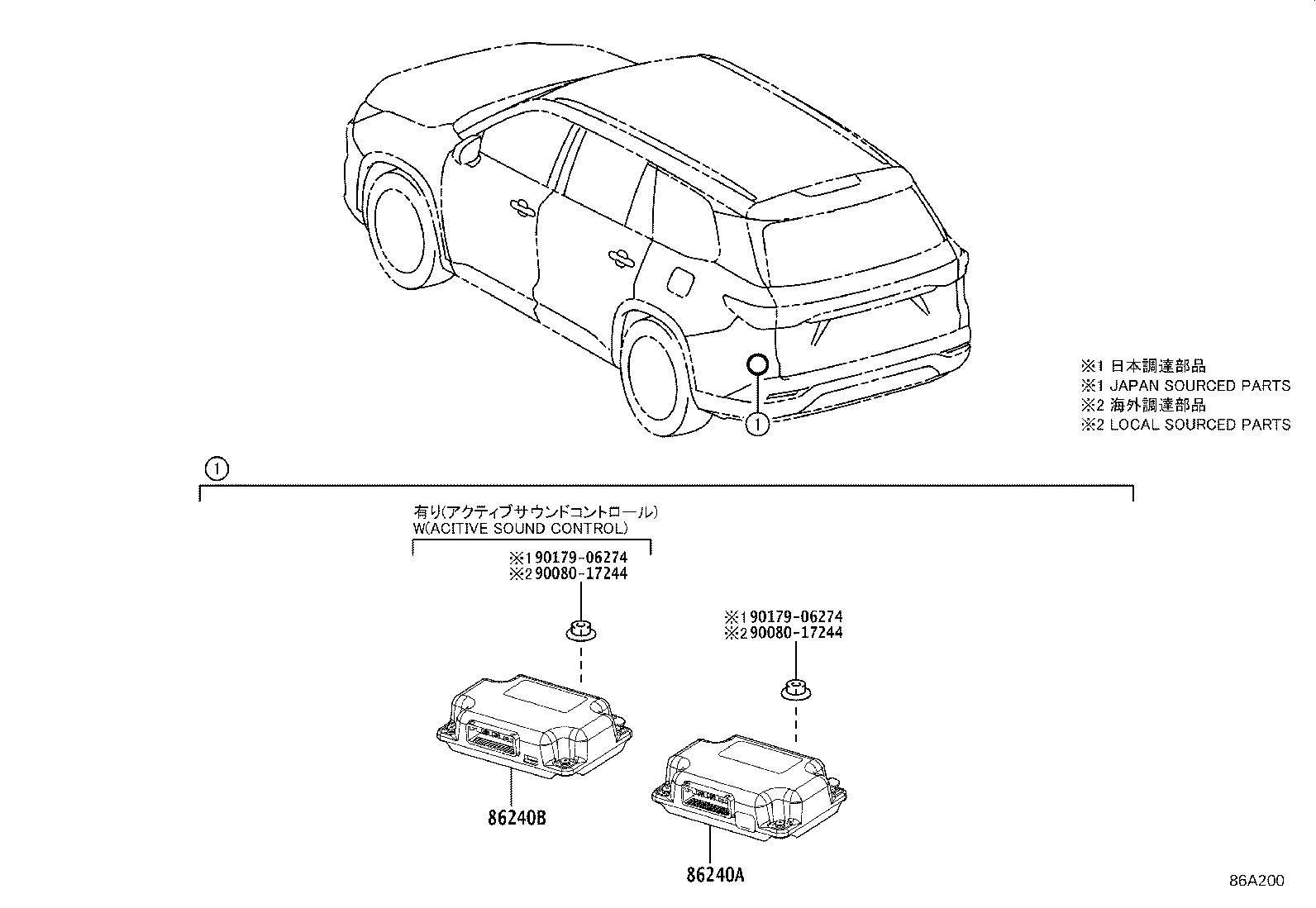

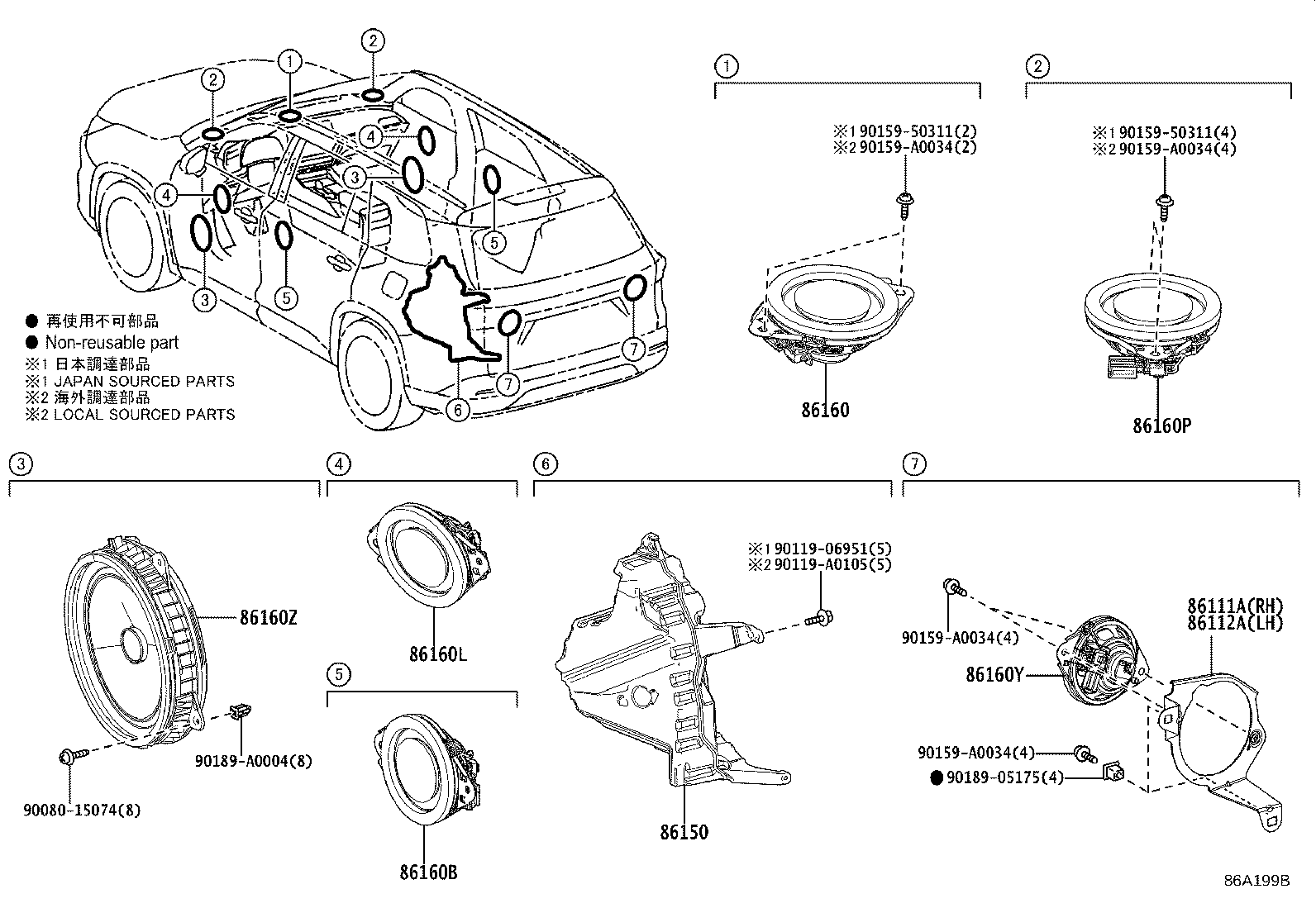

Figure 86A198 86A198 2023-09 → — Figure 86A199B 86A199B 2023-09 → — Figure 86A200 86A200 2023-09 → —

Part groups

PNCDescription
86111A Bracket, Stereo Speaker, RH
86112A Bracket, Stereo Speaker, LH
86150 Speaker Assy, W/Box, NO.1
86160 Speaker Assy, Front NO.1
86160B Speaker Assy, Rear
86160L Speaker Assy, Front NO.4
86160P Speaker Assy, Front NO.2
86160Y Speaker Assy, Rear NO.2
86160Z Speaker Assy, Rear NO.3
86240A Equalizer Assy,Stereo Component
86240B Equalizer Assy, Stereo Component, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
