Toyota Lexus TX Series
2023-09 → present · chassis GYU15,TAUA1#,TAUH15 · catalogue 557410 · United States
Supported model
Data version 2024-08
Heating & Air Conditioning - Cooler Unit
37 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 82210K | Harness Assy, Air Conditioner |
| 82210L | Harness Assy, Air Conditioner, NO.2 |

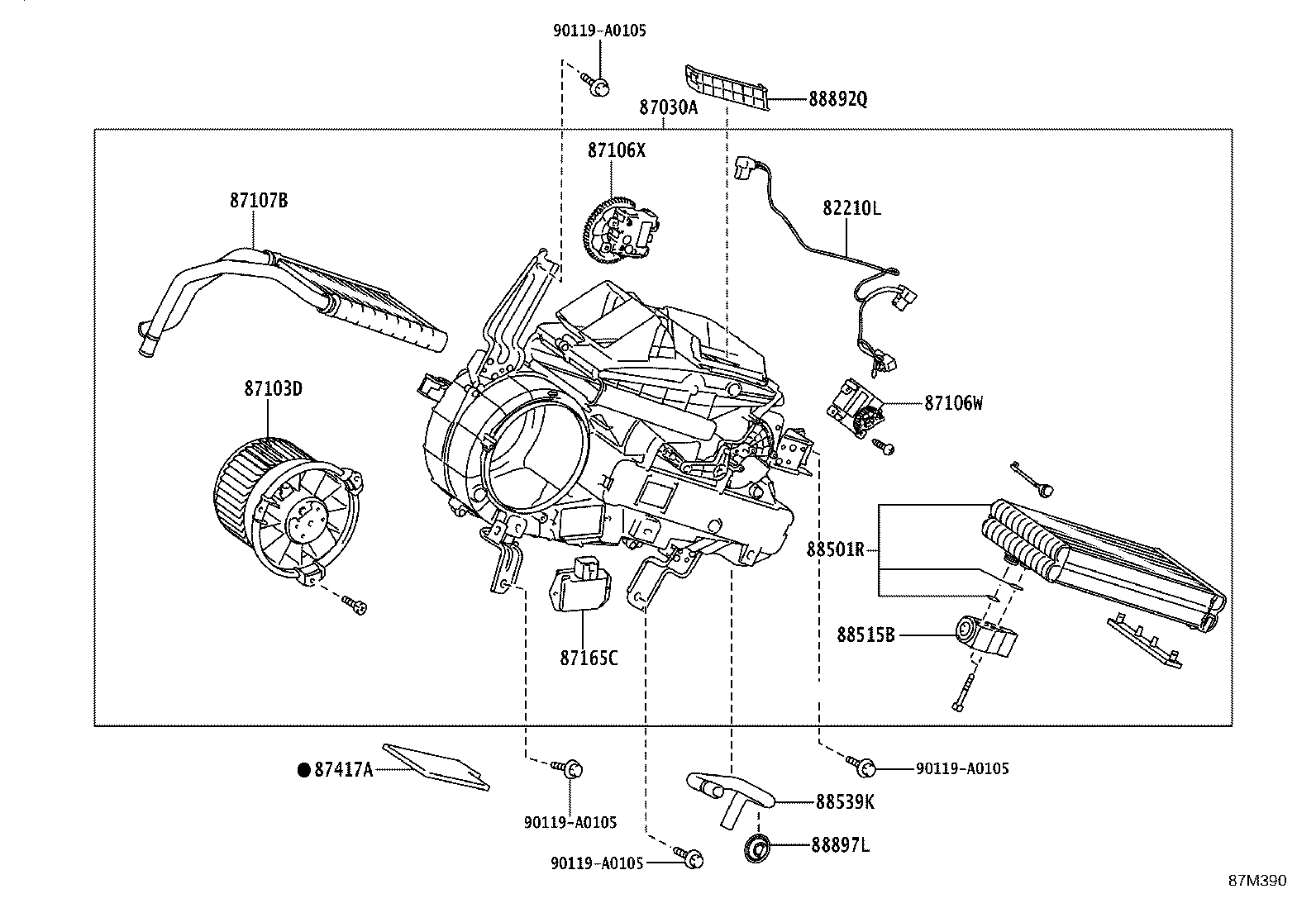

| 87030A | Unit Assy, Cooling, Rear |

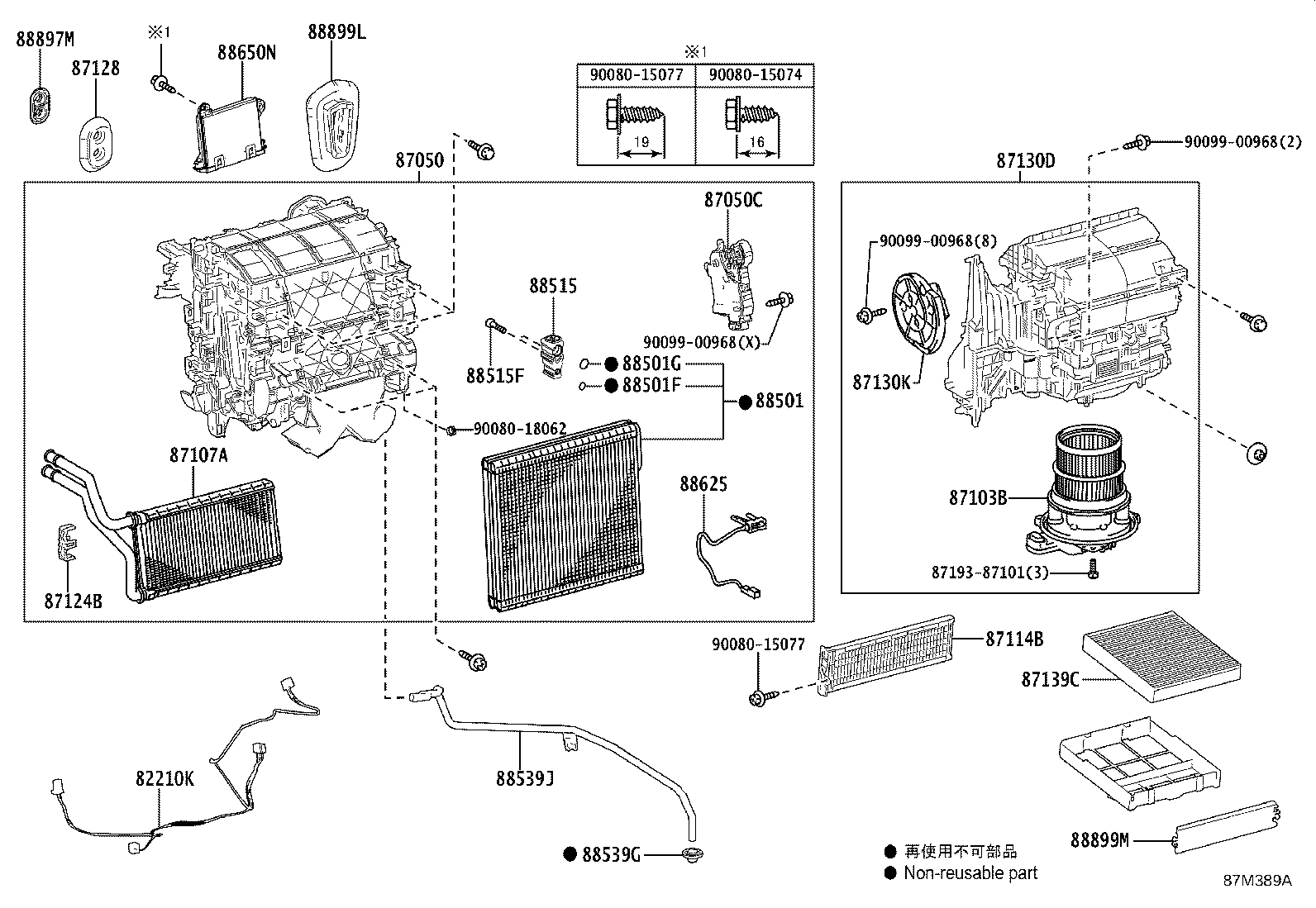

| 87050 | Radiator Assy, Air Conditioner |
| 87050C | Damper Servo Sub-assy, Air Conditioner Radiator, NO.1 |
| 87103B | Motor Sub-assy, Blower W/Fan |
| 87103D | Motor Sub-assy, Blower W/Fan(FOR REAR) |
| 87106W | Servo Sub-assy, Damper(FOR AIRMIX REAR) |
| 87106X | Servo Sub-assy, Damper(FOR MODE REAR) |
| 87107A | Unit Sub-assy, Heater Radiator |
| 87107B | Unit Sub-assy, Heater Radiator |
| 87114B | Cover, Heater |
| 87124B | Clamp, Heater |
| 87128 | Grommet, Heater |
| 87130D | Blower Assy |
| 87130K | Damper Servo Sub-assy, Blower, NO.1 |
| 87139C | Filter, Clean Air |
| 87165C | Control, Blower Motor |
| 87417A | Packing, Air Duct |
| 87710G | Quick Heater Assy |
| 88501 | Evaporator Sub-assy, Cooler, NO.1 |
| 88501F | O-ring, Cooler Evaporator NO.1(DISCHARGE) |
| 88501G | O-ring, Cooler Evaporator NO.1(SUCTION) |
| 88501R | Evaporator Sub-assy (REAR) |
| 88515 | Valve, Cooler Expansion |
| 88515B | Valve, Rear Cooling Unit Expansion |
| 88515F | Bolt(FOR COOLER EXPANSION VALVE) |
| 88539G | Grommet (FOR COOLER UNIT DRAIN HOSE) |
| 88539J | Hose, Drain Cooler |
| 88539K | Hose, Drain Cooler |
| 88625 | Thermistor, Cooler, NO.1 |
| 88650N | Amplifier Assy, Air Conditioner |
| 88892Q | Plate, Cooler |
| 88897L | Grommet (FOR DRAIN HOSE) |
| 88897M | Grommet (FOR HEATER PIPE) |
| 88899L | Parts, Cooling Unit |
| 88899M | Plate, Cover(FOR AIR FILTER) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
