Toyota BZ4X
2022-03 → present · chassis XEAM10,YEAM15 · catalogue 561410 · United States
Supported model
Data version 2024-12
Battery & Battery Cable
32 part groups · 7 illustrations
Part groups
| PNC | Description |
|---|---|
| 28800 | Battery |
| 28800A | Terminal, Battery Positive |
| 28800D | Cover, Connector(FOR BATTERY TERMINAL) |
| 28897D | Label, Battery Caution |
| 58218B | Protector, Battery |
| 58219D | Cover, Battery Box |
| 82821K | Cover, Connector |
| 89890A | Computer Assy, Battery |
| 89892A | Sensor, Battery Voltage |

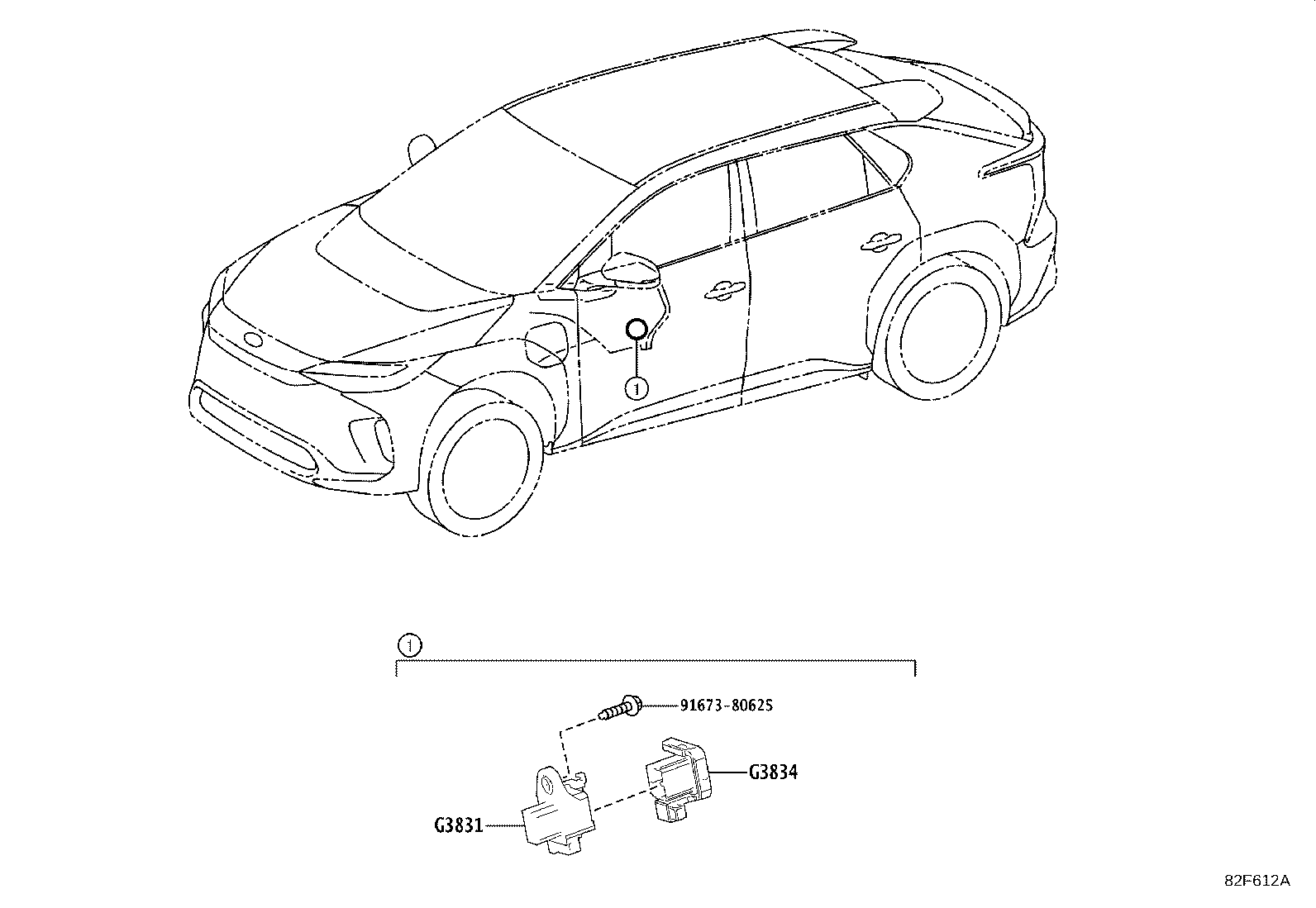

| G3831 | Plug, Electric Vehicle Battery |
| G3834 | Grip, Service Plug |
| G3850 | Box Assy, Traction Battery Device, NO.1 |
| G3860 | Box Assy, Traction Battery Device, NO.2 |
| G929C | Insulator, Hybrid Battery, NO.2 |
| G929N | Plug, Battery Drain |
| G92J1 | Sheet, HV Battery Tray, NO.1 |
| G92T8 | Cover, HV Battery Bus-bar Block, NO.1 B |

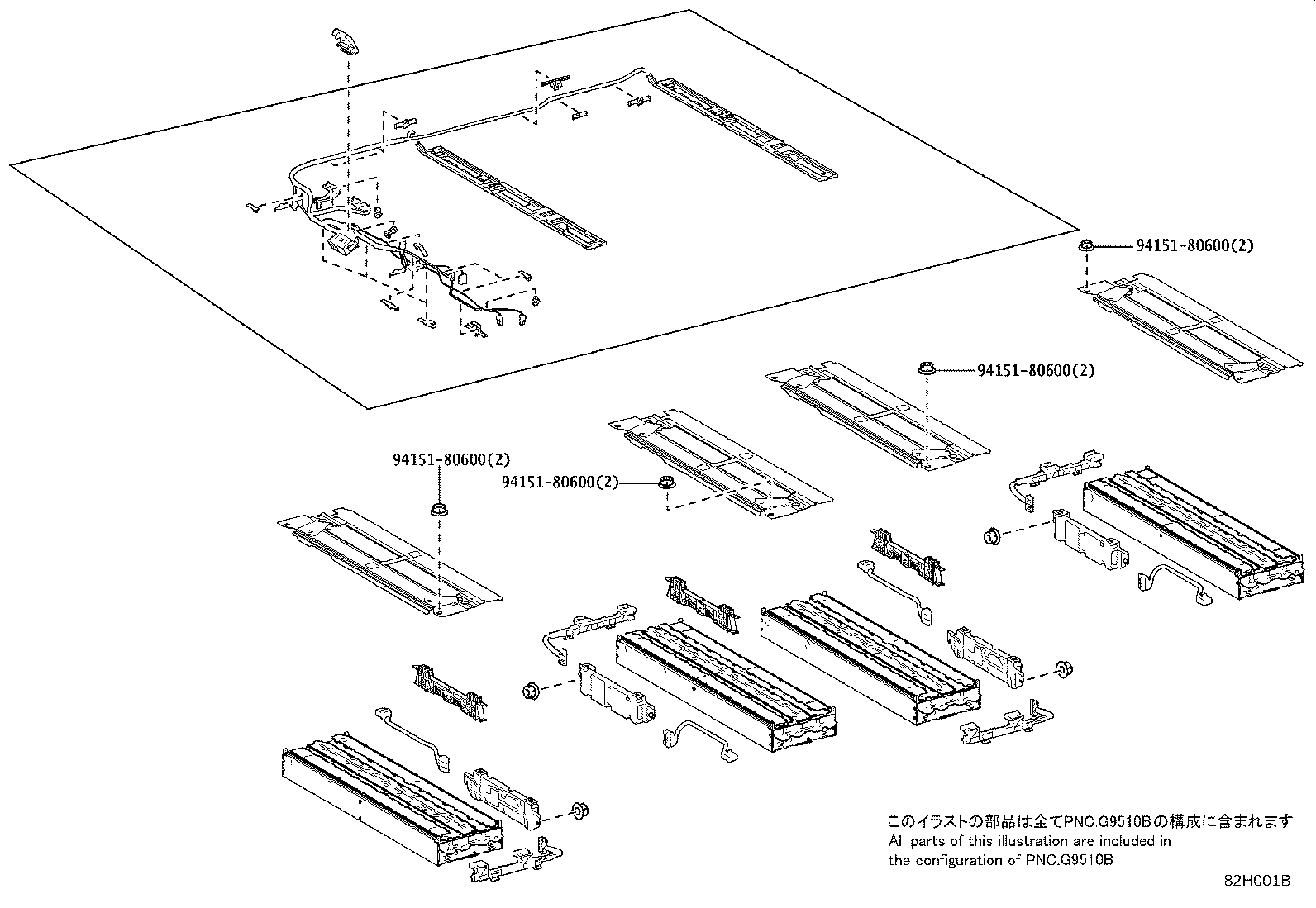

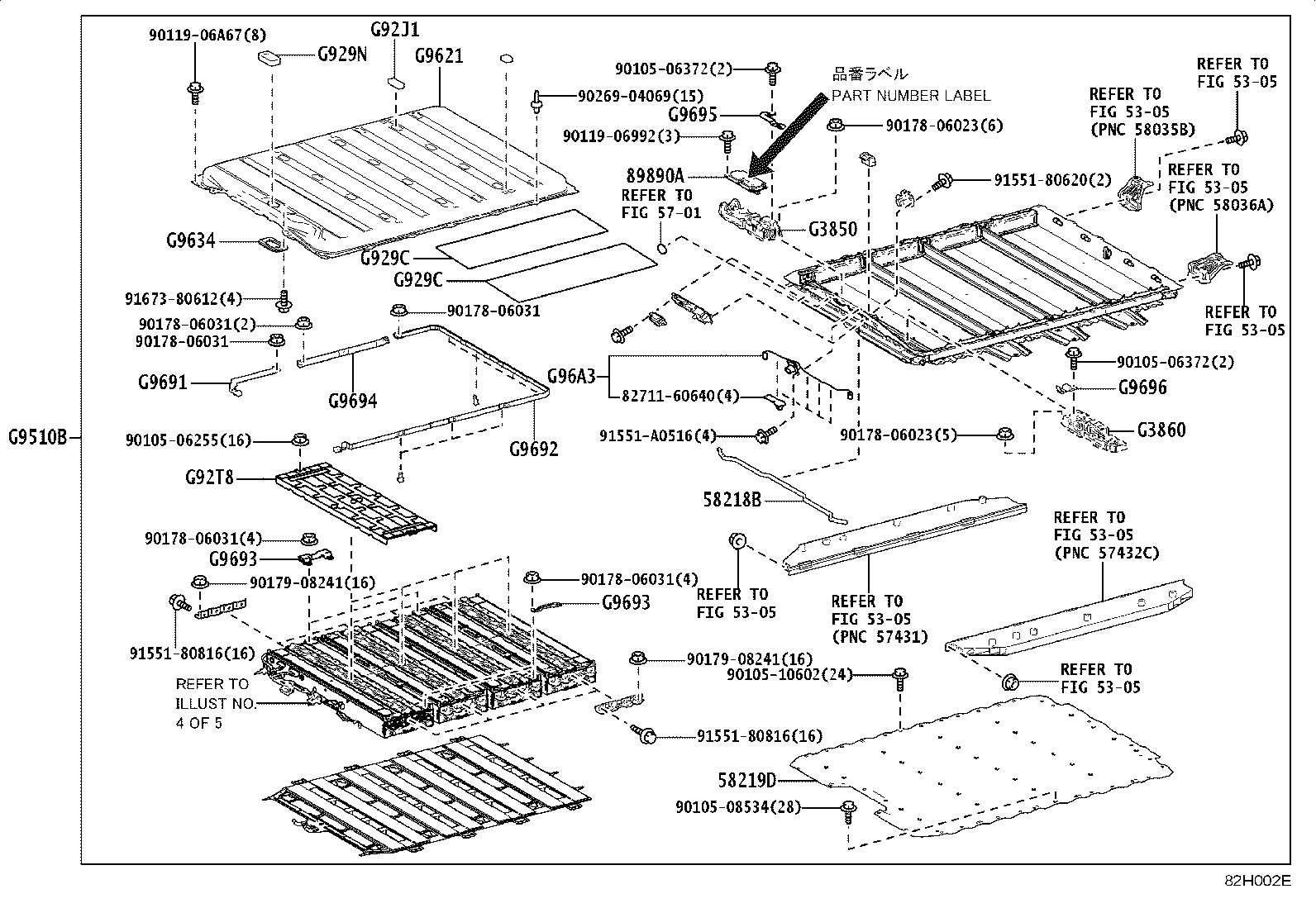

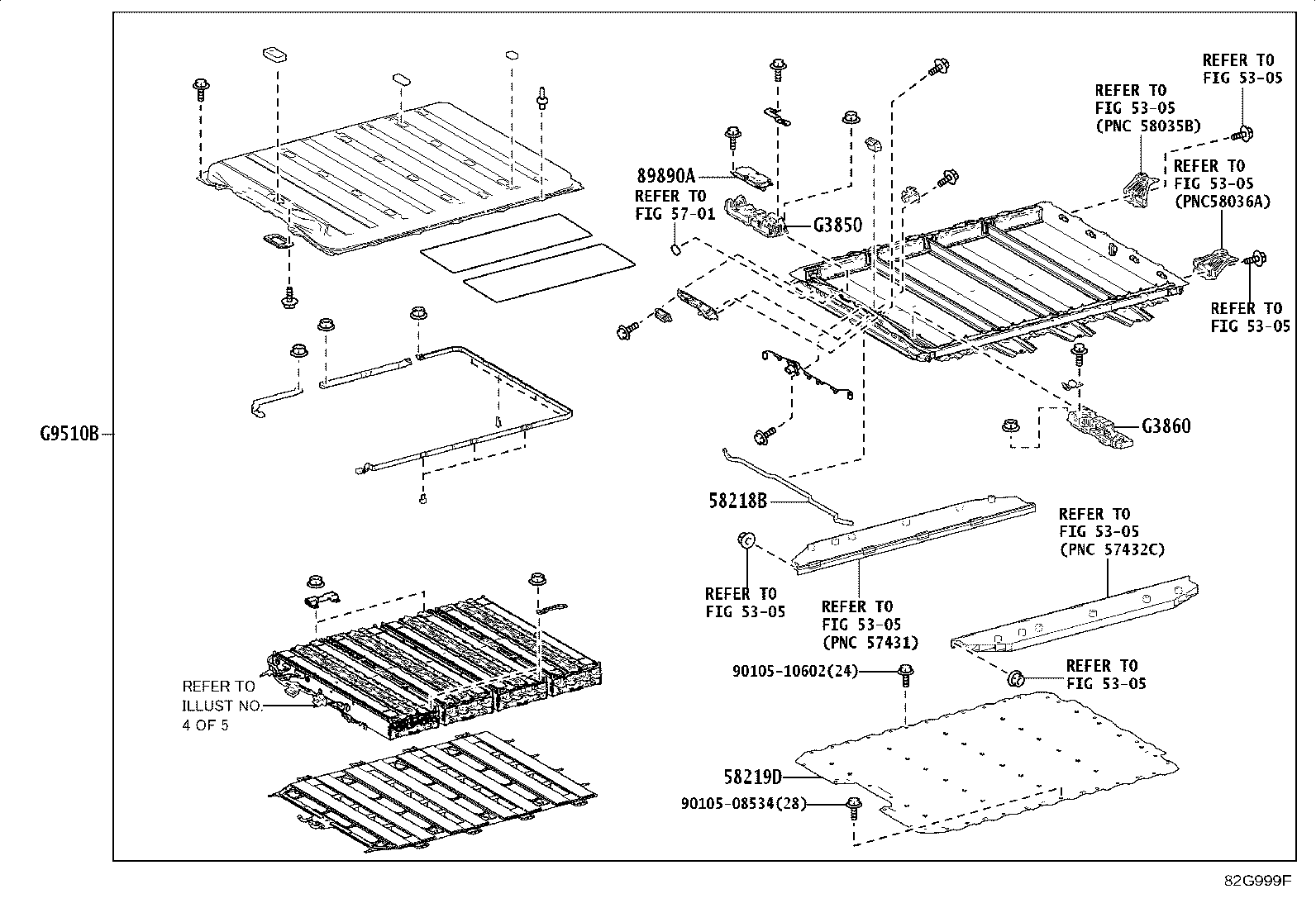

| G9510B | Battery Assy, EV Supply |

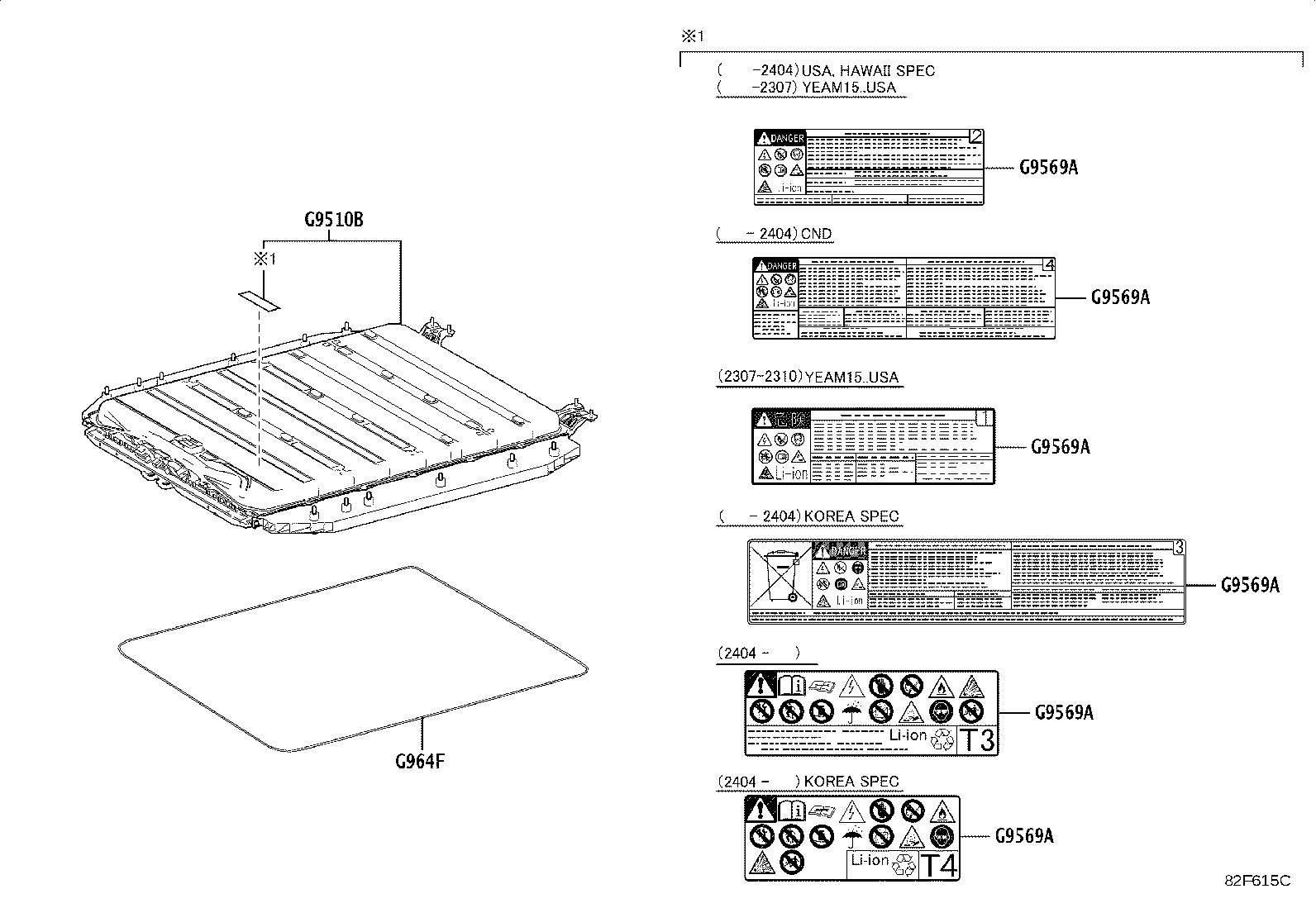

| G9569A | Label, Lithium Ion Battery Caution |
| G9621 | Cover, Traction Battery, NO.1 |
| G9634 | Bracket, Traction Battery, NO.4 |
| G964F | Dam, Traction Battery Adhesive |
| G9666 | Wire, Traction Battery Voltage Detctr, NO.6 |
| G9667 | Wire, Traction Bat Voltage Detctr, NO.7 |
| G9691 | Block, Traction Battery Bus-bar, NO.1 |
| G9692 | Block, Traction Battery Bus-bar, NO.2 |
| G9693 | Block, Traction Battery Bus-bar, NO.3 |
| G9694 | Block, Traction Battery Bus-bar, NO.4 |
| G9695 | Block, Traction Battery Bus-bar, NO.5 |
| G9696 | Block, Traction Battery Bus-bar, NO.6 |
| G96A3 | Cable, Traction Battery, NO.3 |

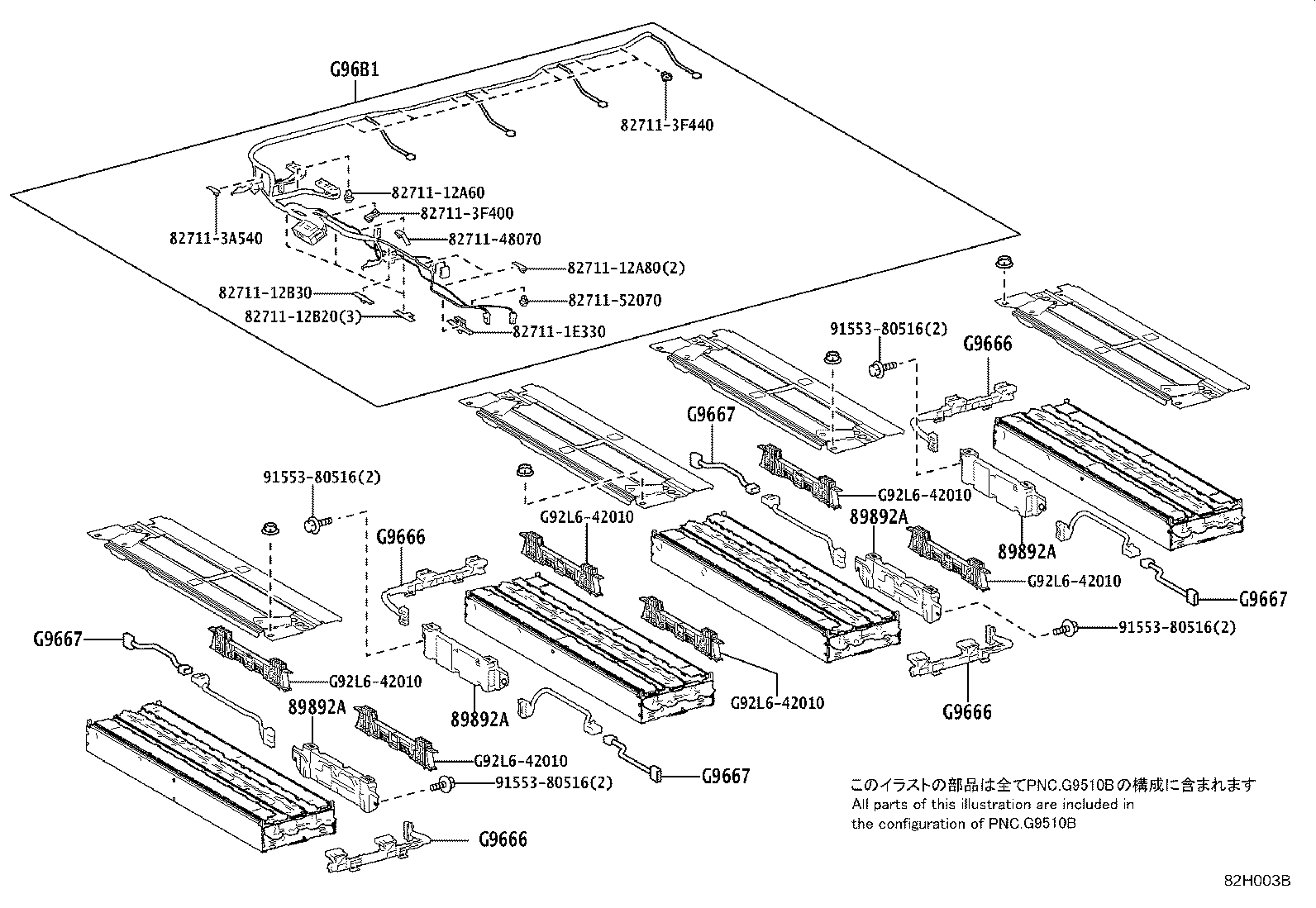

| G96B1 | Wire, Traction Battery, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
