Toyota BZ4X
2022-03 → present · chassis XEAM10,YEAM15 · catalogue 561410 · United States
Supported model
Data version 2024-12

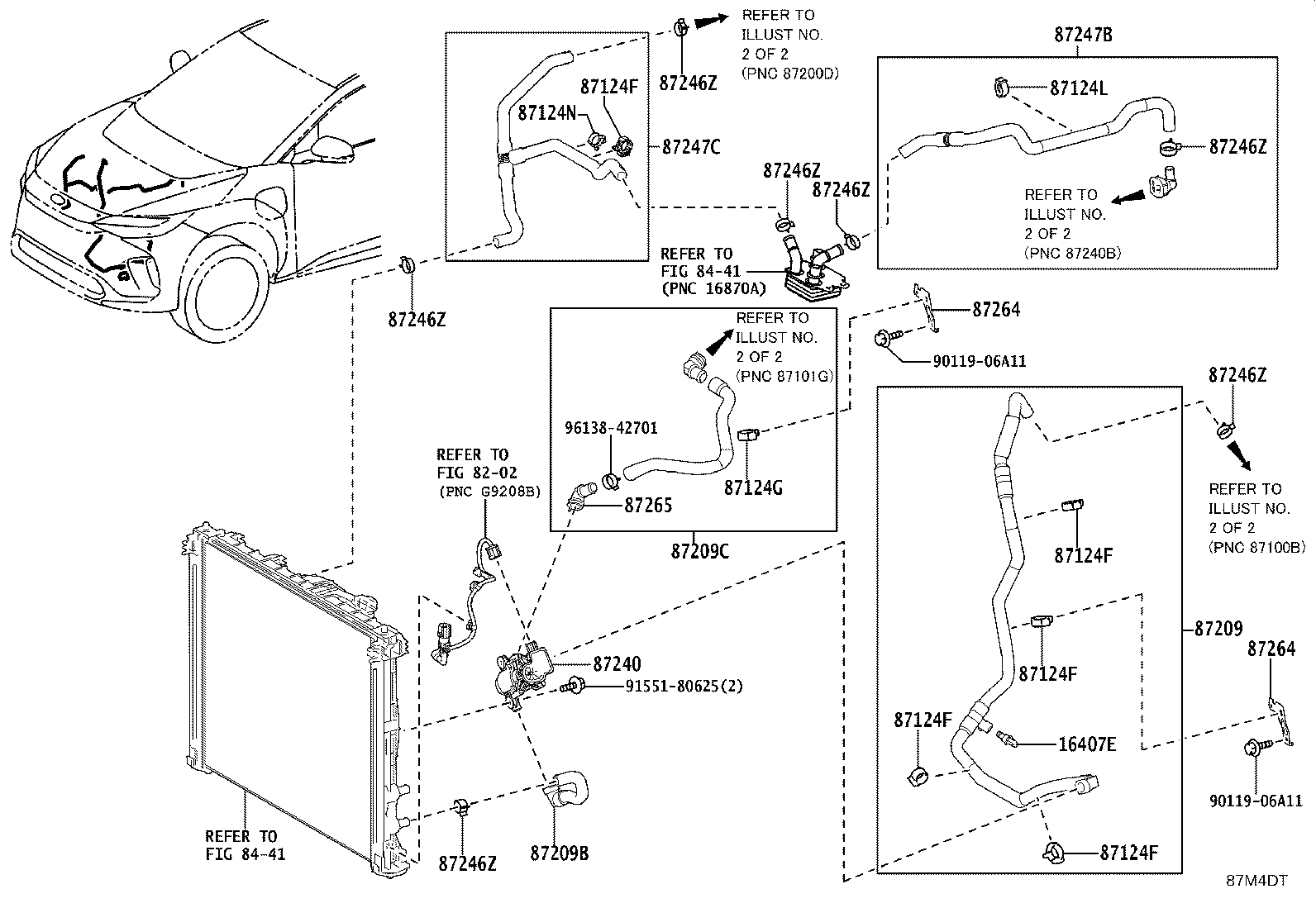

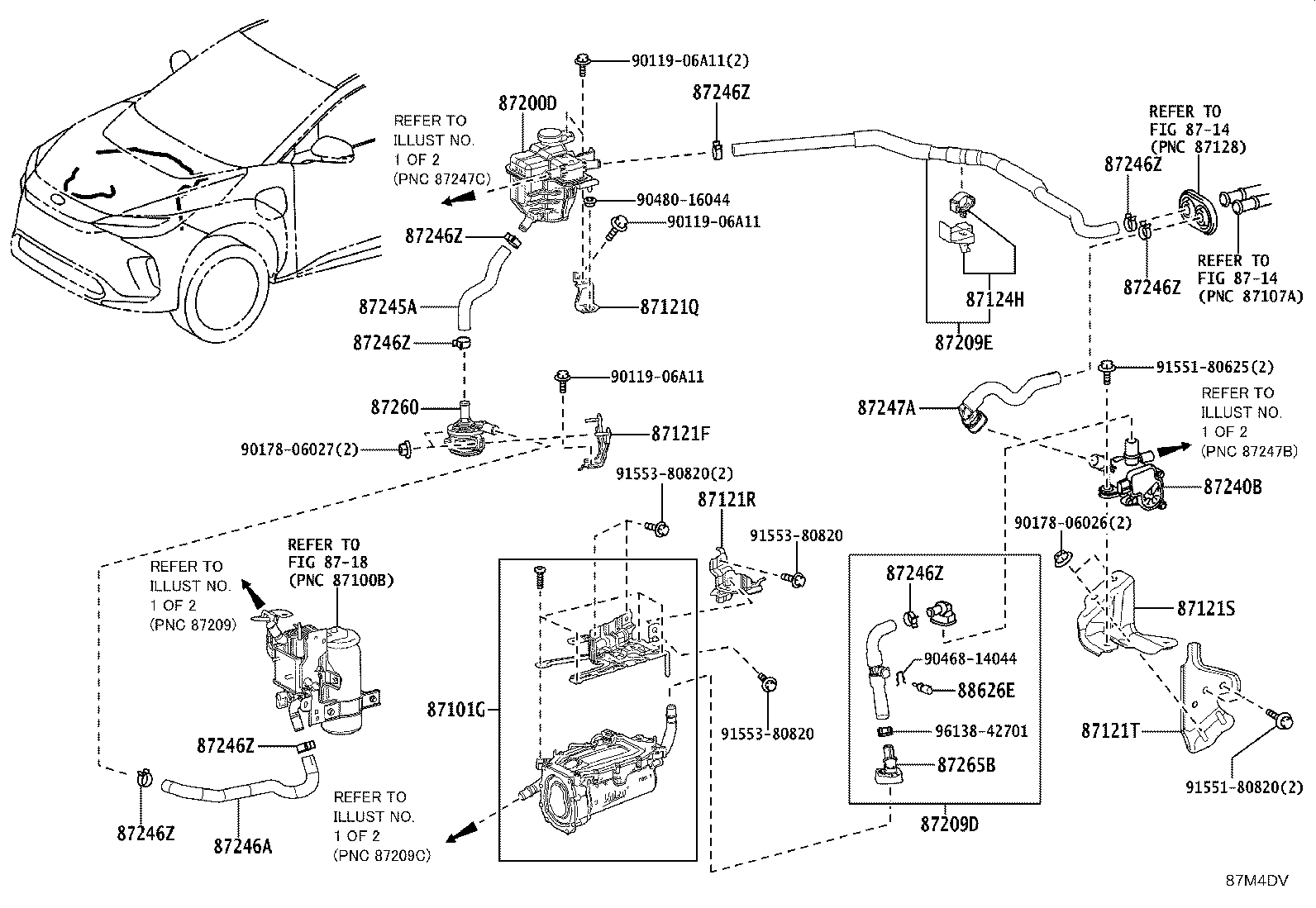

Heating & Air Conditioning - Water Piping
32 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 16407E | Cock Sub-assy, Radiator Drain |
| 87101G | Heater Sub-assy, Electric |
| 87121F | Bracket, Heater |
| 87121Q | Bracket, Heater NO.2 |
| 87121R | Bracket, Heater NO.3 |
| 87121S | Bracket, Heater NO.4 |
| 87121T | Bracket, Heater NO.5 |
| 87124F | Clamp, Heater Hose, NO.1 |
| 87124G | Clamp, Heater Hose, NO.2 |
| 87124H | Clamp, Heater Hose, NO.3 |
| 87124L | Clamp, Heater Hose, NO.4 |
| 87124N | Clamp, Heater Hose, NO.5 |
| 87200D | Accessory Assy, Heater |
| 87209 | Hose Sub-assy, Water |
| 87209B | Hose Sub-assy, Water, B |
| 87209C | Hose Sub-assy, Water, C |
| 87209D | Hose Sub-assy, Water, D |
| 87209E | Hose Sub-assy, Water, E |
| 87240 | Valve Assy, Heater Water |
| 87240B | Valve Assy, Heater Water, NO.2 |
| 87245A | Hose, Heater Water, Inlet A |
| 87245B | Hose, Heater Water, Inlet B |
| 87246A | Hose, Heater Water, Outlet A |
| 87246Z | Clip |
| 87247A | Hose, Heater Water, A |
| 87247B | Hose, Heater Water, B |
| 87247C | Hose, Heater Water, C |
| 87260 | Pump Assy, Heater |
| 87264 | Bracket, Heater Water Hose |
| 87265 | Connector, Heater Water Hose |
| 87265B | Connector, Heater Water Hose, NO.2 |
| 88626E | Sensor, Water Temperature |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
