Toyota Lexus RZ300E/450E
2023-01 → present · chassis XEBM1# · catalogue 564410 · United States
Supported model
Data version 2023-11

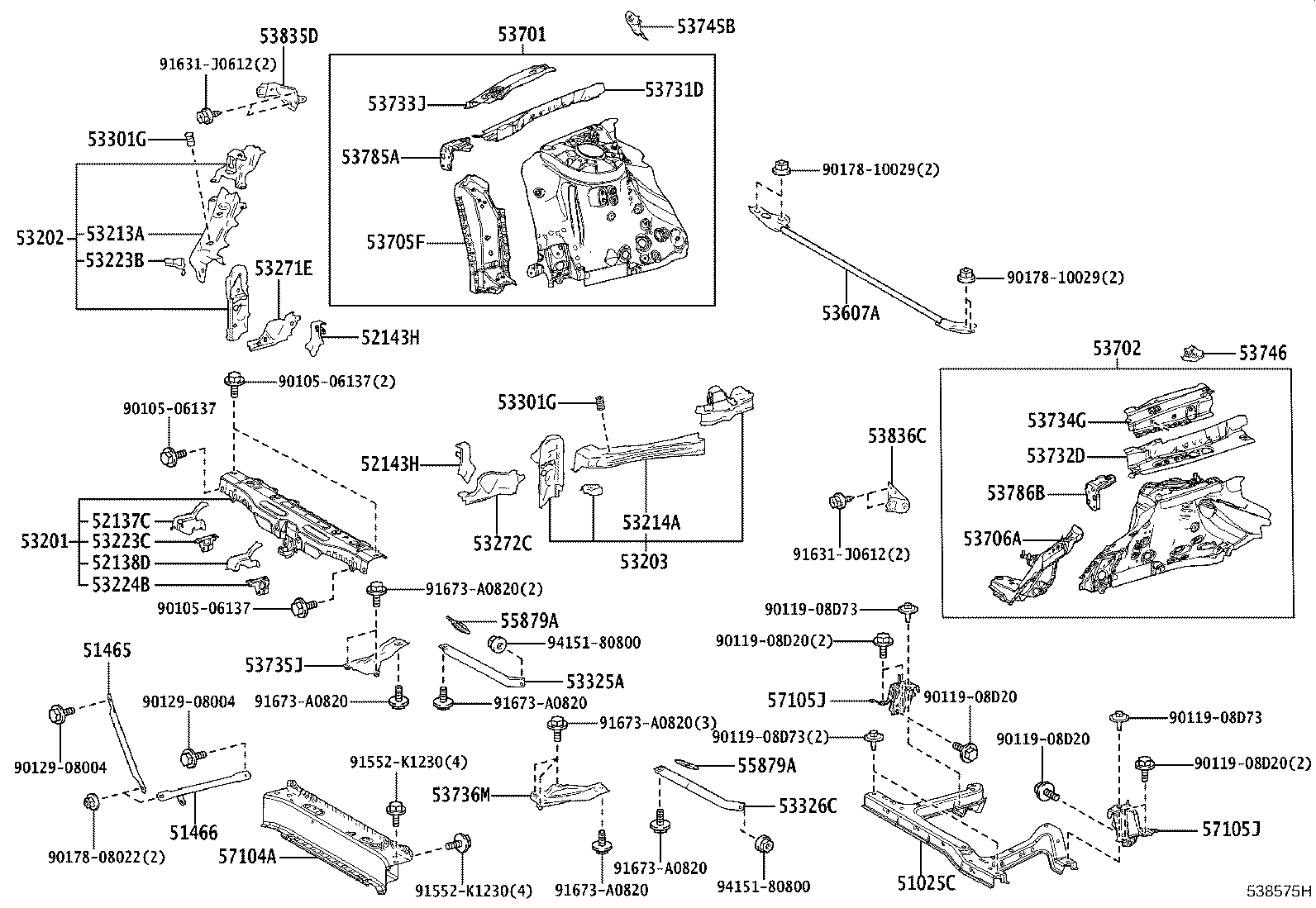

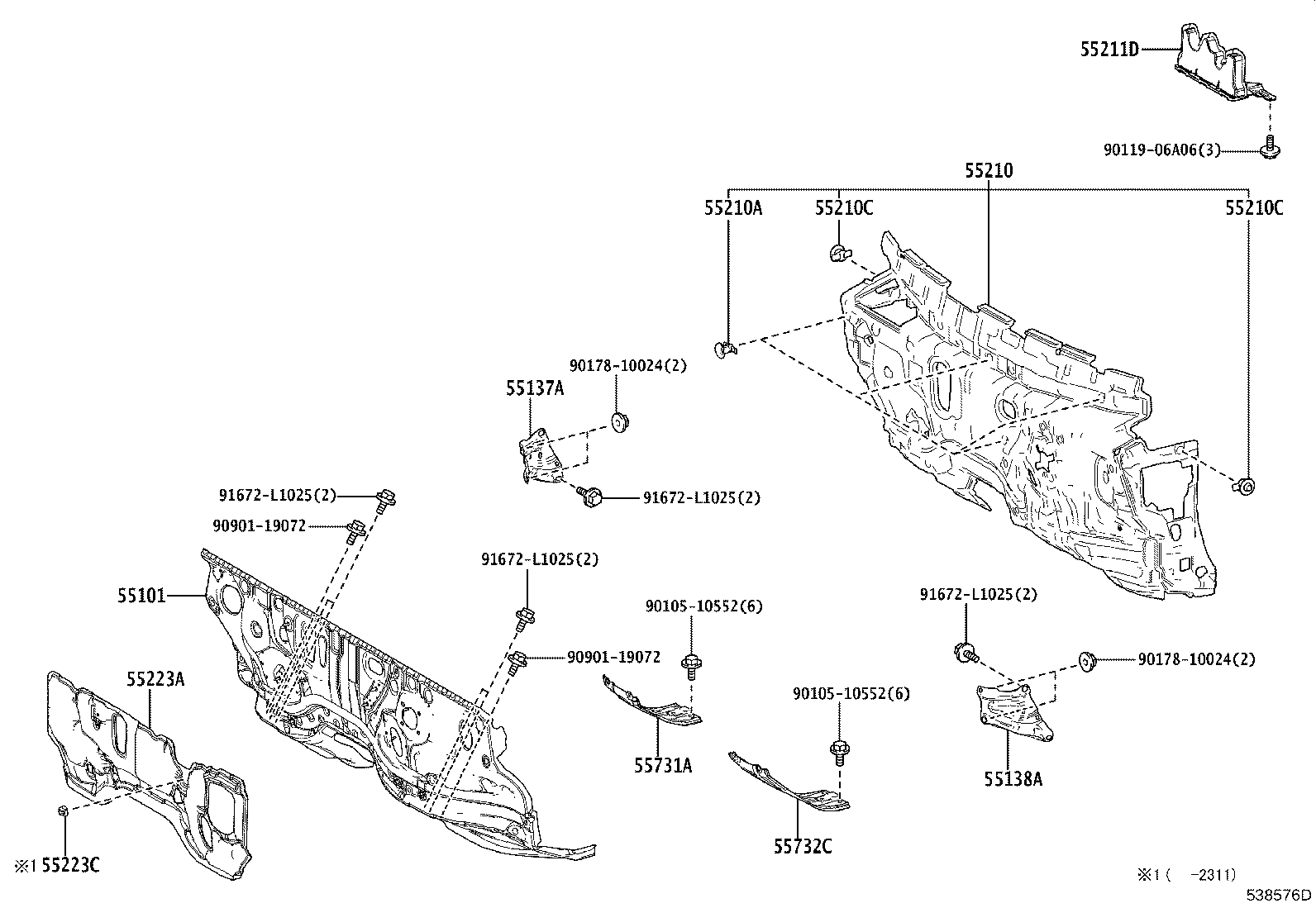

Front Fender Apron & Dash Panel
57 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 16593B | Guide, Radiator Air, NO.1 RH |
| 16691A | Plate, Radiator Side Air Guide, Front RH |
| 51025C | Bracket Sub-assy, Frame NO.3 Crossmember |
| 51465 | Brace, Radiator Support, Upper RH |
| 51466 | Brace, Radiator Support, Upper LH |
| 52137C | Bracket, Front Bumper Arm Mounting, NO.3 |
| 52138D | Bracket, Front Bumper Arm Mounting, NO.4 |
| 52143H | Arm, Front Bumper, Inner RH |
| 53019F | Shutter Sub-assy, Radiator |
| 53155J | Seal, Radiator Grille, NO.1 |
| 53180D | Shutter Assy, Radiator |
| 53201 | Support Sub-assy, Radiator |
| 53202 | Support Sub-assy, Radiator, RH |
| 53203 | Support Sub-assy, Radiator, LH |
| 53213A | Support, Radiator, Upper RH |
| 53214A | Support, Radiator, Upper LH |
| 53223B | Bracket, Radiator Grille Mounting |
| 53223C | Bracket, Radiator Grille Mounting, RH |
| 53224B | Bracket, Radiator Grille Mounting, LH |
| 53271E | Bracket, Headlamp Mounting, RH |
| 53272C | Bracket, Headlamp Mounting, LH |
| 53289A | Cover, Radiator Support Opening |
| 53289F | Clip(FOR RADIATOR SUPPORT OPENING COVER) |
| 53301G | Cushion, Hood Bumper |
| 53325A | Brace, Front Panel Reinforcement, RH |
| 53326C | Brace, Front Panel Reinforcement, LH |
| 53607A | Brace Sub-assy, Front Suspension, Upper Center |
| 53701 | Apron Sub-assy, Front Fender, RH |
| 53702 | Apron Sub-assy, Front Fender, LH |
| 53705F | Brace Sub-assy, Fender Apron, RH |
| 53706A | Brace Sub-assy, Fender Apron, LH |
| 53731D | Member, Front Apron TO Cowl Side, Upper RH |
| 53732D | Member, Front Apron TO Cowl Side, Upper LH |
| 53733J | Member, Front Apron TO Cowl Side, Outer Front RH |
| 53734G | Member, Front Apron TO Cowl Side, Outer Front LH |
| 53735J | Patch, Front Fender Apron, NO.5 |
| 53736M | Patch, Front Fender Apron, NO.6 |
| 53745B | Reinforcement, Front Fender Apron, Rear RH |
| 53746 | Reinforcement, Front Fender Apron, Rear LH |
| 53785A | Gusset, Front Fender Apron, Upper RH |
| 53786B | Gusset, Front Fender Apron, Upper LH |
| 53835D | Bracket, Front Side Panel, RH |
| 53836C | Bracket, Front Side Panel, LH |
| 55101 | Panel Sub-assy, Dash |
| 55137A | Brace, Dash TO Frame, RH |
| 55138A | Brace, Dash TO Frame, LH |
| 55210 | Insulator Assy, Dash Panel |
| 55210A | Clip |
| 55210C | Clip |
| 55211D | Silencer, Front Panel, Upper |
| 55223A | Insulator, Dash Panel, Outer |
| 55223C | Clip |
| 55731A | Bracket, Front Panel Member, RH |
| 55732C | Bracket, Front Panel Member, LH |
| 55879A | Seal, Cowl Vent |
| 57104A | Member Sub-assy, Front Cross |
| 57105J | Bracket Sub-assy, Front Suspension Member Mounting, Front |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
