Toyota Lexus RZ300E/450E

2023-01 → present · chassis XEBM1# · catalogue 564410 · United States

Supported model Data version 2023-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Console Box & Bracket

26 part groups · 2 illustrations

Illustrations

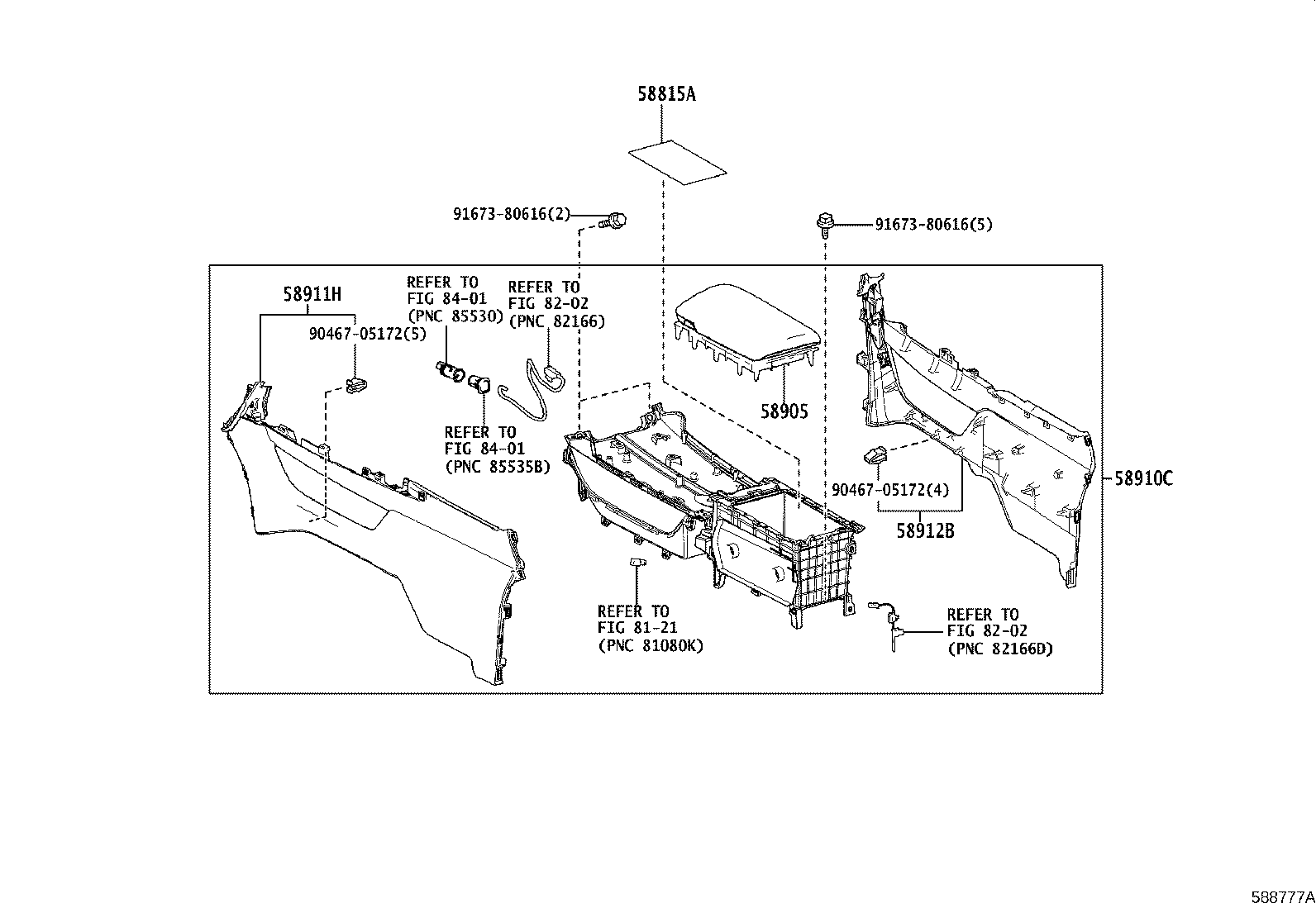

Figure 588778B 588778B 2023-01 → — Figure 588777A 588777A 2023-01 → —

Part groups

PNCDescription
55346D Bracket, Air Conditioning Mounting, NO.1
55346E Bracket, Air Conditioning Mounting, NO.2
55627B Rail, Console Box Cup Holder
58803C Box Sub-assy, Console Cup Holder
58815A Carpet, Console Box
58816D Insert, Console Box, Front NO.1
58817A Insert, Console Box, Front NO.2
58821C Panel, Console, Upper
58822A Panel, Console, Upper Rear
58823B Box, Console Compartment
58833A Cover, Console, Upper
58833B Garnish, Console Upper Panel, NO.1
58834B Garnish, Console Upper Panel, NO.2
58860A Register Assy, Console Box
58905 Door Sub-assy, Console Compartment
58910C Box Assy, Console, Rear
58911H Box, Console, Rear
58912B Box, Rear Console, Lower
58923A Panel, Console Rear End
58924A Panel, Console Rear End, NO.2
58933 Garnish, Console Rear End Panel
58934A Garnish, Console Rear End Panel, NO.2
58994A Bracket, Console Box Mounting, NO.4
58995A Bracket, Console Box Mounting, NO.1
58996A Bracket, Console Box Mounting, NO.2
58997 Bracket, Console Box Mounting, NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
