Toyota Lexus RZ300E/450E

2023-01 → present · chassis XEBM1# · catalogue 564410 · United States

Supported model Data version 2023-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Seat & Seat Track

44 part groups · 5 illustrations

Illustrations

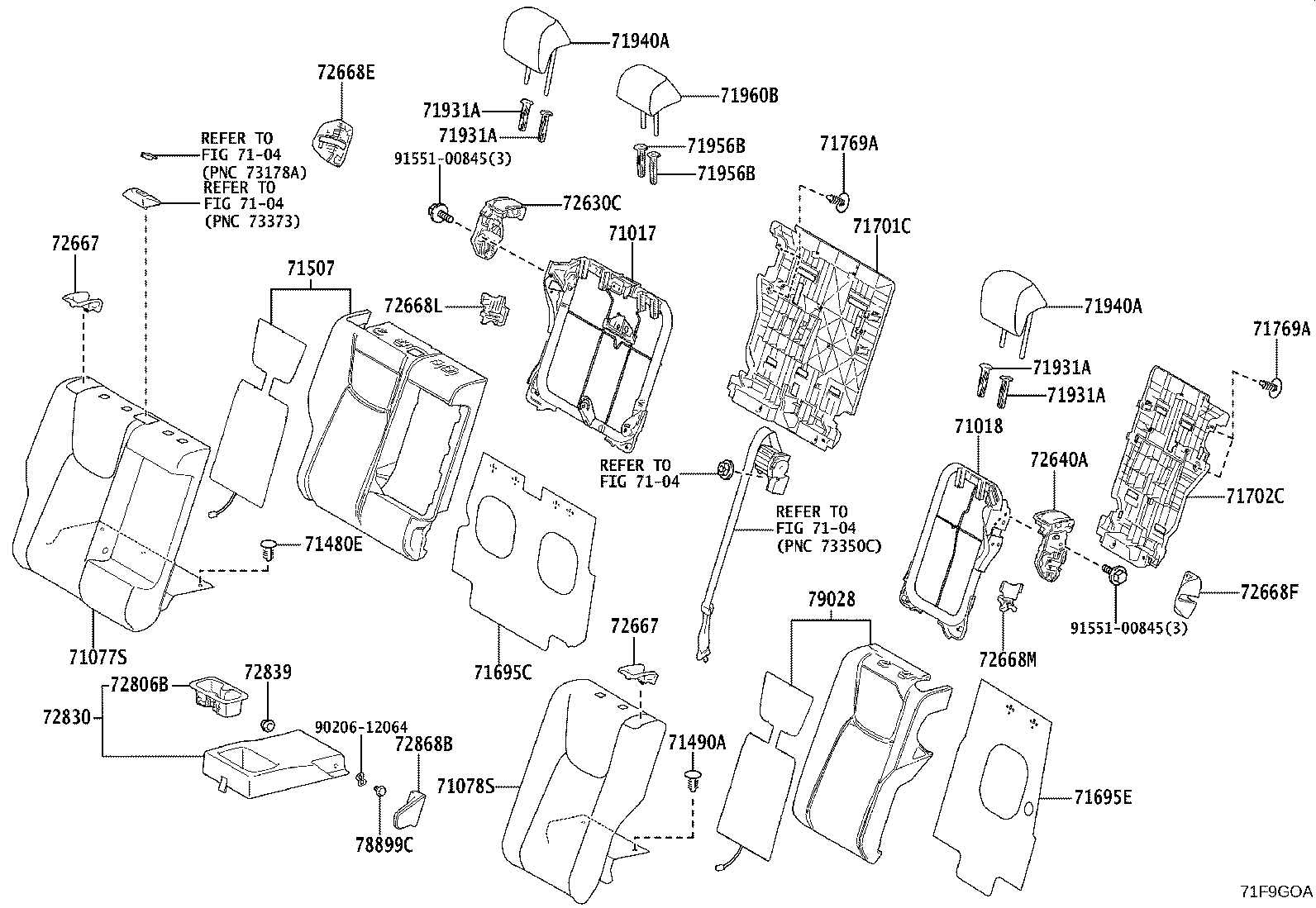

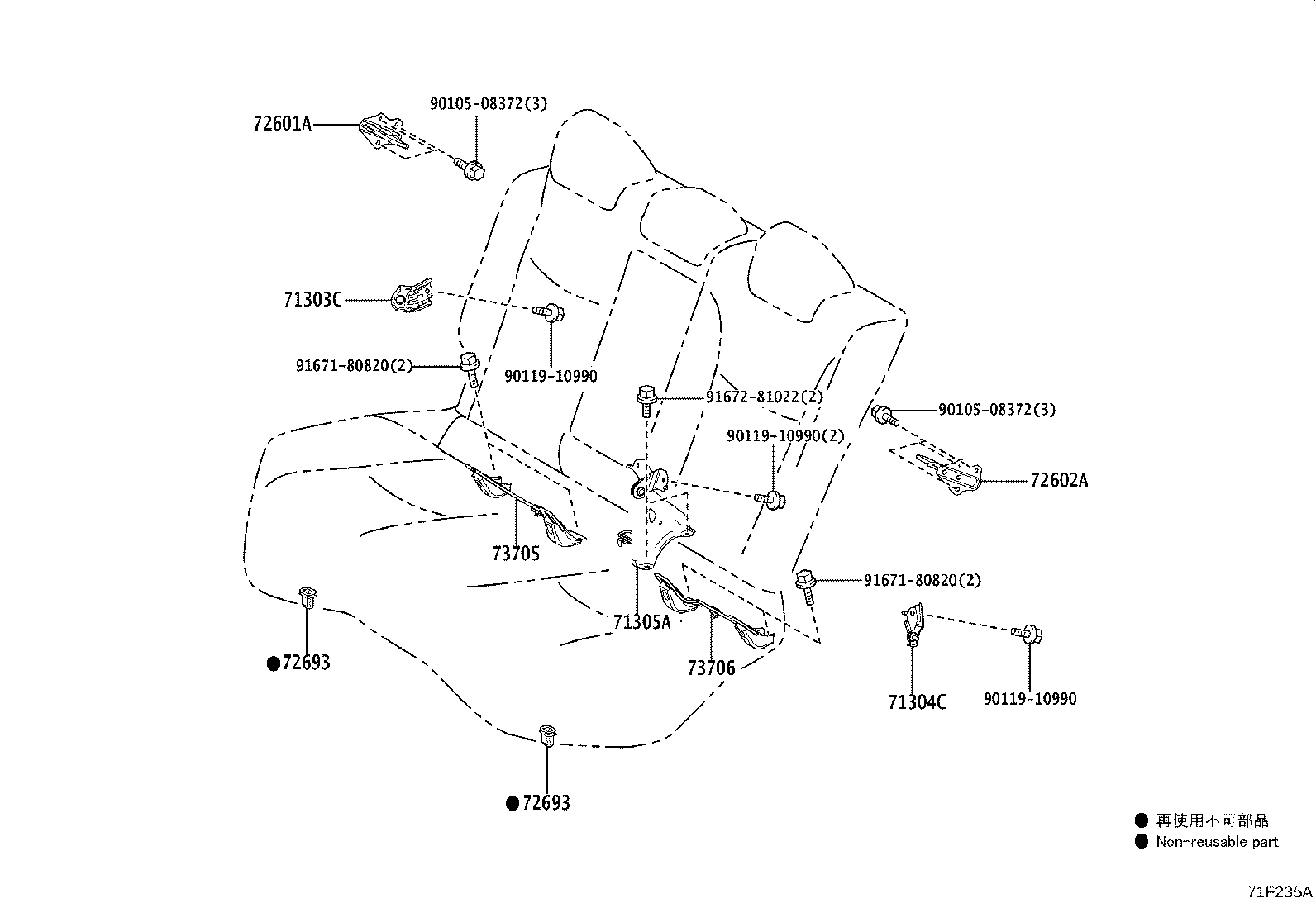

Figure 71F233H 71F233H 2023-01 → 2023-11 Figure 71F9GOA 71F9GOA 2023-11 → — Figure 71F234B 71F234B 2023-01 → 2023-11 Figure 71F9GN 71F9GN 2023-11 → — Figure 71F235A 71F235A 2023-01 → —

Part groups

PNCDescription
71017 Frame Sub-assy, Rear Seatback, RH
71018 Frame Sub-assy, Rear Seatback, LH
71075B Cover, Rear Seat Cushion (FOR BENCH TYPE)
71077S Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
71078S Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
71303C Hinge Sub-assy, Rear Seatback, RH
71304C Hinge Sub-assy, Rear Seatback, LH
71305A Hinge Sub-assy, Rear Seatback, Center
71480E Clip, Rear Seatback, RH
71490A Clip, Rear Seatback, LH
71507 Pad Sub-assy, Rear Seatback, RH
71611 Pad, Rear Seat Cushion
71651S Pad, Rear Seatback, RH(FOR SEPARATE TYPE)
71652S Pad, Rear Seatback, LH(FOR SEPARATE TYPE)
71695C Protector, Rear Seat, NO.1
71695E Protector, Rear Seat, NO.2
71701C Board Sub-assy, Rear Seatback, RH
71702C Board Sub-assy, Rear Seatback, LH
71769A Clip, Rear Seatback Board
71931A Support, Rear Seat Headrest
71940A Headrest Assy, Rear Seat
71956B Support, Rear Seat Headrest
71960B Headrest Assy, Rear Seat, Center
72601A Striker Sub-assy, Rear Seatback Look, RH
72602A Striker Sub-assy, Rear Seatback Lock, LH
72630C Lock Assy, Rear Seatback, RH
72640A Lock Assy, Rear Seatback, LH
72667 Bezel, Rear Seatback Lock, Upper
72668E Bezel, Rear Seatback Lock, Lower RH
72668F Bezel, Rear Seatback Lock, Lower LH
72668L Bezel, Rear Seatback Lock, Lower RH NO.2
72668M Bezel, Rear Seatback Lock, Lower LH NO.2
72693 Hook, Rear Seat Cushion Lock
72806B Holder Sub-assy, Rear Seat Center Armrest Cup
72830 Armrest Assy, Rear Seat, Center
72839 Shim, Rear Seat Armrest Hinge
72868B Cover, Center Armrest Hinge
73705 Bracket Sub-assy, Child Restraint Seat Anchor, RH
73706 Bracket Sub-assy, Child Restraint Seat Anchor, LH
78899C Bolt, Rear Sub Seat
79025B Pad Sub-assy, NO.2 Seat Cushion
79028 Pad Sub-assy, NO.2 Seatback, LH
87501E Control Sub-assy, Seat Heater, RH
87501F Control Sub-assy, Seat Heater, LH
