Toyota Lexus RZ300E/450E

2023-01 → present · chassis XEBM1# · catalogue 564410 · United States

Supported model Data version 2023-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Battery & Battery Cable

45 part groups · 8 illustrations

Illustrations

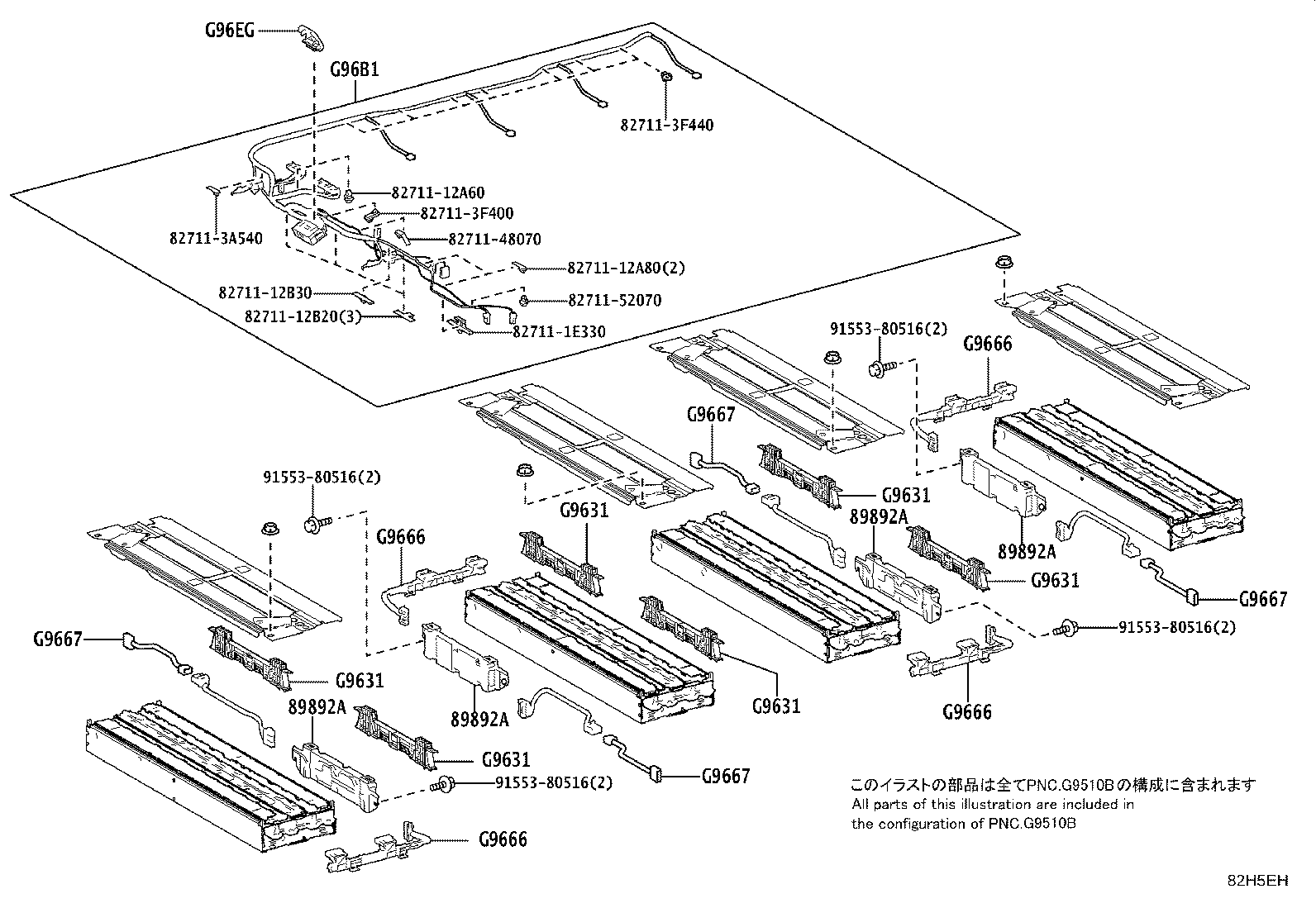

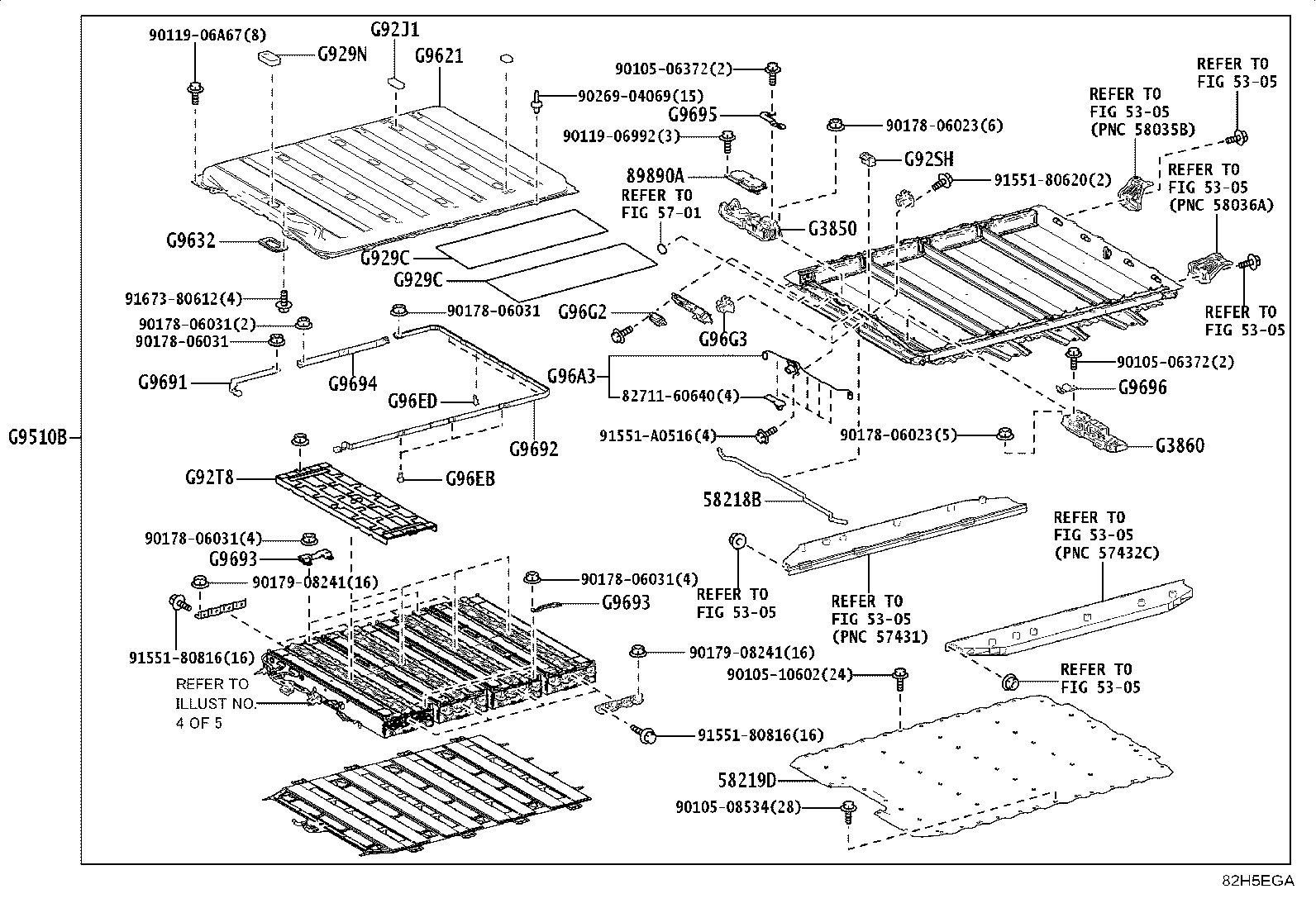

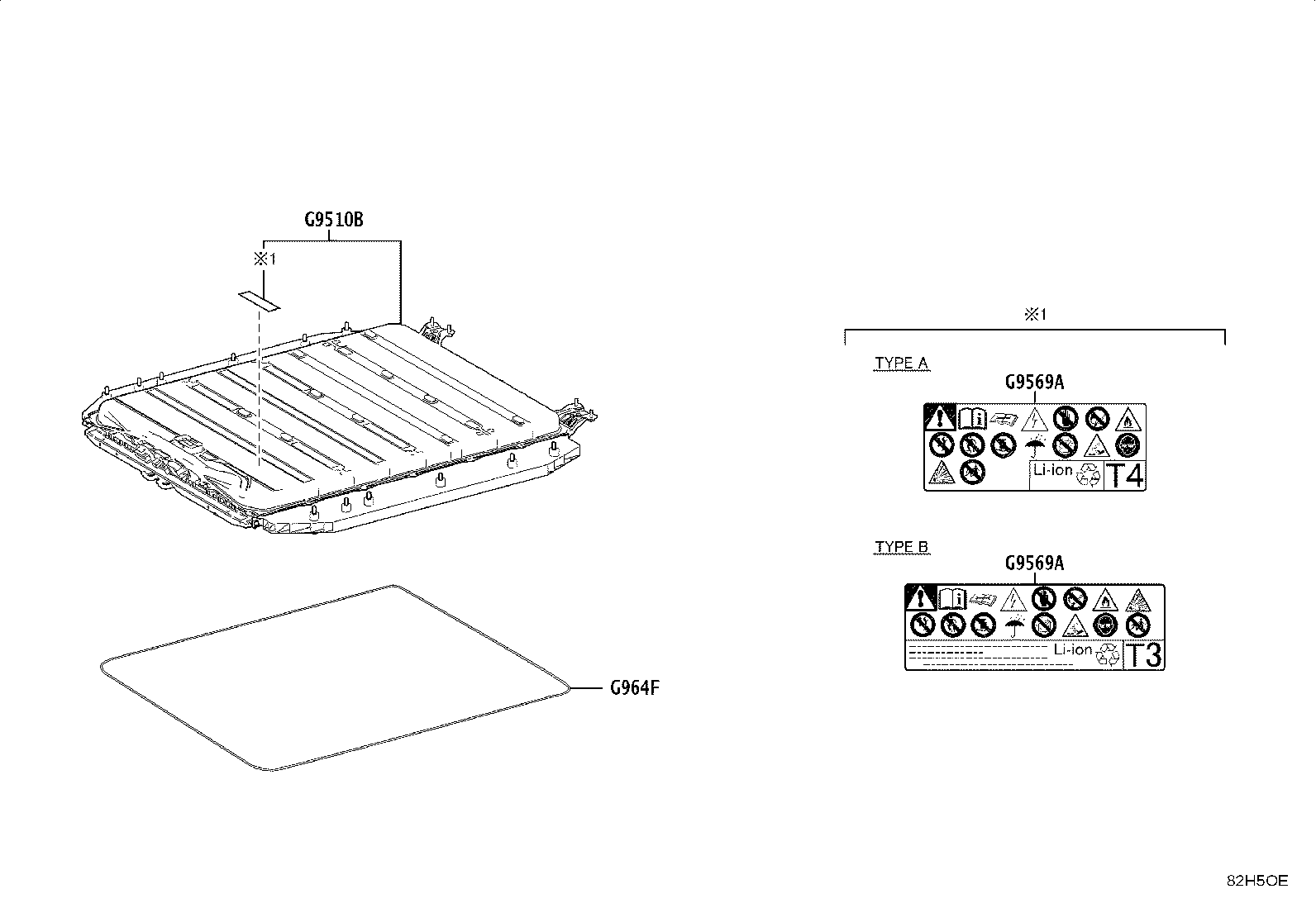

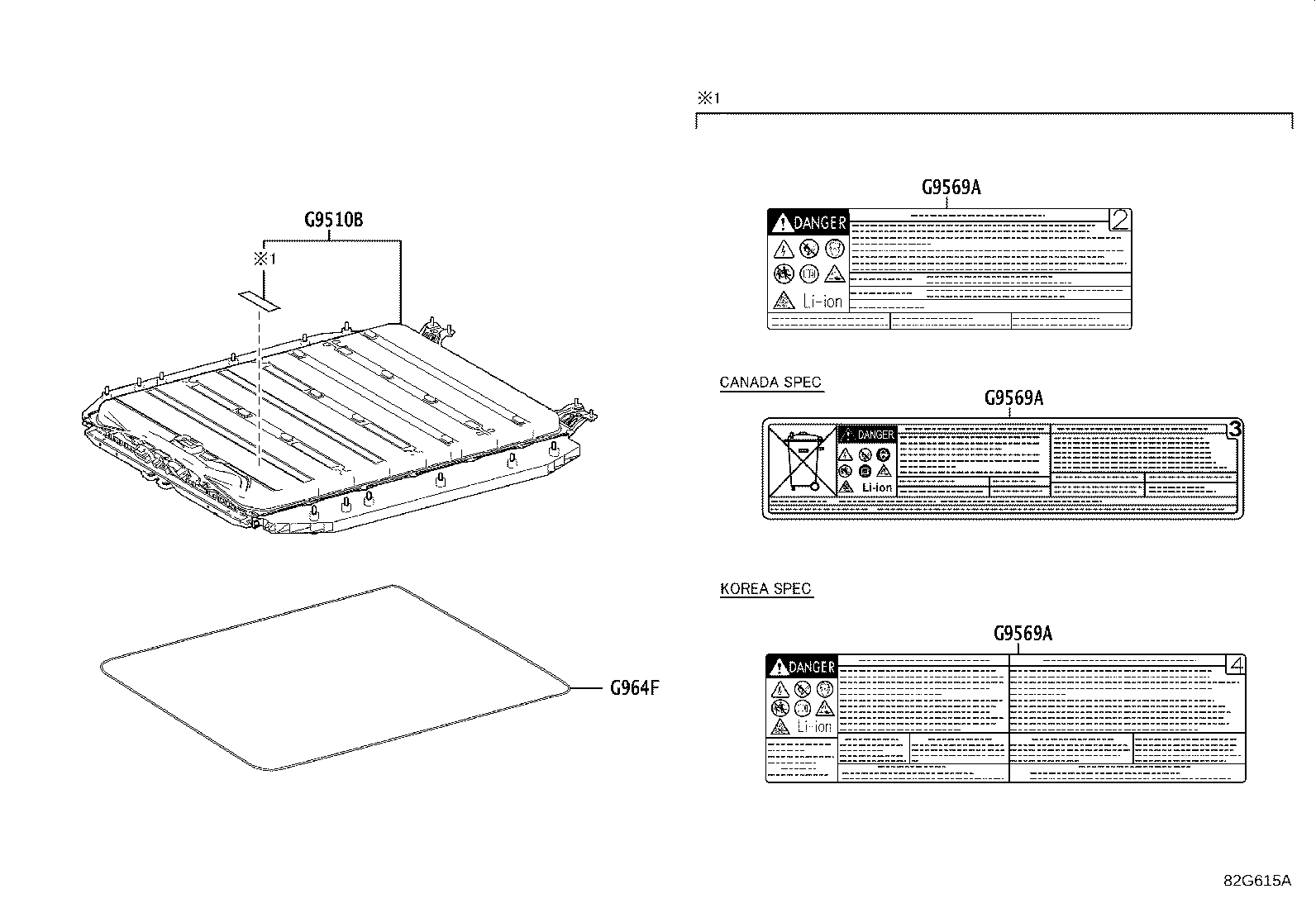

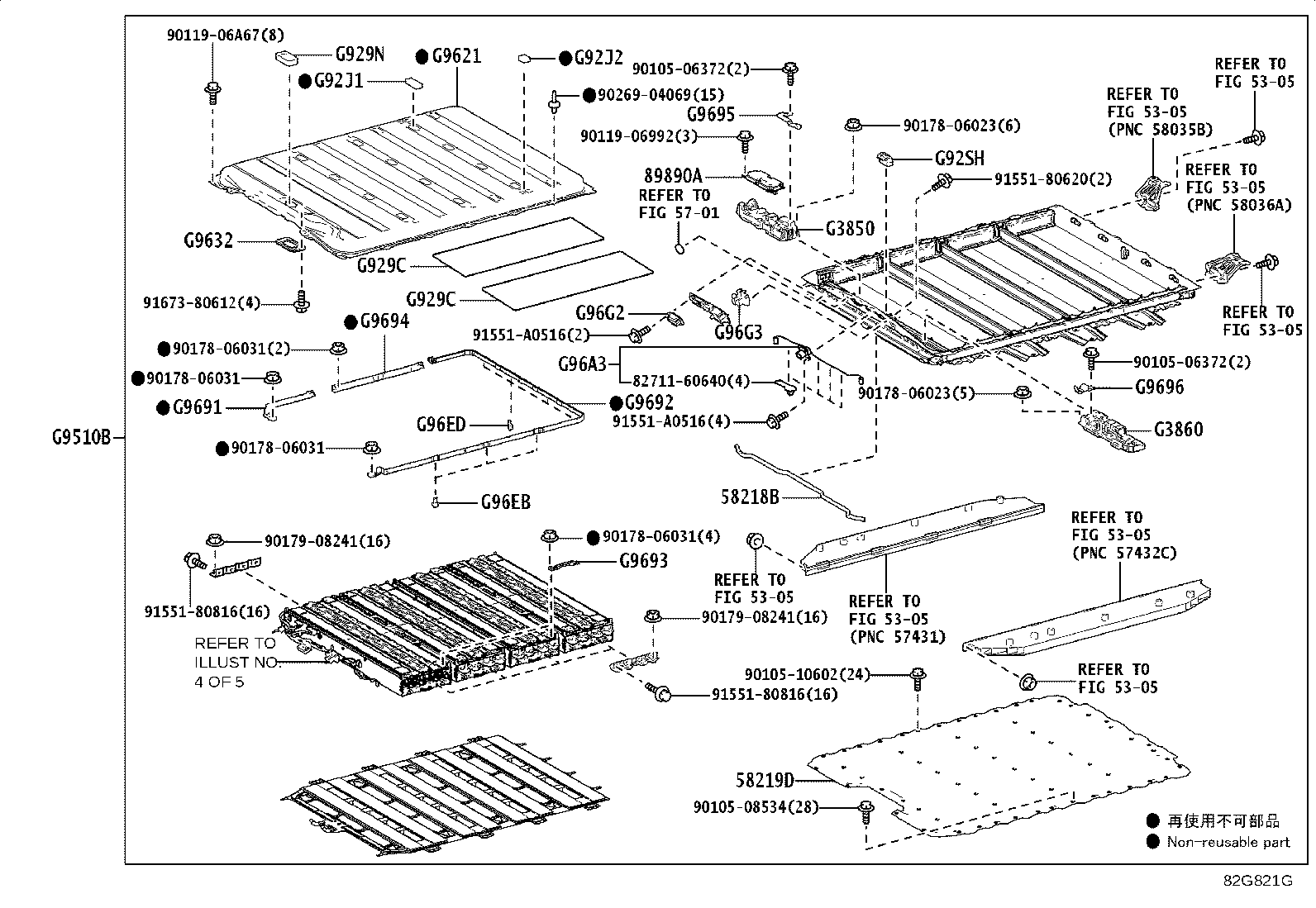

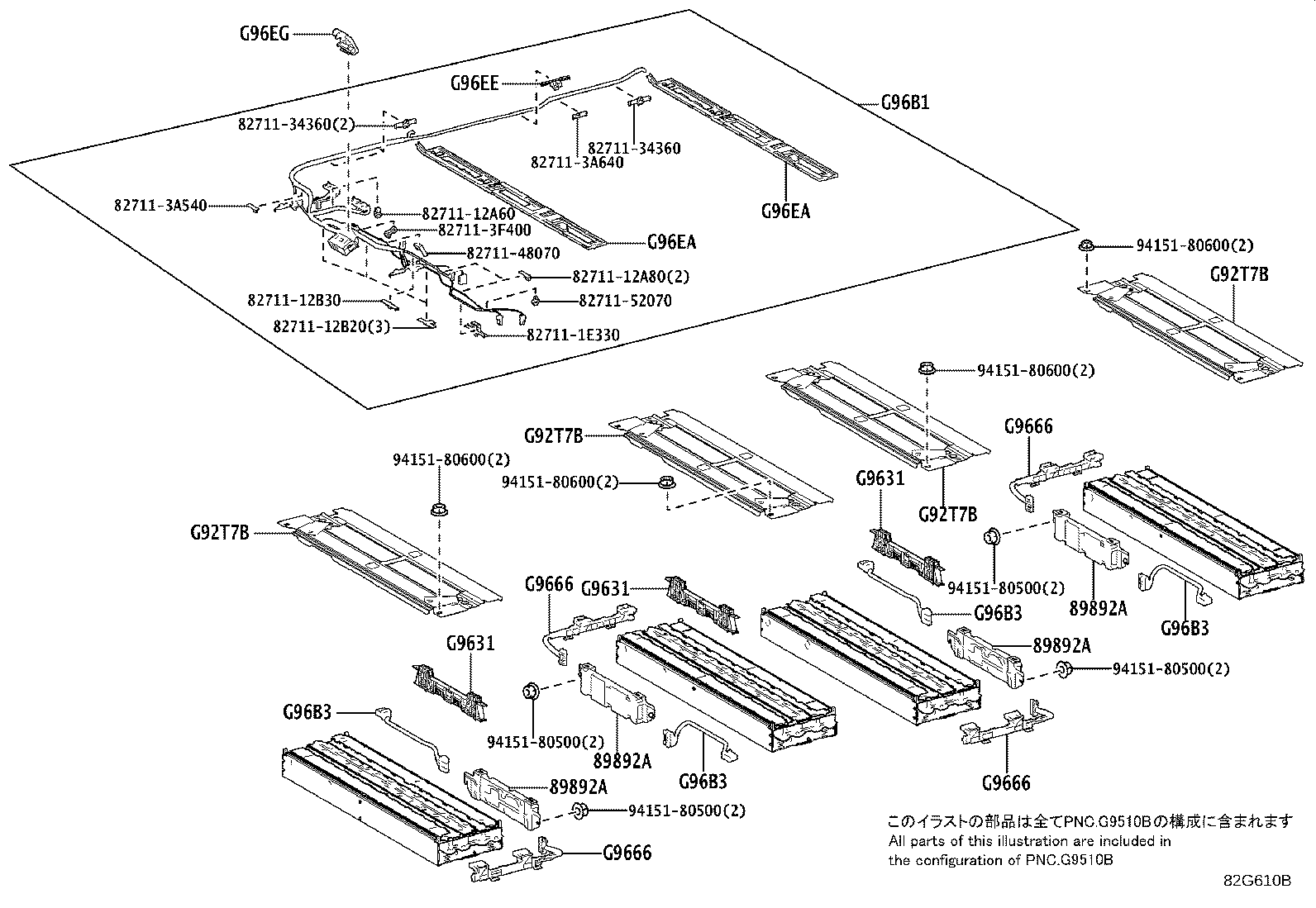

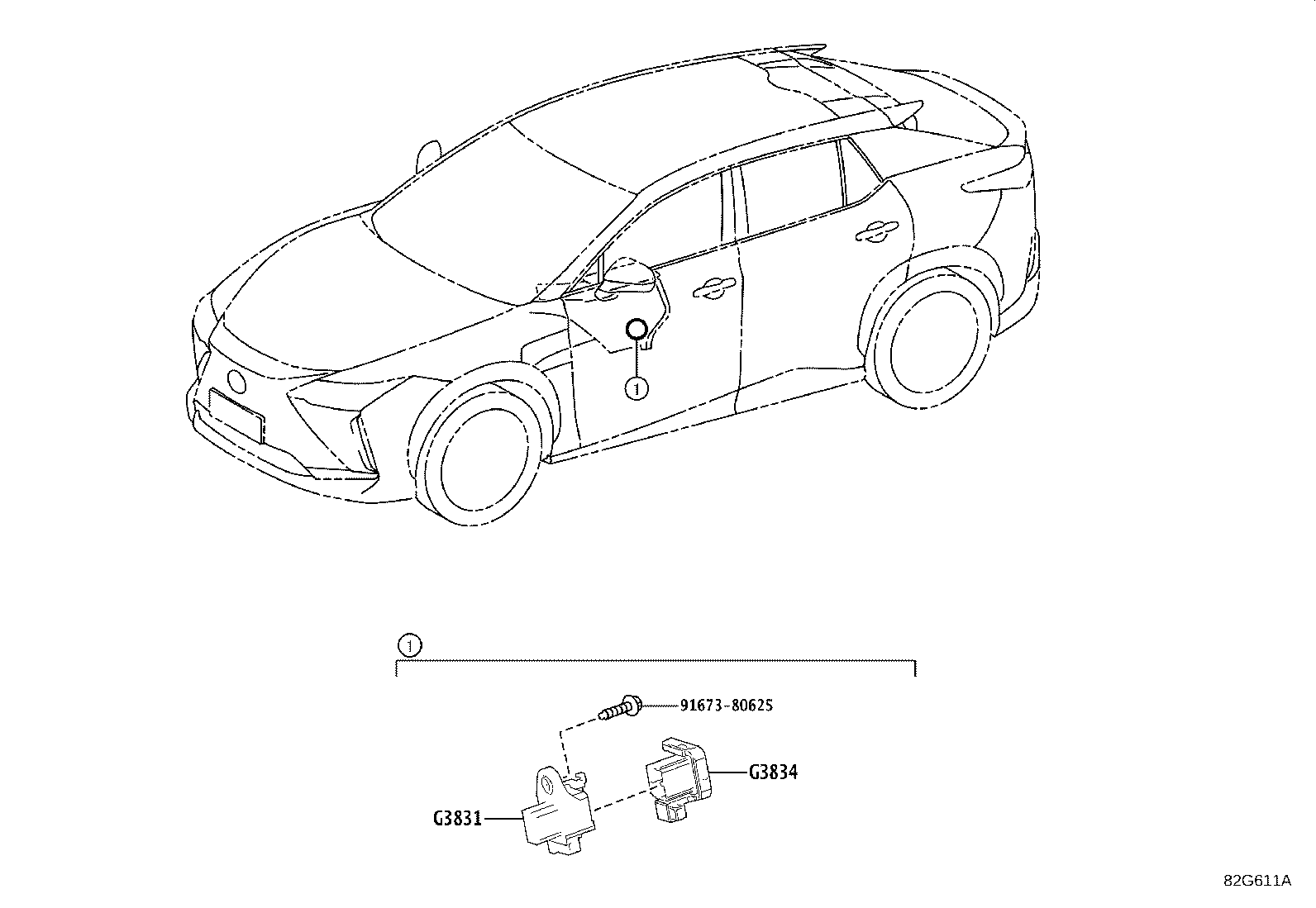

Figure 82G616A 82G616A 2023-01 → — Figure 82G615A 82G615A 2023-01 → 2024-04 Figure 82H5OE 82H5OE 2024-04 → — Figure 82G821G 82G821G 2023-01 → — Figure 82H5EGA 82H5EGA 2023-11 → — Figure 82G610B 82G610B 2023-01 → — Figure 82H5EH 82H5EH 2023-11 → — Figure 82G611A 82G611A 2023-01 → —

Part groups

PNCDescription
28800 Battery
28800A Terminal, Battery Positive
28800D Cover, Connector(FOR BATTERY TERMINAL)
28800Q Cover, Connector(FOR BATTERY)
28897 Plate, Battery Caution
58218B Protector, Battery
58219D Cover, Battery Box
82610G Block Assy, Fuse
89890A Computer Assy, Battery
89892A Sensor, Battery Voltage
G3831 Plug, Electric Vehicle Battery
G3834 Grip, Service Plug
G3850 Box Assy, Traction Battery Device, NO.1
G3860 Box Assy, Traction Battery Device, NO.2
G929C Insulator, Hybrid Battery, NO.2
G929N Plug, Battery Drain
G92J1 Sheet, HV Battery Tray, NO.1
G92J2 Sheet, HV Battery Carrier, NO.2
G92SH Cover, EV Connector
G92T7B Cover, EV Battery Bus-bar Block, NO.1
G92T8 Cover, HV Battery Bus-bar Block, NO.1 B
G9510B Battery Assy, EV Supply
G9569A Label, Lithium Ion Battery Caution
G9621 Cover, Traction Battery, NO.1
G9631 Bracket, Traction Battery, NO.1
G9632 Bracket, Traction Battery, NO.2
G964F Dam, Traction Battery Adhesive
G9666 Wire, Traction Battery Voltage Detctr, NO.6
G9667 Wire, Traction Bat Voltage Detctr, NO.7
G9691 Block, Traction Battery Bus-bar, NO.1
G9692 Block, Traction Battery Bus-bar, NO.2
G9693 Block, Traction Battery Bus-bar, NO.3
G9694 Block, Traction Battery Bus-bar, NO.4
G9695 Block, Traction Battery Bus-bar, NO.5
G9696 Block, Traction Battery Bus-bar, NO.6
G96A3 Cable, Traction Battery, NO.3
G96B1 Wire, Traction Battery, NO.1
G96B3 Wire, Traction Battery, NO.3
G96EA Cover, Traction Battery Wire, NO.5
G96EB Cover, Traction Battery Wire, NO.6
G96ED Cover, Traction Battery Wire, NO.8
G96EE Cover, Traction Battery Wire, NO.9
G96EG Cover, Traction Battery Wire, NO.11
G96G2 Housing, Traction Battery Connector, NO.2
G96G3 Housing, Traction Battery Connector, NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
