Toyota Lexus RZ300E/450E

2023-01 → present · chassis XEBM1# · catalogue 564410 · United States

Supported model Data version 2023-11

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Switch & Relay & Computer

103 part groups · 9 illustrations

Illustrations

Part groups

PNC	Description
28800R	Relay, Battery Fan
28850C	Sensor Assy, Battery State
28911	Bracket, Integration Control Supply, NO.1
28911A	Bracket, Integration Control Supply, NO.2
28912	Supply, Integration Control
35300G	Relay, Oil Pump
82210N	Instrument Panel Fusible Link
82210Q	Front Compartment Fusible Link
82600D	Instrument Panel Fuse
82600F	Fuse, Fuse Block

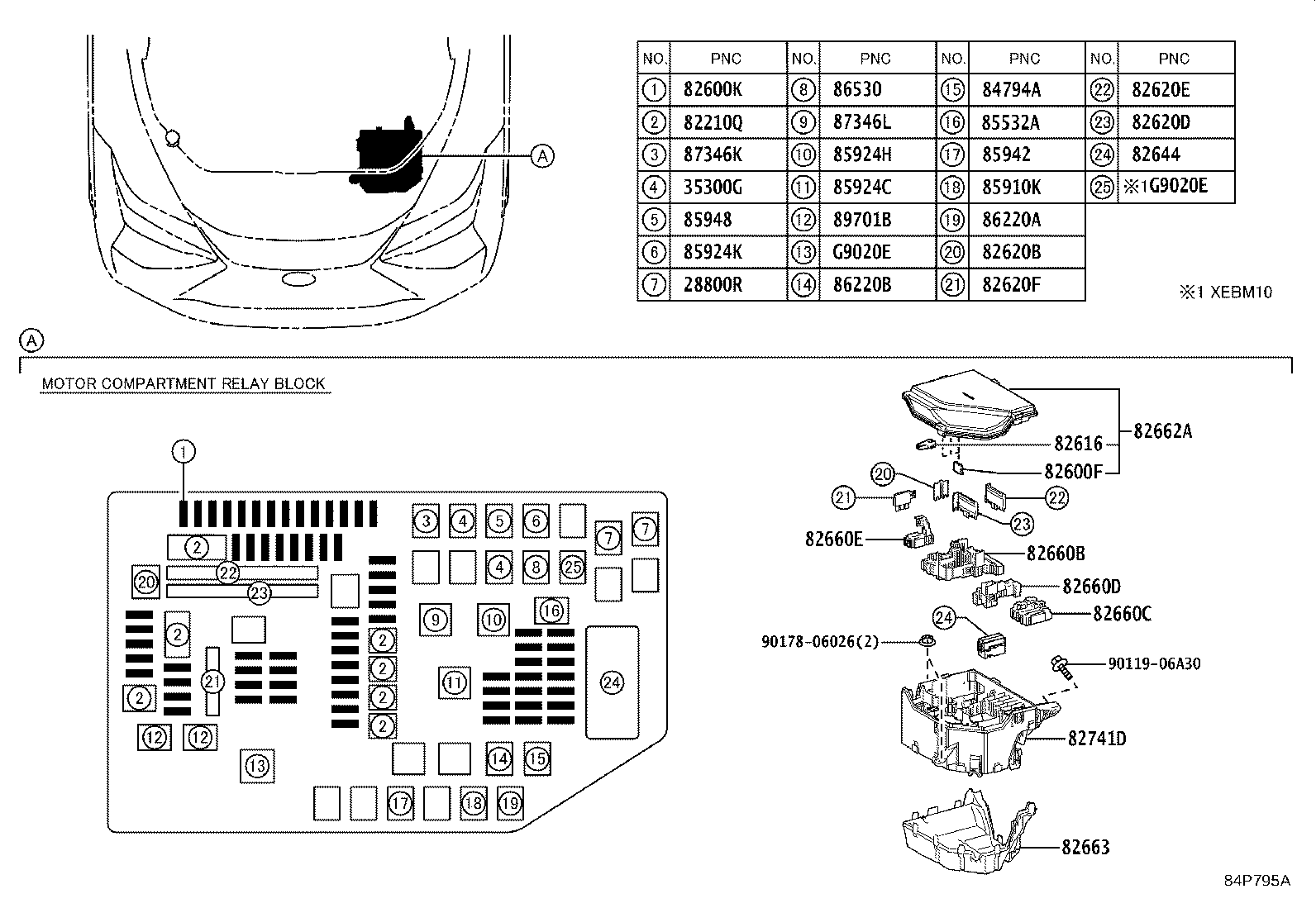

82600K	Front Compartment Fuse
82616	Puller, Fuse
82620B	Block Assy, Fusible Link
82620D	Block Assy, Fusible Link
82620E	Block Assy, Fusible Link
82620F	Block Assy, Fusible Link

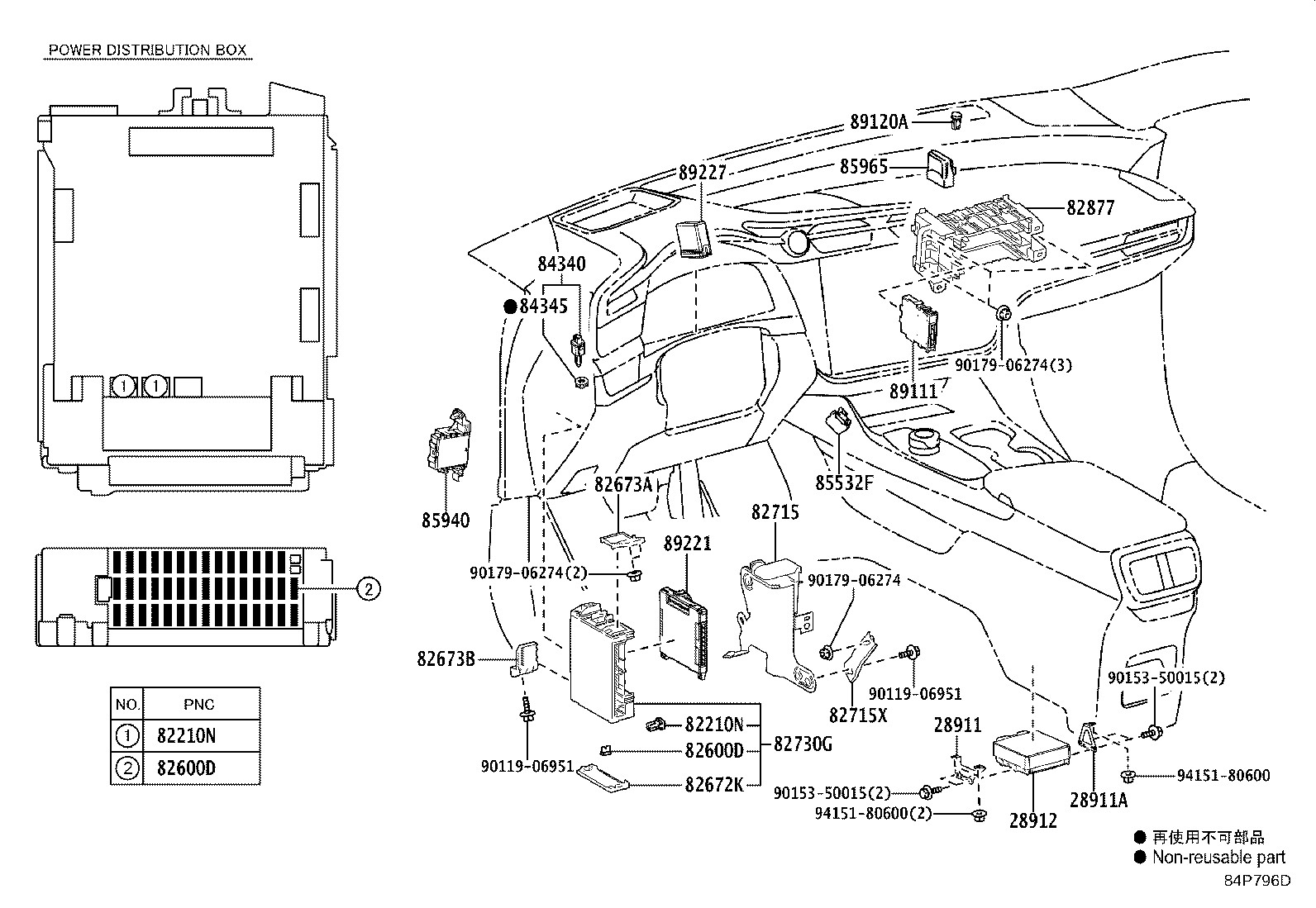

82644	Computer, Semiconductor Power Integration
82660B	Block Assy, Relay
82660C	Block Assy, Relay
82660D	Block Assy, Relay
82660E	Block Assy, Relay
82662A	Cover, Relay Block, Upper, NO.1
82663	Cover, Relay Block, Lower
82672K	Cover, Power Distribution Box
82673A	Bracket, Junction Block, NO.1
82673B	Bracket, Junction Block, NO.2
82715	Bracket,Wiring Harness Clamp
82715X	Bracket, Wiring Harness Clamp, NO.2
82730G	Box Assy, Power Distribution
82741D	Block, Front Compartment Relay
82877	Box, Computer Integration, RH
84010D	Control & Panel Assy, Integration
84010H	Control & Panel Assy, Integration
84040	Master Switch Assy,Multiplex Network

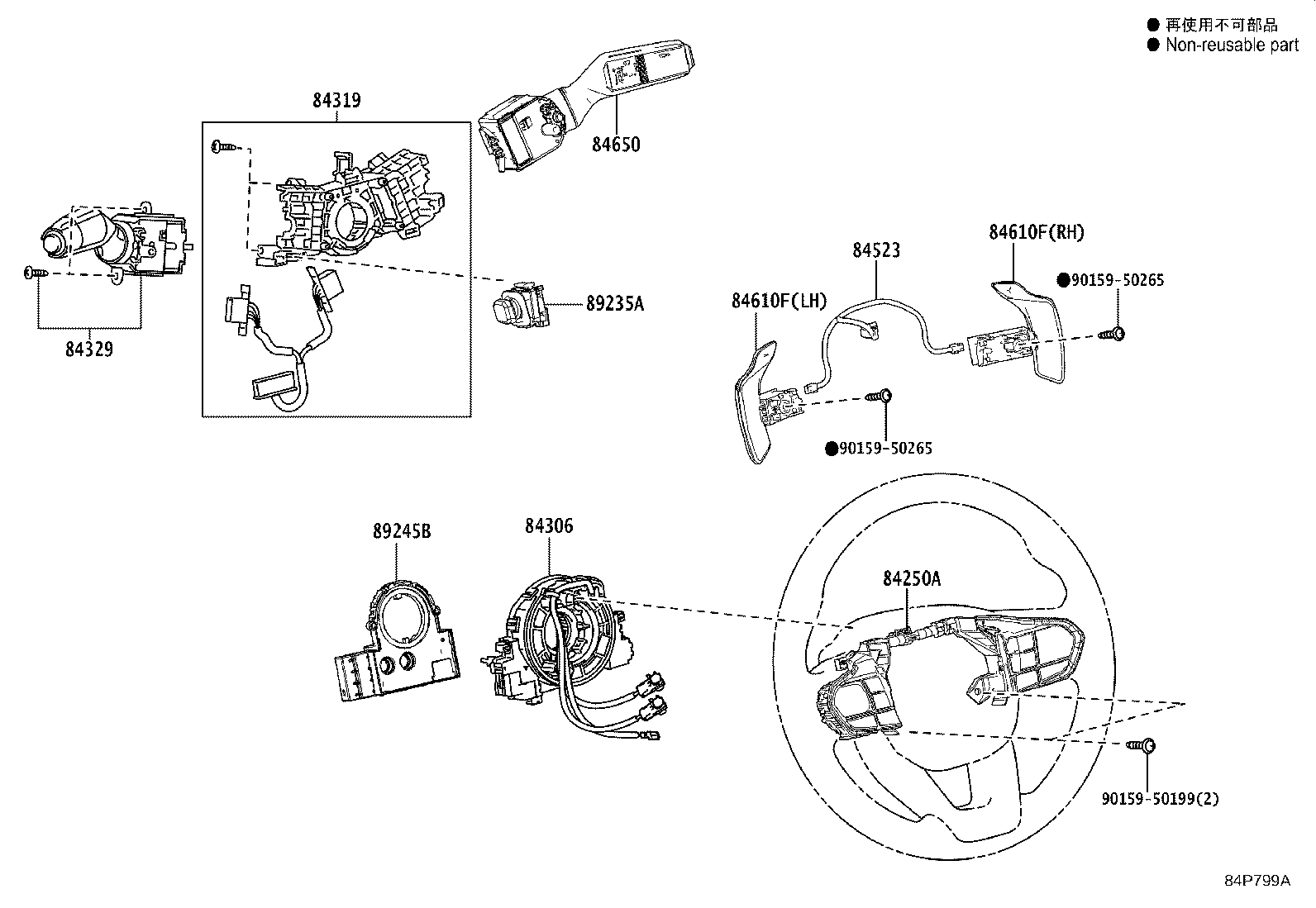

84250A	Switch Assy, Steering Pad
84306	Cable Sub-assy, Spiral
84319	Housing, Steering Wheel Switch
84329	Switch, Turn Signal
84330	Switch Assy, Hazard Warning Signal
84340	Switch Assy, Stop Lamp
84345	Adjuster, Stop Lamp Switch Mounting
84390B	Switch Assy, Electric Parking Brake
84523	Wire, Switch NO.1
84610F	Switch Assy, Transmission Shift
84650	Switch Assy, Windshield Wiper
84752	Switch, Refreshing Seat
84794A	Relay, FR Wiper Deicer

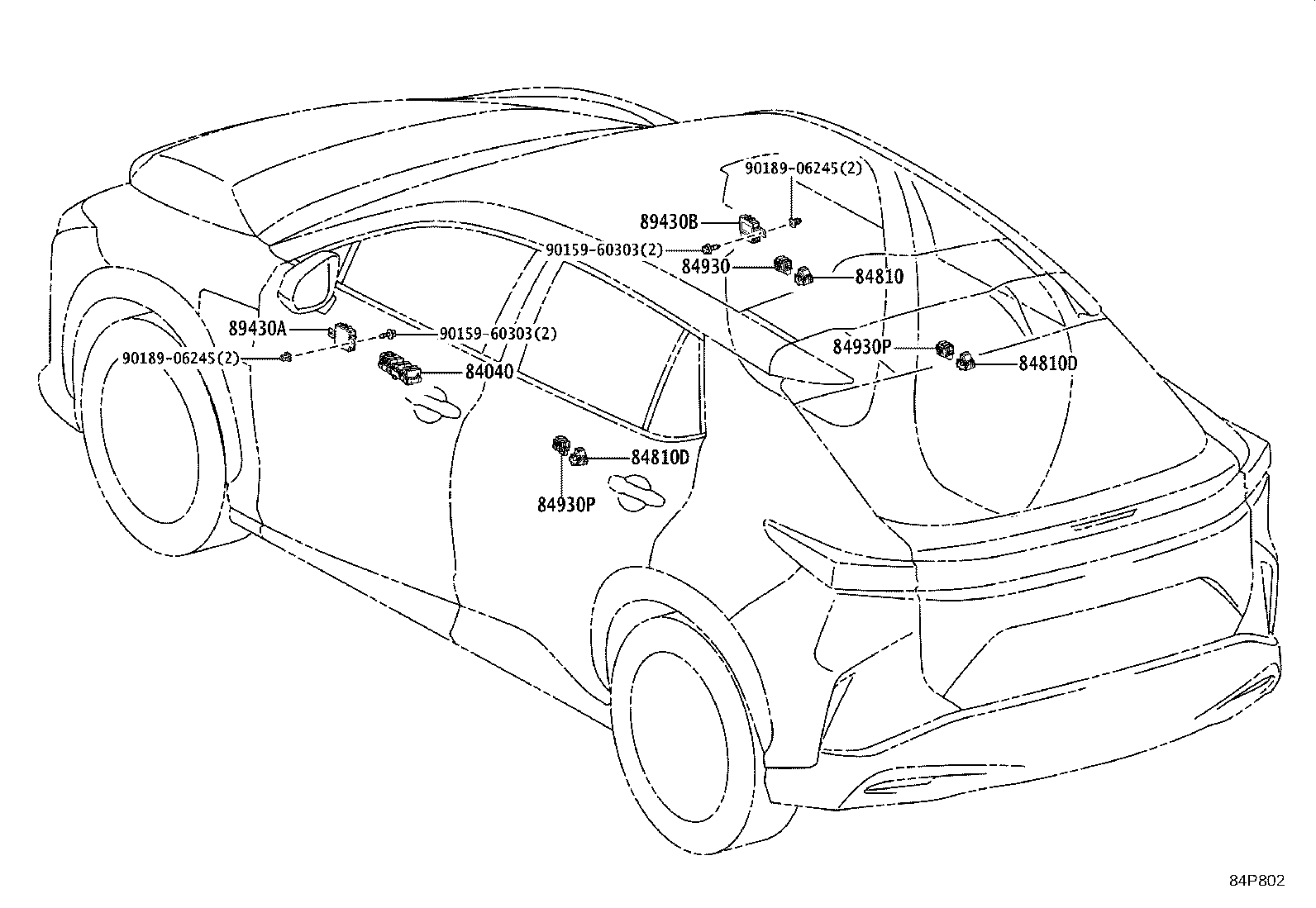

84810	Switch Assy, Power Window Regulator
84810D	Switch Assy, Power Window Regulator, Rear

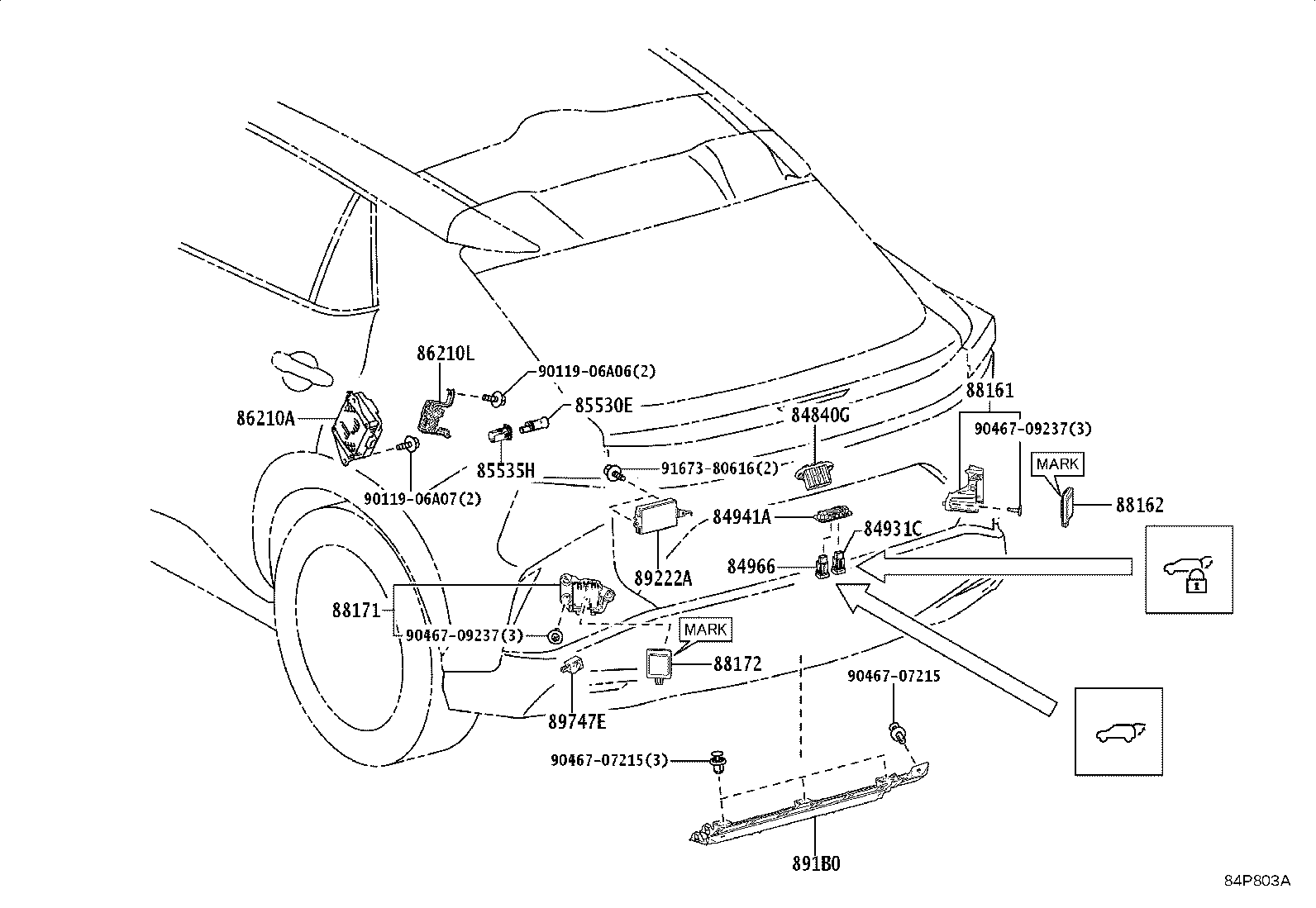

84840G	Switch Assy, Back Door Opener

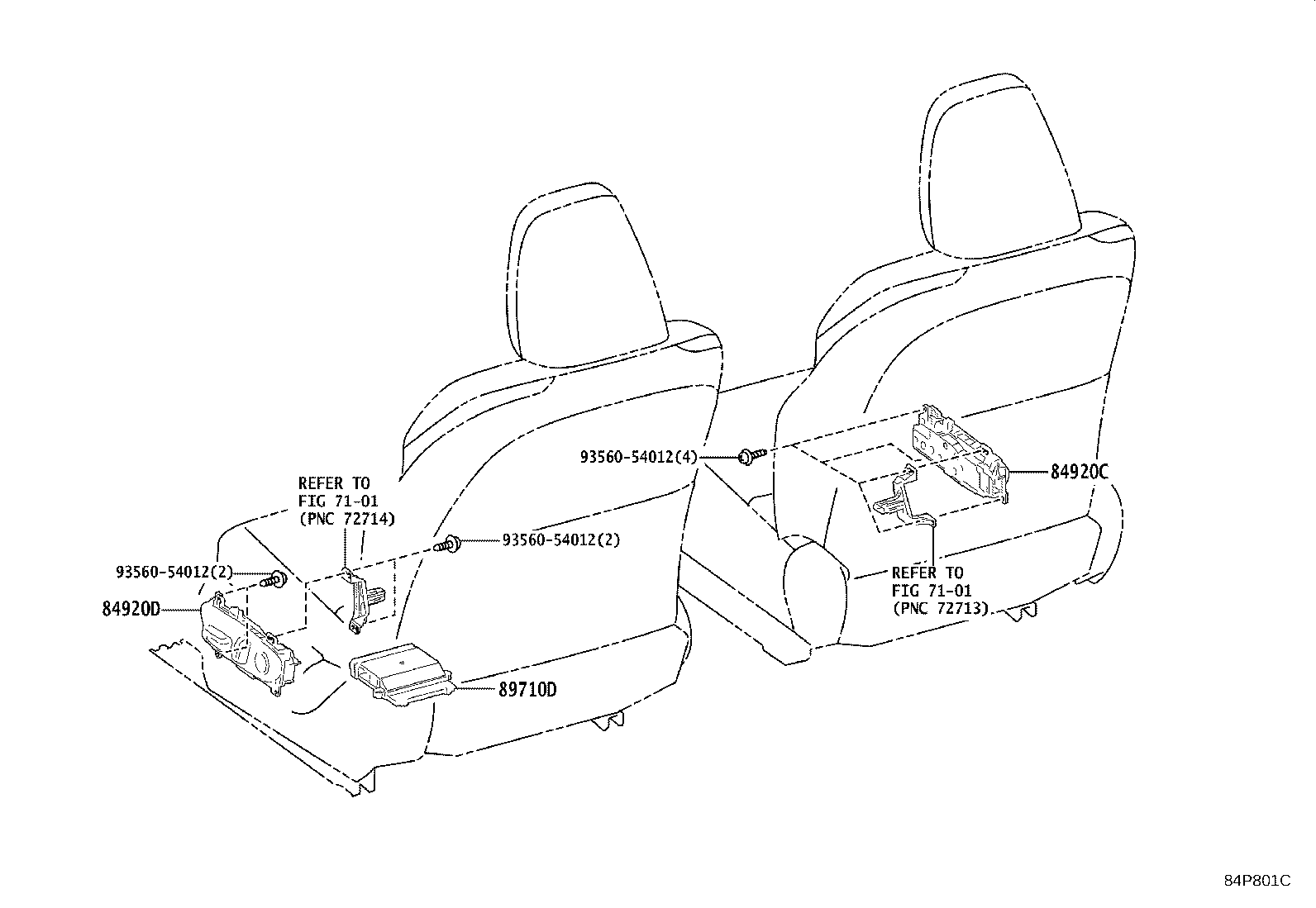

84920C	Switch Assy, Power Seat Front, RH
84920D	Switch Assy, Power Seat Front, LH
84927	Switch, Seat Memory
84930	Switch Assy, Door Control
84930P	Switch Assy, Door Control
84931C	Switch, Back Door Control
84941A	Base, Switch
84966	Switch, Power Back Door Control

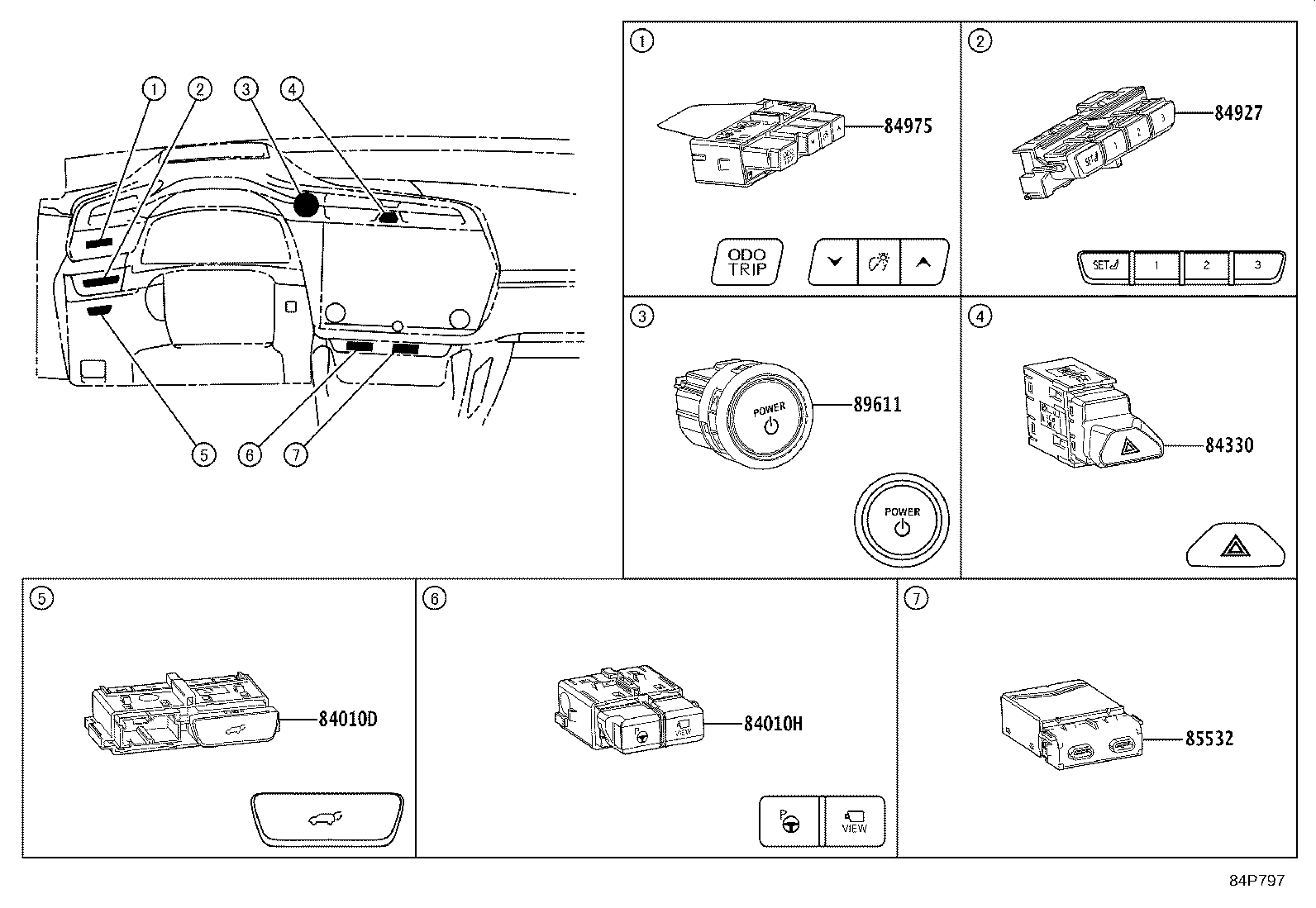

84975	Switch, Trip

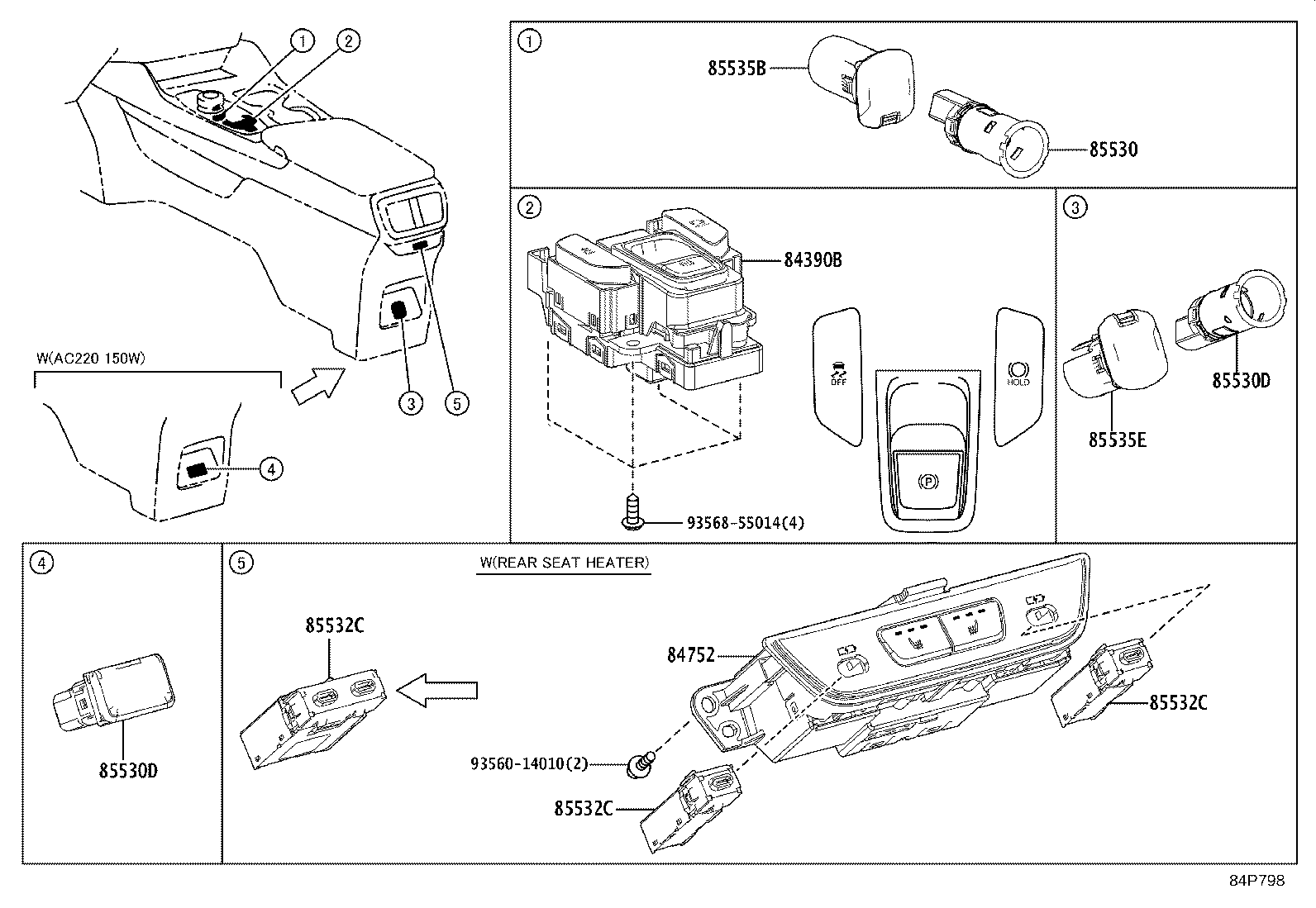

85530	Socket Assy, Power Outlet, NO.1
85530D	Socket Assy, Power Outlet, NO.2
85530E	Socket Assy, Power Outlet, NO.3
85532	Socket, Usb Charger
85532A	Relay, Usb
85532C	Socket, Usb Charger, NO.2
85532F	Relay, Usb, NO.2
85535B	Cover, Power Outlet Socket, NO.1
85535E	Cover, Power Outlet Socket, NO.2
85535H	Cover, Power Outlet Socket, NO.3
85910K	Relay, Rear Seat Heater
85924C	Relay, Igct
85924H	Relay, Igct-scene
85924K	Relay, Igct, NO.2
85940	Relay Assy, Windshield Wiper
85942	Relay, Headlamp Cleaner Control
85948	Relay, Windshield Wiper
85965	Relay, Room Lamp Control
86210A	Inverter Assy, Voltage
86210L	Inverter Assy, Voltage, NO.2
86220A	Relay, Inverter
86220B	Relay, Inverter, NO.2
86530	Relay Assy, Horn
87346K	Relay, Ptc Heater
87346L	Relay, Ptc Heater
88161	Bracket, Blind Spot Monitor, RH
88162	Sensor, Blind Spot Monitor, RH
88171	Bracket, Blind Spot Monitor, LH
88172	Sensor, Blind Spot Monitor, LH
89111	Computer, Network Gateway
89120A	Sensor, Automatic Light Control
891B0	Sensor Assy, Kick Door Control
89221	Computer, Multiplex Network Body
89222A	Computer, Multiplex Network Door
89227	Computer, Multiplex Tilt & Telescopic
89235A	Switch, Tilt & Telescopic
89245B	Sensor, Steering
89430A	Computer Assy, Outer Mirror Control, LH
89430B	Computer Assy, Outer Mirror Control, RH
89611	Switch, Push Start
89701B	Relay, Plugin Charge Control
89710D	Computer Assy, Position Control, LH
89747E	Buzzer, Power Back Door Warning
G9020E	Relay, Hybrid Water Pump

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
