Toyota Lexus RZ300E/450E
2023-01 → present · chassis XEBM1# · catalogue 564410 · United States
Supported model
Data version 2023-11

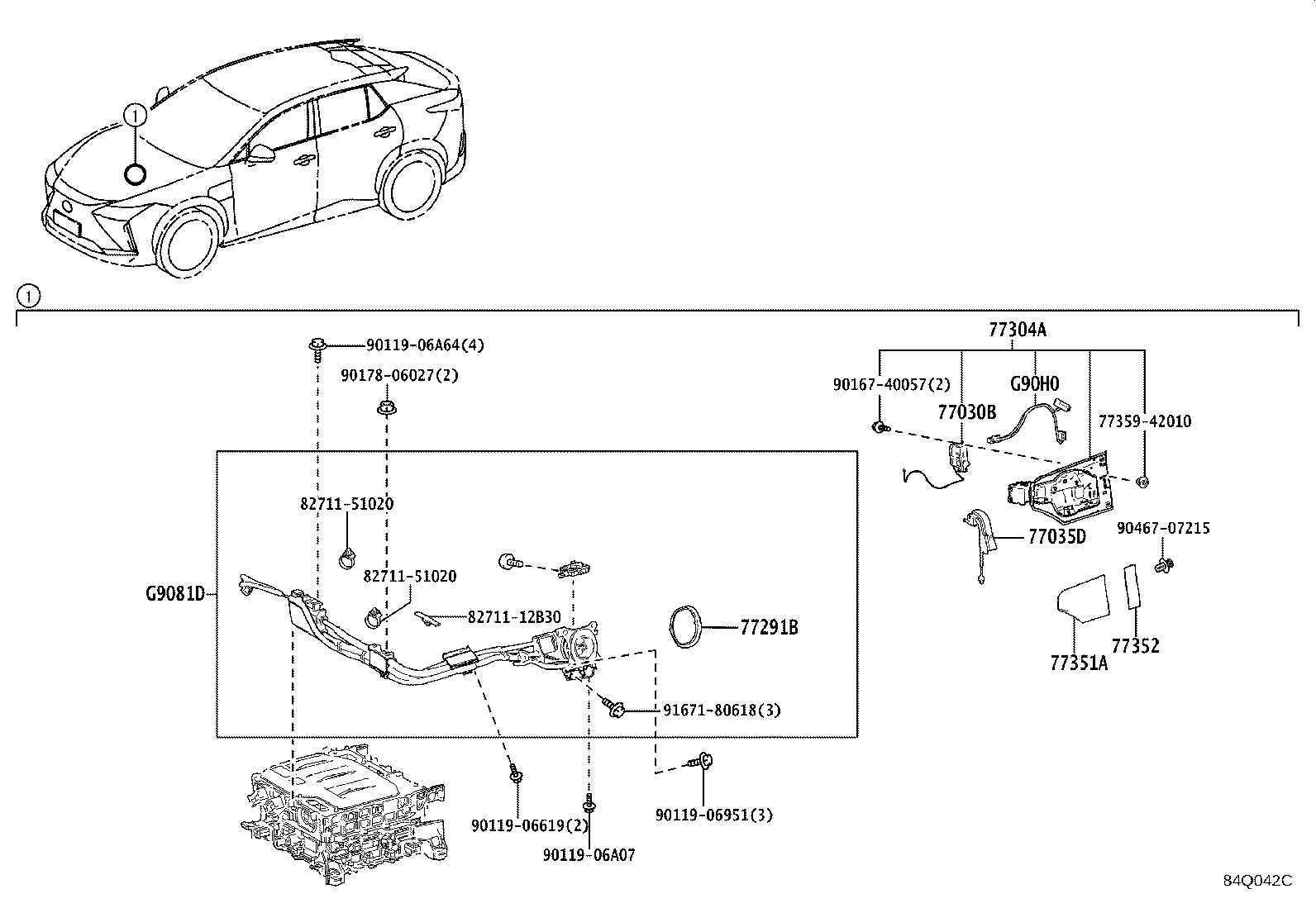

DC/DC Converter & Charger(BEV OR FCEV)
20 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 63189E | Bracket, Wiring Harness Connector |
| 77030B | Lock Assy, Charge Lid W/Motor |
| 77035D | Cable Sub-assy, Charge Lid Lock Control, NO.2 |
| 77291B | Shield, DC Charger Inlet |
| 77304A | Lid Sub-assy, Battery Charge Port |
| 77351A | Lid, Fuel Filler Opening, Outer |
| 77352 | Lid, Fuel Filler Opening, Inner |
| 82823U | Cap, Terminal |
| G9060A | Cable Assy, Electric Vehicle Charger |
| G9060D | Cover, EV Charger Cable |
| G9081D | Cable, DC Charger Inlet |
| G90G0A | Plug Assy, Cable EV Charger |
| G90H0 | Indicator Assy, EV Charger Lid |
| G926KA | Key, Plug Cable EV Charger |
| G926LA | Cover, Plug Cable EV Charger |
| G9731 | Cover, Terminal, NO.1 |
| G9732 | Cover, Terminal, NO.2 |
| G9733 | Bracket, Earth |
| G9736 | Protector, Connector, NO.3 |
| G97A0 | Unit Assy, Electric Converter W/Cap |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
