Toyota Lexus RZ300E/450E
2023-01 → present · chassis XEBM1# · catalogue 564410 · United States
Supported model
Data version 2023-11
Heating & Air Conditioning - Cooler Unit
26 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 82210K | Harness Assy, Air Conditioner |
| 87050 | Radiator Assy, Air Conditioner |

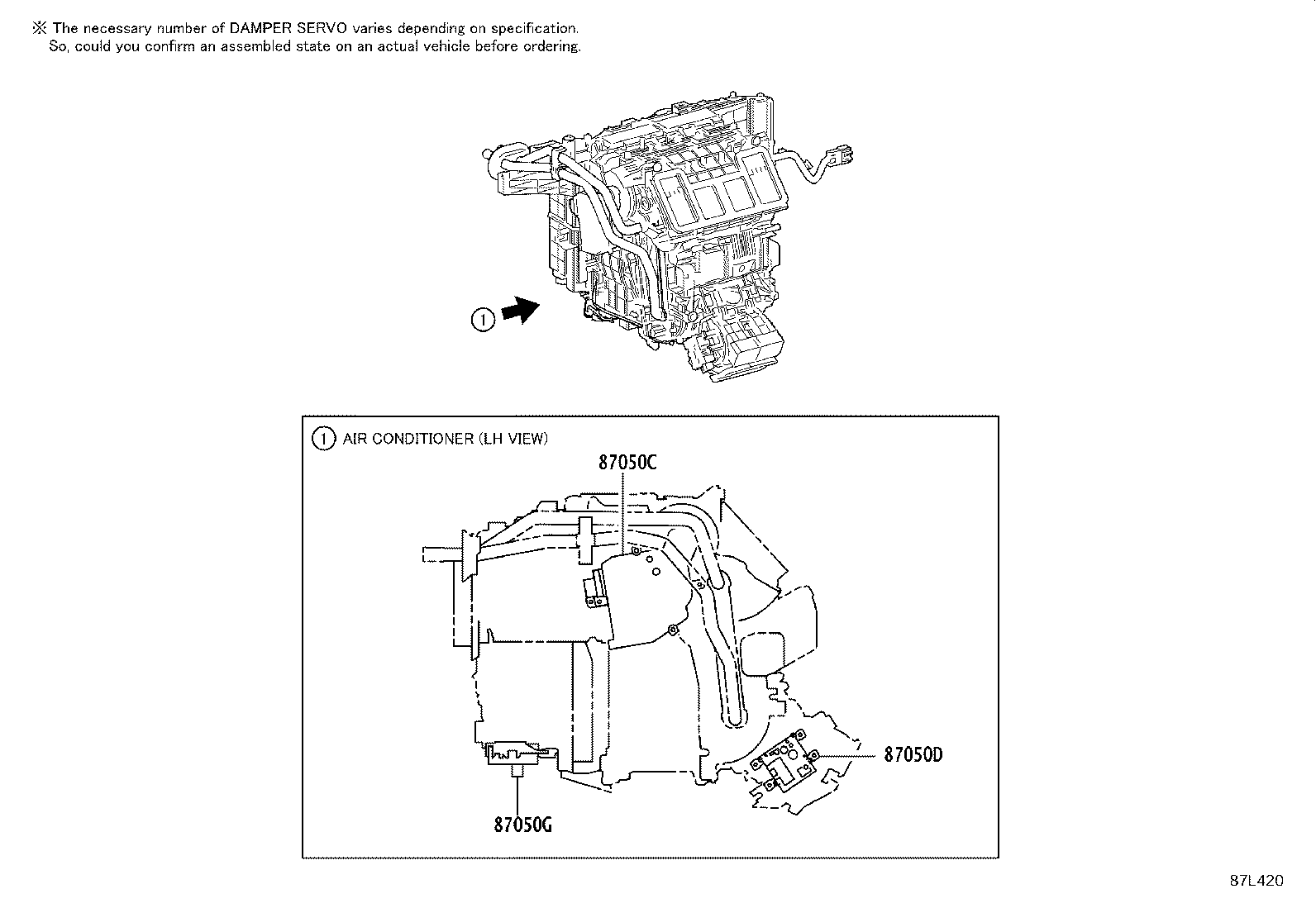

| 87050C | Damper Servo Sub-assy, Air Conditioner Radiator, NO.1 |
| 87050D | Damper Servo Sub-assy, Air Conditioner Radiator, NO.2 |
| 87050G | Damper Servo Sub-assy, Air Conditioner Radiator, NO.5 |
| 87103B | Motor Sub-assy, Blower W/Fan |
| 87107A | Unit Sub-assy, Heater Radiator |
| 87124B | Clamp, Heater |
| 87128 | Grommet, Heater |
| 87137B | Cover, Heater Blower |
| 87139C | Filter, Clean Air |
| 88501 | Evaporator Sub-assy, Cooler, NO.1 |
| 88501J | O-ring, Cooler Evaporator NO.2(SUCTION) |
| 88501K | O-ring, Cooler Evaporator NO.1(LIQUID) |
| 88539J | Hose, Drain Cooler |
| 88539K | Hose, Drain Cooler |
| 88539W | Hose, Drain Cooler, NO.2 |
| 88548B | Case, Air Filter |
| 88625 | Thermistor, Cooler, NO.1 |
| 88650N | Amplifier Assy, Air Conditioner |
| 886B0 | Computer Assy, Heat Management |
| 88891 | Packing (FOR COOLER) |
| 88897K | Grommet, (FOR COOLER PIPE) |
| 88897M | Grommet (FOR HEATER PIPE) |
| 88899L | Parts, Cooling Unit |
| 88899M | Plate, Cover(FOR AIR FILTER) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
