Toyota Avanza

2003-12 → 2011-11 · chassis F601,F602 · catalogue 613210 · United States

Discontinued model Data version 2012-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Cylinder Head

22 part groups · 2 illustrations

Illustrations

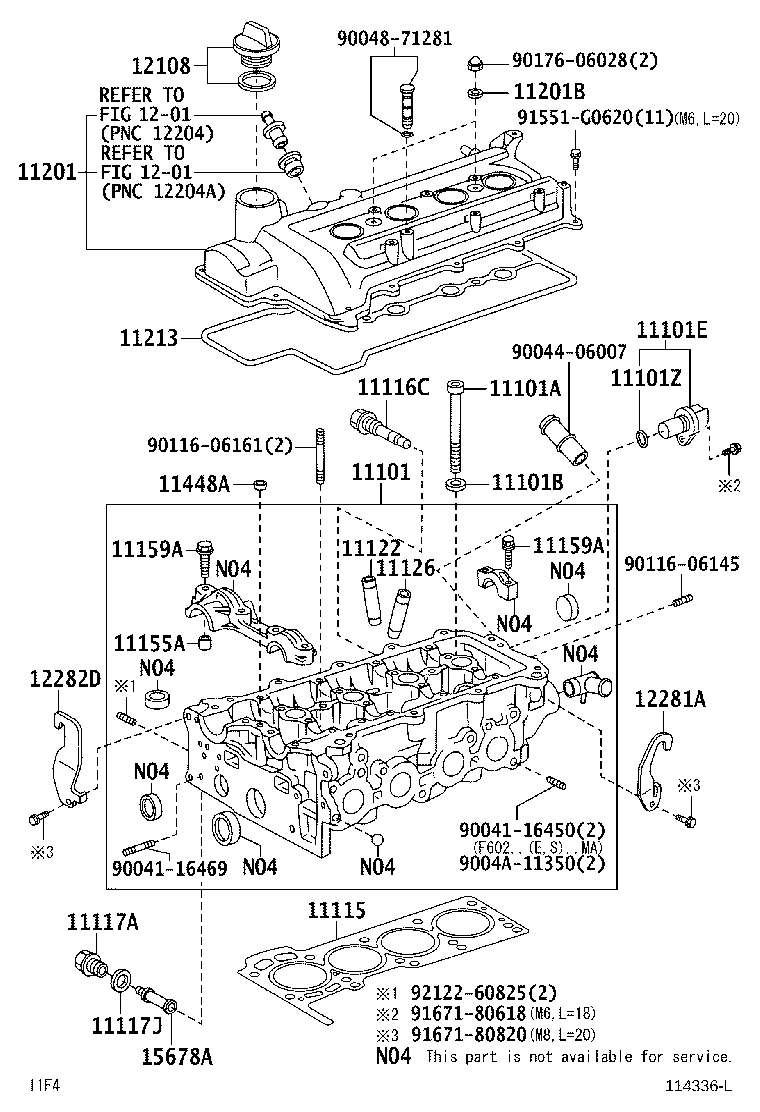

Figure 113163H 113163H 2003-12 → 2006-08 Figure 114336L 114336L 2006-08 → —

Part groups

PNCDescription
11101 Head Sub-assy, Cylinder
11101A Bolt(FOR CYLINDER HEAD SET)
11101B Washer, Plate(FOR CYLINDER HEAD SET)
11101C Tube(FOR CYLINDER HEAD)
11101E Sensor, Cam Position
11101Z O Ring, Cam Position Sensor
11115 Gasket, Cylinder Head
11116C Plug, Tight, NO.3
11117A Plug, W/Head Taper Screw, NO.1
11117J Gasket(FOR CYLINDER HEAD SCREW PLUG)
11122 Bush, Intake Valve Guide
11126 Bush, Exhaust Valve Guide
11155A Pin, Ring W/Head
11159A Bolt(FOR HEAD TO CAMSHAFT BEARING CAP)
11201 Cover Sub-assy, Cylinder Head
11201B Washer, Seal(FOR CYLINDER HEAD COVER)
11213 Gasket, Cylinder Head Cover
11448A Orifice, Cylinder Head Oil
12108 Cap Sub-assy, Oil Filler
12281A Hanger, Engine, NO.1
12282D Hanger, Engine, NO.2
15678A Filter, Oil Control Valve
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
