Toyota Avanza

2003-12 → 2011-11 · chassis F601,F602 · catalogue 613210 · United States

Discontinued model Data version 2012-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Cylinder Block

16 part groups · 2 illustrations

Illustrations

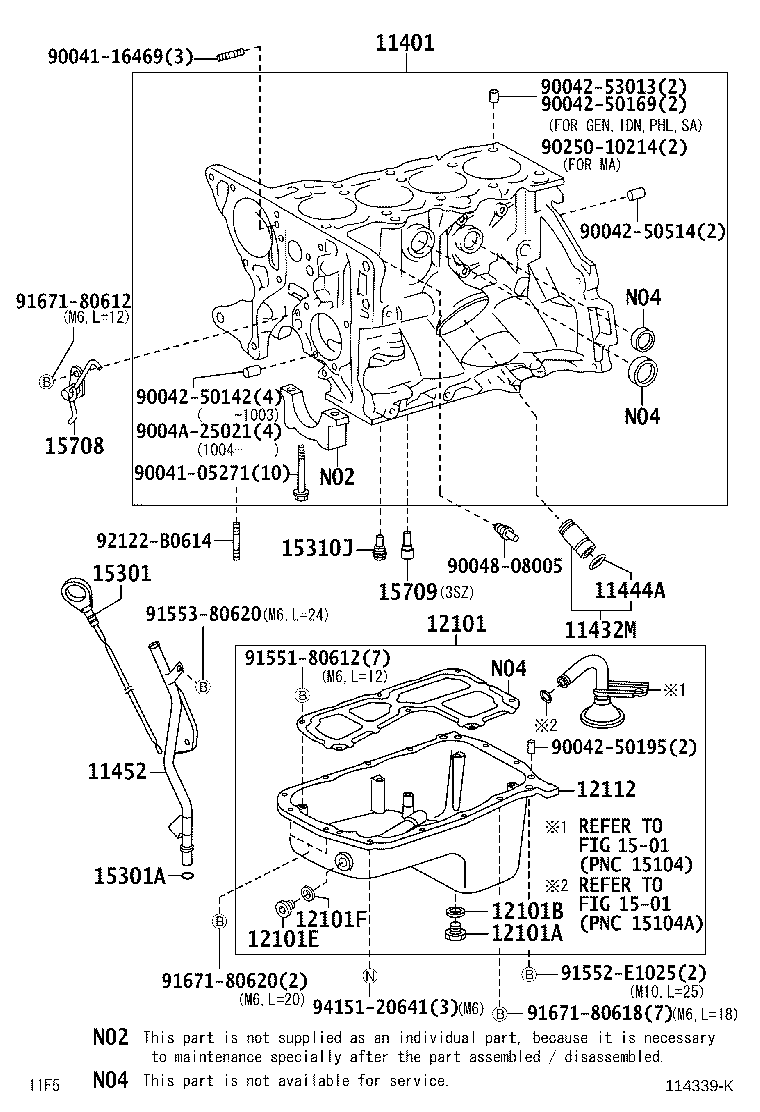

Figure 113070P 113070P 2003-12 → 2006-08 Figure 114339K 114339K 2006-08 → —

Part groups

PNCDescription
11401 Block Sub-assy, Cylinder
11432M Union(FOR CYLINDER BLOCK)
11444A Ring, O
11452 Guide, Oil Level Gage
12101 Pan Sub-assy, Oil
12101A Plug(FOR OIL PAN DRAIN)
12101B Gasket(FOR OIL PAN DRAIN PLUG)
12101E Plug, Oil Pan(FOR OIL COOLER)
12101F Gasket(FOR OIL COOLER)
12112 Pan, Oil NO.2
12121 Plate, Oil Pan Baffle, NO.1
15301 Gage Sub-assy, Oil Level
15301A Ring, O(FOR OIL LEVEL GAGE)
15310J Regulator Assy, Oil
15708 Nozzle Sub-assy, Oil, NO.1
15709 Nozzle Sub-assy, Oil, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
