Toyota Avanza

2003-12 → 2011-11 · chassis F601,F602 · catalogue 613210 · United States

Discontinued model Data version 2012-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Camshaft & Valve

17 part groups · 3 illustrations

Illustrations

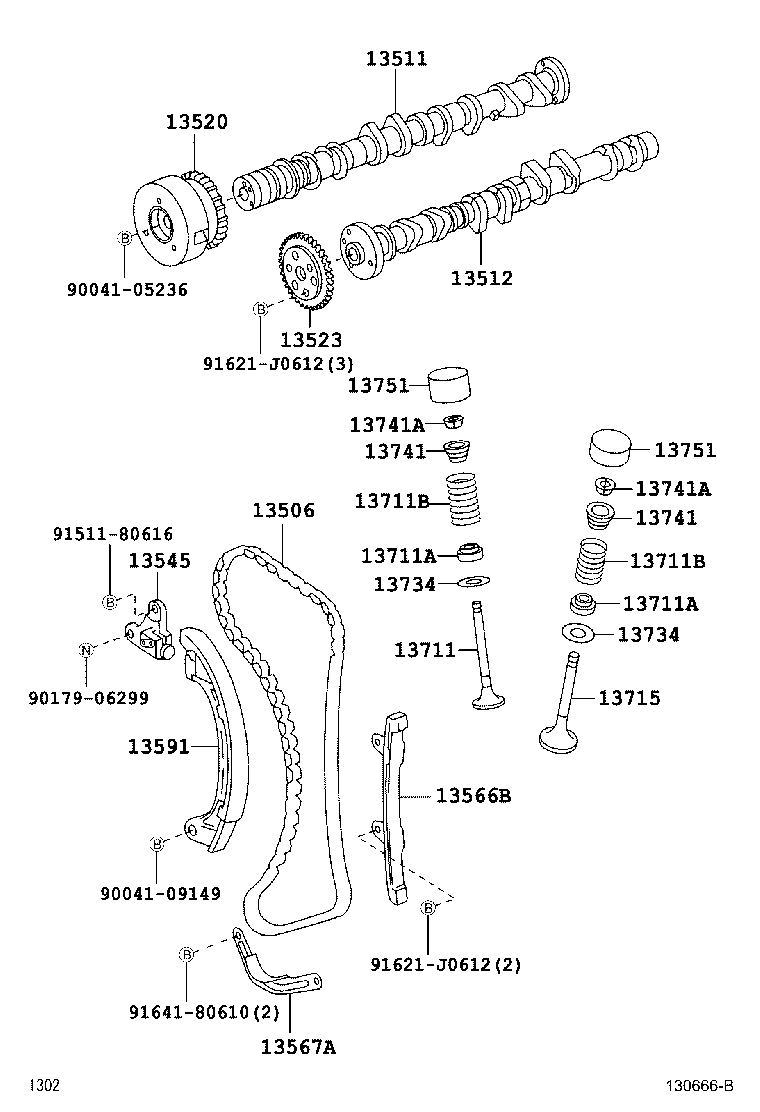

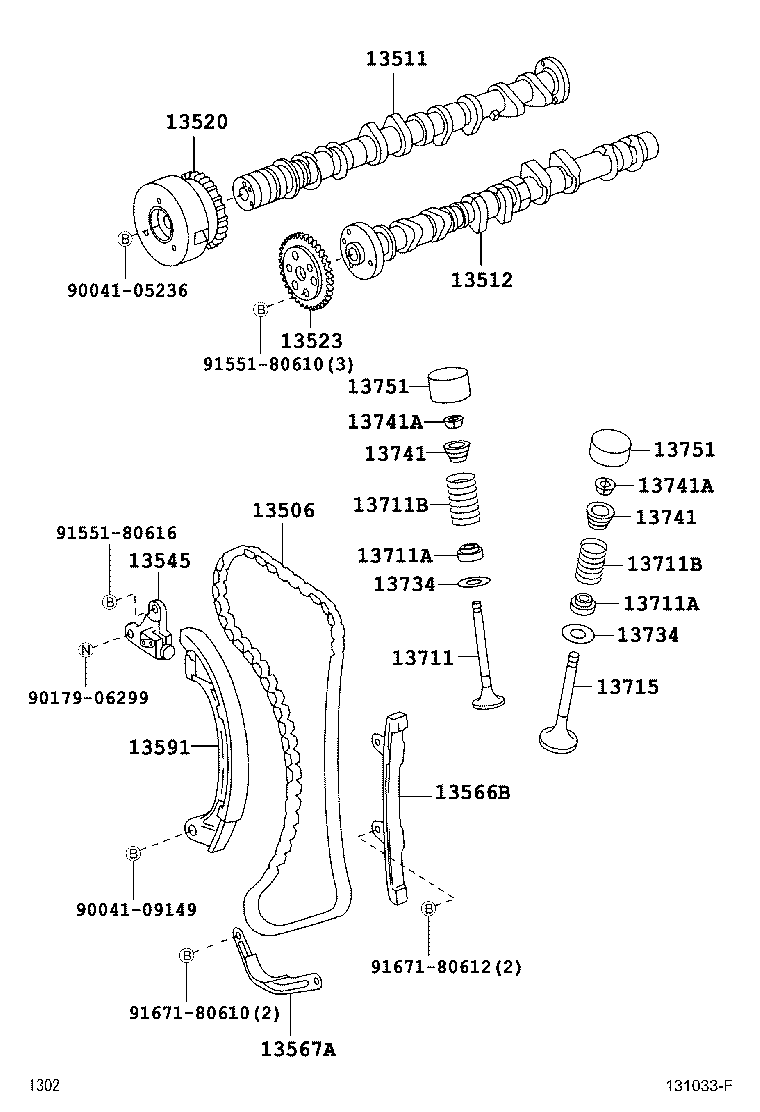

Figure 130641A 130641A 2003-12 → 2006-08 Figure 130666B 130666B 2004-04 → 2006-08 Figure 131033F 131033F 2006-08 → —

Part groups

PNCDescription
13506 Chain Sub-assy
13511 Camshaft
13512 Camshaft, NO.2
13520 Sprocket Assy, Camshaft Timing
13523 Gear OR Sprocket, Camshaft Timing
13545 Plunger, Chain Tensioner
13566B Guide, Timing Chain
13567A Guide, Timing Chain, NO.2
13591 Arm, Timing Chain Tension
13711 Valve, Intake
13711A Seal OR Ring, O(FOR VALVE STEM OIL)
13711B Spring, Compression(FOR INNER)
13715 Valve, Exhaust
13734 Seat, Valve Spring
13741 Retainer, Valve Spring
13741A Lock, Valve Spring Retainer
13751 Lifter, Valve
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
