Radiator & Water Outlet

56 part groups · 11 illustrations

Illustrations

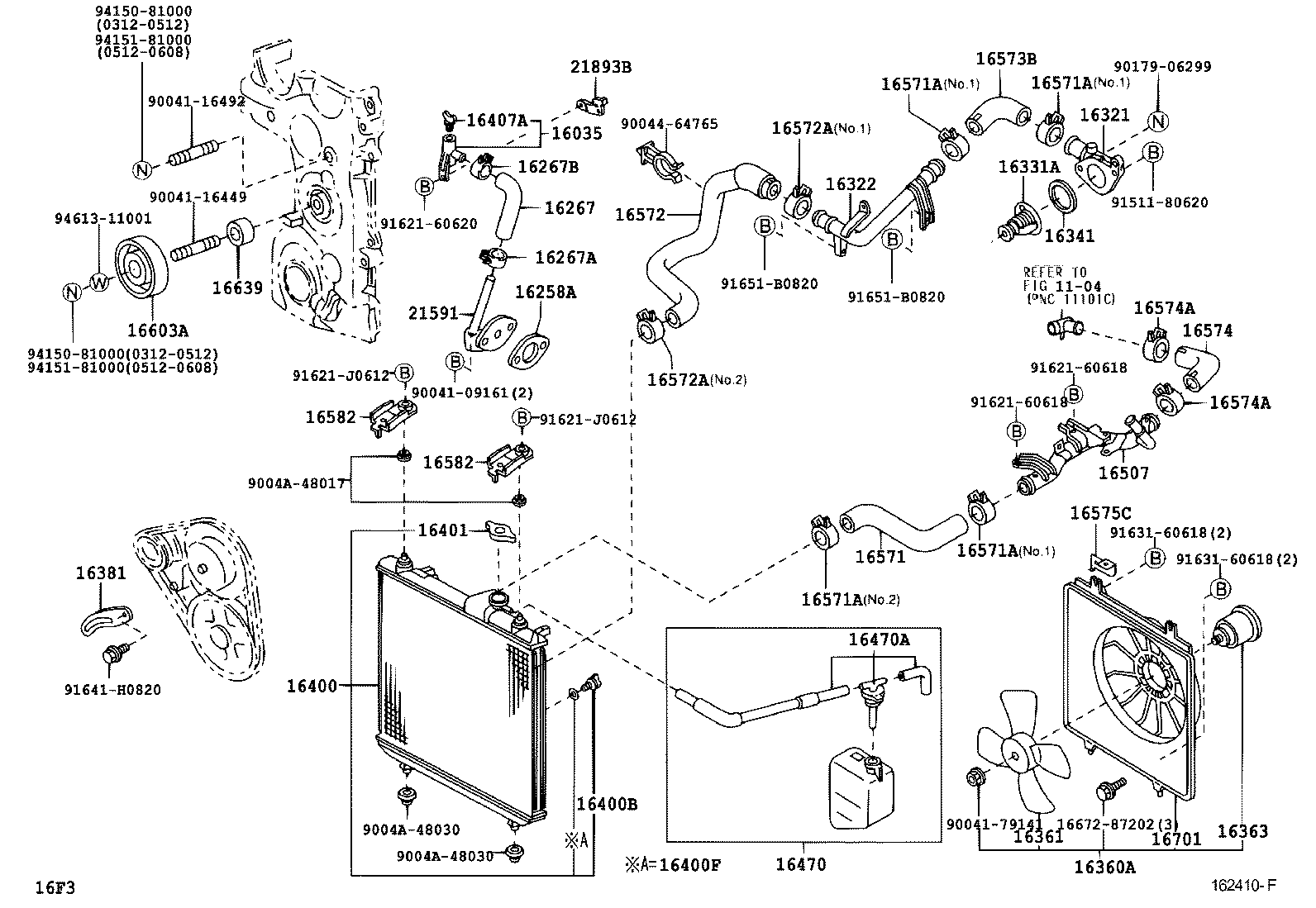

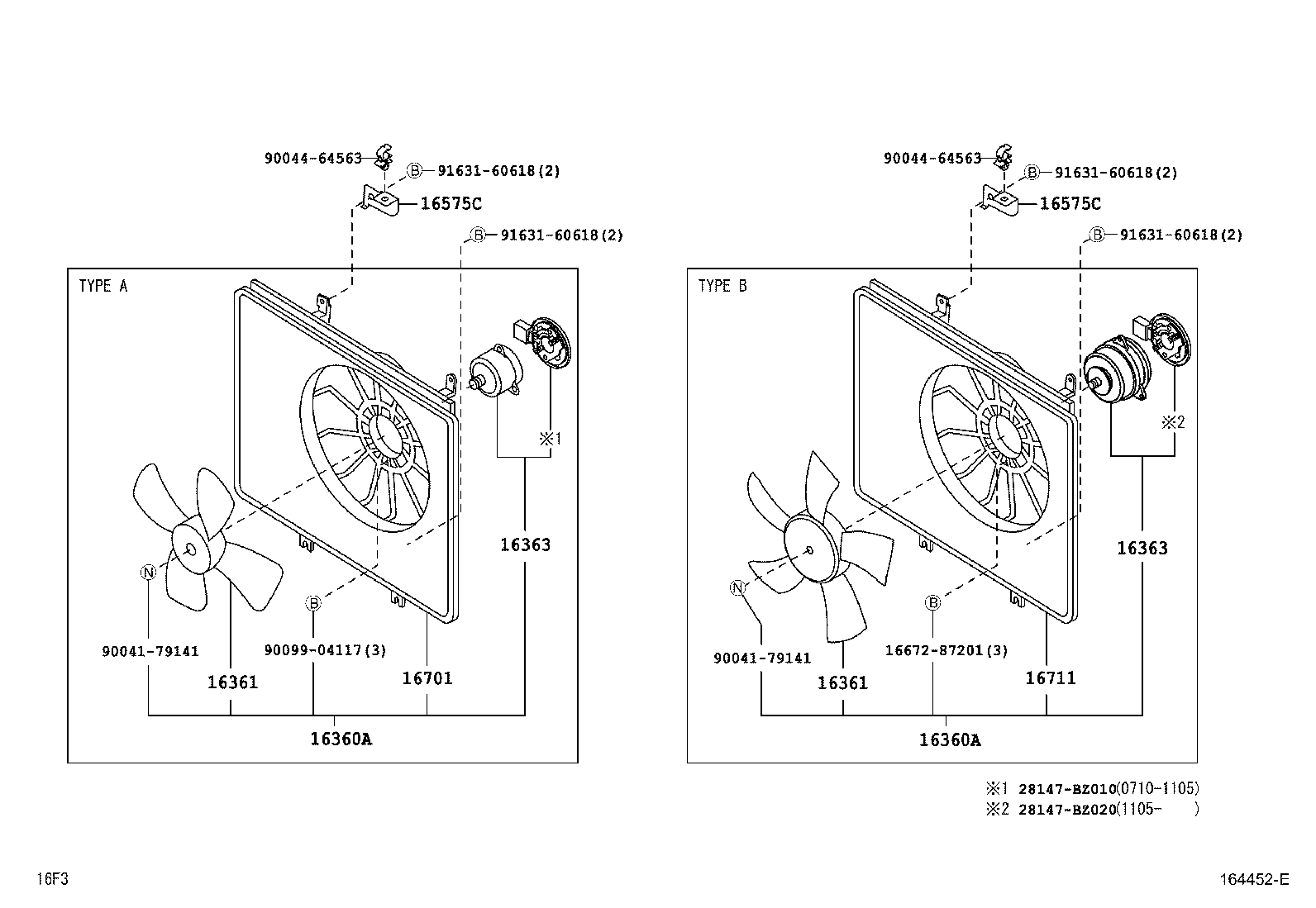

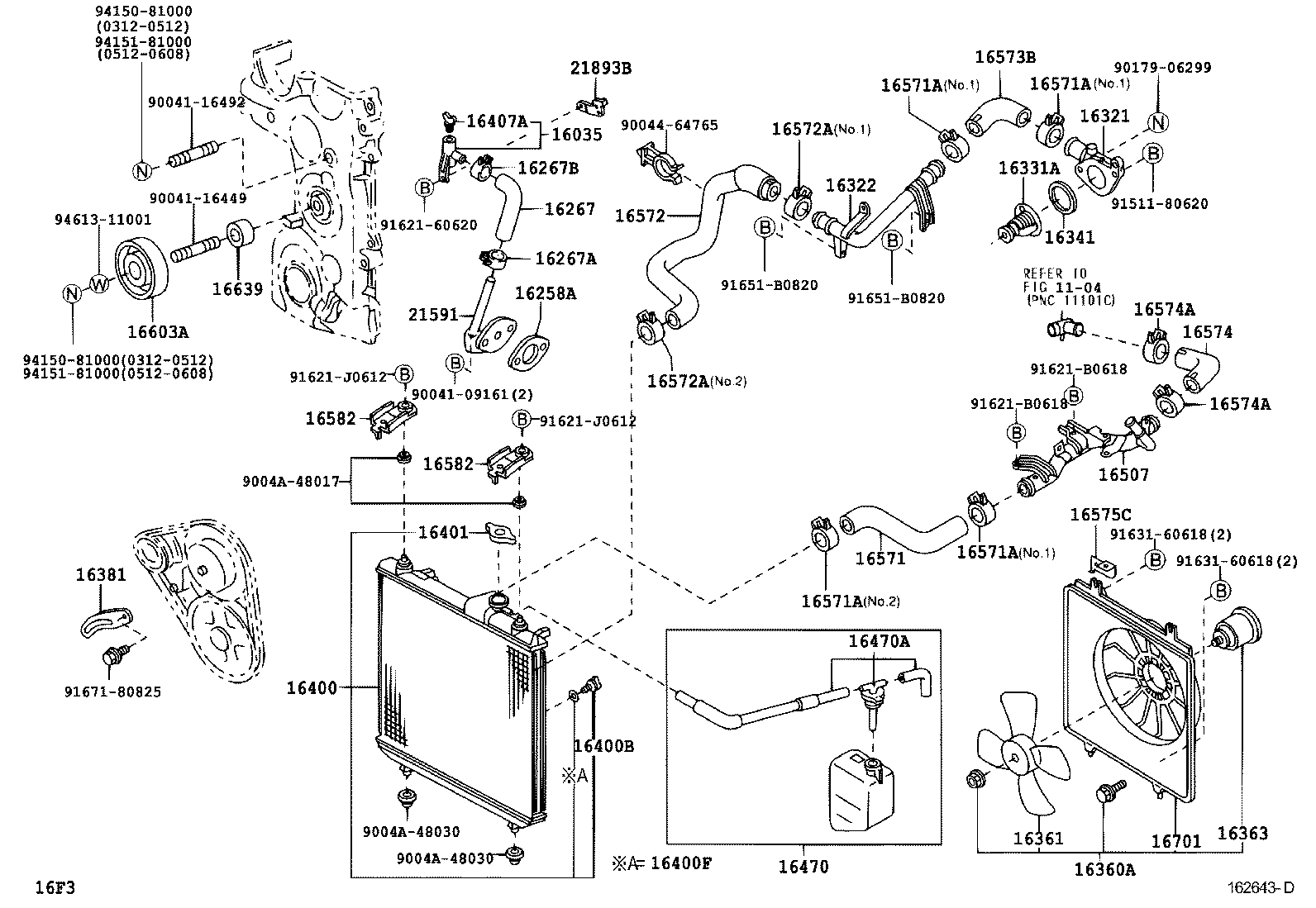

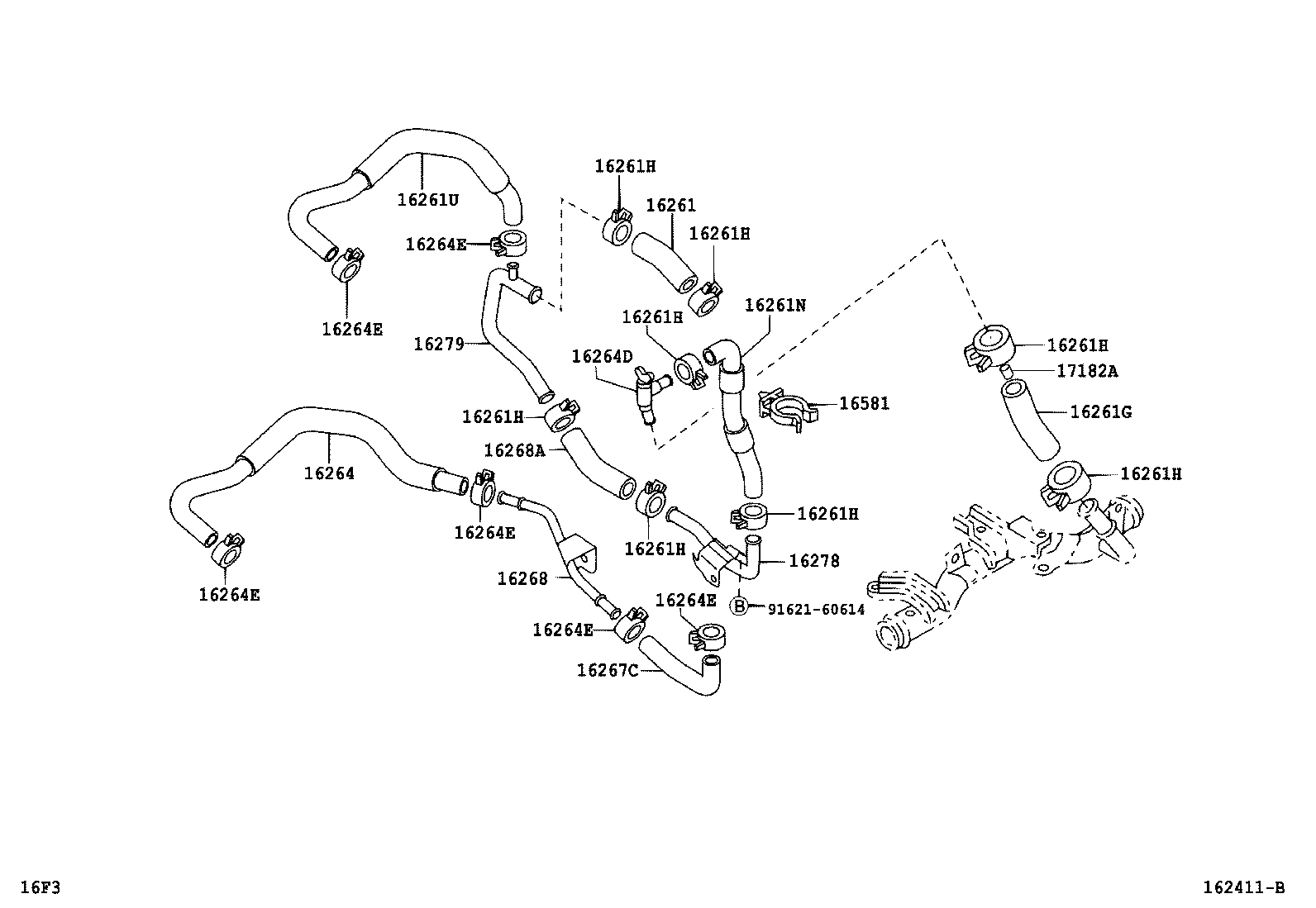

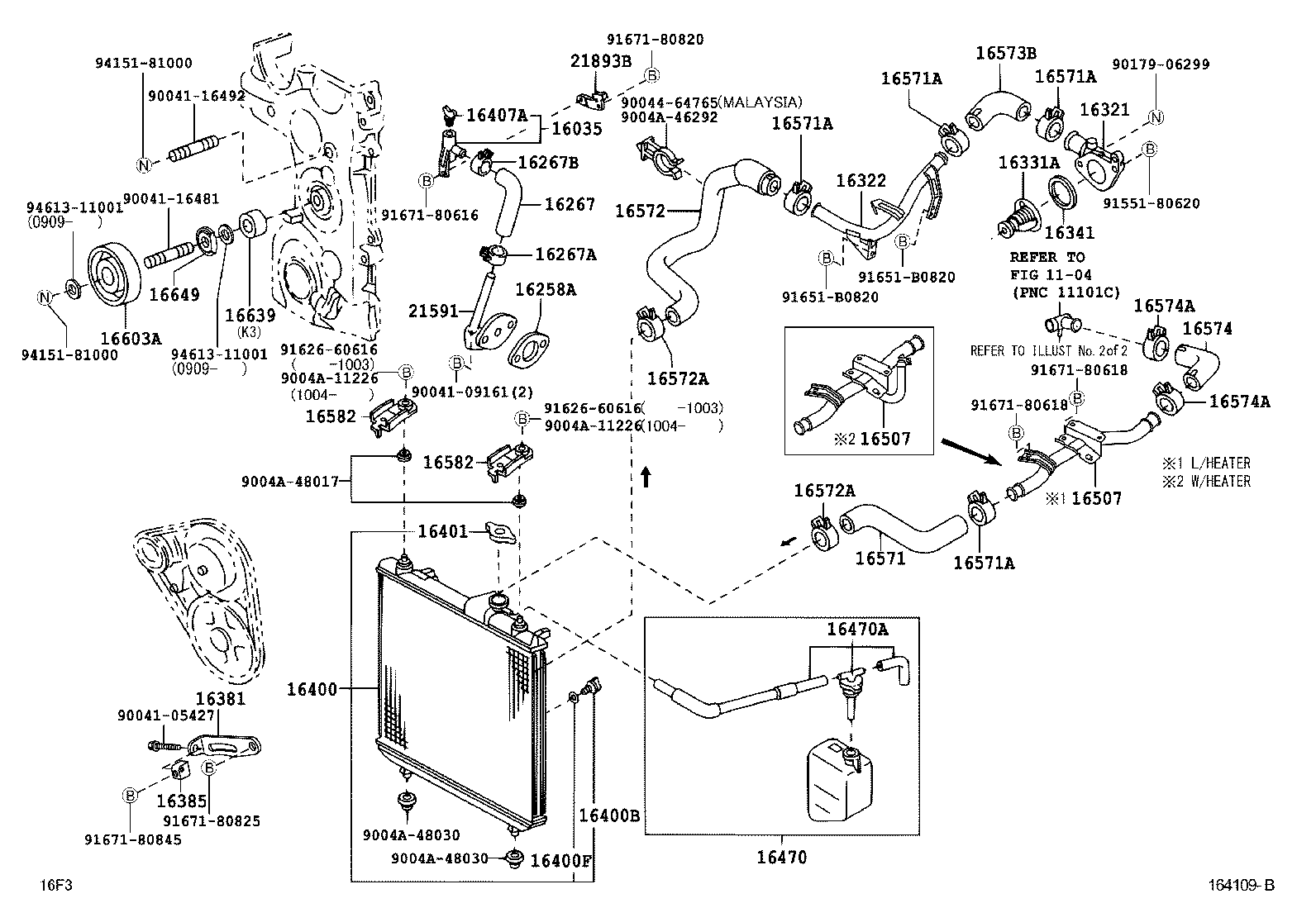

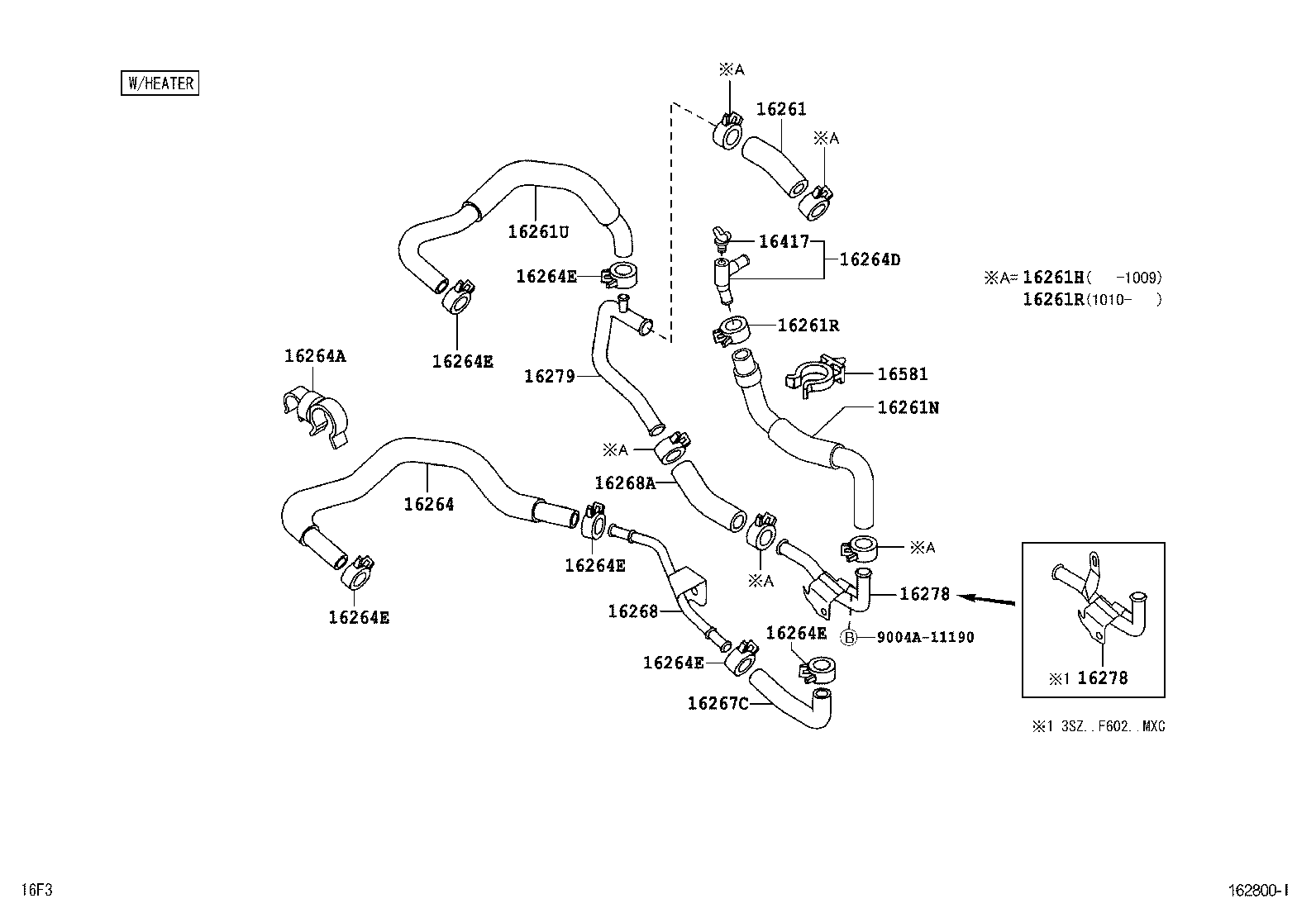

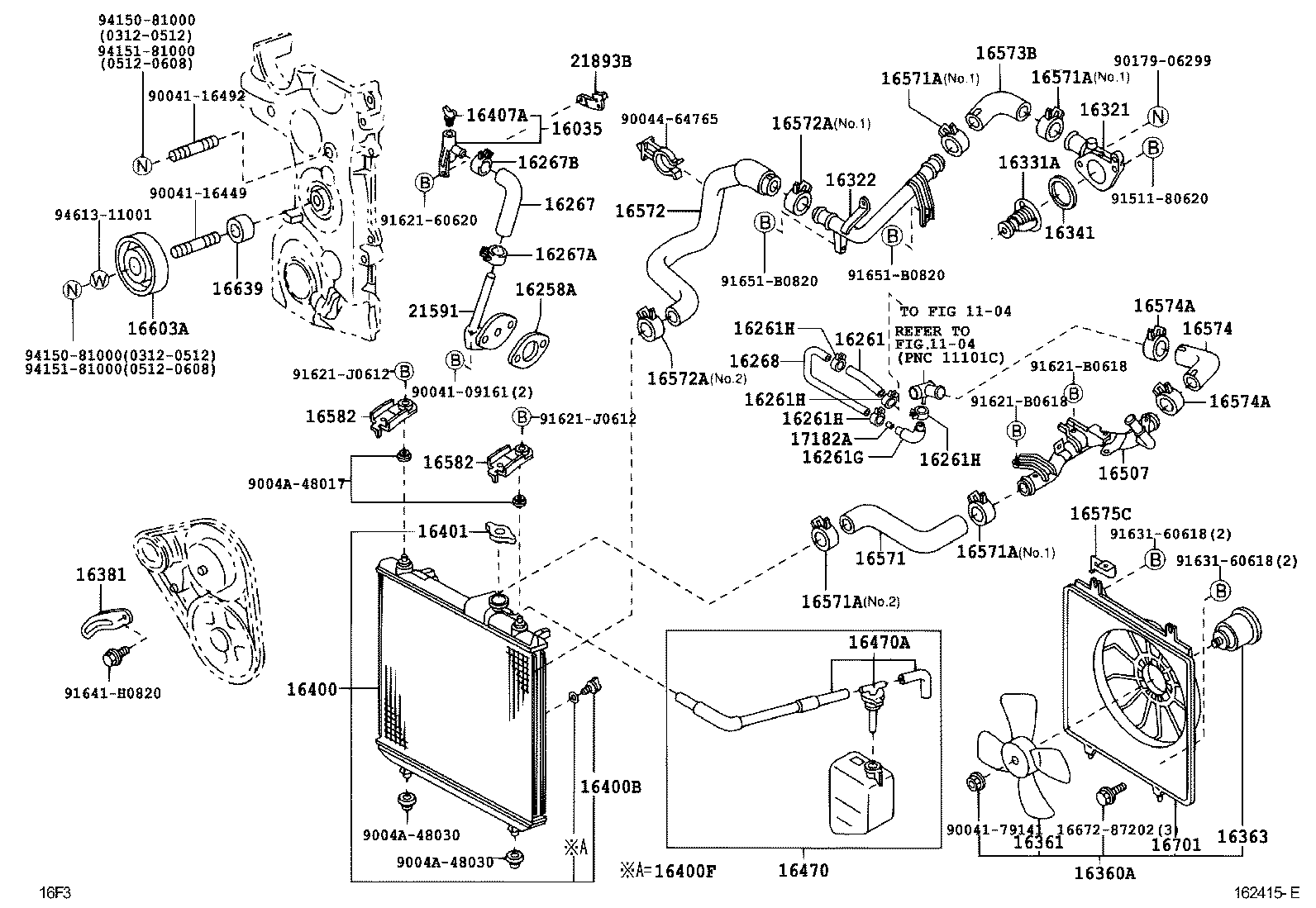

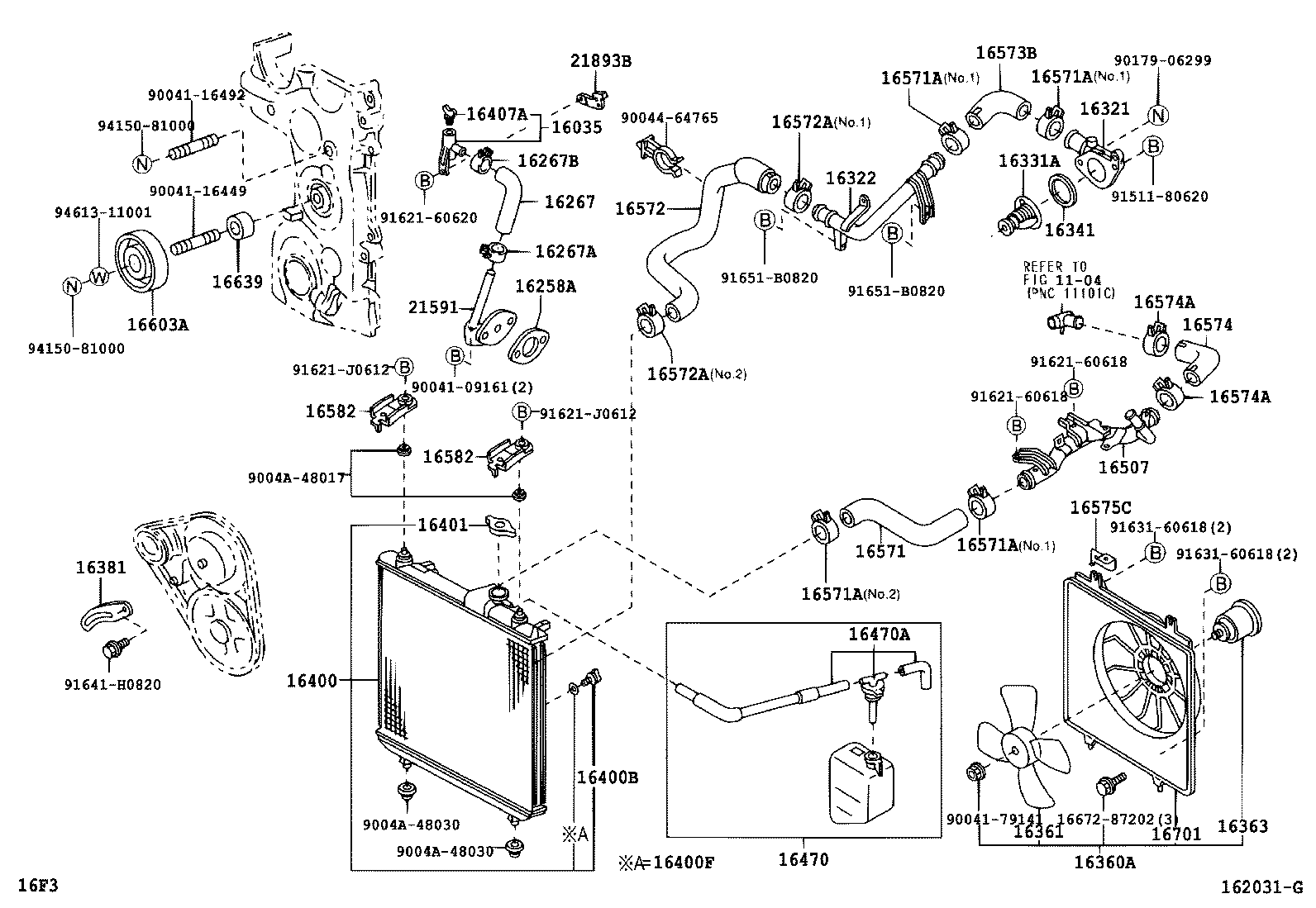

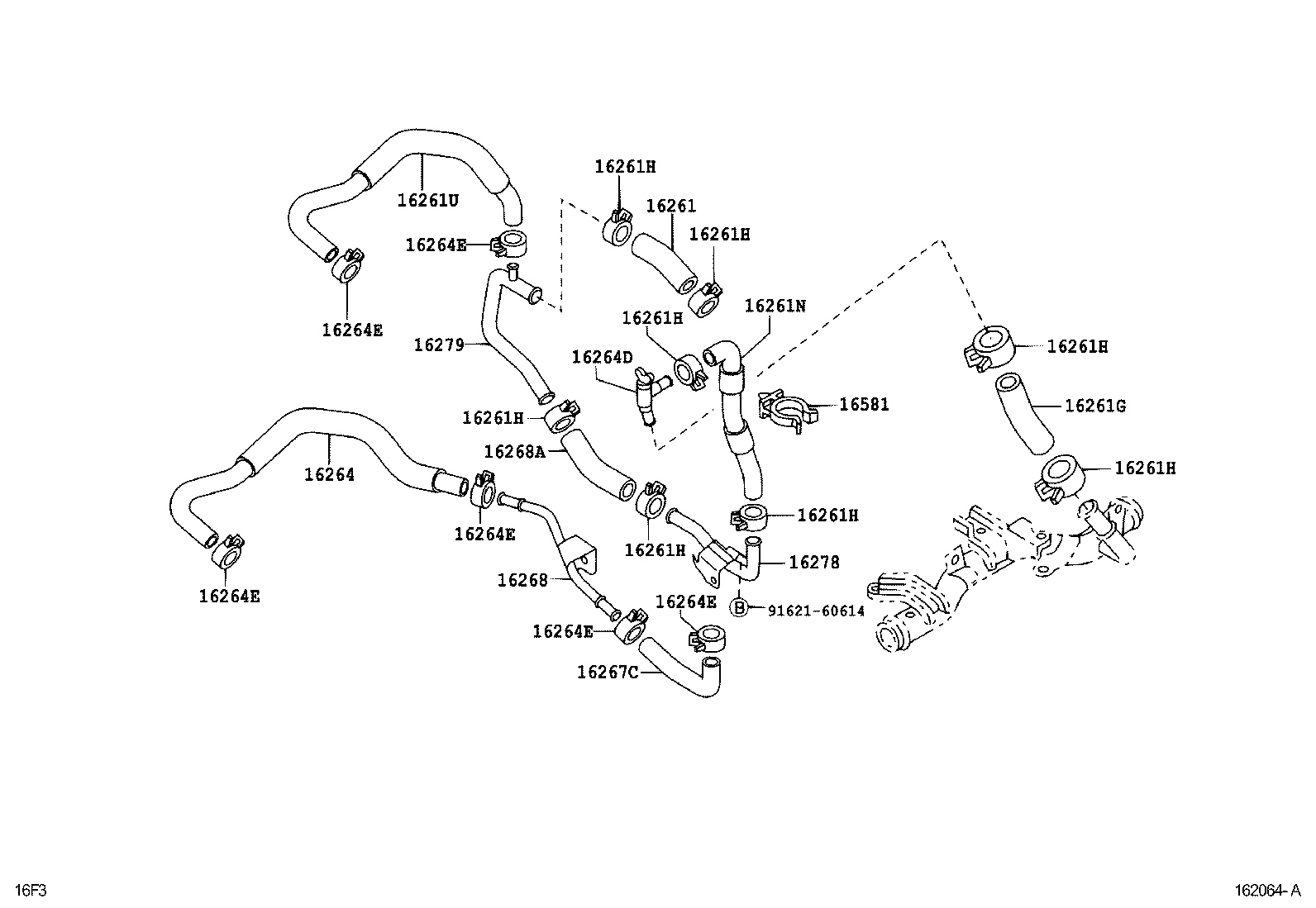

Figure 162012I 162012I 2003-12 → 2006-08 Figure 162643D 162643D 2004-10 → 2006-08 Figure 162410F 162410F 2005-10 → 2006-08 Figure 162415E 162415E 2004-10 → 2006-08 Figure 162031G 162031G 2004-04 → 2004-10 Figure 162411B 162411B 2004-10 → — Figure 162064A 162064A 2004-04 → 2004-10 Figure 164109B 164109B 2006-08 → — Figure 164452E 164452E 2006-08 → — Figure 162800I 162800I 2006-08 → — Figure 163002A 163002A 2006-08 → —

Part groups

PNCDescription
16035 Joint, Water Hose
16258A Gasket(FOR HEATER RETURN)
16261 Hose, Water By-pass
16261G Hose, Water By-pass, NO.1
16261H Clip(FOR WATER BY-PASS HOSE NO.1)
16261N Hose, Water By-pass, NO.2
16261R Clamp OR Clip(FOR WATER BY-PASS HOSE)
16261U Water By-pass Hose NO.1, Heat Strage
16264 Hose, Water By-pass, NO.2
16264A Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2)
16264D Hose, Water By-pass, NO.2
16264E Clip(FOR WATER BY-PASS HOSE NO.2)
16267 Hose, Water By-pass, NO.3
16267A Clamp OR Clip(FOR WATER BY-PASS HOSE NO.3)
16267B Clip(FOR WATER BY-PASS HOSE)
16267C Hose, Water By-pass, NO.4
16268 Pipe, Water By-pass, NO.1
16268A Hose(FOR WATER BY-PASS PIPE)
16278 Pipe, Water By-pass, NO.2
16279 Pipe, Water By-pass, NO.3
16321 Inlet, Water
16322 Pipe, Water Inlet
16331A Thermostat
16341 Gasket, Water Outlet
16360A Fan Assy, W/Motor
16361 Fan
16363 Motor, Cooling Fan
16381 Bar, Fan Belt Adjusting
16385 Slider, Fan Belt Adjusting
16400 Radiator Assy
16400B Plug, Radiator Drain Cock
16400F Packing(FOR RADIATOR DRAIN COCK)
16401 Cap Sub-assy, Radiator
16407A Cock Sub-assy, Radiator Drain
16417 Cock
16470 Tank Assy, Radiator Reserve
16470A Hose OR Pipe(FOR RADIATOR RESERVE TANK)
16507 Pipe Sub-assy, Radiator
16571 Hose, Radiator, Inlet
16571A Clamp OR Clip, Hose(FOR RADIATOR INLET)
16572 Hose, Radiator, Outlet
16572A Clamp OR Clip, Hose(FOR RADIATOR OUTLET NO.1)
16573B Hose, Radiator, NO.3
16574 Hose, Radiator, NO.4
16574A Clip, Radiator Hose, NO.4
16575C Bracket, Water Hose Clamp, NO.1
16581 Clamp, Hose(FOR WATER HOSE)
16582 Bracket, Radiator, NO.1
16603A Pulley Sub-assy, Idler, NO.1
16639 Spacer, Idler Pulley
16649 Plate, Idler Pulley Cover
16701 Shroud Sub-assy, Fan
16711 Shroud, Fan
17182A Orifice, Water
21591 Plate, Water By-pass
21893B Bracket
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
