Toyota Avanza

2003-12 → 2011-11 · chassis F601,F602 · catalogue 613210 · United States

Discontinued model Data version 2012-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Manifold

8 part groups · 3 illustrations

Illustrations

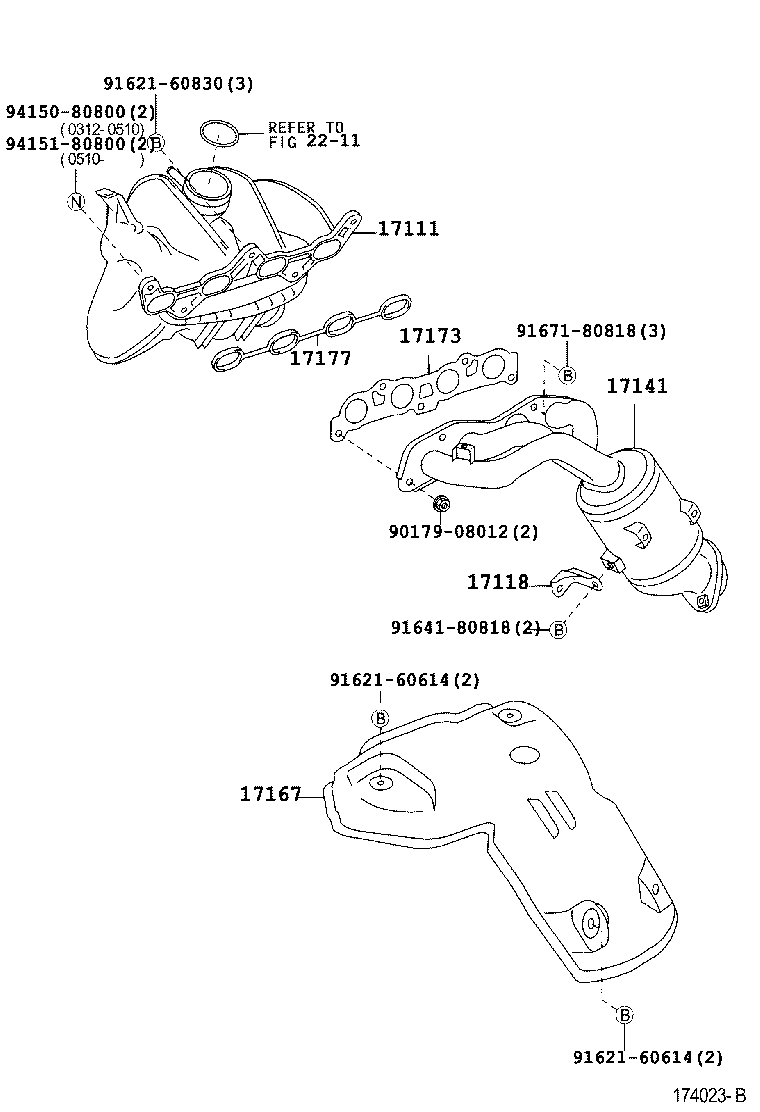

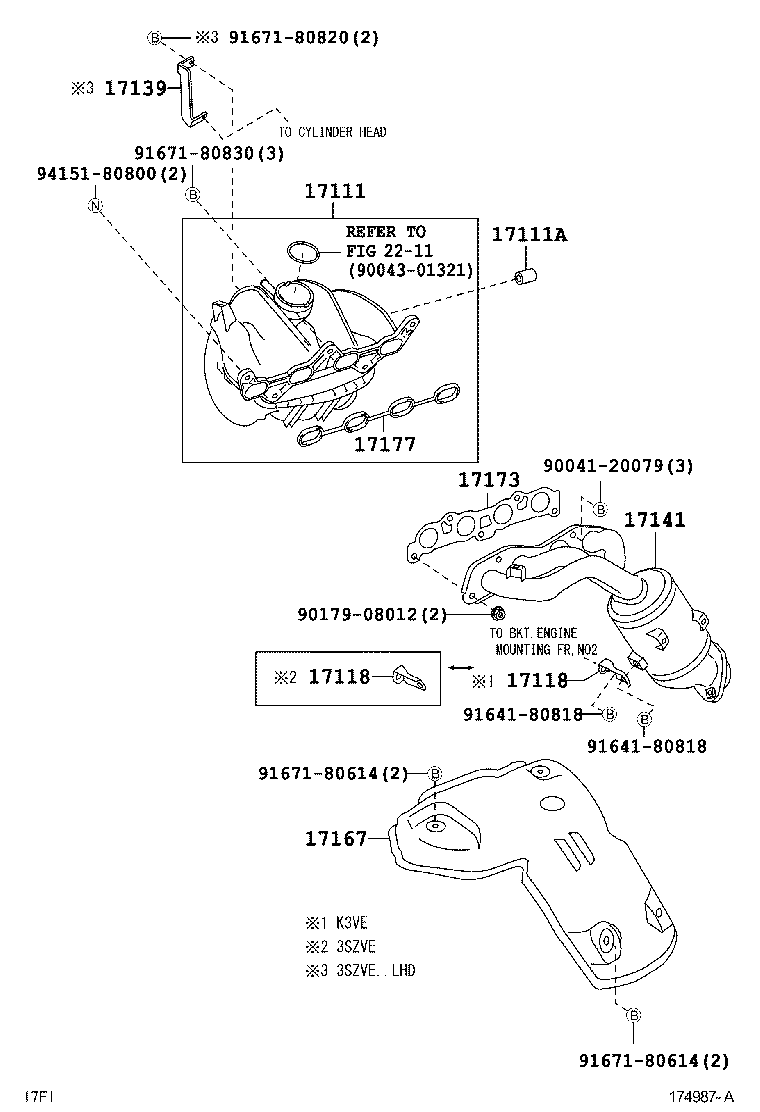

Figure 173935B 173935B 2003-12 → 2006-08 Figure 174023B 174023B 2004-04 → 2006-08 Figure 174987A 174987A 2006-08 → —

Part groups

PNCDescription
17111 Manifold, Intake
17111A Plug, NO.1
17118 Stay, Manifold
17139 Stay, Manifold, NO.2
17141 Manifold, Exhaust
17167 Insulator, Exhaust Manifold Heat, NO.1
17173 Gasket, Exhaust Manifold TO Head
17177 Gasket, Intake Manifold TO Head, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
