Toyota Avanza

2003-12 → 2011-11 · chassis F601,F602 · catalogue 613210 · United States

Discontinued model Data version 2012-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Cleaner

13 part groups · 3 illustrations

Illustrations

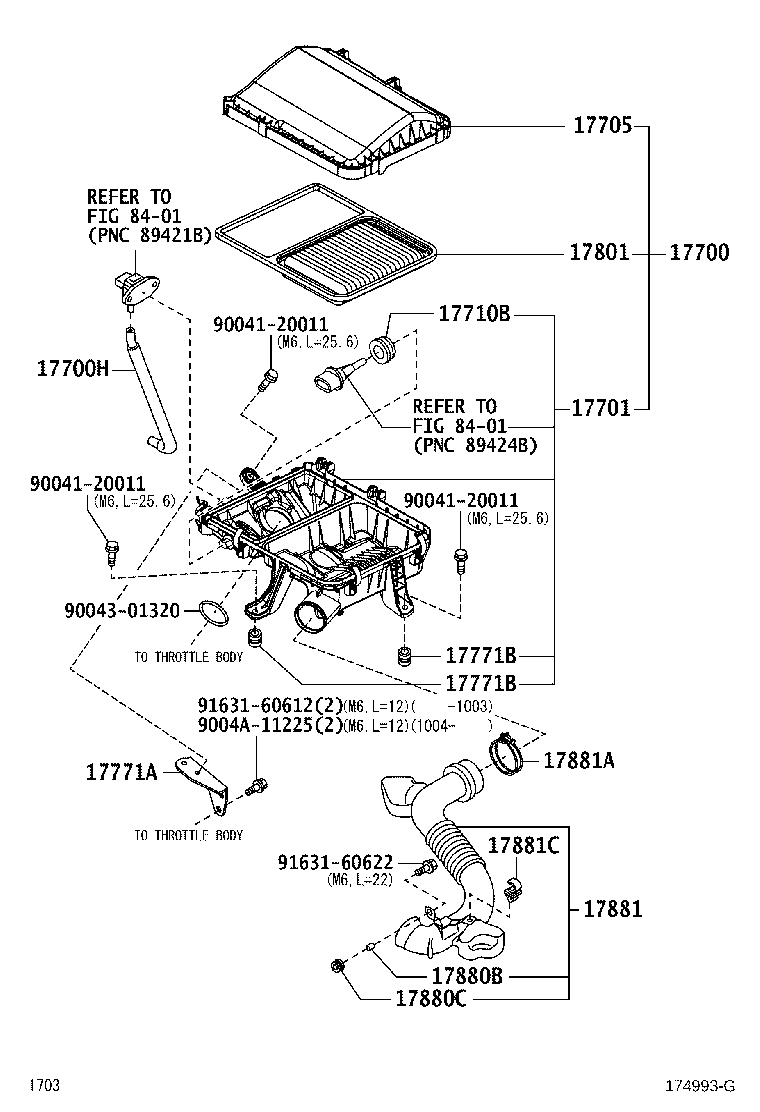

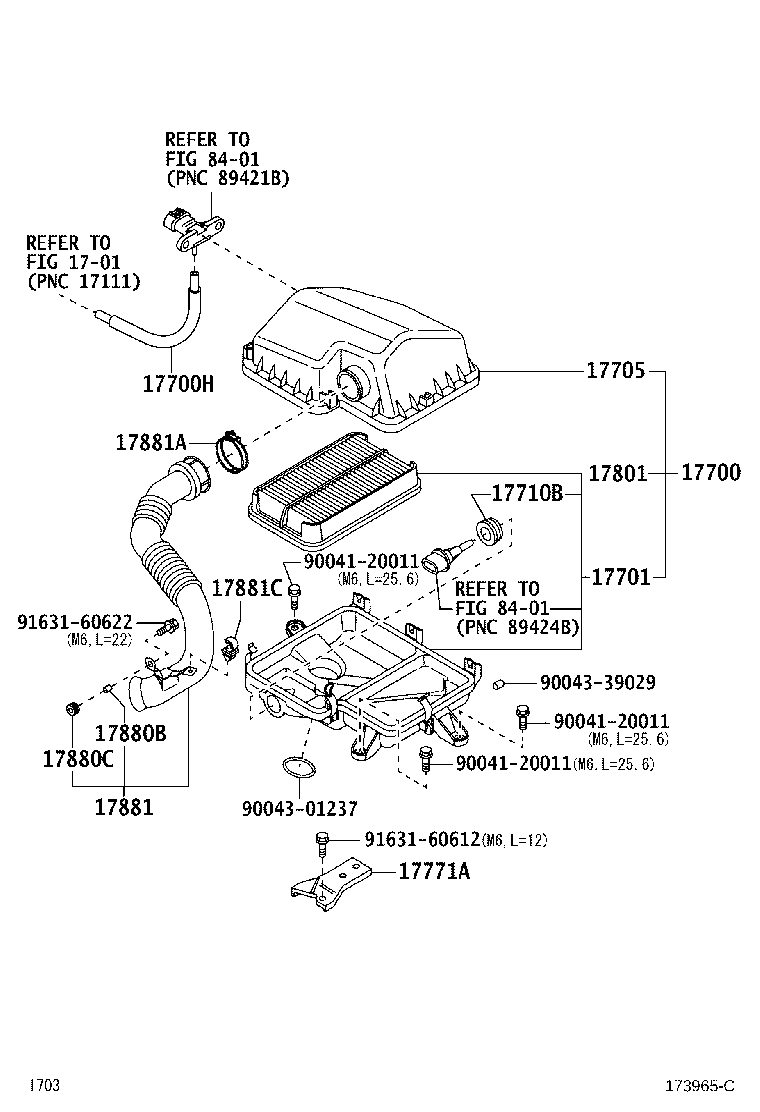

Figure 17B613 17B613 2003-12 → 2006-08 Figure 173965C 173965C 2004-04 → 2006-08 Figure 174993G 174993G 2006-08 → —

Part groups

PNCDescription
17700 Cleaner Assy, Air
17700H Hose, Air
17701 Case Sub-assy, Air Cleaner
17705 Cap Sub-assy, Air Cleaner
17710B Grommet
17771A Bracket, Air Cleaner
17771B Grommet(FOR AIR CLEANER BRACKET)
17801 Element Sub-assy, Air Cleaner Filter
17880B Collar(FOR AIR CLEANER HOSE)
17880C Grommet(FOR AIR CLEANER HOSE)
17881 Hose, Air Cleaner, NO.1
17881A Clamp(FOR AIR CLEANER HOSE, NO.1)
17881C Clamp(FOR AIR CLEANER HOSE, NO.1)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
