Toyota Avanza
2003-12 → 2011-11 · chassis F601,F602 · catalogue 613210 · United States
Discontinued model
Data version 2012-05

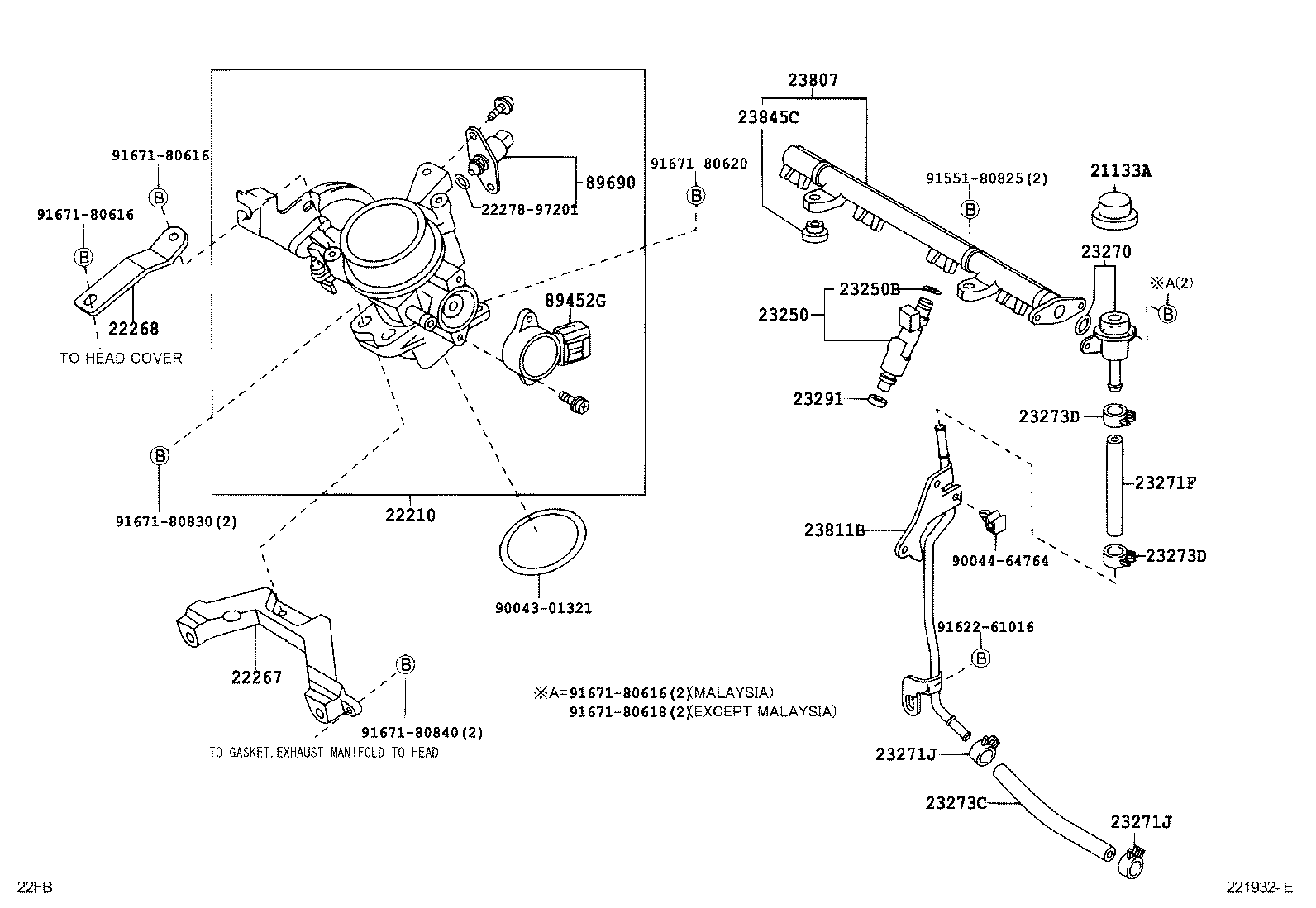

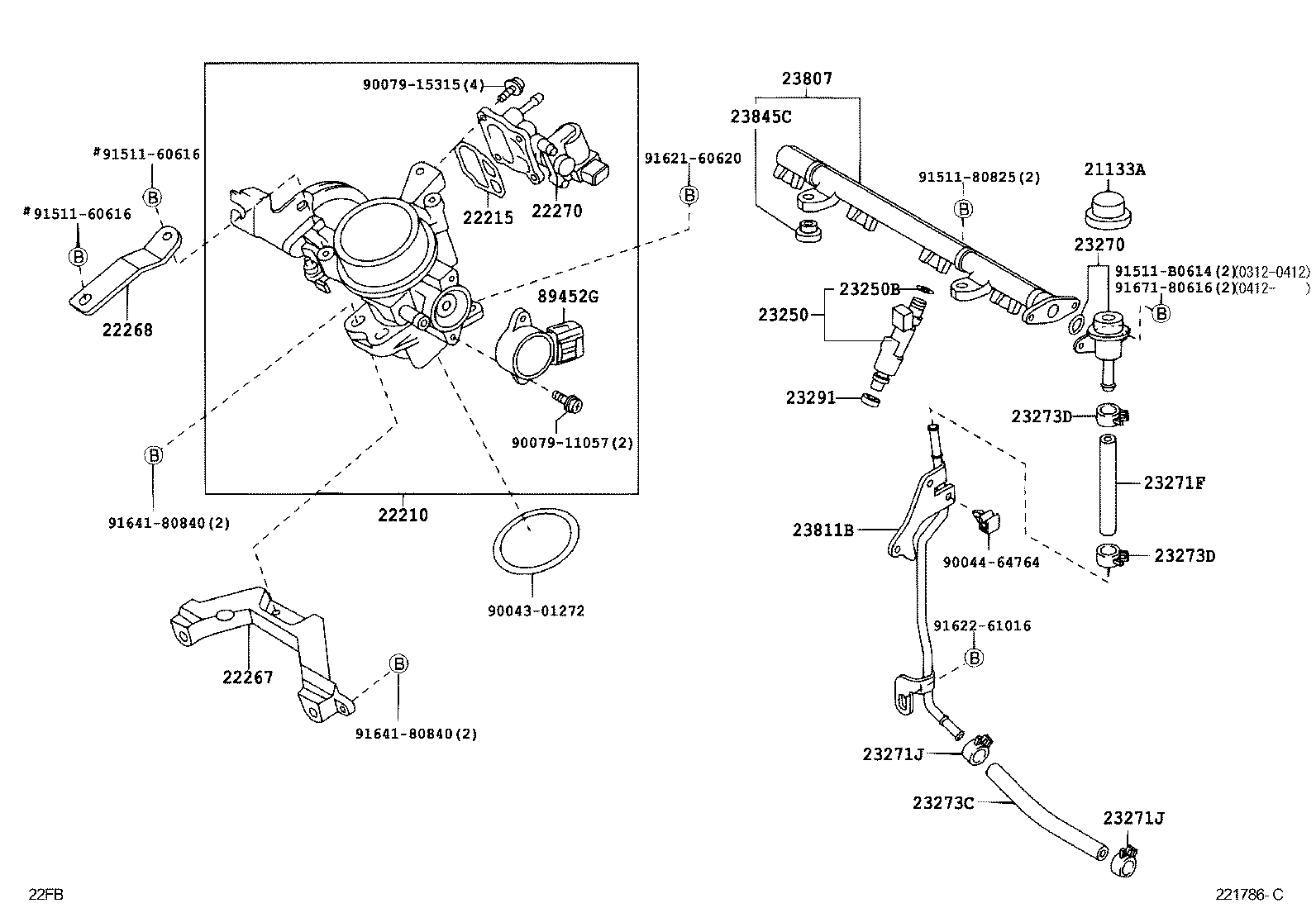

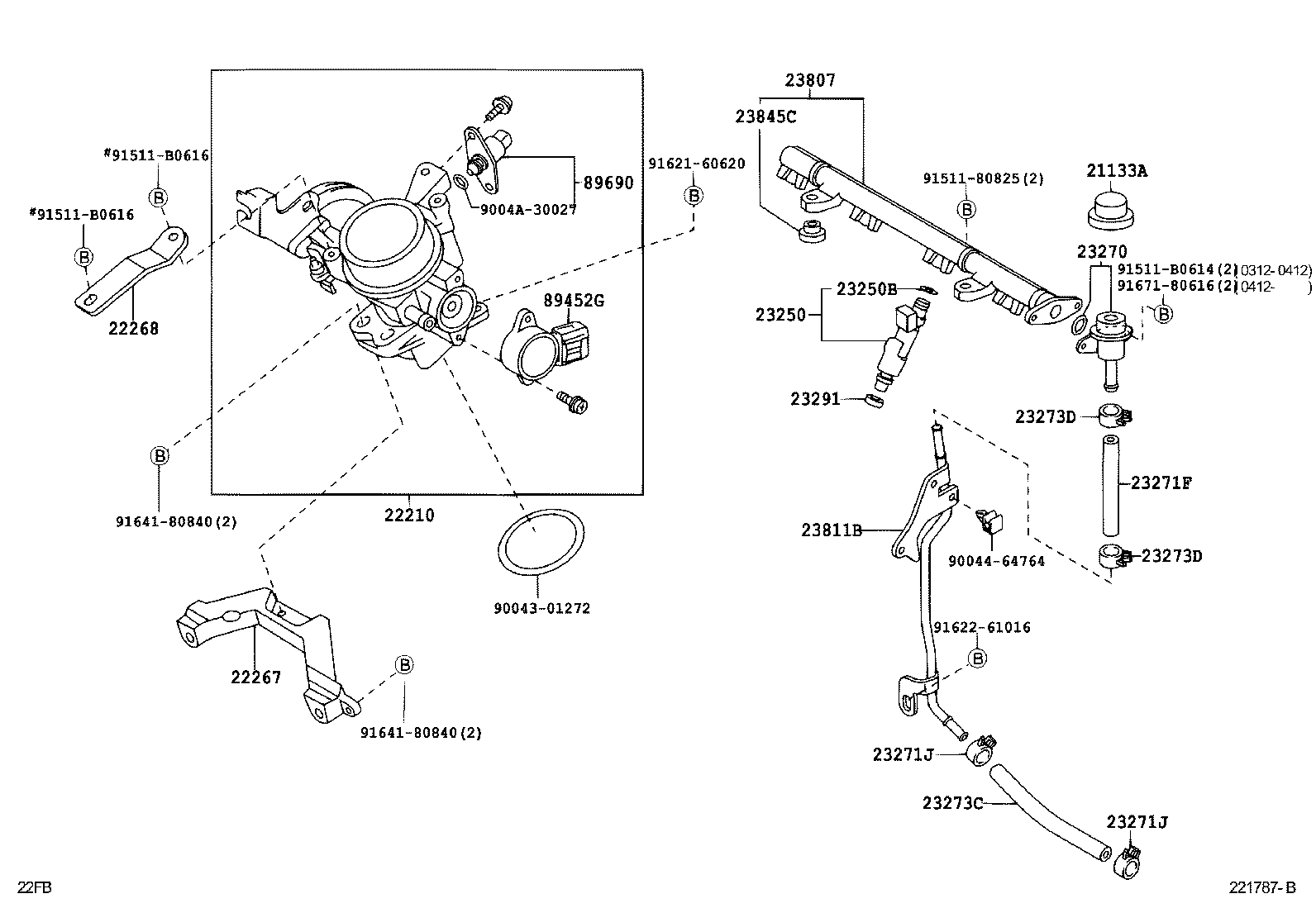

Fuel Injection System
24 part groups · 7 illustrations
Part groups
| PNC | Description |
|---|---|
| 21133A | Cover, Dust |
| 22210 | Body Assy, Throttle |
| 22215 | Gasket, Throttle Body Cover |
| 22267 | Bracket, Throttle Body |
| 22268 | Bracket, Throttle Body, NO.2 |
| 22270 | Valve Assy, Idle Speed Control(FOR THLOTTLE BODY) |
| 23206A | Bracket, Fuel Pump |
| 23206B | Gasket, Fuel Pump Bracket |
| 23210P | Pump Assy, Fuel W/Motor & Bracket |
| 23220 | Pump Assy, Fuel W/Filter |
| 23250 | Injector Assy, Fuel |
| 23250B | Ring, O(FOR FUEL INJECTOR) |
| 23270 | Damper Assy, Fuel Pressure Pulsation |
| 23271F | Hose, Fuel |
| 23271J | Clamp, NO.2(FOR FUEL HOSE) |
| 23273C | Hose, Fuel, NO.2 |
| 23273D | Clip(FOR FUEL HOSE NO.2) |
| 23291 | Insulator, Injector Vibration |
| 23300Z | Filter, Fuel(FOR FUEL TANK) |
| 23807 | Pipe Sub-assy, Fuel Delivery |
| 23811B | Pipe, Fuel, NO.1 |
| 23845C | Insulator, Fuel Pipe |
| 89452G | Sensor, Throttle Position |
| 89690 | Actuator Assy, Idle Speed Control |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
