Toyota Avanza

2003-12 → 2011-11 · chassis F601,F602 · catalogue 613210 · United States

Discontinued model Data version 2012-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Clutch Housing & Transmission Case (MTM)

14 part groups · 2 illustrations

Illustrations

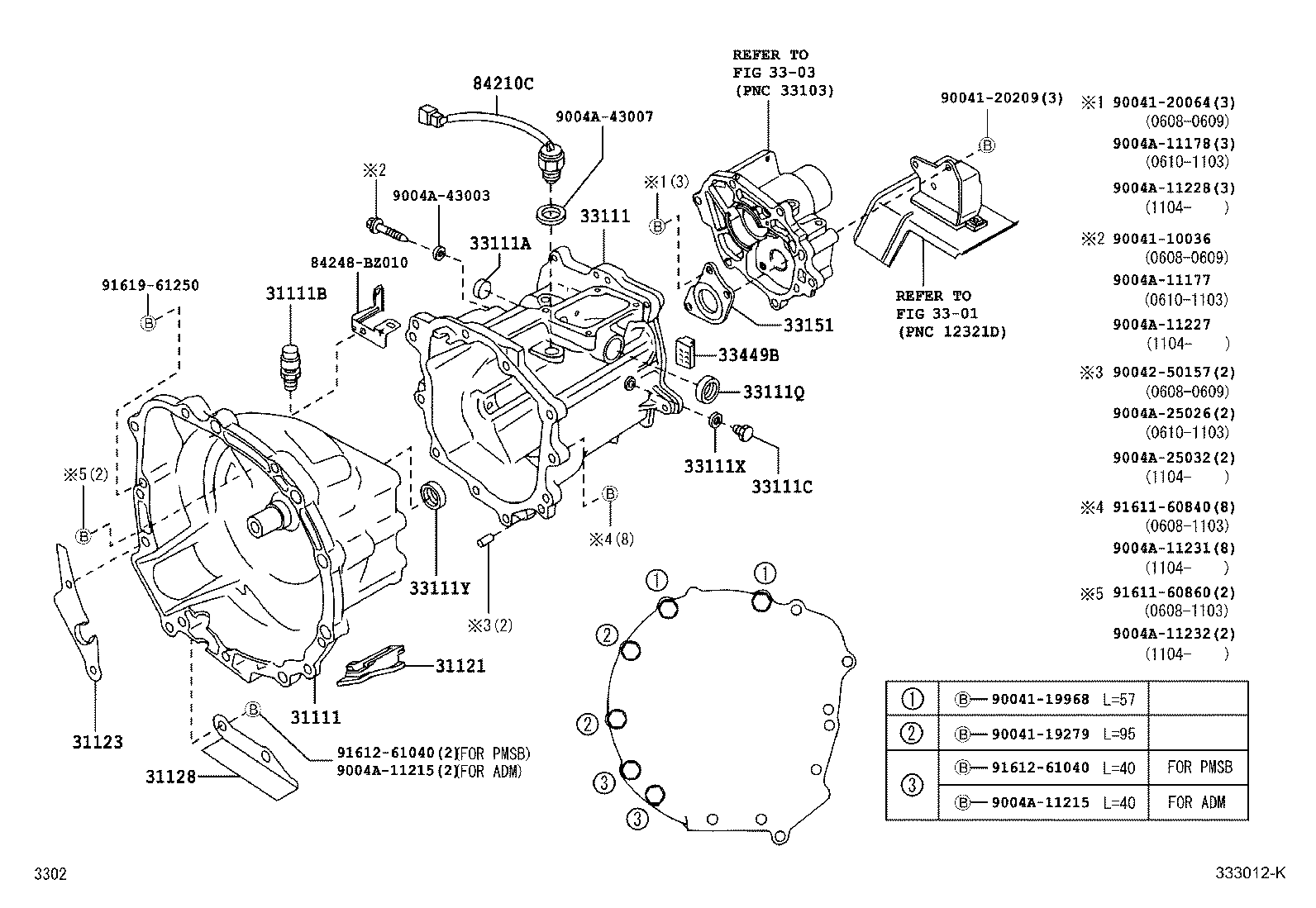

Figure 332249H 332249H 2003-12 → 2006-08 Figure 333012K 333012K 2006-08 → —

Part groups

PNCDescription
31111 Housing, Clutch
31111B Plug(FOR CLUTCH HOUSING)
31121 Cover, Clutch Housing, NO.1
31123 Cover, Clutch Housing, NO.2
31128 Cover, Clutch Housing Under
33111 Case, Manual Transmission
33111A Plug, Manual Transmission Case
33111C Plug(FOR TRANSMISSION CASE)
33111Q Seal, Oil(FOR TRANSMISSION CASE)
33111X Gasket, Transmission Case Plug
33111Y Seal, Oil(FOR TRANSMISSION CASE)
33151 Retainer, Output Shaft Rear Bearing(MTM)
33449B Magnet, Transmission
84210C Switch Assy, Back-up Lamp
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
