Toyota Avanza
2003-12 → 2011-11 · chassis F601,F602 · catalogue 613210 · United States
Discontinued model
Data version 2012-05

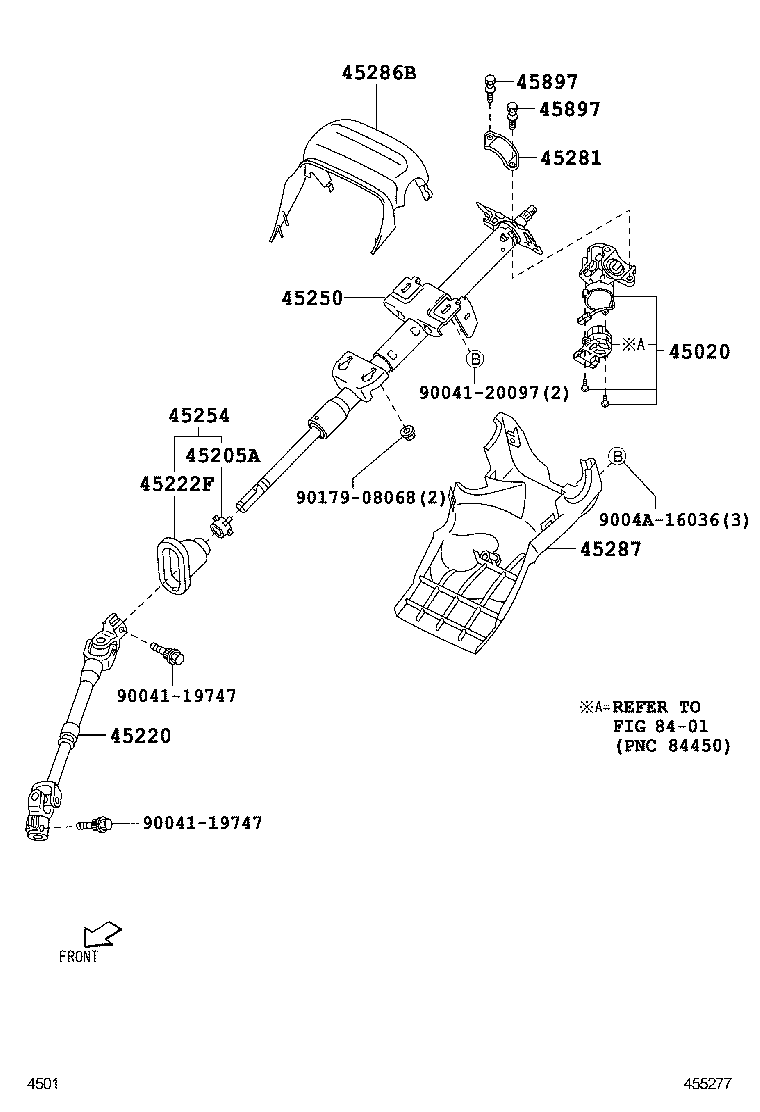

Steering Column & Shaft
10 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 45020 | Bracket Assy, Steering Column Upper W/Switch |
| 45205A | Bush(FOR STEERING COLUMN TUBE) |
| 45220 | Shaft Assy, Steering Intermediate |
| 45222F | Cover, Dust |
| 45250 | Column Assy, Steering |
| 45254 | Shield, Steering Column Hole |
| 45281 | Housing, Steering Column |
| 45286B | Cover, Steering Column, Upr |
| 45287 | Cover, Steering Column, Lwr |
| 45897 | Bolt, Steering Lock Set |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
