Toyota Avanza
2003-12 → 2011-11 · chassis F601,F602 · catalogue 613210 · United States
Discontinued model
Data version 2012-05

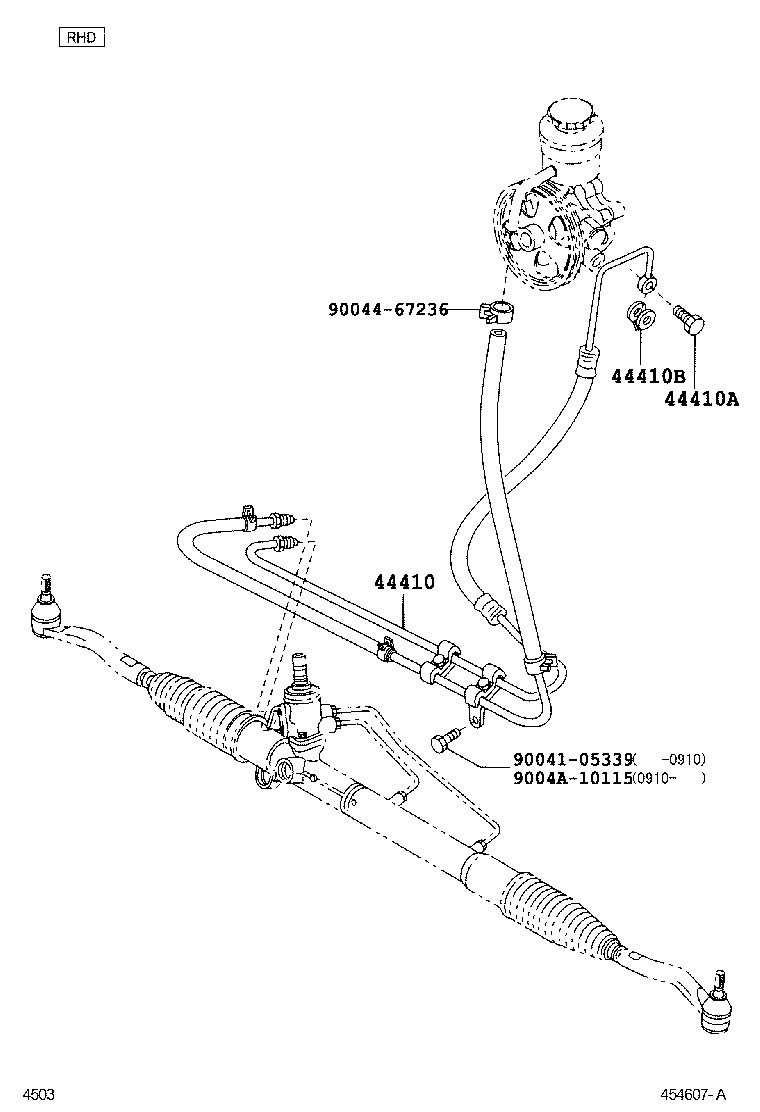

Power Steering Tube
6 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 44410 | Tube Assy, Pressure Feed |
| 44410A | Bolt, Union(FOR PRESSURE FEED TUBE) |
| 44410B | Gasket(FOR PRESSURE FEED TUBE) |
| 44411 | Hose, Pressure Feed |
| 44420A | Tube Assy, Return |
| 89438C | Switch, Power Steering Oil Pressure |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
