Toyota Avanza

2003-12 → 2011-11 · chassis F601,F602 · catalogue 613210 · United States

Discontinued model Data version 2012-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Wheel

5 part groups · 3 illustrations

Illustrations

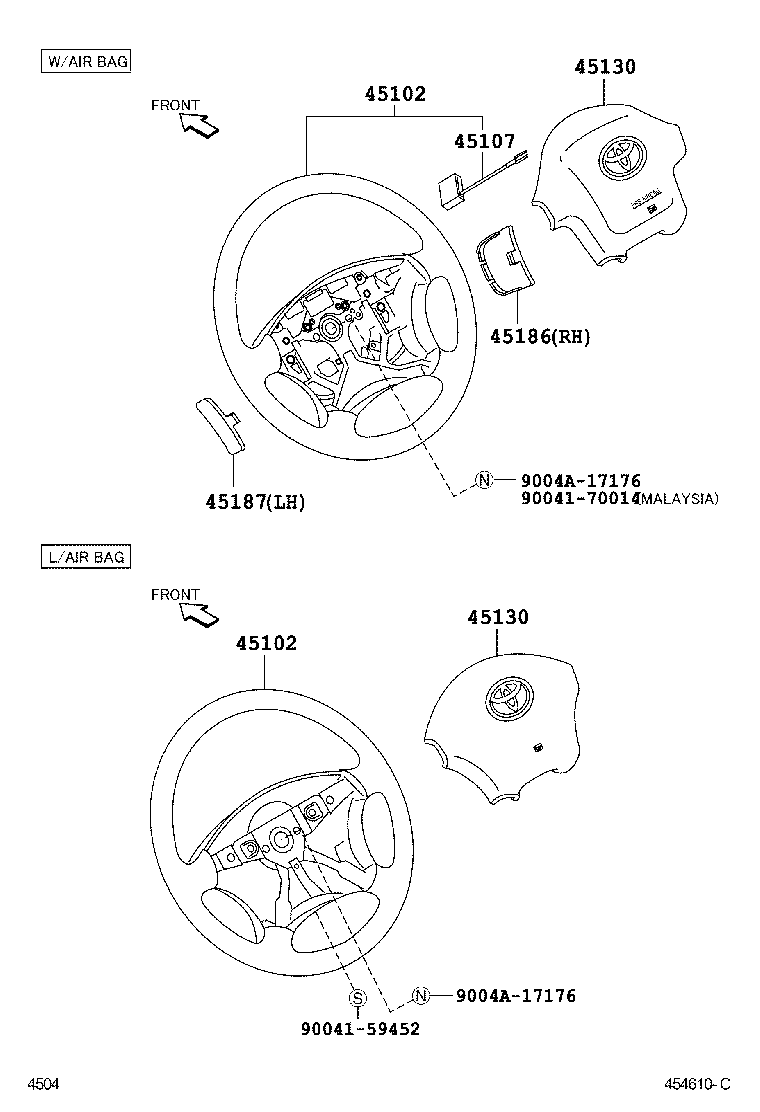

Figure 453803B 453803B 2003-12 → 2006-08 Figure 453718D 453718D 2006-08 → — Figure 454610C 454610C 2006-08 → —

Part groups

PNCDescription
45102 Wheel Sub-assy, Steering
45107 Wire Sub-assy, Horn Button
45130 Button Assy, Horn
45186 Cover, Steering Wheel, Lower NO.2
45187 Cover, Steering Wheel, Lower NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
