Brake Tube & Clamp

30 part groups · 4 illustrations

Illustrations

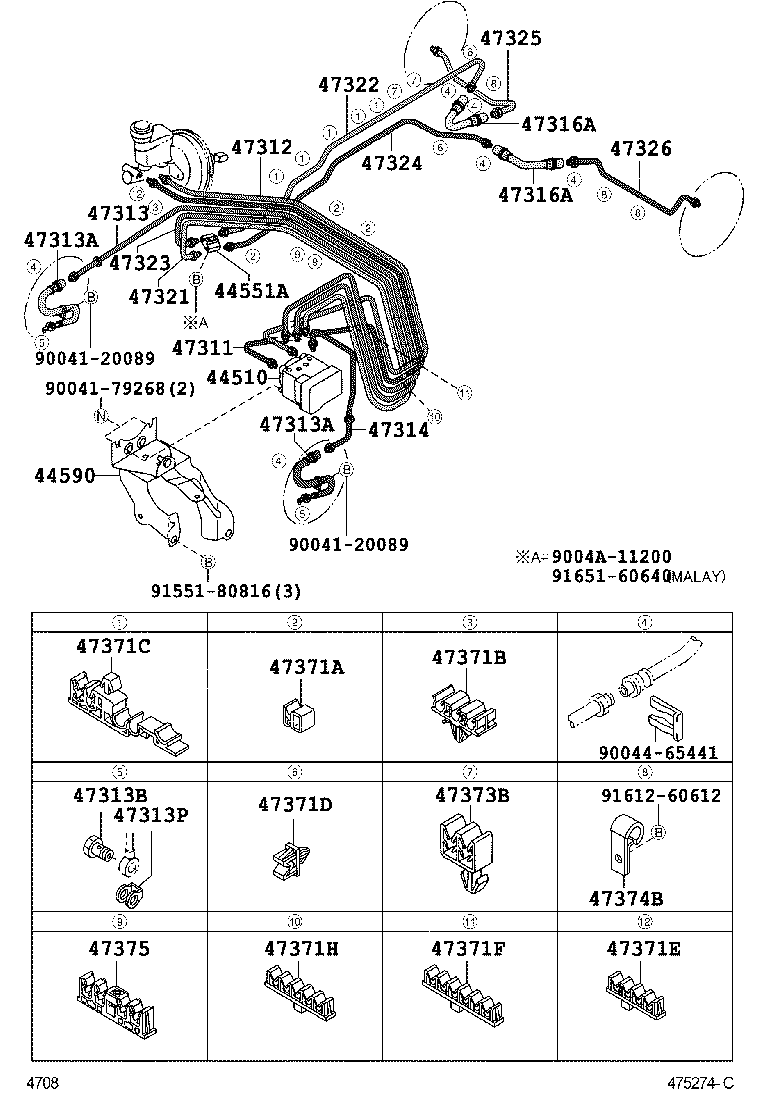

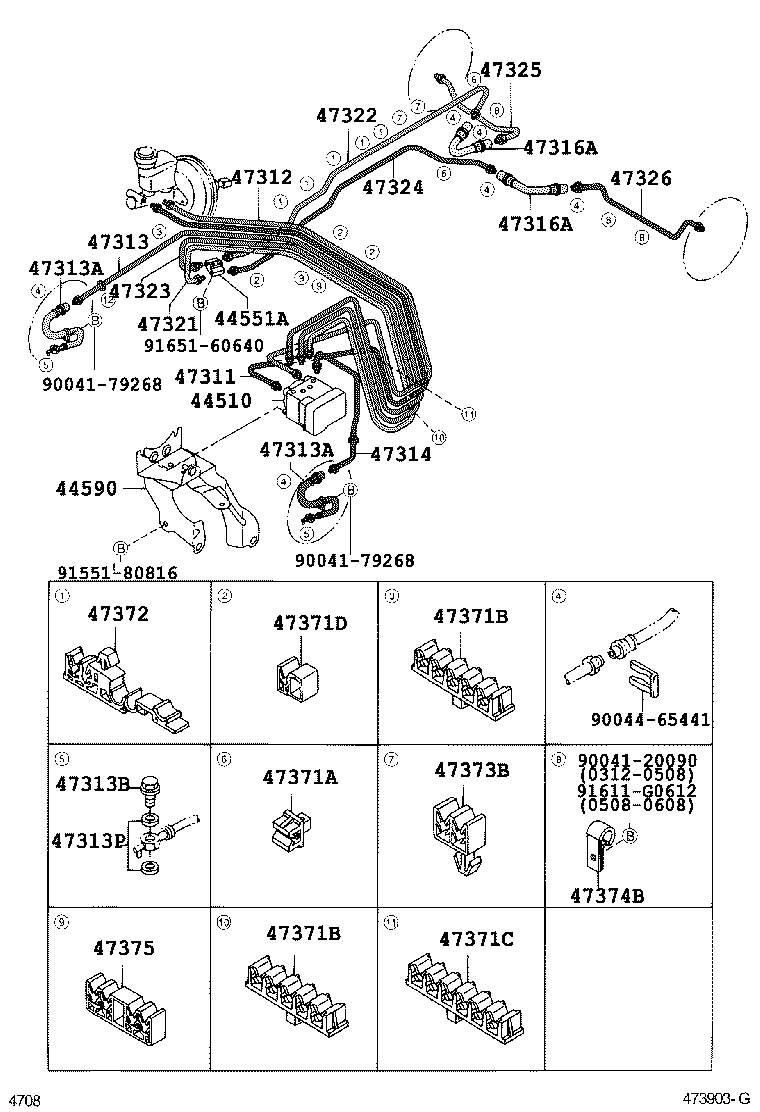

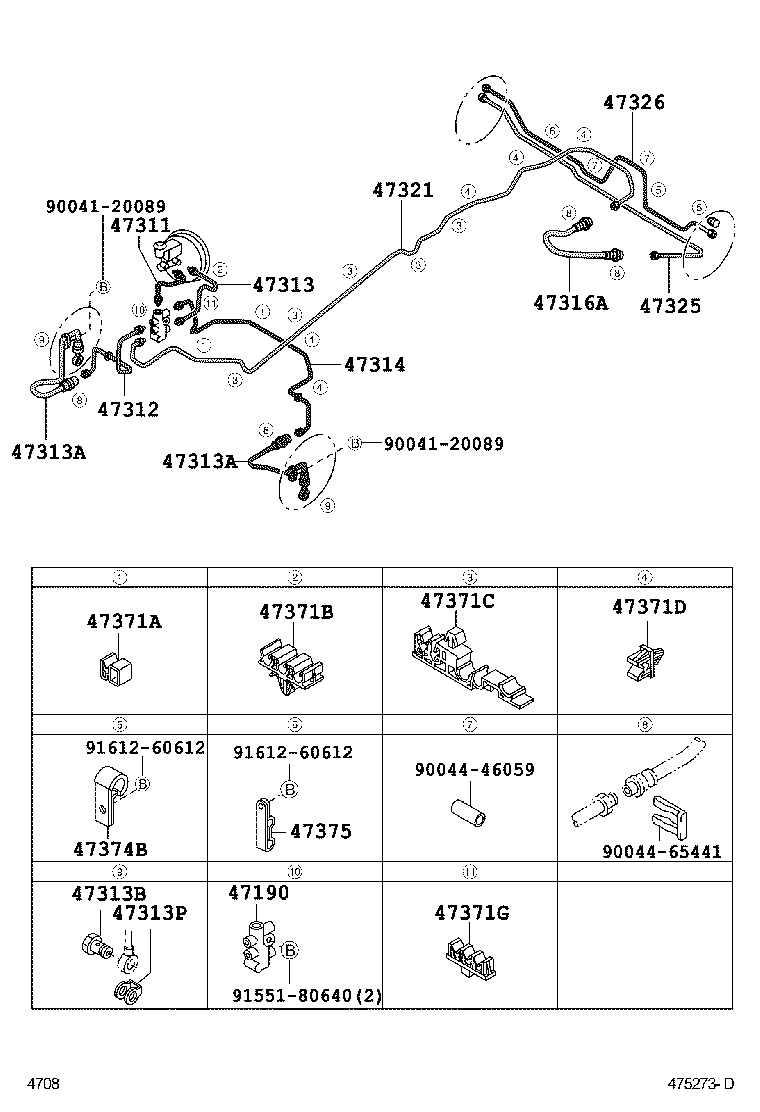

Figure 473850J 473850J 2003-12 → 2006-08 Figure 473903G 473903G 2004-04 → 2006-08 Figure 475273D 475273D 2006-08 → — Figure 475274C 475274C 2006-08 → —

Part groups

PNCDescription
44510 Actuator Assy, Brake
44551A Way, NO.1(FOR BRAKE ACTUATOR)
44590 Bracket Assy, Brake Actuator
47190 Valve Assy, Proportioning & By-pass
47311 Tube, Front Brake, NO.1
47312 Tube, Front Brake, NO.2
47313 Tube, Front Brake, NO.3
47313A Hose, Flexible, NO.1(FOR FRONT)
47313B Bolt, Union(FOR FRONT FLEXIBLE HOSE)
47313P Gasket(FOR FRONT FLEXIBLE HOSE)
47314 Tube, Front Brake, NO.4
47316A Hose, Flexible(FOR REAR BRAKE TUBE)
47321 Tube, Rear Brake, NO.1
47322 Tube, Rear Brake, NO.2
47323 Tube, Rear Brake, NO.3
47324 Tube, Rear Brake, NO.4
47325 Tube, Rear Brake, NO.5
47326 Tube, Rear Brake, NO.6
47371A Clamp, Brake Tube, NO.1
47371B Clamp, Brake Tube, NO.6
47371C Clamp, Brake Tube, NO.7
47371D Clamp, Brake Tube, NO.8
47371E Clamp, Brake Tube, NO.9
47371F Clamp, Brake Tube, NO.10
47371G Clamp, Brake Tube, NO.11
47371H Clamp, Brake Tube, NO.12
47372 Clamp, Brake Tube, NO.2
47373B Clamp, Brake Tube, NO.3
47374B Clamp, Brake Tube, NO.4
47375 Clamp, Brake Tube, NO.5
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
