Rear Spring & Shock Absorber

14 part groups · 2 illustrations

Illustrations

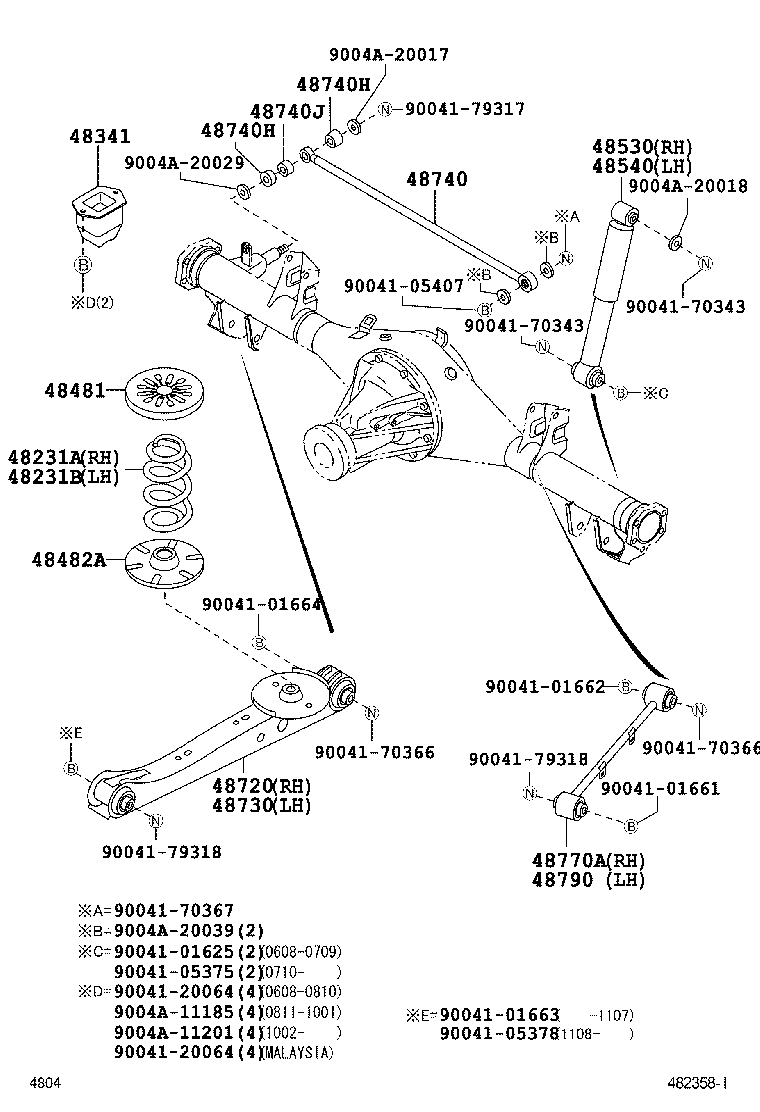

Figure 481791E 481791E 2003-12 → 2006-08 Figure 482358I 482358I 2006-08 → —

Part groups

PNCDescription
48231A Spring, Coil, Rear RH
48231B Spring, Coil, Rear LH
48341 Bumper, Rear Spring
48481 Seat, Rear Spring, Upper
48482A Seat, Rear Spring, Lower
48530 Absorber Assy, Shock, Rear RH
48540 Absorber Assy, Shock, Rear LH
48720 Arm Assy, Lower Control, RH
48730 Arm Assy, Lower Control, LH
48740 Rod Assy, Rear Lateral Control
48740H Bush, NO.1(FOR REAR LATERAL CONTROL ROD)
48740J Bush, NO.2(FOR REAR LATERAL CONTROL ROD)
48770A Arm Assy, Upper Control, Rear RH
48790 Arm Assy, Upper Control, Rear LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
