Toyota Avanza

2003-12 → 2011-11 · chassis F601,F602 · catalogue 613210 · United States

Discontinued model Data version 2012-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Suspension Crossmember & Under Cover

9 part groups · 3 illustrations

Illustrations

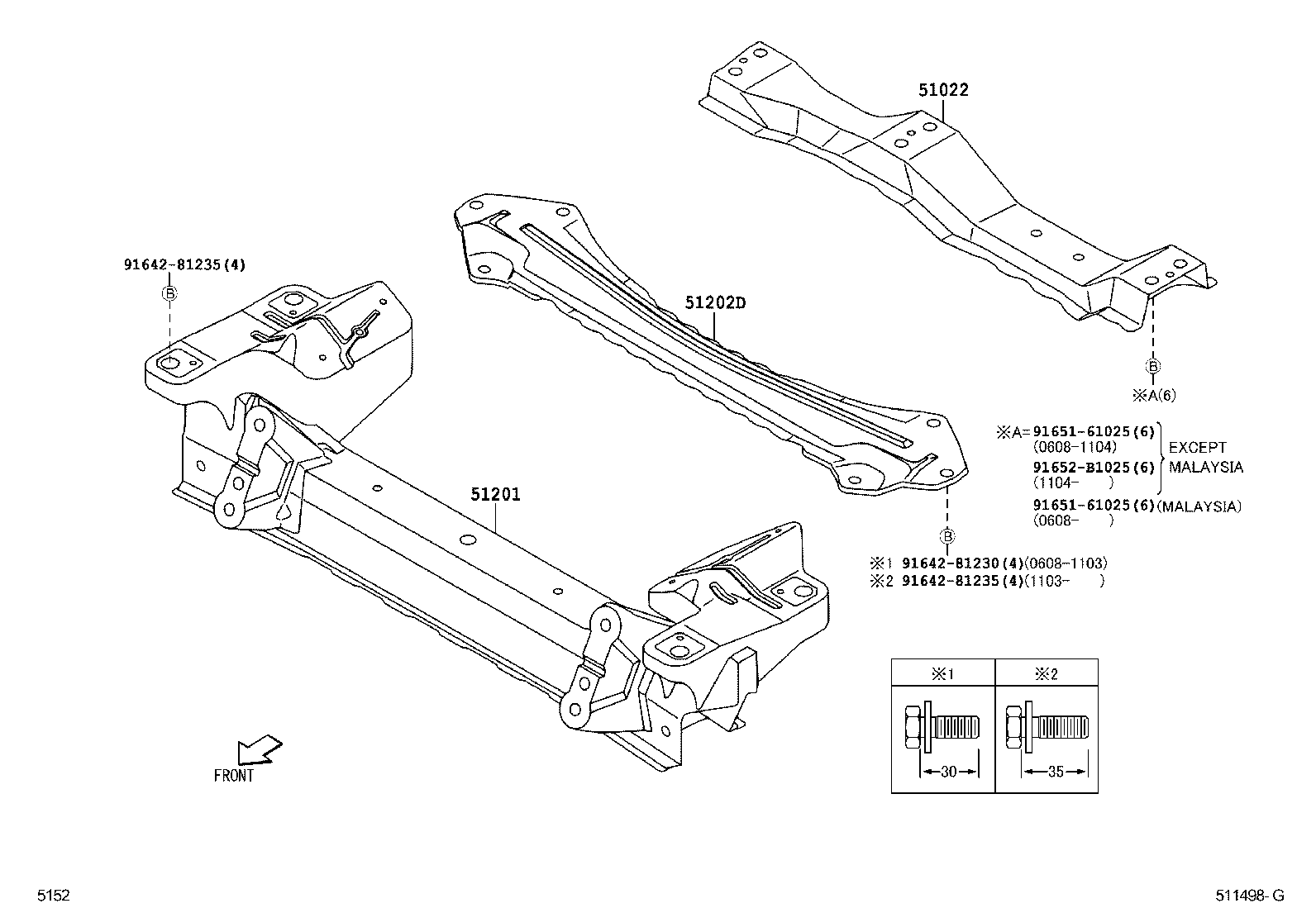

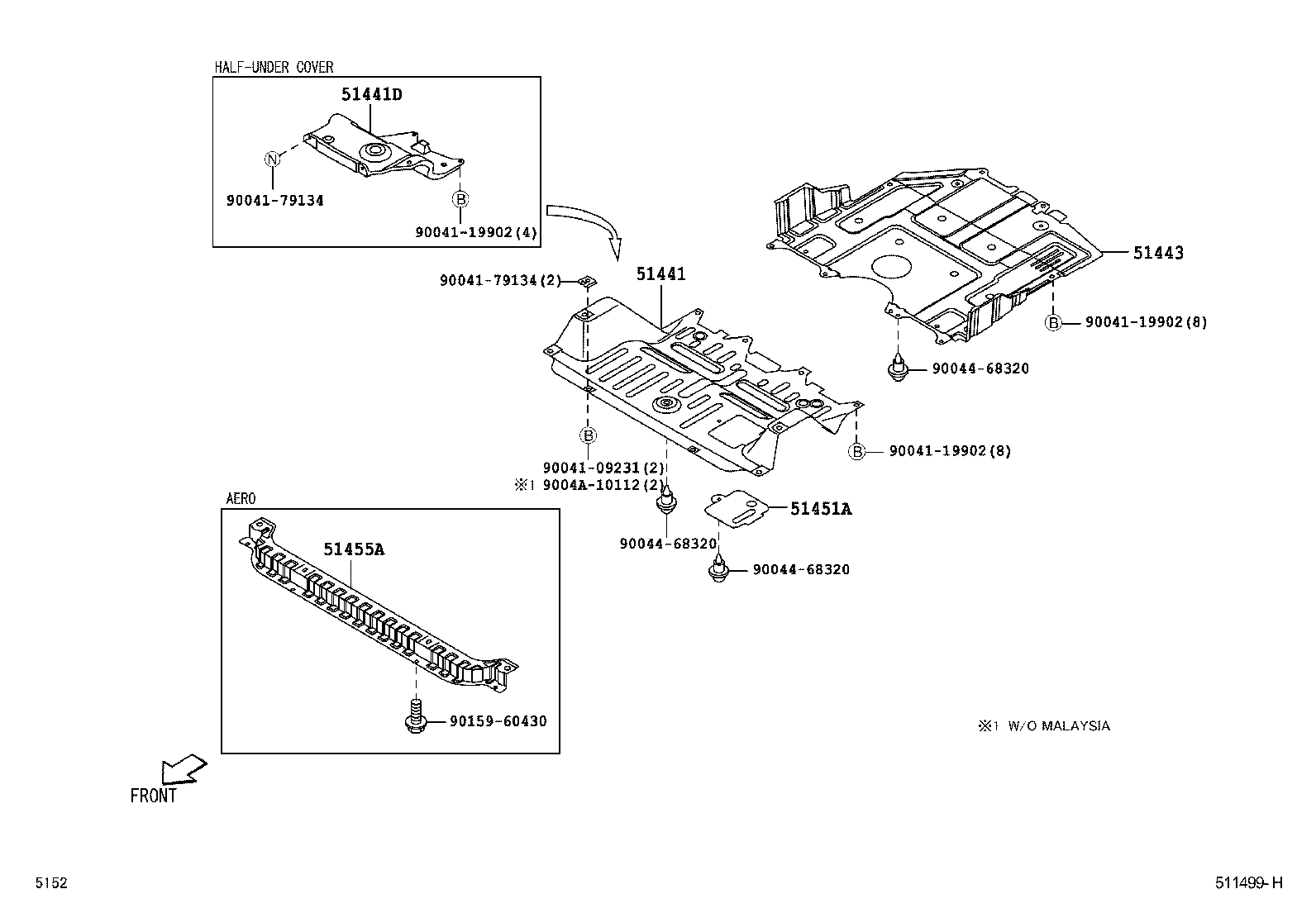

Figure 511036A 511036A 2003-12 → 2006-08 Figure 511498G 511498G 2006-08 → — Figure 511499H 511499H 2006-08 → —

Part groups

PNCDescription
51022 Member Sub-assy, Engine Rear Support
51201 Crossmember Sub-assy, Front Suspension
51202D Crossmenber Sub-assy, Front Suspension, Lower
51441 Cover, Engine Under, NO.1
51441D Cover, Engine Under
51443 Cover, Engine Under, Rear RH
51451A Cover, Engine Under, Center
51455A Seal, Engine Under Cover, NO.1
51961C Hook, Front
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
