Toyota Avanza

2003-12 → 2011-11 · chassis F601,F602 · catalogue 613210 · United States

Discontinued model Data version 2012-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

14 part groups · 4 illustrations

Illustrations

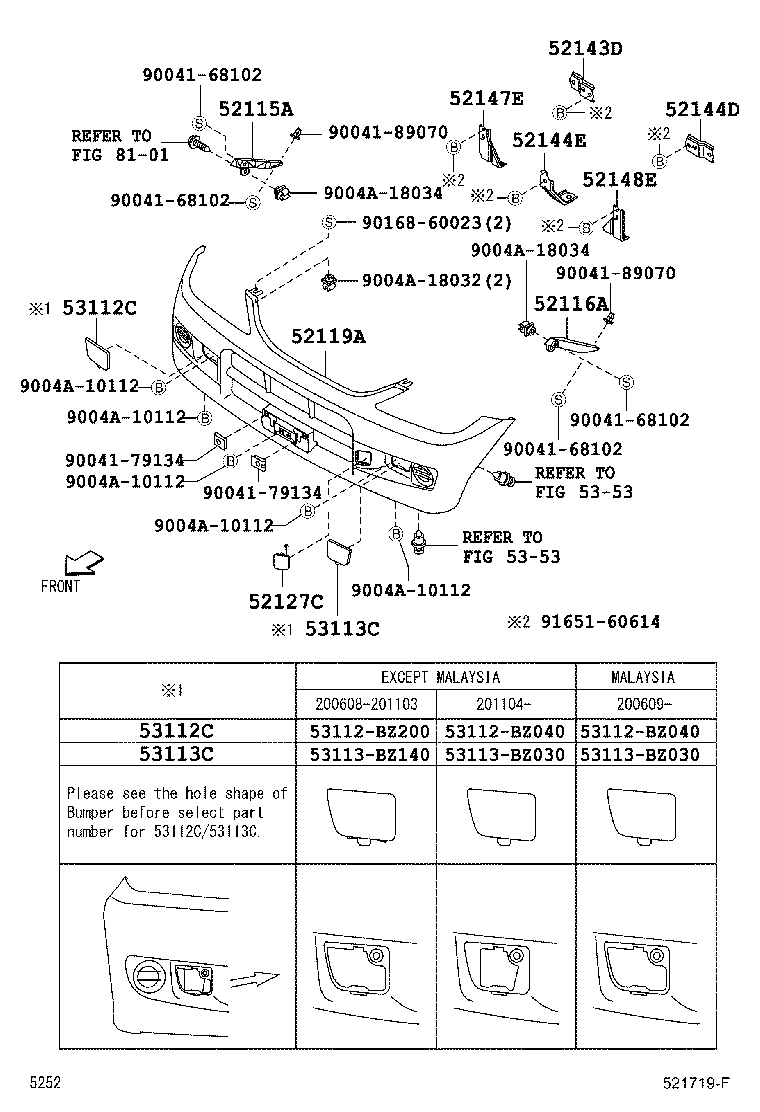

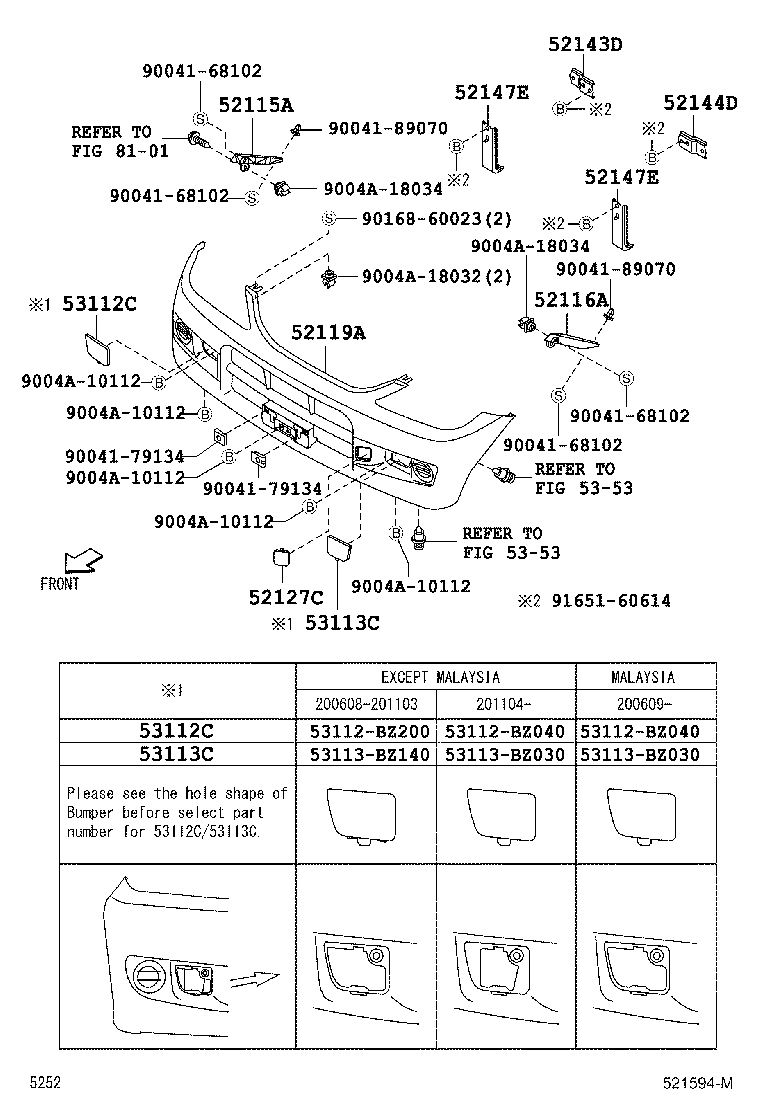

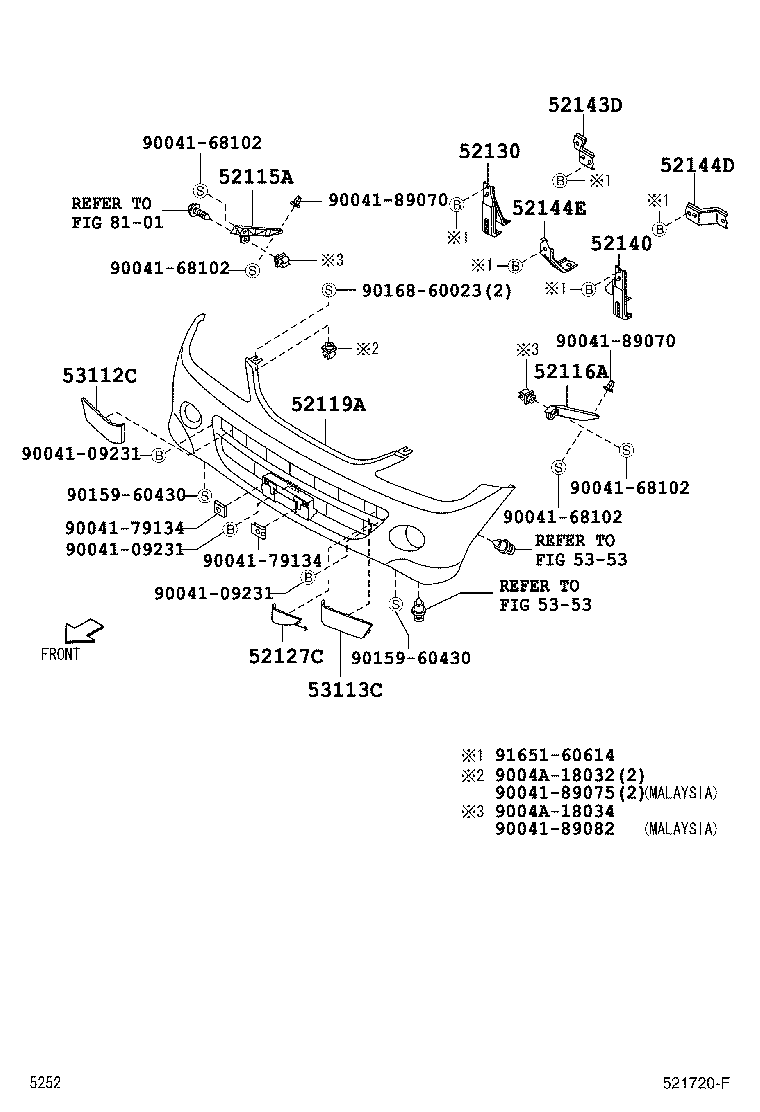

Figure 521080H 521080H 2003-12 → 2008-01 Figure 521594M 521594M 2006-08 → — Figure 521719F 521719F 2006-08 → — Figure 521720F 521720F 2006-08 → —

Part groups

PNCDescription
52115A Support, Front Bumper Side, RH
52116A Support, Front Bumper Side, LH
52119A Cover, Front Bumper
52127C Cover, Front Bumper Hole
52130 Bracket Assy, Front Bumper Side Mounting, RH
52140 Bracket Assy, Front Bumper Side Mounting, LH
52143D Bracket, Front Bumper Side, RH
52144D Bracket, Front Bumper Side, LH
52144E Stay, Front Bumper, Center
52147B Bracket, Front Bumper Mounting
52147E Bracket, Front Bumper Mounting, RH
52148E Bracket, Front Bumper Mounting, LH
53112C Grille, Radiator, Lower RH
53113C Grille, Radiator, Lower LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
