Toyota Avanza

2003-12 → 2011-11 · chassis F601,F602 · catalogue 613210 · United States

Discontinued model Data version 2012-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Bumper & Bumper Stay

5 part groups · 2 illustrations

Illustrations

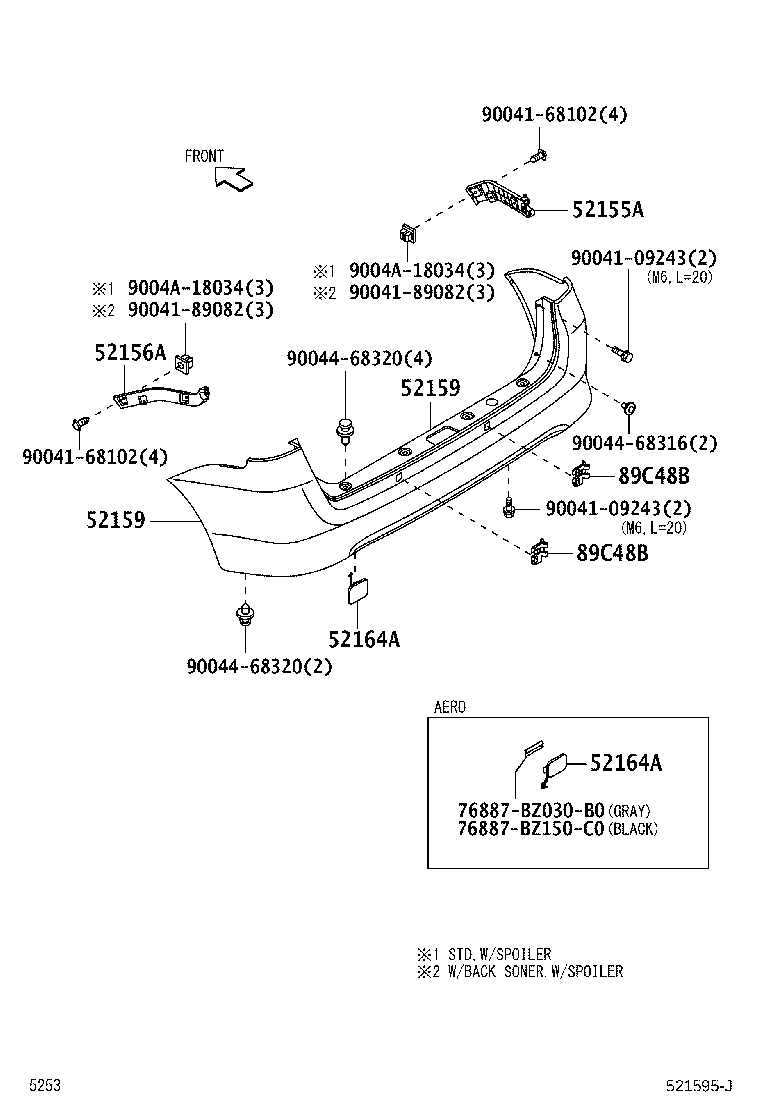

Figure 521082D 521082D 2003-12 → 2006-08 Figure 521595J 521595J 2006-08 → —

Part groups

PNCDescription
52155A Support, Rear Bumper Side, RH
52156A Support, Rear Bumper Side, LH
52159 Cover, Rear Bumper
52164A Plate, Rear Bumper, LH
89C48B Retainer, Ultrasonic Sensor, Rear Center
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
