Toyota Avanza

2003-12 → 2011-11 · chassis F601,F602 · catalogue 613210 · United States

Discontinued model Data version 2012-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Hood & Front Fender

14 part groups · 7 illustrations

Illustrations

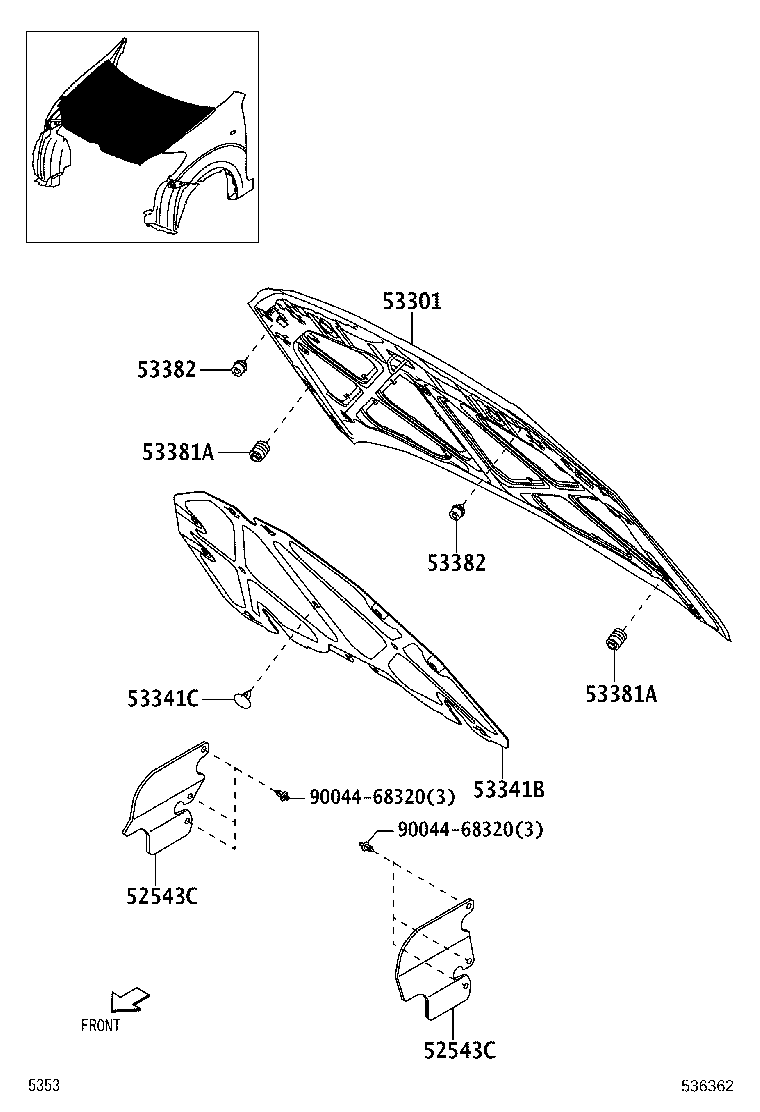

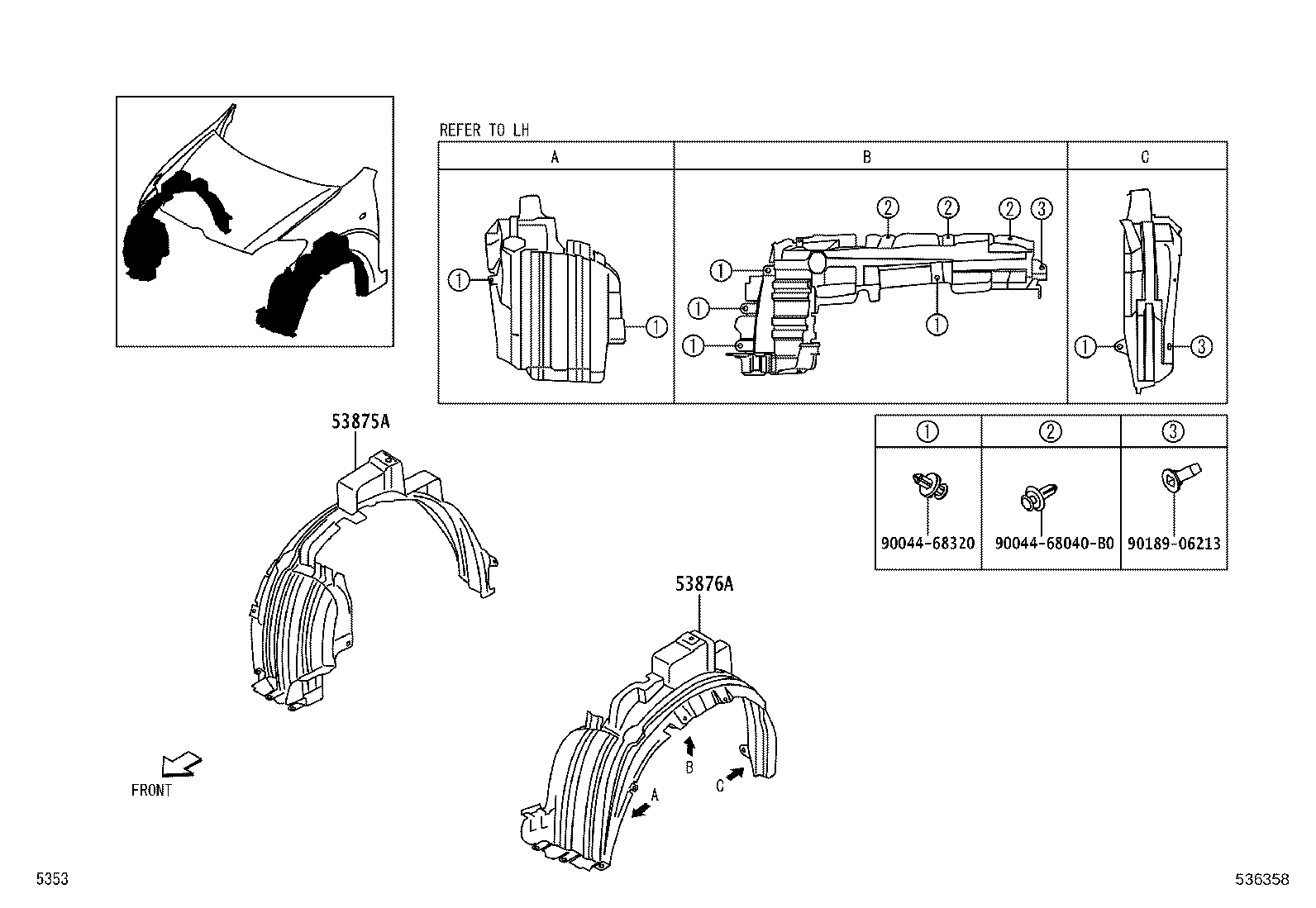

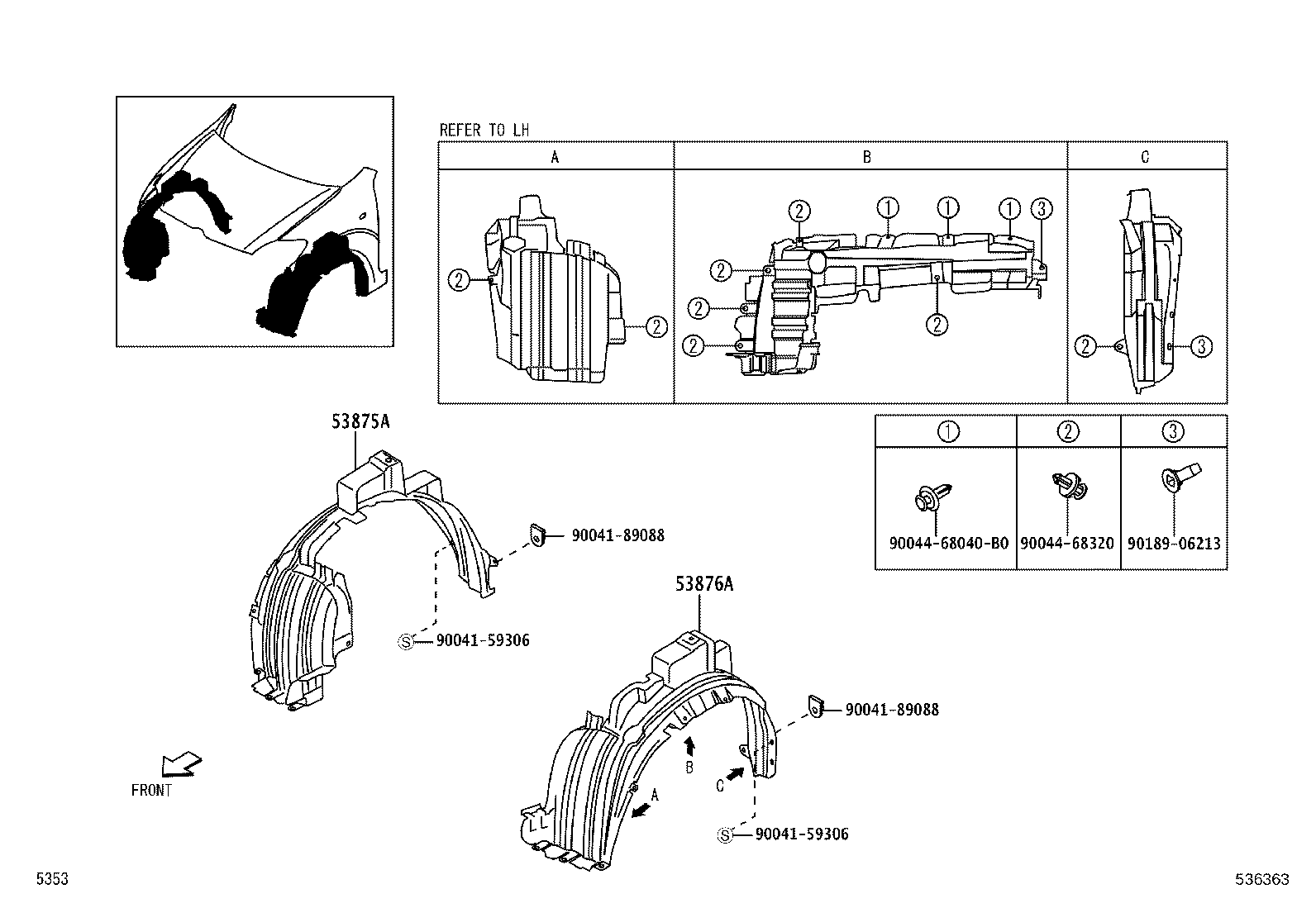

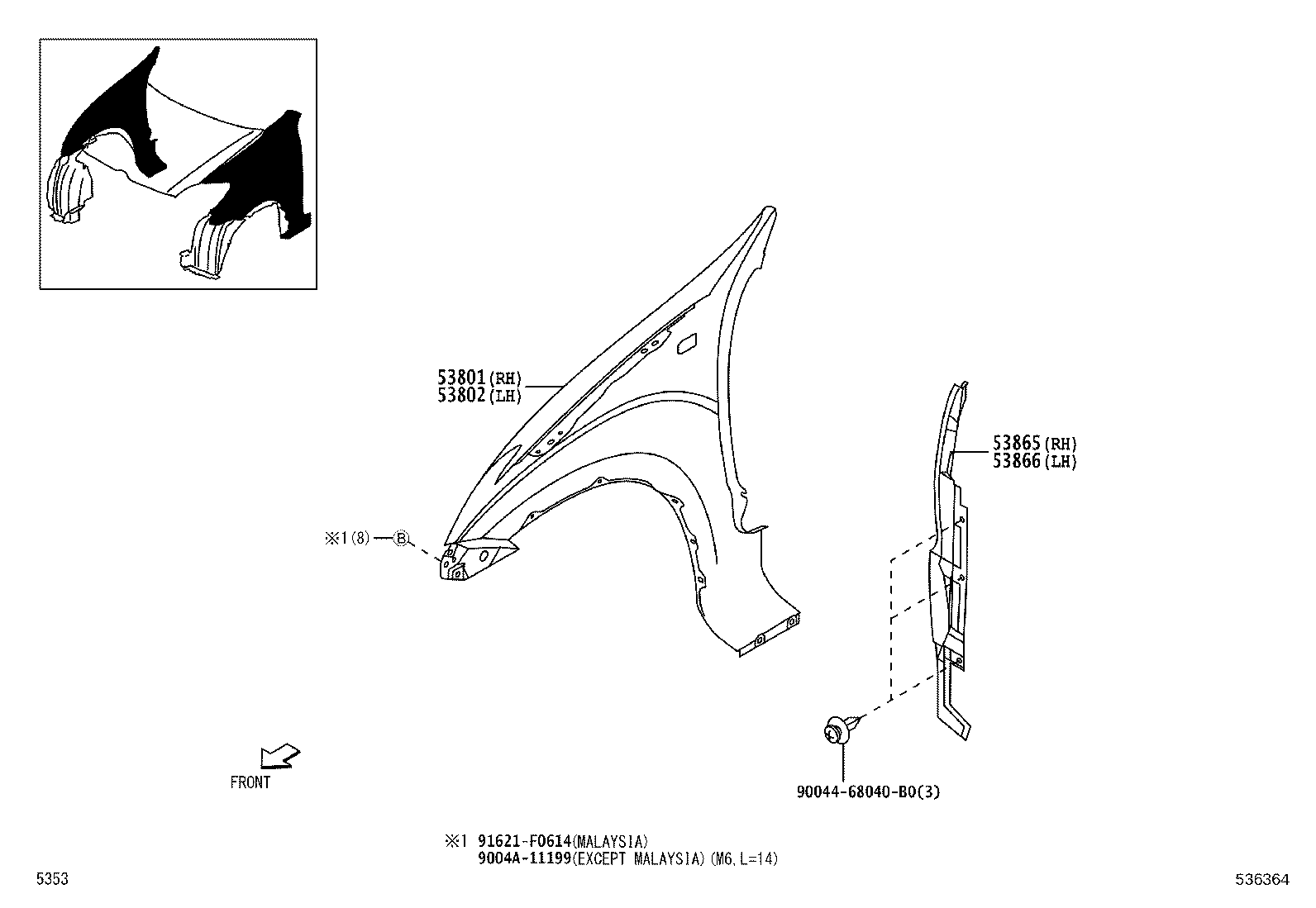

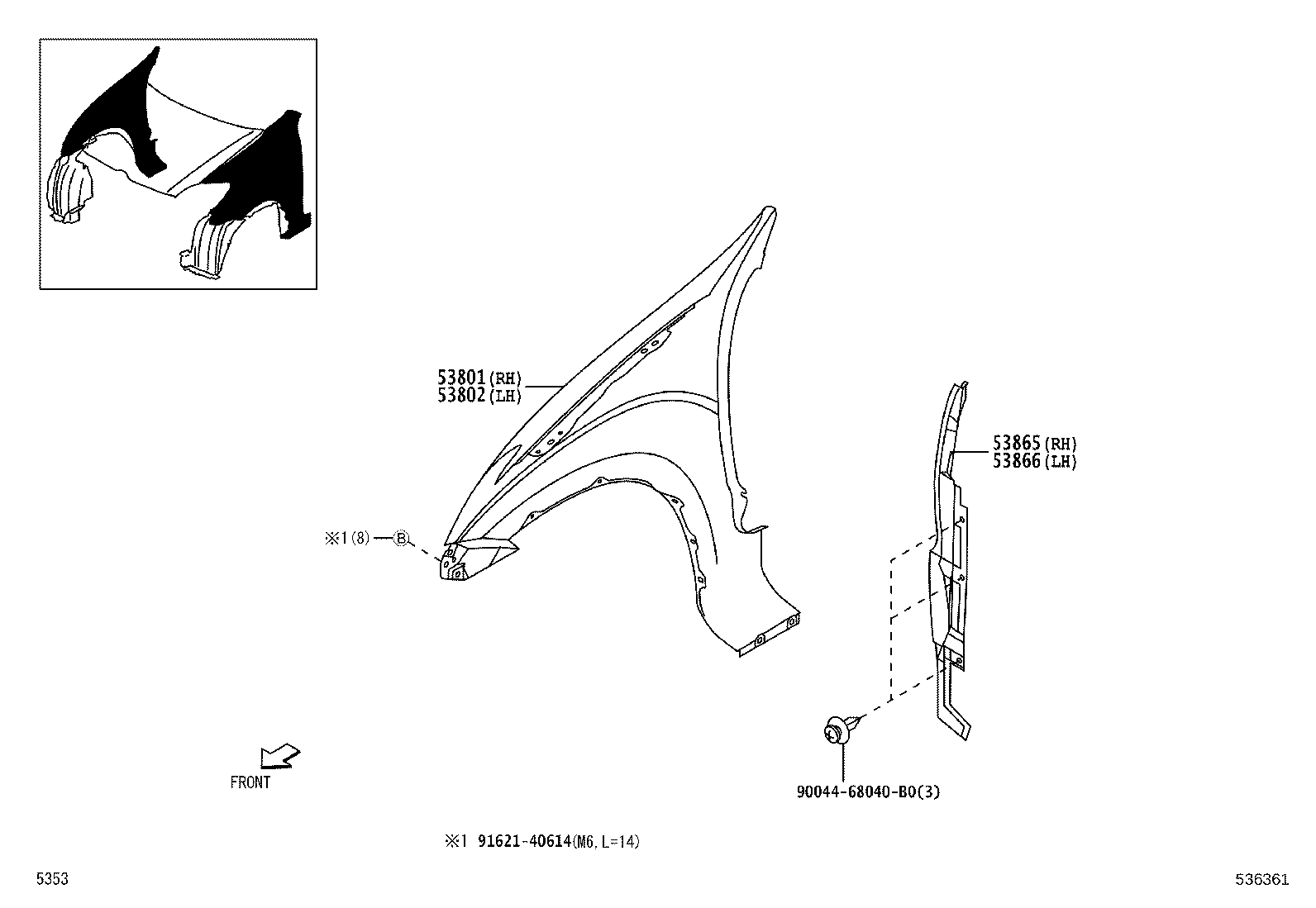

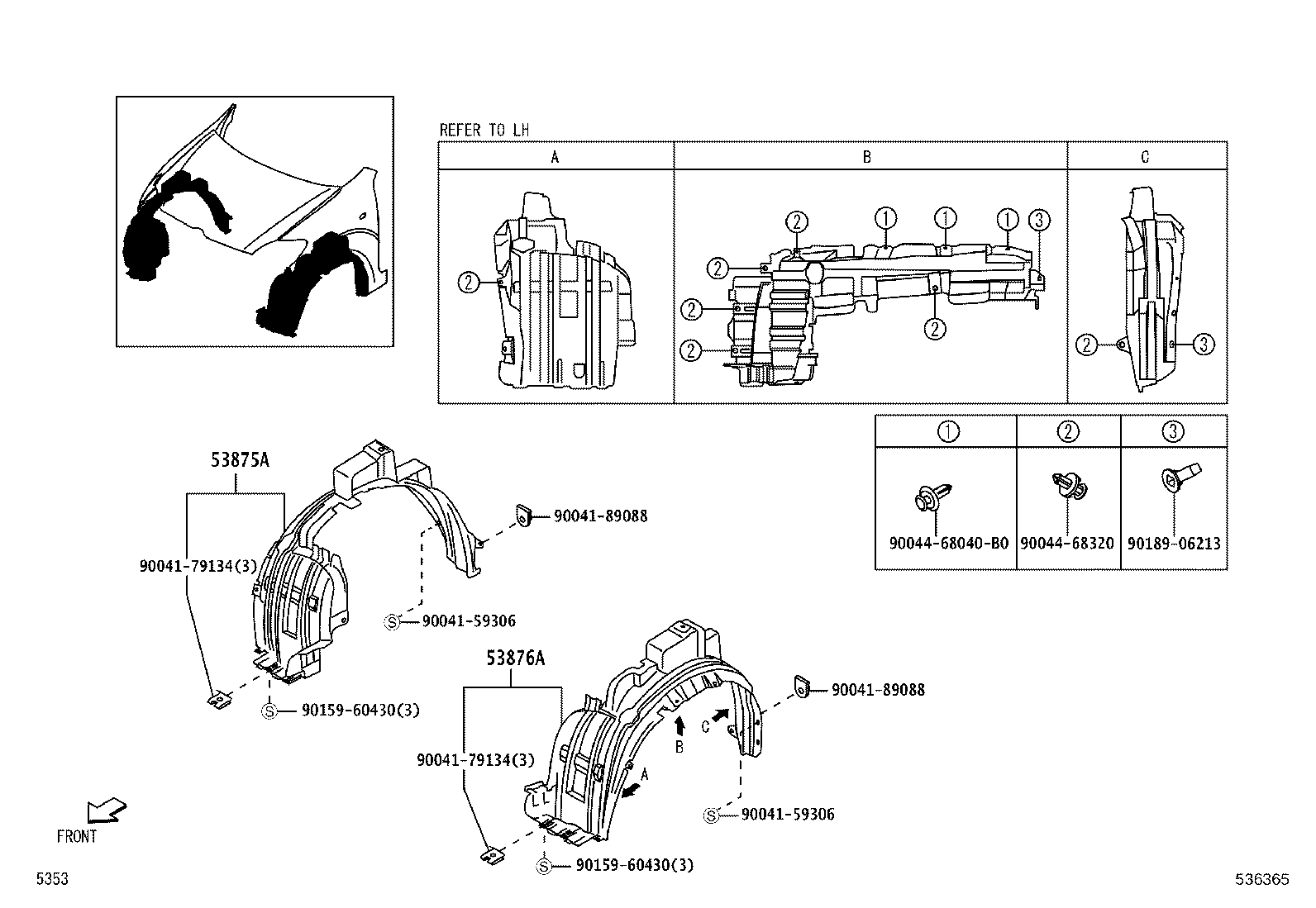

Figure 536357 536357 2003-12 → 2006-08 Figure 536358 536358 2003-12 → 2006-08 Figure 536361 536361 2003-12 → 2006-08 Figure 536362 536362 2006-08 → — Figure 536363 536363 2006-08 → — Figure 536364 536364 2006-08 → — Figure 536365 536365 2006-08 → —

Part groups

PNCDescription
52543C Seal, Front Bumper
53301 Hood Sub-assy
53341B Insulator, Hood
53341C Clip(FOR HOOD INSULATOR)
53381A Clip(FOR HOOD TO RADIATOR SUPPORT SEAL)
53382 Bumper, Hood, Front
53395A Seal, Hood TO Front End Panel, NO.1
53801 Fender Sub-assy, Front RH
53802 Fender Sub-assy, Front LH
53865 Bracket, Front Wheel Opening, NO.3
53866 Seal, Front Fender TO Cowl Side, RH
53875A Liner, Front Fender, RH
53876A Liner, Front Fender, LH
75895B Tape, Moulding, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
