Toyota Avanza

2003-12 → 2011-11 · chassis F601,F602 · catalogue 613210 · United States

Discontinued model Data version 2012-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Fender Apron & Dash Panel

30 part groups · 2 illustrations

Illustrations

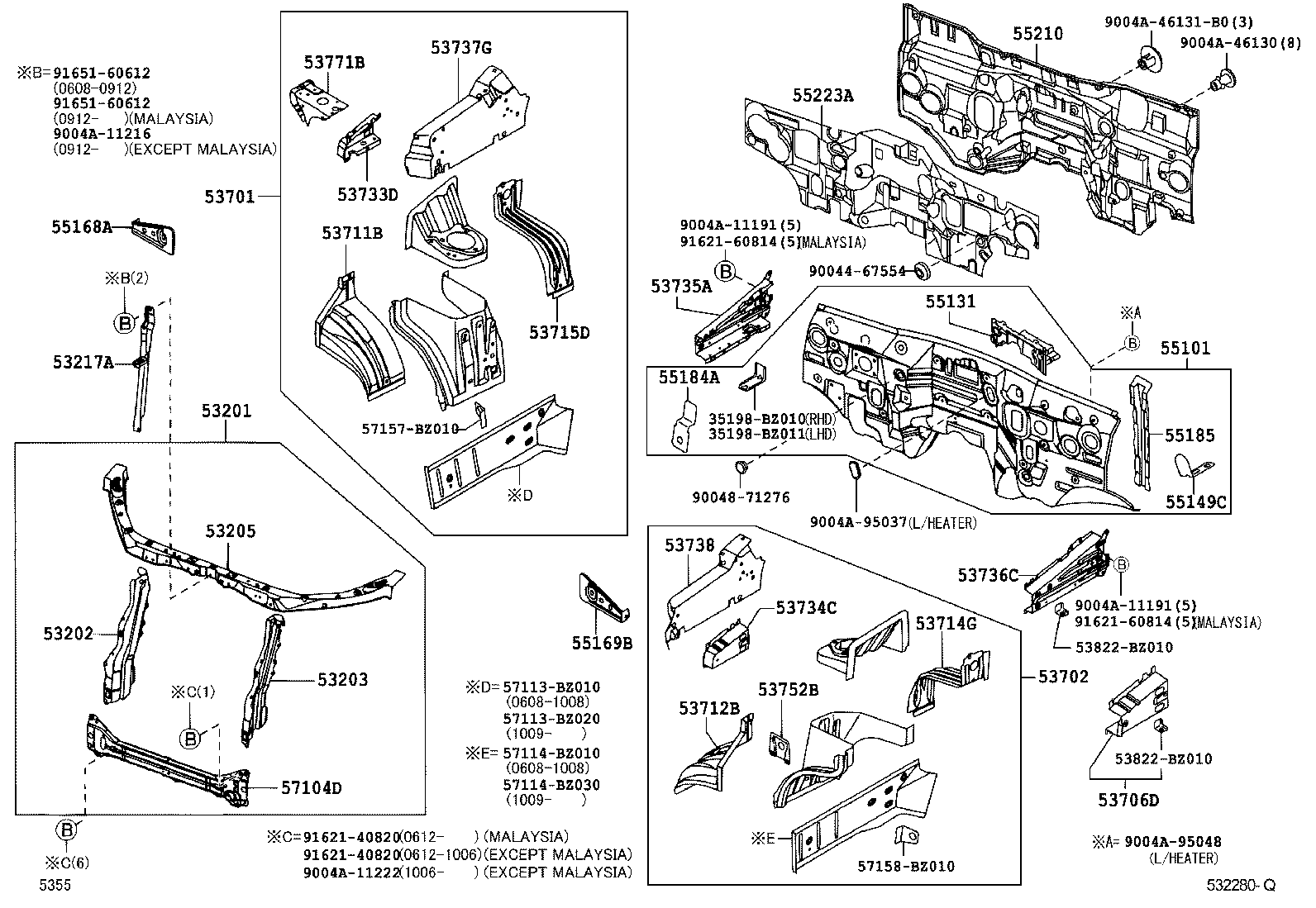

Figure 531629K 531629K 2003-12 → 2006-08 Figure 532280Q 532280Q 2006-08 → —

Part groups

PNCDescription
53201 Support Sub-assy, Radiator
53202 Support Sub-assy, Radiator, RH
53203 Support Sub-assy, Radiator, LH
53205 Support Sub-assy, Radiator, Upper
53217A Brace, Hood Lock Support
53701 Apron Sub-assy, Front Fender, RH
53702 Apron Sub-assy, Front Fender, LH
53706D Member Sub-assy, Front Apron TO Cowl Side, LH
53711B Apron, Front Fender, Front RH
53712B Apron, Front Fender, Front LH
53714G Plate, Fender Apron Splash, LH
53715D Apron, Fender Side, RH
53733D Member, Front Apron TO Cowl Side, Lower Front RH
53734C Member, Front Apron TO Cowl Side, Lower Front LH
53735A Member, Front Apron TO Cowl Side, Lower RH
53736C Member, Front Apron TO Cowl Side, Lower LH
53737G Plate, Front Apron TO Cowl Side Member, RH
53738 Plate, Front Apron TO Cowl Side Member, LH
53752B Bracket, Washer Tank Mounting
53771B Support, Battery Carrier, RH
55101 Panel Sub-assy, Dash
55131 Reinforcement, Dash Panel
55149C Bracket, Dash Wiring Harness
55168A Bracket, Front Fender Mounting, RH
55169B Bracket, Front Fender Mounting, LH
55184A Bracket, Dash Panel
55185 Brace, Dash Panel TO Cowl
55210 Insulator Assy, Dash Panel
55223A Insulator, Dash Panel, Outer
57104D Member Sub-assy, Front Cross
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
