Toyota Avanza

2003-12 → 2011-11 · chassis F601,F602 · catalogue 613210 · United States

Discontinued model Data version 2012-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Cowl Panel & Windshield Glass

14 part groups · 2 illustrations

Illustrations

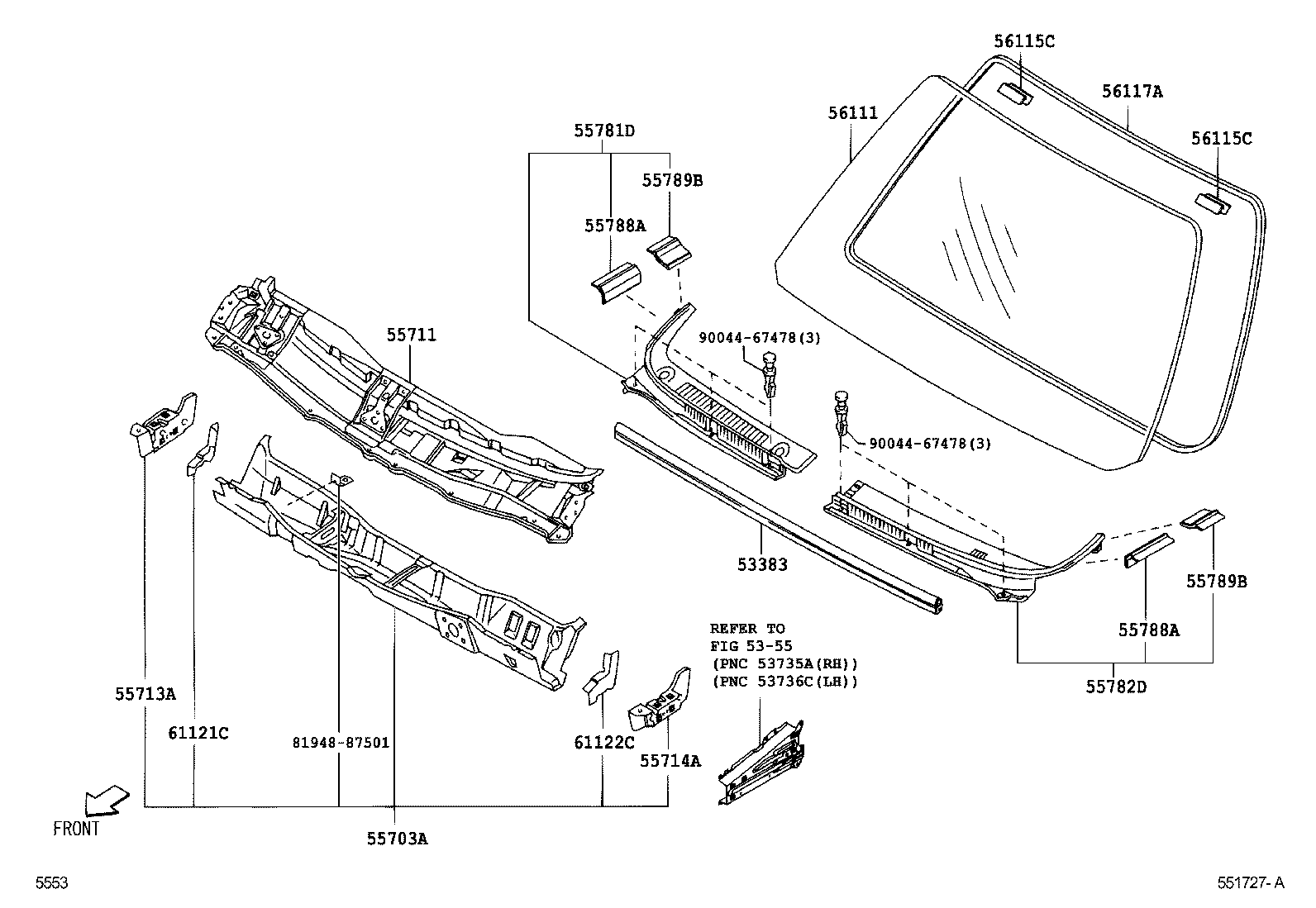

Figure 551229C 551229C 2003-12 → 2006-08 Figure 551727A 551727A 2006-08 → —

Part groups

PNCDescription
53383 Seal, Hood TO Cowl Top
55703A Panel Sub-assy, Cowl Top, Inner
55711 Panel, Cowl Top, Outer
55713A Panel, Cowl Top Side, RH
55714A Panel, Cowl Top Side, LH
55781D Louver, Cowl Top Ventilator, RH
55782D Louver, Cowl Top Ventilator, LH
55788A Protector, Cowl Top Ventilator Louver
55789B Protector, Cowl Top Venttinator Louver, NO.2
56111 Glass, Windshield
56115C Stopper, Windshield Glass
56117A Dam, Window Glass Adhesive
61121C Panel, Cowl Side, Outer RH
61122C Panel, Cowl Side, Outer LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
