Toyota Avanza

2003-12 → 2011-11 · chassis F601,F602 · catalogue 613210 · United States

Discontinued model Data version 2012-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Floor Panel & Front Floor Member

34 part groups · 2 illustrations

Illustrations

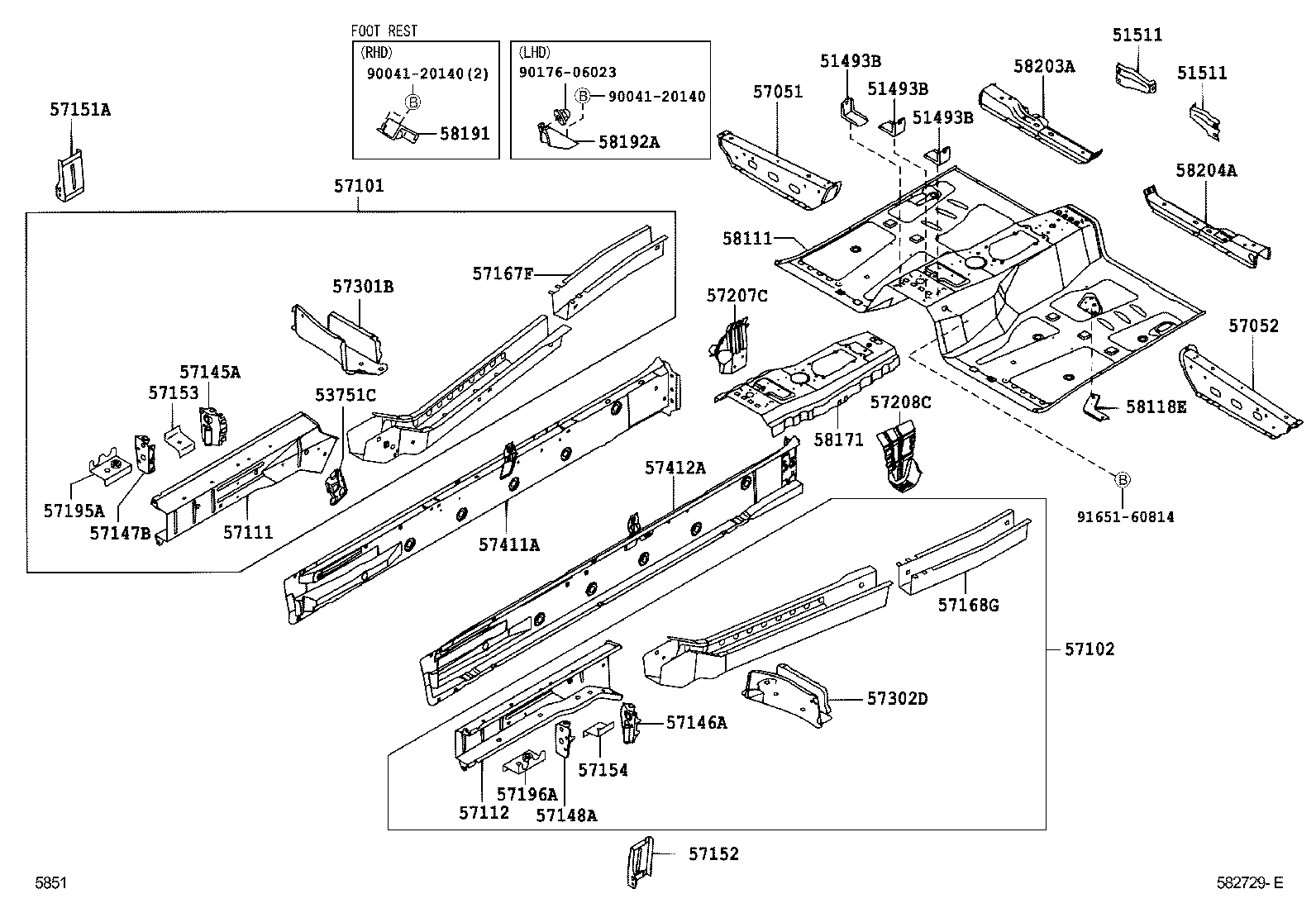

Figure 581940G 581940G 2003-12 → 2006-08 Figure 582729E 582729E 2006-08 → —

Part groups

PNCDescription
51493B Bracket, Under Guard, FR NO.1
51511 Gusset, Upper Control Arm Support, RH
53751C Bracket, Charcoal Canister Mounting
57051 Member Sub-assy, Front Floor Cross, RH
57052 Member Sub-assy, Front Floor Cross, LH
57101 Member Sub-assy, Front Side, RH
57102 Member Sub-assy, Front Side, LH
57111 Member, Front Side, RH
57112 Member, Front Side, LH
57145A Reinforcement, Front Side Member, Rear RH
57146A Reinforcement, Front Side Member, Rear LH
57147B Plate, Front Side Member, Rear RH
57148A Plate, Front Side Member, Rear LH
57151A Reinforcement, Front Side Member, NO.1 RH
57152 Reinforcement, Front Side Member, NO.1 LH
57153 Reinforcement, Front Side Member, NO.2 RH
57154 Reinforcement, Front Side Member, NO.2 LH
57167F Reinforcement, Front Crossmember Side, RH
57168G Member, Front Floor, LH
57195A Reinforcement, Front Side Member, Front RH
57196A Reinforcement, Front Side Member, Front LH
57207C Bracket Sub-assy, Engine Rear Mounting, RH
57208C Bracket Sub-assy, Engine Rear Mounting, LH
57301B Outrigger Sub-assy, NO.1 RH
57302D Outrigger Sub-assy, NO.1 LH
57411A Member, Floor Side, Inner RH
57412A Member, Floor Side, Inner LH
58111 Pan, Front Floor
58118E Bracket, Jack Set
58171 Reinforcement, Parking Brake Base
58191 Footrest, Front Floor
58192A Footrest, Front Floor, LH
58203A Reinforcement Sub-assy, Center Floor Panel, RH
58204A Reinforcement Sub-assy, Center Floor Panel, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
