Toyota Avanza

2003-12 → 2011-11 · chassis F601,F602 · catalogue 613210 · United States

Discontinued model Data version 2012-05

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Headlining & Silencer Pad

7 part groups · 3 illustrations

Illustrations

Figure 641386C

641386C 2003-12 → 2006-08

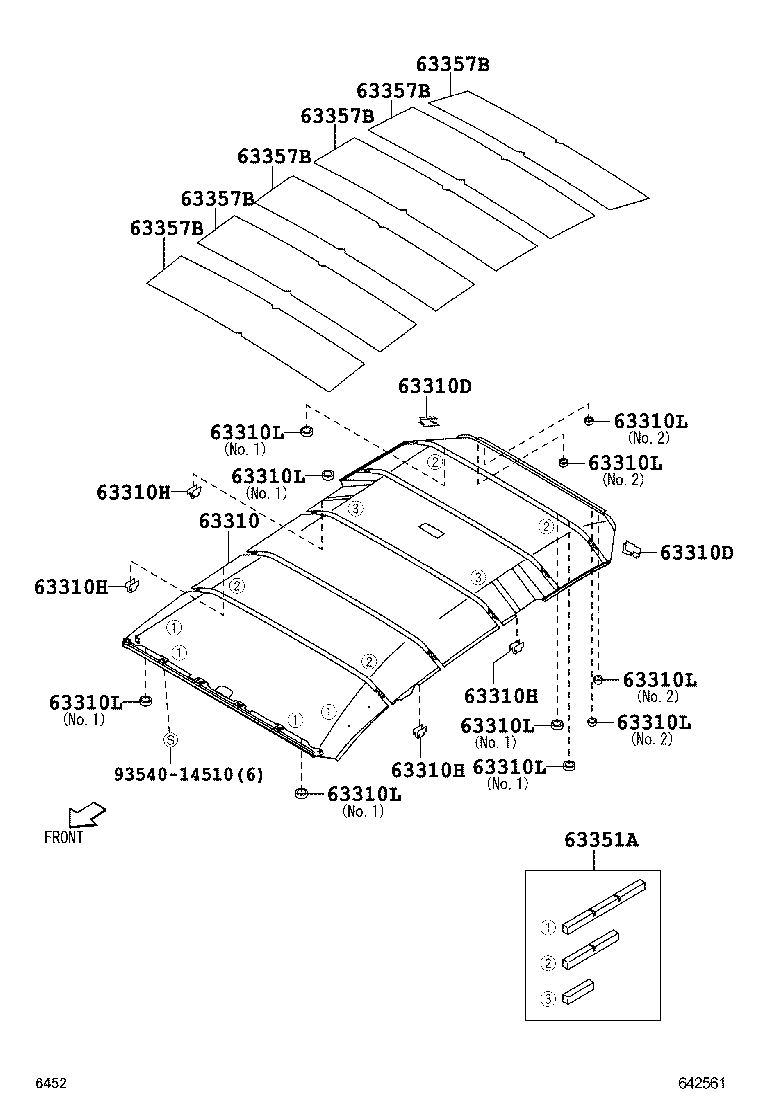

642561 2006-08 → 2008-10

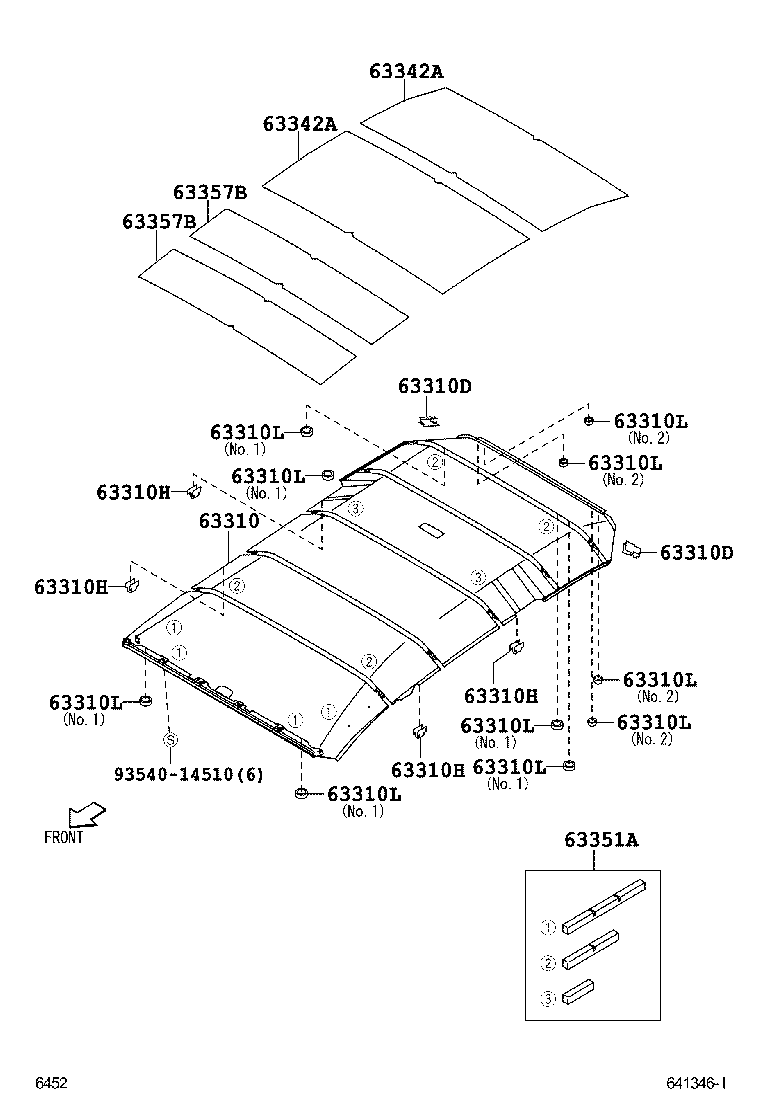

Figure 641346I

641346I 2008-10 → —

Part groups

PNC	Description
63310	Headlining Assy, Roof
63310D	Clip, Roof Headlining
63310H	Clip(FOR ROOF HEADLINING)
63310L	Cap(FOR ROOF HEADLINING)
63342A	Silencer, Roof, NO.2
63351A	Pad, Roof Silencer, NO.10
63357B	Silencer, Roof

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
