Toyota Avanza

2003-12 → 2011-11 · chassis F601,F602 · catalogue 613210 · United States

Discontinued model Data version 2012-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Door Lock & Handle

17 part groups · 3 illustrations

Illustrations

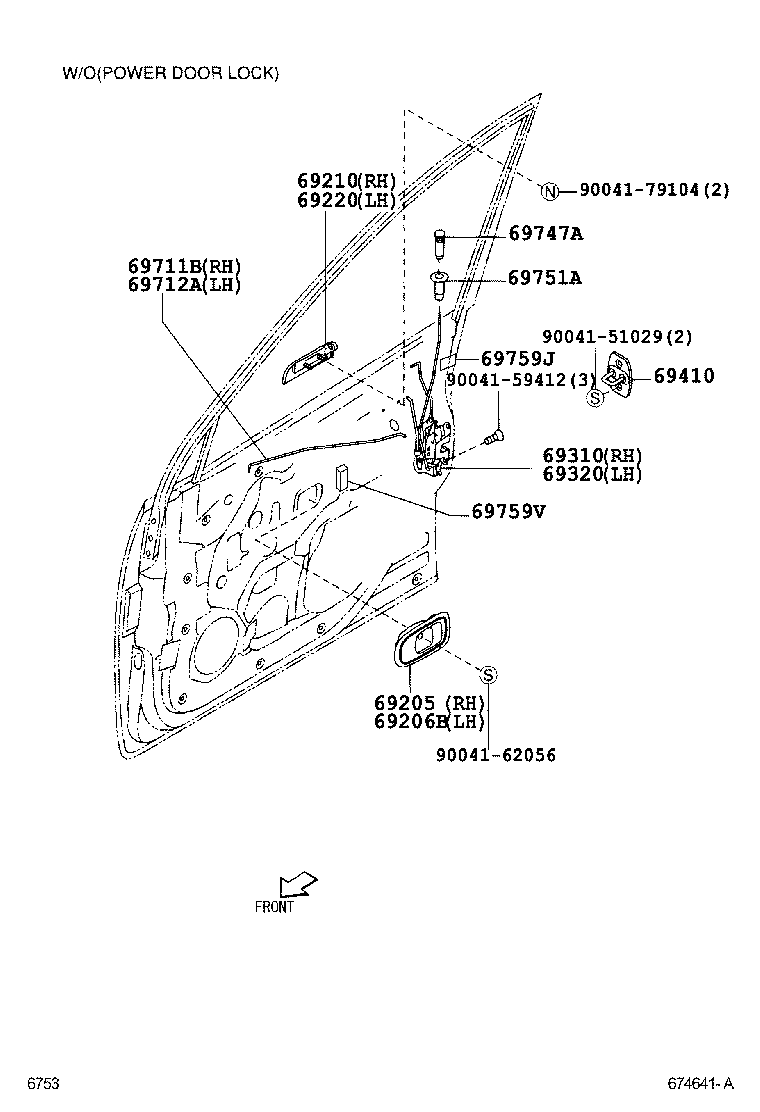

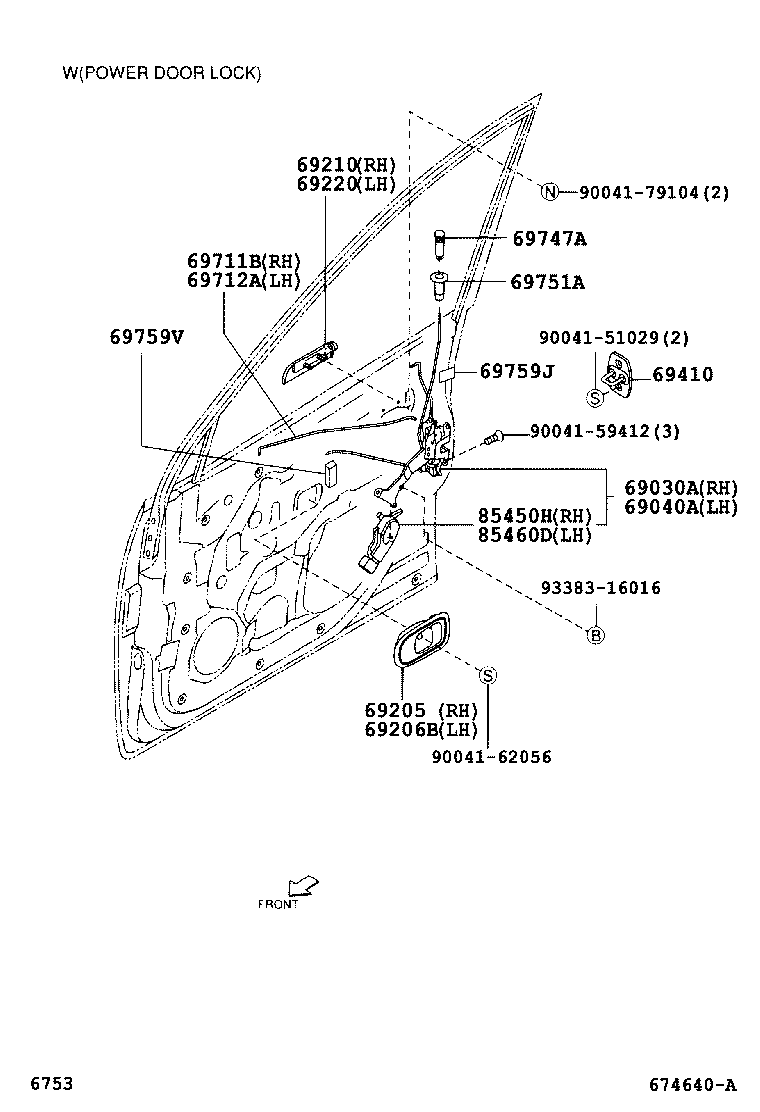

Figure 673423A 673423A 2003-12 → 2006-08 Figure 674640A 674640A 2006-08 → — Figure 674641A 674641A 2006-08 → —

Part groups

PNCDescription
69030A Lock Assy, Front Door W/Motor, RH
69040A Lock Assy, Front Door W/Motor, LH
69205 Handle Sub-assy, Front Door Inside, RH
69206B Handle Sub-assy, Front Door Inside, LH
69210 Handle Assy, Front Door, Outside RH
69220 Handle Assy, Front Door Outside, LH
69310 Lock Assy, Front Door, RH
69320 Lock Assy, Front Door, LH
69410 Plate Assy, Front Door Lock Striker
69711B Link, Front Door Lock Remote Control, RH
69712A Link, Front Door Lock Remote Control, LH
69747A Button, Door Locking(FOR FRONT DOOR)
69751A Holder, Door Locking(FOR FRONT DOOR)
69759J Silencer, Door Lock Link
69759V Silencer, Front Door Lock Link
85450H Motor Assy, Door Control, Front RH
85460D Motor Assy, Door Control, Front LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
