Toyota Avanza

2003-12 → 2011-11 · chassis F601,F602 · catalogue 613210 · United States

Discontinued model Data version 2012-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Door Lock & Handle

21 part groups · 3 illustrations

Illustrations

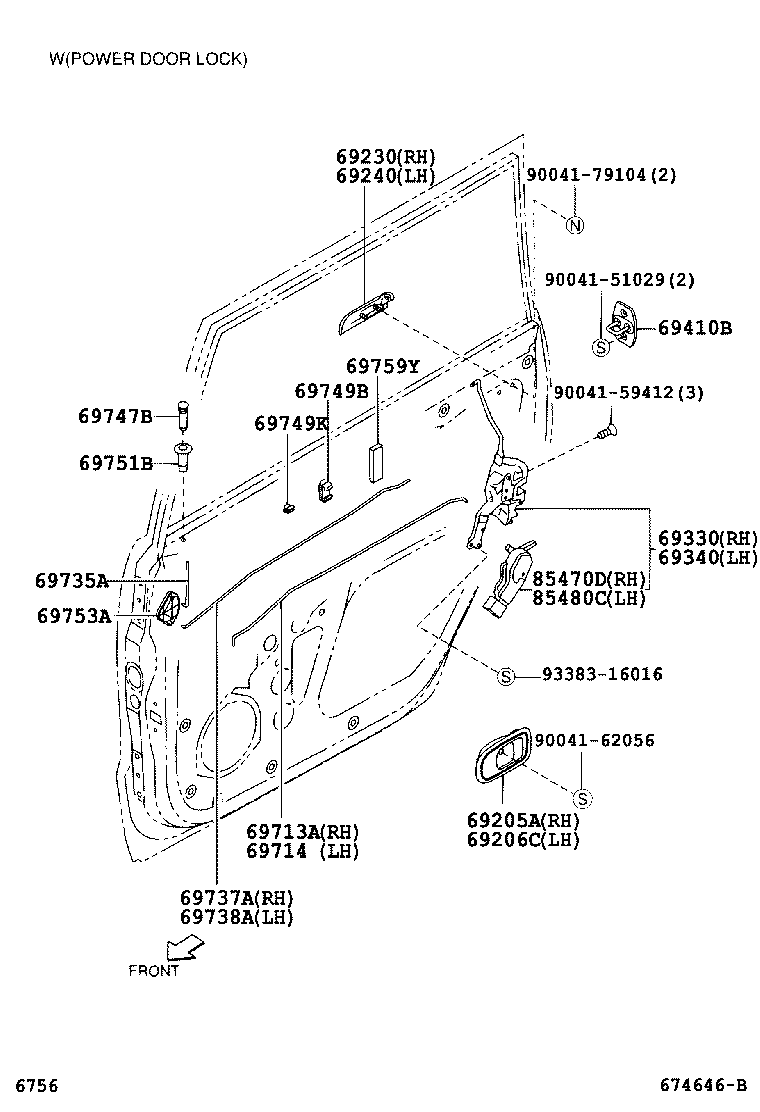

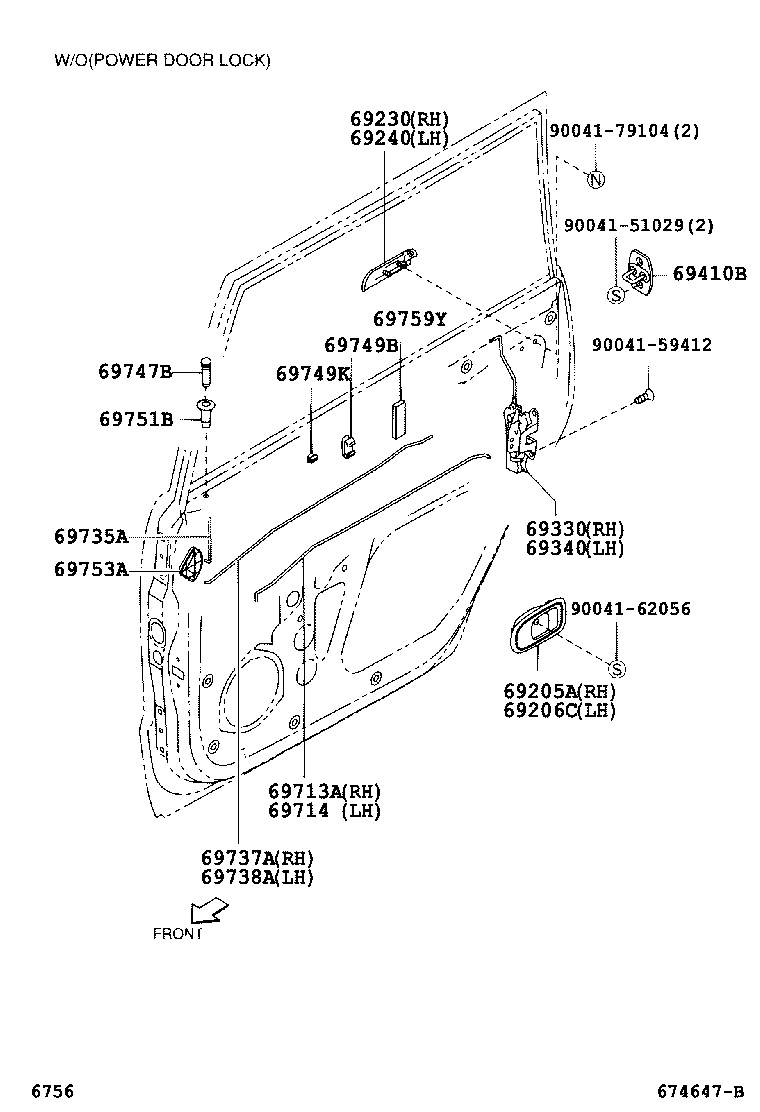

Figure 673432C 673432C 2003-12 → 2006-08 Figure 674646B 674646B 2006-08 → — Figure 674647B 674647B 2006-08 → —

Part groups

PNCDescription
69205A Handle Sub-assy, Rear Door Inside, RH
69206C Handle Sub-assy, Rear Door Inside, LH
69230 Handle Assy, Rear Door Outside, RH
69240 Handle Assy, Rear Door Outside, LH
69330 Lock Assy, Rear Door, RH
69340 Lock Assy, Rear Door, LH
69410B Plate Assy, Rear Door Lock Striker
69713A Link, Rear Door Lock Remote Control, RH
69714 Link, Rear Door Lock Remote Control, LH
69735A Rod, Rear Door Lock Push Button
69737A Link, Rear Door Inside Locking , RH
69738A Link, Rear Door Inside Locking , LH
69747B Button, Door Locking(FOR REAR DOOR)
69749B Clamp, Rear Door Lock Link
69749K Clamp, Rear Door Lock
69751B Holder, Door Locking(FOR REAR DOOR)
69753A Bellcrank, Door Lock Control
69759J Silencer, Door Lock Link
69759Y Silencer, Rear Door Lock Link
85470D Motor Assy, Door Control, Rear RH
85480C Motor Assy, Door Control, Rear LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
