Toyota Avanza

2003-12 → 2011-11 · chassis F601,F602 · catalogue 613210 · United States

Discontinued model Data version 2012-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Back Door Panel & Glass

15 part groups · 3 illustrations

Illustrations

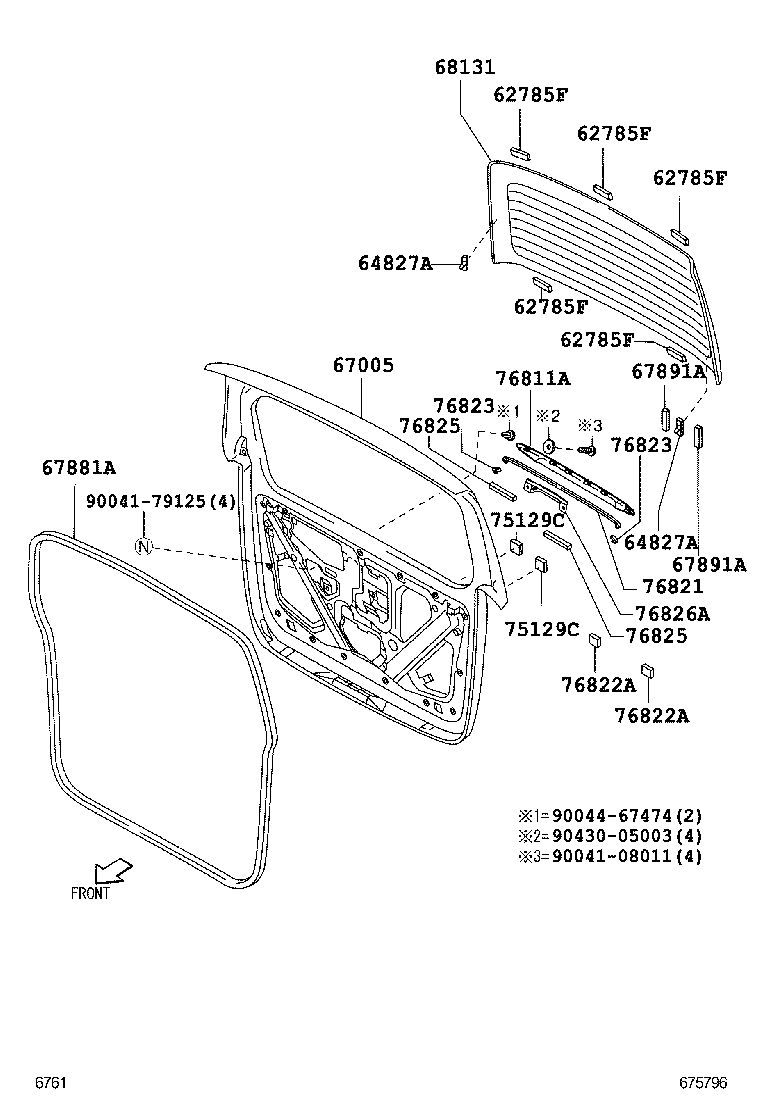

Figure 673436F 673436F 2003-12 → 2006-08 Figure 675796 675796 2006-08 → — Figure 673430C 673430C 2003-12 → —

Part groups

PNCDescription
62785F Spacer, Back Door Glass
64780A Panel Assy, Back Door Trim
64780D Retainer(FOR BACK DOOR TRIM BOARD)
64827A Clip, Back Window Glass, RH
67005 Panel Sub-assy, Back Door
67881A Weatherstrip, Back Door
67891A Seal, Back Door
68131 Glass, Back Door
75129C Cushion, Rear Licence Plate
76811A Garnish, Back Door, Outside
76821 Protector, Back Door Garnish Moulding, Upper
76822A Protector, Back Door Garnish Moulding, Lwr
76823 Protector, Back Door Garnish Moulding, RH
76825 Protector, Back Door Outside Garnish
76826A Retainer, Back Door Garnish, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
