Toyota Avanza

2003-12 → 2011-11 · chassis F601,F602 · catalogue 613210 · United States

Discontinued model Data version 2012-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Back Door Lock & Hinge

8 part groups · 3 illustrations

Illustrations

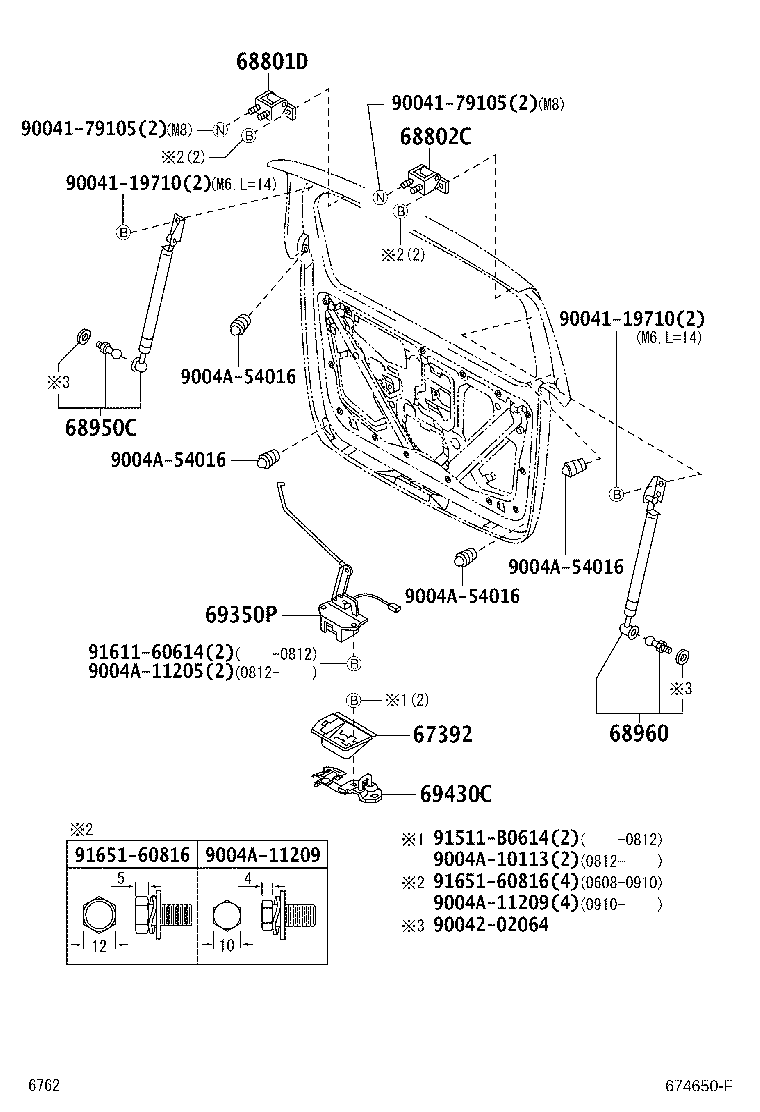

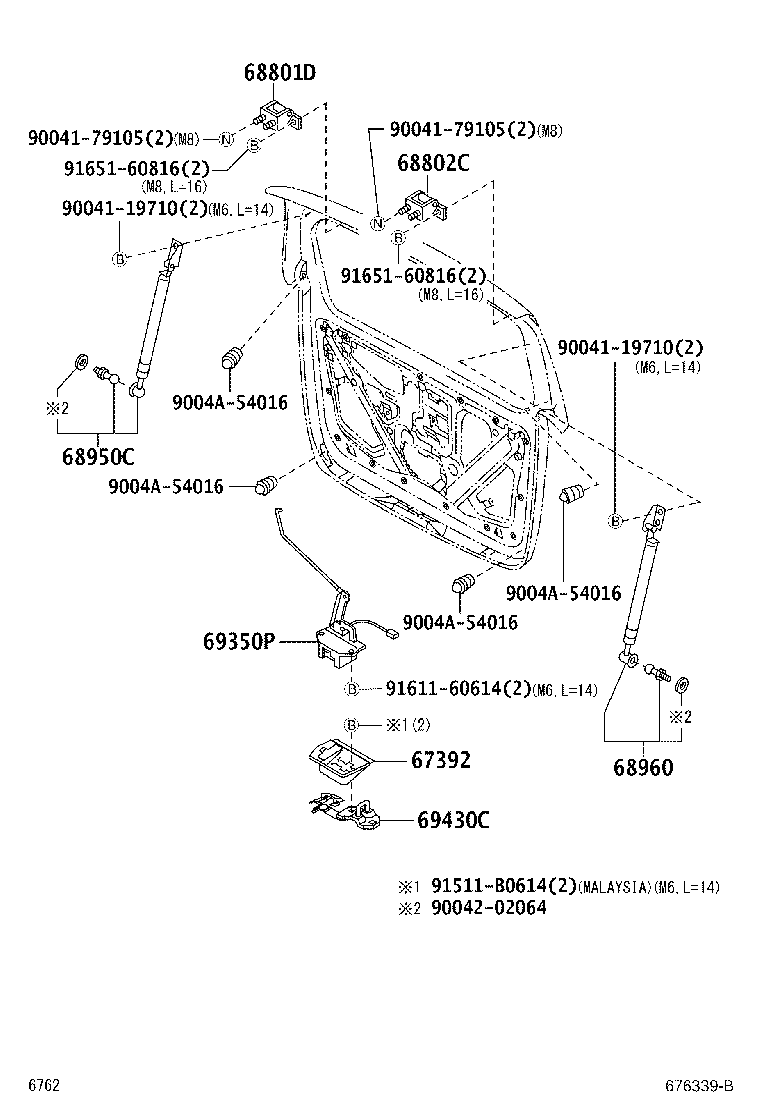

Figure 673431J 673431J 2003-12 → 2006-08 Figure 674650F 674650F 2006-08 → — Figure 676339B 676339B 2006-08 → —

Part groups

PNCDescription
64607D Cable Sub-assy, Back Door Lock Control
67392 Protector, Back Door Lock
68801D Hinge Sub-assy, Back Door, RH
68802C Hinge Sub-assy, Back Door, LH
68950C Stay Assy, Back Door, RH
68960 Stay Assy, Back Door, LH
69350P Lock Assy, Back Door, W/Courtesy Lamp Switch
69430C Striker Assy, Back Door Lock
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
