Toyota Avanza

2003-12 → 2011-11 · chassis F601,F602 · catalogue 613210 · United States

Discontinued model Data version 2012-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat Belt

15 part groups · 12 illustrations

Illustrations

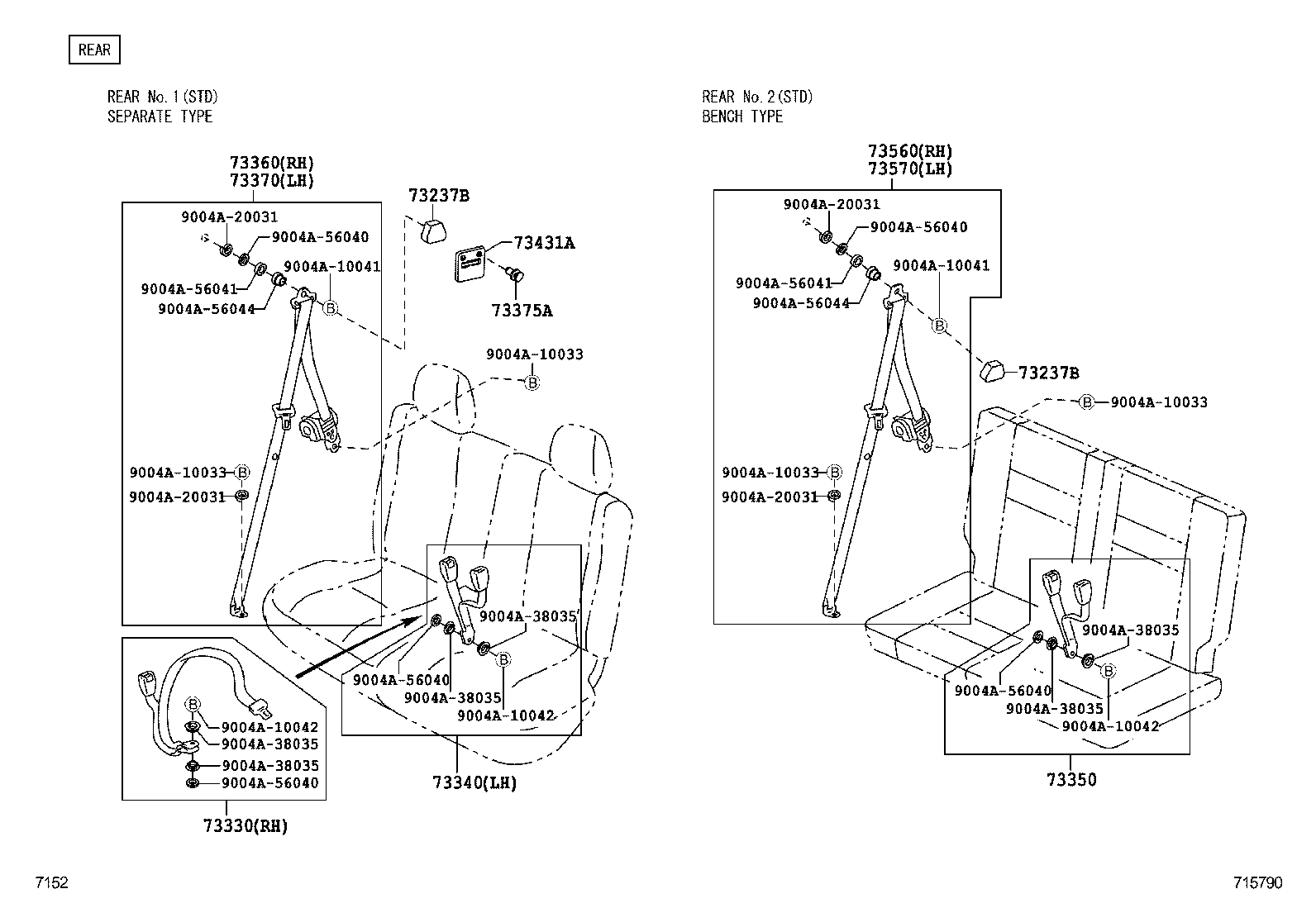

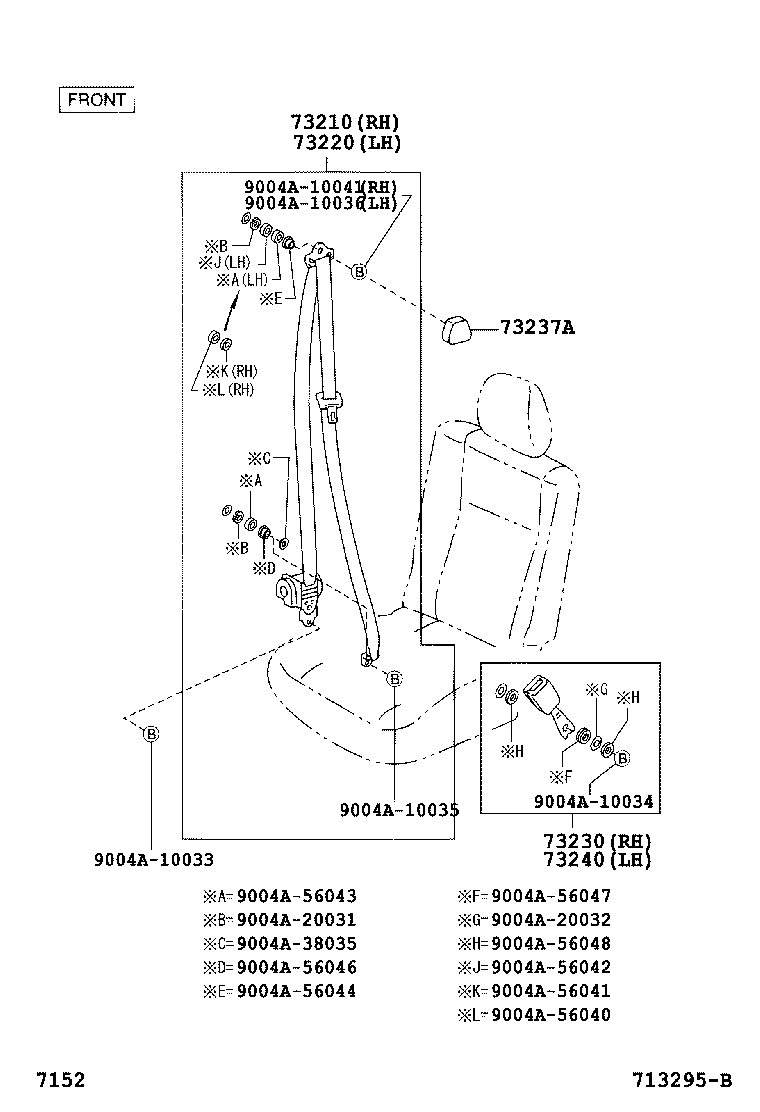

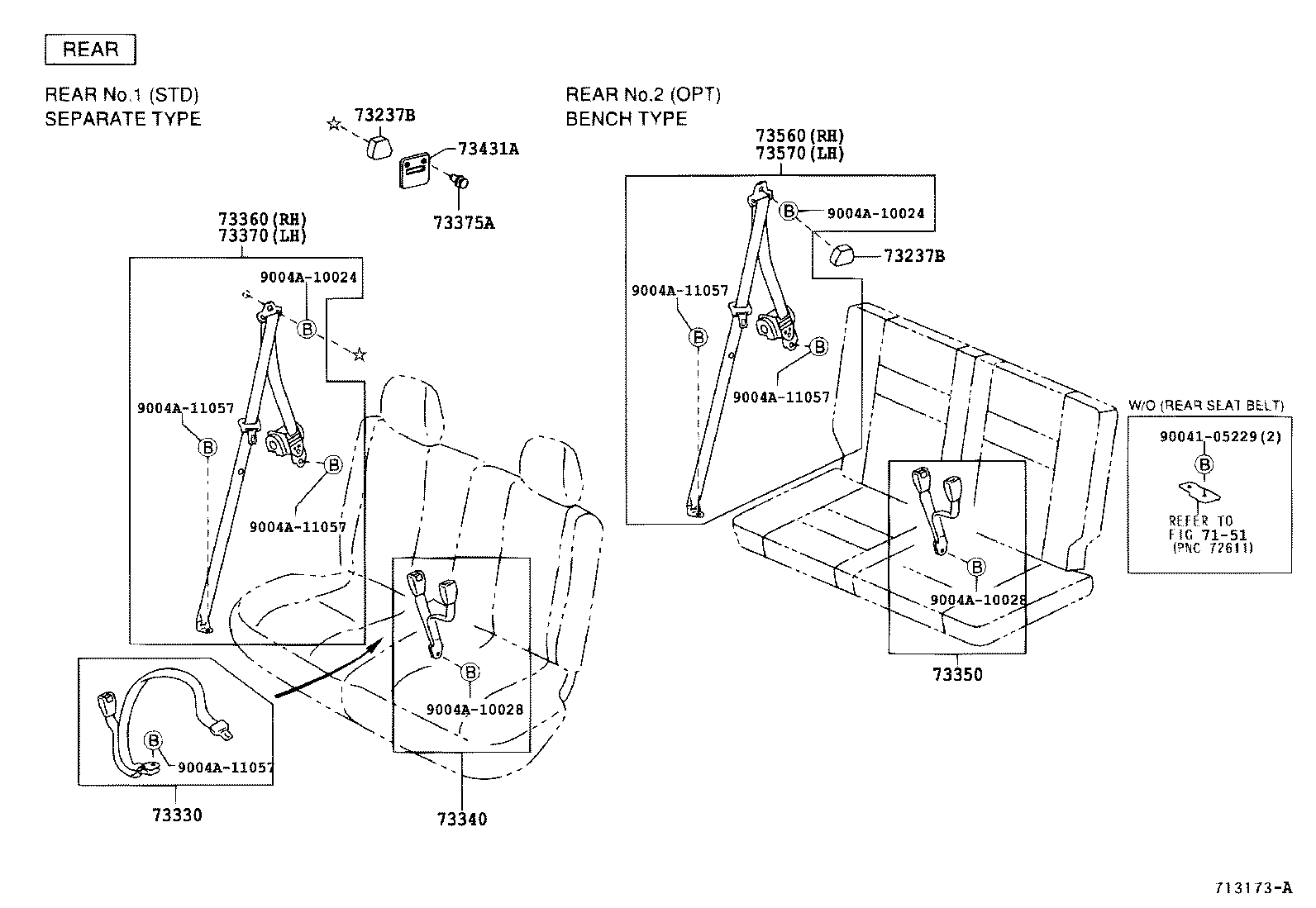

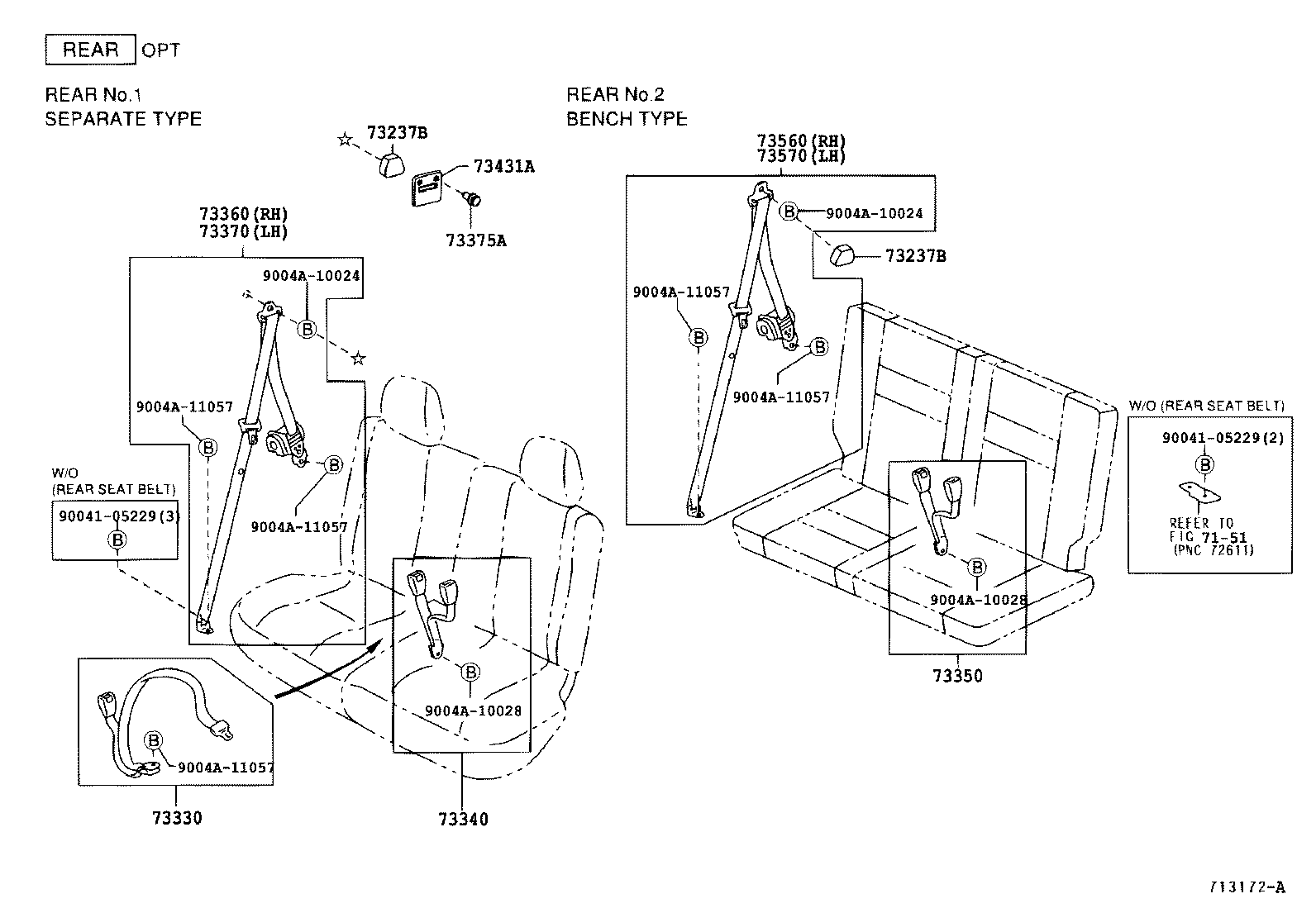

Figure 713170A 713170A 2003-12 → — Figure 713171A 713171A 2003-12 → 2006-08 Figure 713171A 713171A 2004-04 → 2006-08 Figure 713171A 713171A 2005-12 → 2006-08 Figure 713171A 713171A 2006-08 → — Figure 713295B 713295B 2004-10 → — Figure 713172A 713172A 2003-12 → — Figure 713173A 713173A 2003-12 → 2006-08 Figure 713173A 713173A 2004-04 → 2006-08 Figure 713173A 713173A 2005-12 → 2006-08 Figure 713173A 713173A 2006-08 → — Figure 715790 715790 2004-10 → —

Part groups

PNCDescription
73210 Belt Assy, Front Seat Outer, RH
73220 Belt Assy, Front Seat Outer, LH
73230 Belt Assy, Front Seat Inner, RH
73237A Cover, Shoulder Belt Anchor
73237B Cover, Shoulder Belt Anchor
73240 Belt Assy, Front Seat Inner, LH
73330 Belt Assy, Rear Seat Lap Type, RH
73340 Belt Assy, Rear Seat Lap Type, LH
73350 Belt Assy, Rear Seat Lap Type, Center
73360 Belt Assy, Rear Seat 3 Point Type, Outer RH
73370 Belt Assy, Rear Seat 3 Point Type, Outer LH
73375A Clip, Rear Seat Belt Cover
73431A Cover, Rear Seat Belt Retractor
73560 Belt Assy, Rear NO.2 Seat, Outer RH
73570 Belt Assy, Rear NO.2 Seat, Outer LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
