Toyota Avanza

2003-12 → 2011-11 · chassis F601,F602 · catalogue 613210 · United States

Discontinued model Data version 2012-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Caution Plate

16 part groups · 9 illustrations

Illustrations

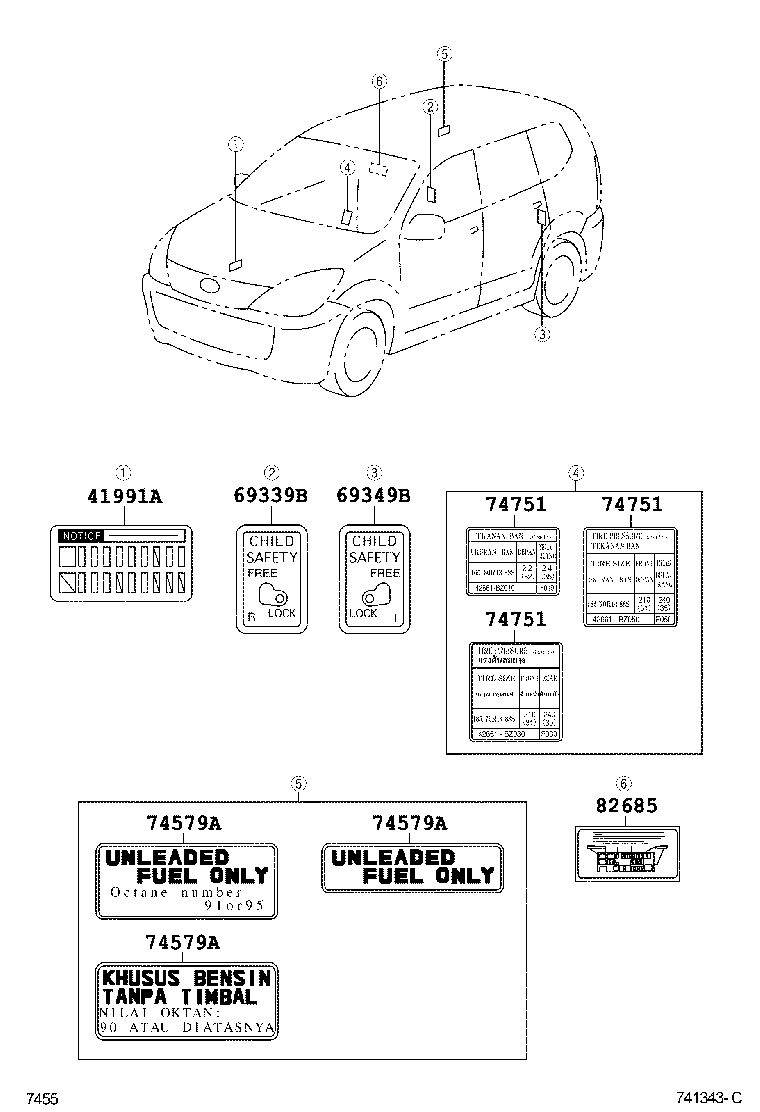

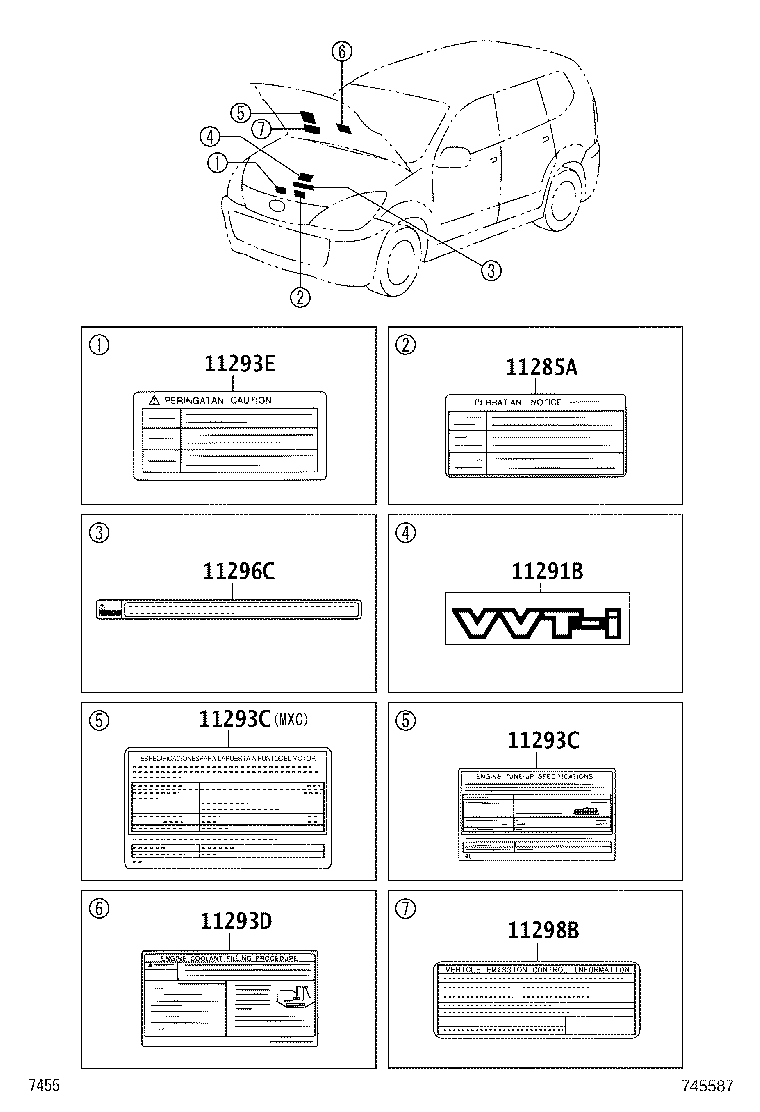

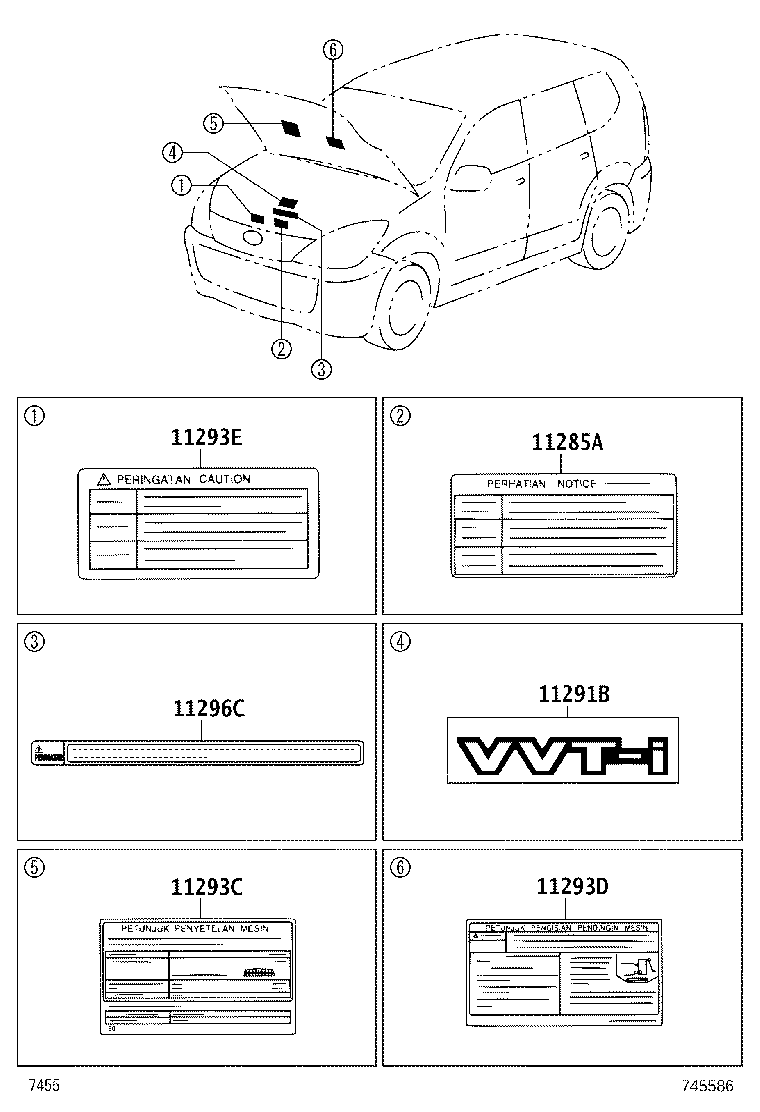

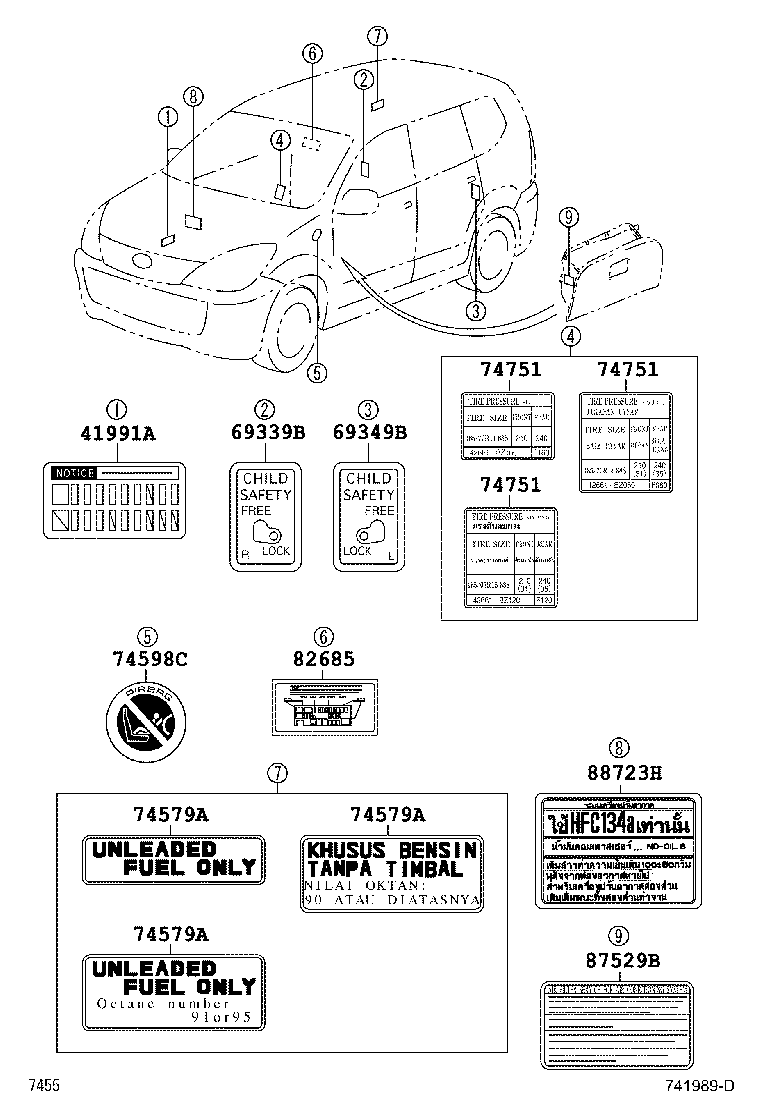

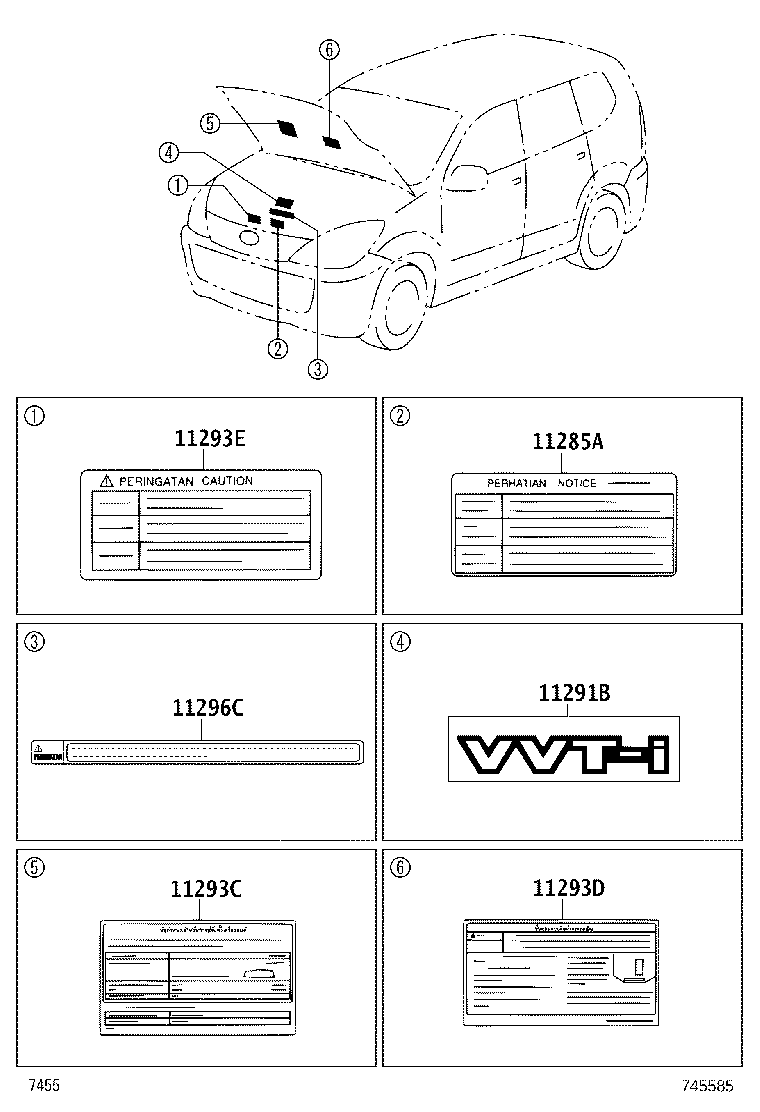

Figure 745584 745584 2003-12 → 2006-08 Figure 745585 745585 2004-04 → 2006-08 Figure 745585 745585 2006-08 → — Figure 745586 745586 2004-08 → 2006-08 Figure 745586 745586 2006-08 → — Figure 745587 745587 2004-10 → 2006-08 Figure 745587 745587 2006-08 → — Figure 741343C 741343C 2003-12 → 2006-08 Figure 741989D 741989D 2006-08 → —

Part groups

PNCDescription
11285A Label, Coolant System Notice
11291B Plate, Engine Name
11293C Label, Tune-up Specification Information
11293D Label, Engine Caution
11293E Label, Engine Caution, NO.2
11296C Label, Engine Service Information
11298B Label, Emission Control Information
41991A Plate, Caution
69339B Plate, Child Protector Lock Caution
69349B Label, Child Protector Information, LH
74579A Label, Unleaded Fuel Information
74598C Label, Passenger Airbag Caution
74751 Label, Tire Pressure Information
82685 Plate, Caution
87529B Label, A/C Filter Information
88723H Label, Cooler Service Caution
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
