Toyota Avanza

2003-12 → 2011-11 · chassis F601,F602 · catalogue 613210 · United States

Discontinued model Data version 2012-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Moulding

18 part groups · 2 illustrations

Illustrations

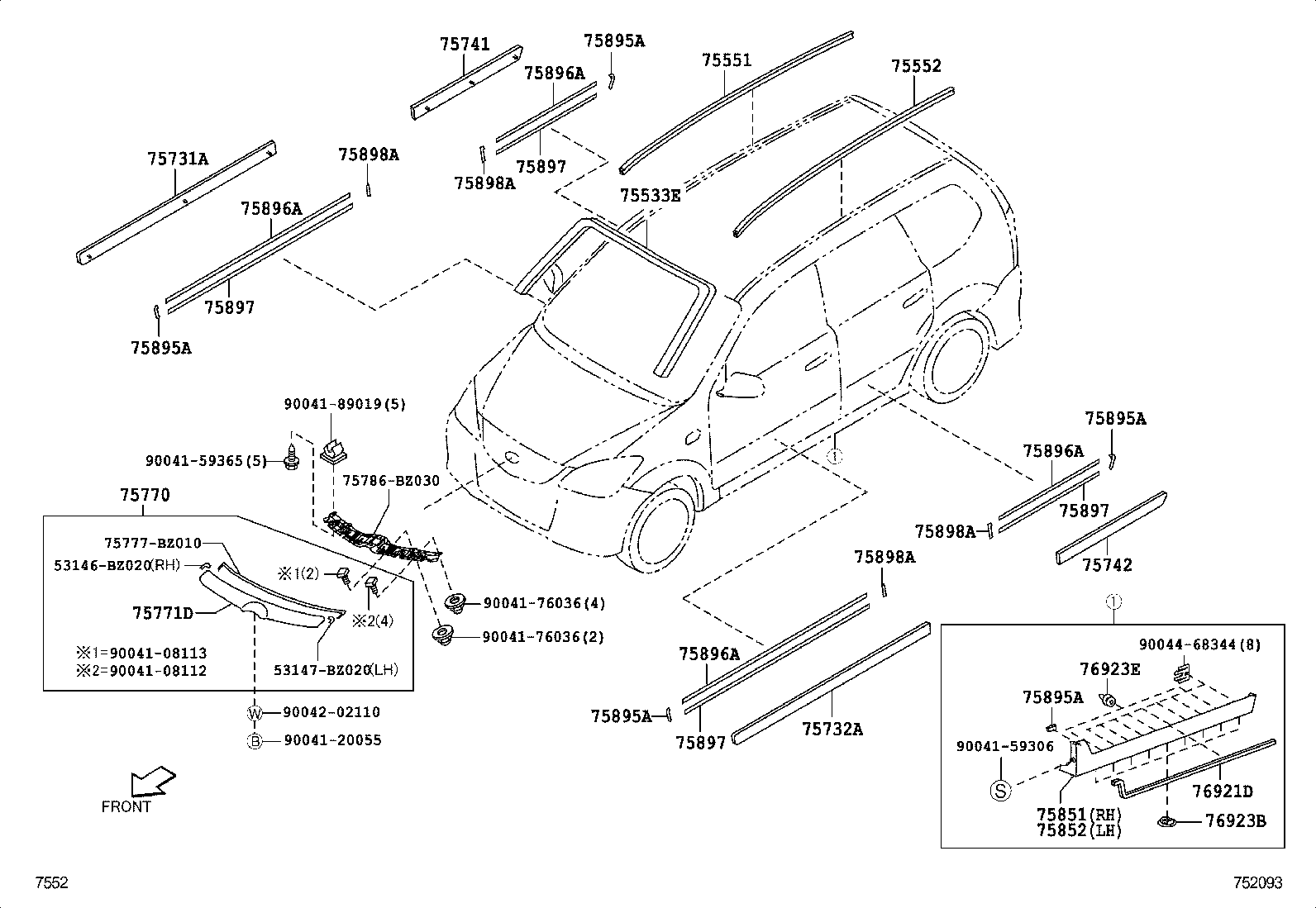

Figure 751304C 751304C 2003-12 → 2006-08 Figure 752093 752093 2006-08 → —

Part groups

PNCDescription
75533E Moulding, Windshield, Outside
75551 Moulding, Roof Drip Side Finish, RH
75552 Moulding, Roof Drip Side Finish, LH
75731A Moulding, Front Door, Outside RH
75732A Moulding, Front Door, Outside LH
75741 Moulding, Rear Door, Outside RH
75742 Moulding, Rear Door, Outside LH
75770 Moulding Assy, Hood, Front
75771D Moulding, Front Panel, Upper
75851 Moulding, Rocker Panel, RH
75852 Moulding, Rocker Panel, LH
75895A Tape, Moulding, NO.1
75896A Tape, Moulding, NO.2
75897 Tape, Moulding, NO.3
75898A Tape, Moulding, NO.4
76921D Protector, Side Mudguard, NO.1
76923B Retainer, Side Mudguard
76923E Retainer, Side Mudguard, RH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
