Toyota Avanza

2003-12 → 2011-11 · chassis F601,F602 · catalogue 613210 · United States

Discontinued model Data version 2012-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Spoiler & Side Mudguard

13 part groups · 5 illustrations

Illustrations

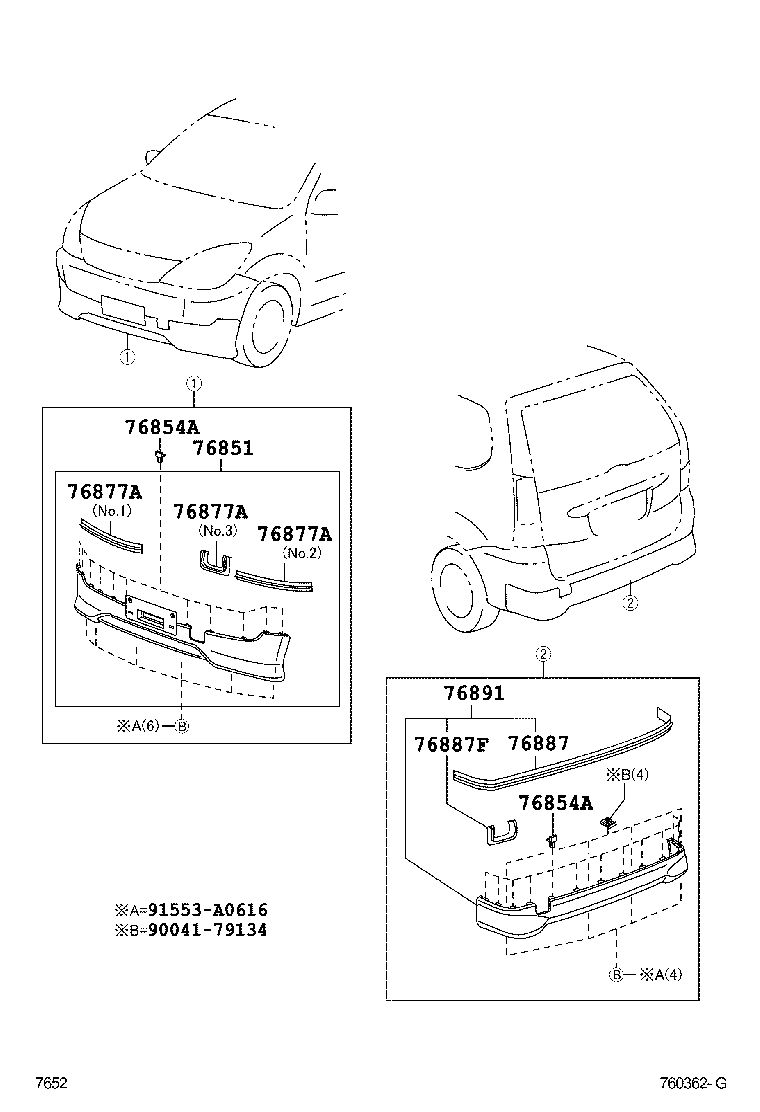

Figure 760345D 760345D 2003-12 → 2006-08 Figure 760345D 760345D 2006-08 → — Figure 760362G 760362G 2004-08 → 2006-08 Figure 760544C 760544C 2006-08 → — Figure 760543D 760543D 2006-08 → —

Part groups

PNCDescription
76621D Mudguard, Front Fender, RH
76622D Mudguard, Front Fender, LH
76625G Mudguard, Quarter Panel, Rear RH
76626E Mudguard, Quarter Panel, Rear LH
76645C Bracket, Quarter Panel Rear Mudguard
76851 Cover, Front Spoiler
76854A Retainer, Front Spoiler, NO.2
76871 Spoiler, Rear
76877A Protector, Front Spoiler
76881 Protector, Rear Spoiler Side, NO.1 RH
76887 Seal, Rear Spoiler
76887F Seal, Rear Spoiler, NO.2
76891 Spoiler, Rear NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
